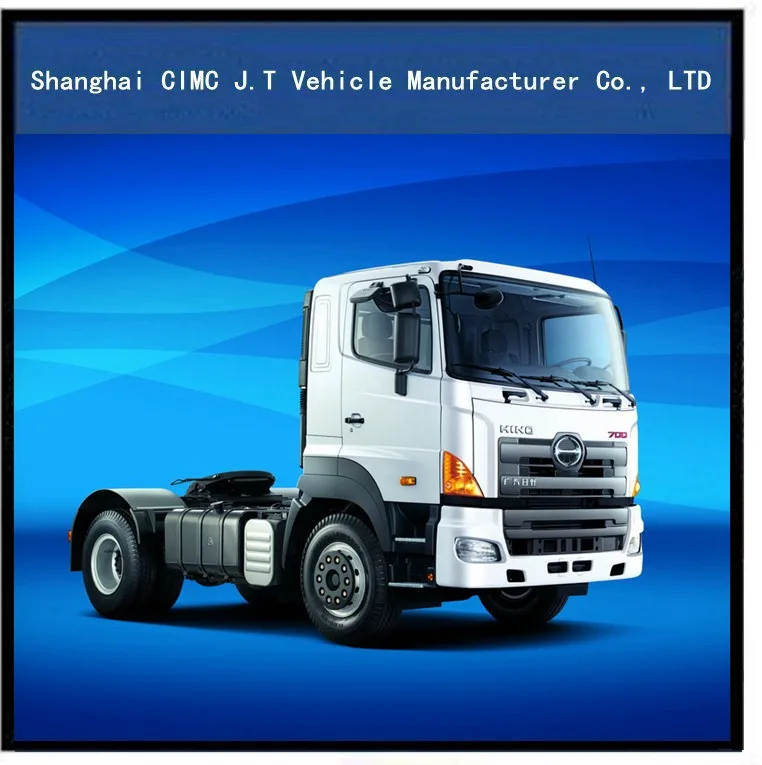

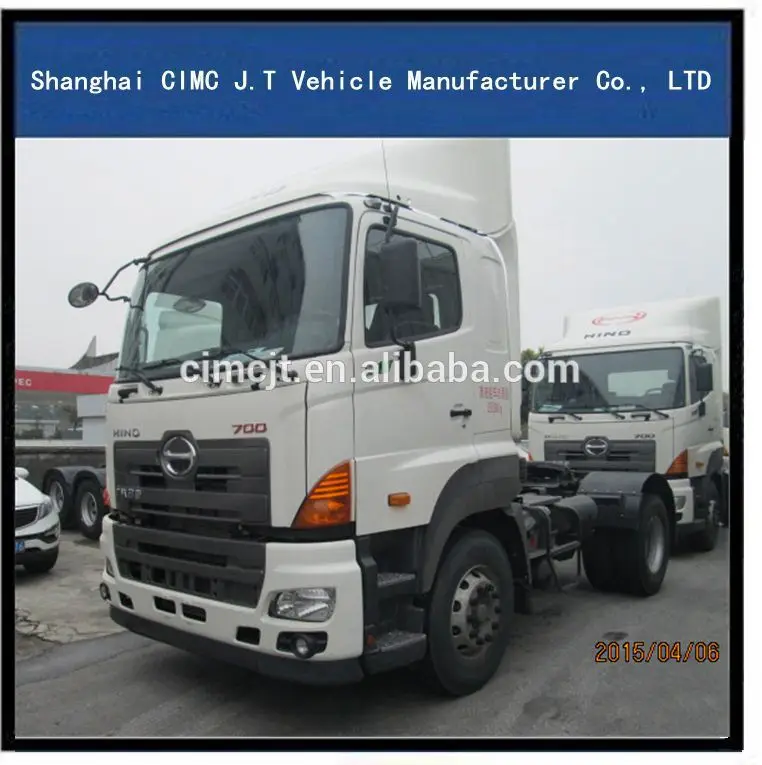

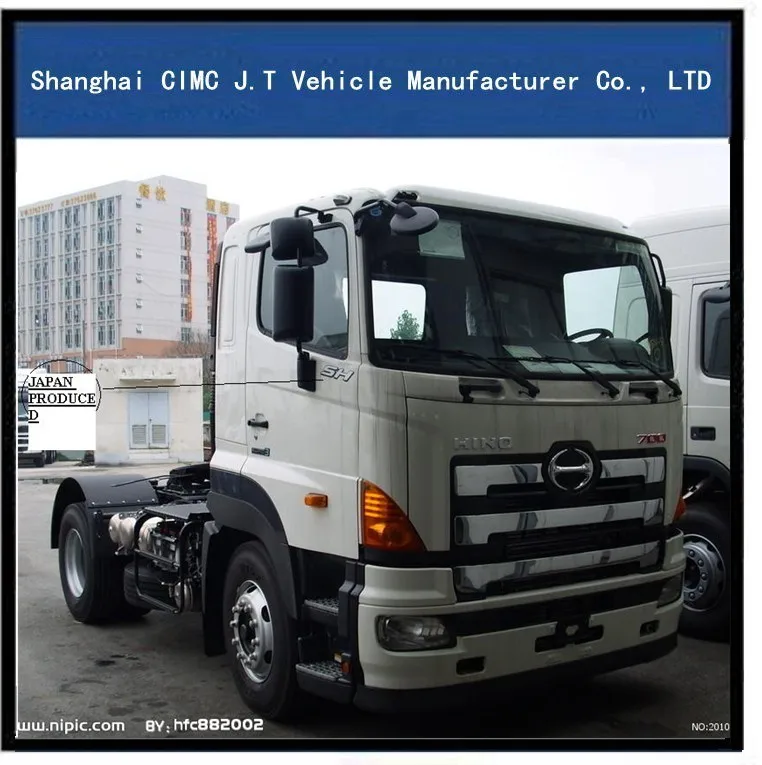

350 hp HINO heavy tractor truck/head truck , EURO 5 LNG DFL4*24*2 international tractor truck head for sale
- Category: >>>
- Supplier: Shanghai Cimc J.t Vehicle Co. Ltd.
Share on (60613739361):
Product Overview
Description
350 hp HINO heavy tractor truck/head truck , EURO 5 LNG DFL4*24*2 international tractor truck head for sale
![[1O4E$4~`UR6V[T]}DI)}{I](http://g01.s.alicdn.com/kf/HTB16eshPXXXXXX8apXX760XFXXXX/227533878/HTB16eshPXXXXXX8apXX760XFXXXX.png)
Product Description
| Model | YC4180SH2PE/HINO SH2PEUA-ASW |
| EngineMake | HINO |
| Diesel 4-stroke direct injection diesel engine, Electronic control | |
| Engine model | P11C-UJ , Euro III or Euro IV emission standard |
| 6-cylinder in-line, turbo-charging and intercooling | |
| Maximum output | 350 hp (259 Kw) at 2100 rpm |
| Maximum torque | 1483 Nm at 1100-1300r/min |
| Number of cylinder | 6 |
| Displacement | 10.52 L |
| Bore | 122 mm |
| Stroke | 150 mm |
| Specific fuel consumption | 195 g/kWh |
| Engine oil filling quantity | 19 l |
| Cooling system filling quantity (long-term filling) | 40 l |
| Transmission | FULLER RT-11509C, 9 forwards and 1 reverse, 1490N.m, 2600rpm |
| Ratio: 12.42 8.26 6.08 4.53 3.36 2.47 1.81 1.35 1 12.99 (R) | |
| Propeller ShaftDouble universal joint propeller shaft with gear-shaped coupling flange | |
| Front AxleHINO, Steering with doubleT-cross section beam | |
| Rear Axle | HINO Pressed axle housing, Pressed axle housing, central single reduction |
| Ratio:3.727 | |
| Aluminium fuel tank | |
| Fifth wheel | |
| BrakesService brake: dual circuit compressed air brake | |
| Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels | |
| Auxiliary brake: engine exhaust brake (WEVB) | |
| Trailer Brake | |
| Fifth wheelRated loading capacity at fifth wheel: 50,000kg | |
| Wheels & TyresTire | 11.00R20, all steel radial tyre |
| Overall length | 6000mm |
| Overall width | 2500mm |
| Overall height with roof air spoiler | 3900mm |
Company Information
CIMC VECHICLE was founded by 1980, having over 63, 000 staff across China, North America, Europe, Asia and Australia. CIMC the biggest truck and truck body manufacturer in China, CIMC is famous in the world!
CIMC China truck supermarket cooperates with all brands of trucks which all produced in China for the GVW>15, 000 kgs heavy trucks, CIMC produces the cargo body or special truck body for the trucks. The CIMC own truck brand is C&C, and cooperate other truck chassis brand which produced in China.
Certifications
FAQ
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q: How about the quality guarantee and after -sale service?
A: For quality guarate, we give one year guarantee, and with 24hours response principle for better service.
We have more than 30 agency all over the world, you can get the most convenient service by nearest agency.
Q:I want to be your agent in my country , is that ok?
A:It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.
Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?
A: We can make the tyres as your requirement to suit your country's need.
Welcome to have a visit to our company and factory.
