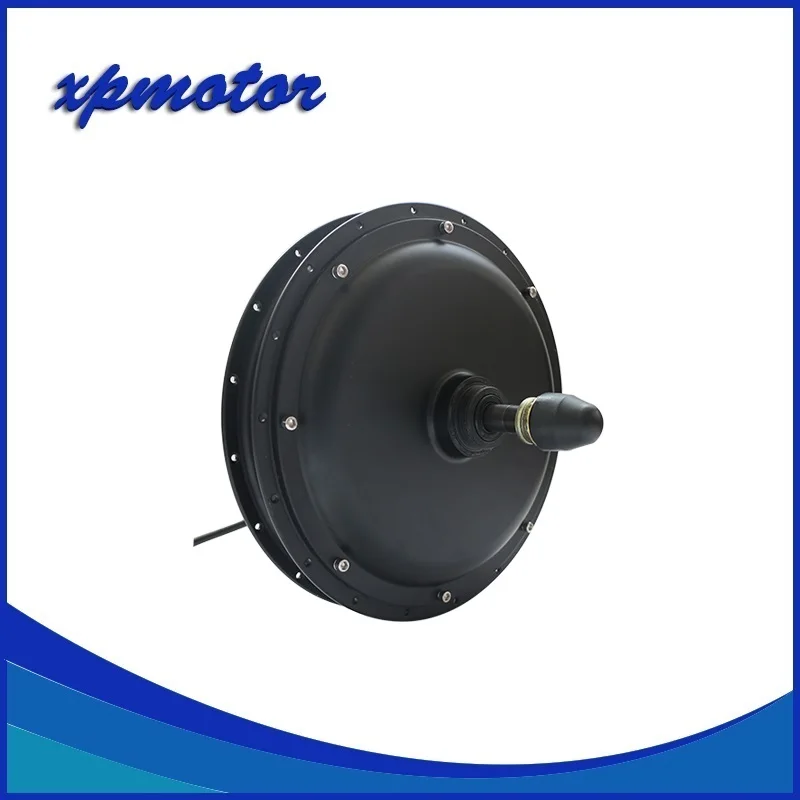

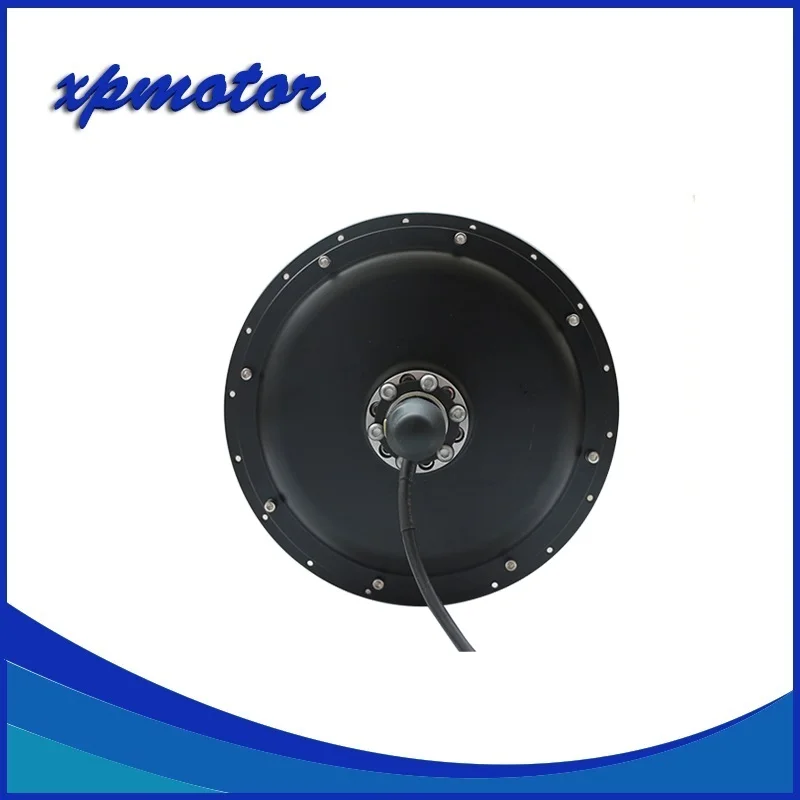

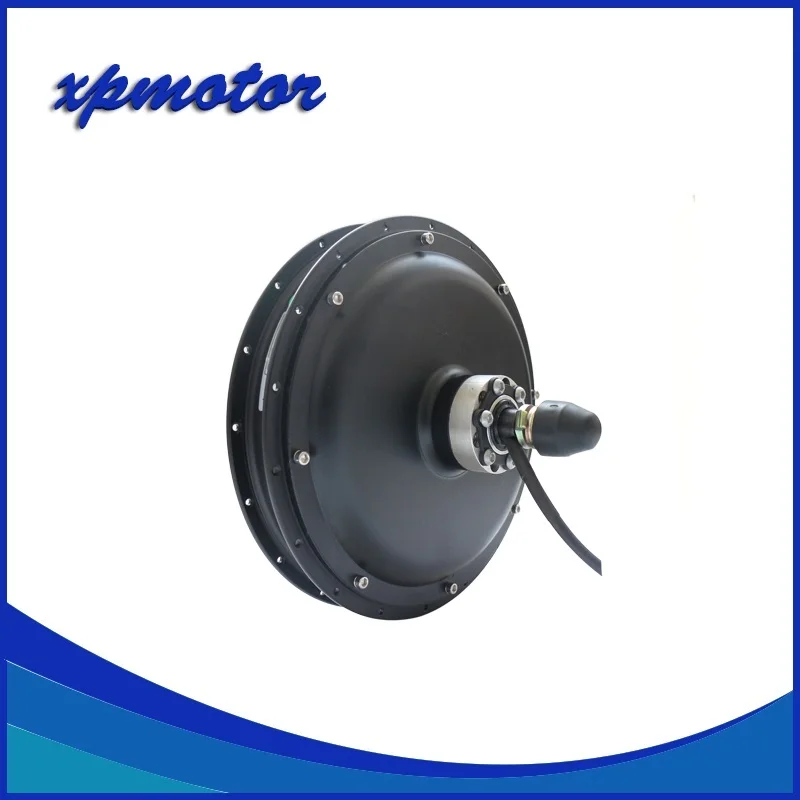

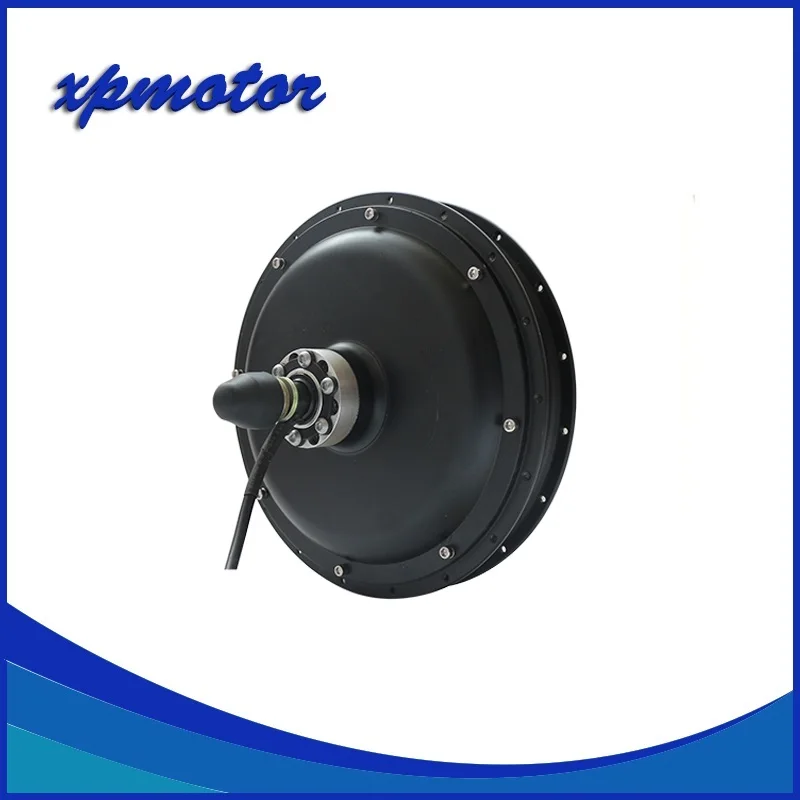

500W Fat Bike Spoke Hub Motor For Fat Electric Bicycle 170MM drop out

Product Overview

Description







500W Spoke Hub Motor For Fat Electric Bicycle





This Spoke Hub Motor specially designed for Fat Electric bicycle, the required rear fork width is 170mm



















Motor Type: BLDC Hub Motor with Permanent Magnet



Motor design: Double axle out



Spoke hole : 3.4mm x 36pcs



Matching Rim:16inch-26inch



Rated Power: 500W



Peak Power: 800W



Rated Voltage: 36V/48V(Can be optional)



Speed: 25km/h



Max No-load RPM: 500RPM



Max Torque: 35N.M



Max Efficiency: 88%



Continious current:16A



Max curren:28A



Brake type: Disc brake



Rear Fork width for installation: 170mm



Winding Core material: Steel



Cross Section of Phase wire: 3 mm2



Hall sensor phasing angle: 120 degree



Max. Working Temperature: 70 degree, 120 degree



Waterproof Grade: IP54



Weight :7KGS
