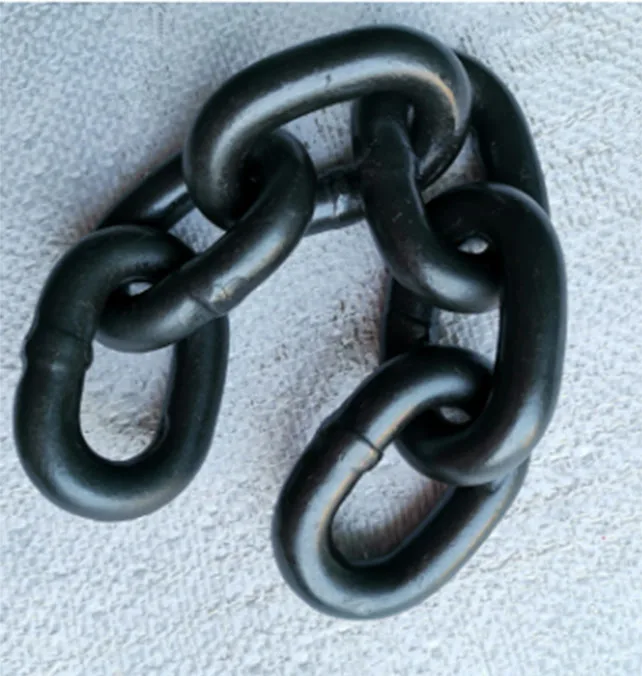

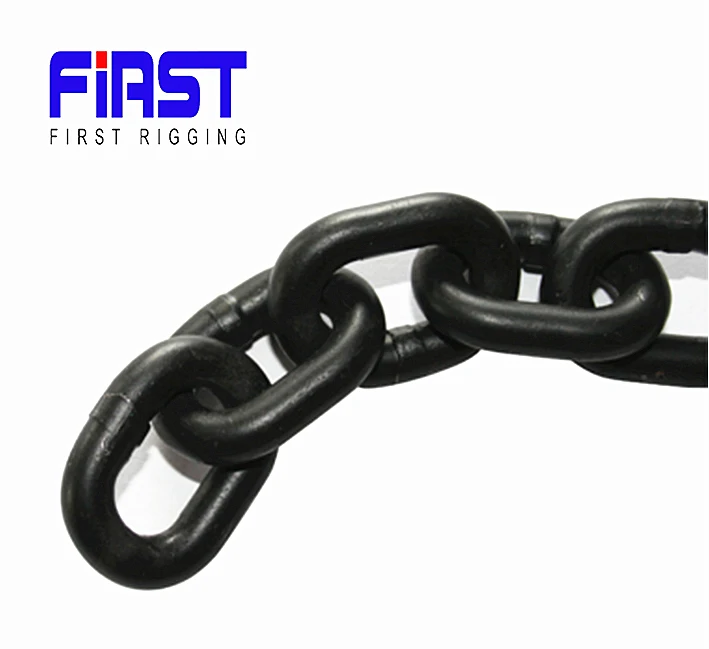

12mm*36mm Alloy steel G80 grade lifting chain

Product Overview

Description

Alloy steel  G80 grade lifting chain

The 80-Grade lifting chain is an indispensable lifting device for lifting heavy objects. It is made of high-quality alloy steel and meets the international standard of G80.



Scale and Parameters (please see the parameters of 12*36mm):

Size (mm) diameter* inseam length	Min inside width(mm)	Max outside width(mm)	Weight(kg/m)	Working load(KN)	Test load(KN)	Break load(KN)
6*18	7.5	21	0.79	11	27	45.2
7*21	9	24.5	1.07	15	37	61.6
8*24	10	28	1.38	20	48	80.4
9*27	11.5	30	1.9	24.5	61	102
10*30	12.5	35	2.2	32	76	125
12*36	15.5	42.2	3.3	49	117	196
13*39	16.3	46	3.8	50	128	214
14*42	18	49	4.13	63	150	250
16*48	20	56	5.63	80	192	320
18*54	23	63	6.85	100	246	410
20*60	25	70	8.6	125	300	500
22*66	28	77	10.5	153	366	610
24*72	32	82	12.78	180	432	720
26*78	35	91	14.87	213	510	650
30*90	38	105	19.6	283	678	1130
32*96	40	106	22.29	322	772	1289
34*102	46.5	121.5	25.5	363	870	1450
36*108	49.5	128.5	31	407	978	1630
38*114	52	136	32	453	1086	1810
42*126	55.5	144.5	38.6	554	1332	2200

Do Verification test under 2.5 times of working load
Broken load is 4 times of the working load

Safety guarantee :4 times safety factor, 4 times experimental load

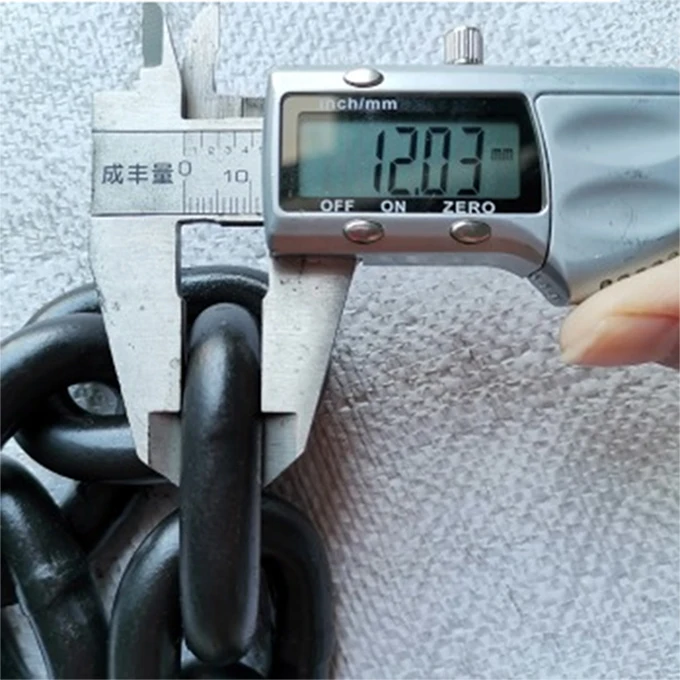

Diameter (mm) :

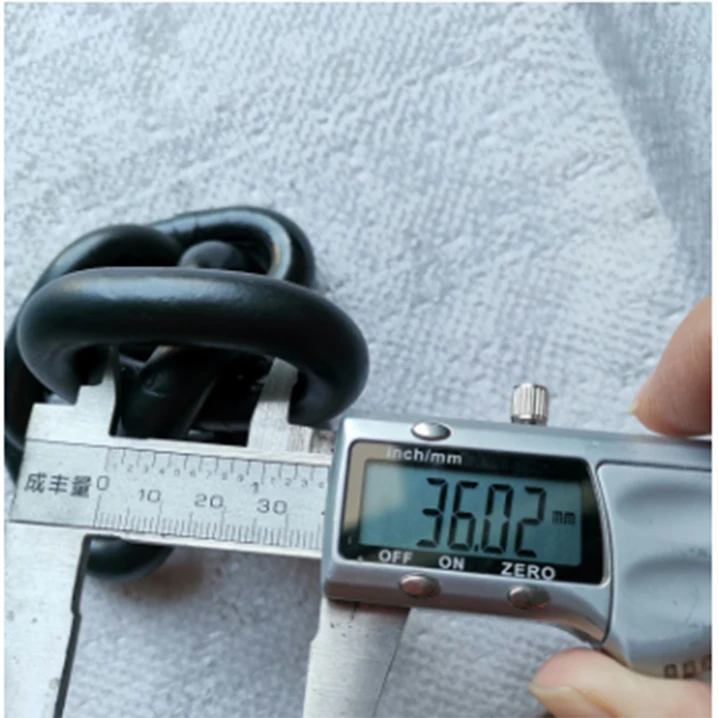

Inside length (mm) :

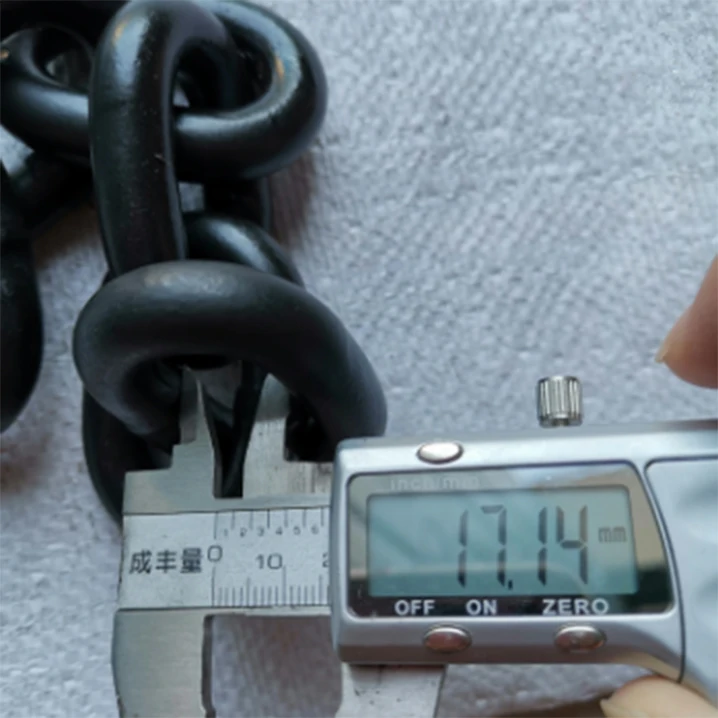

Inside width (mm):

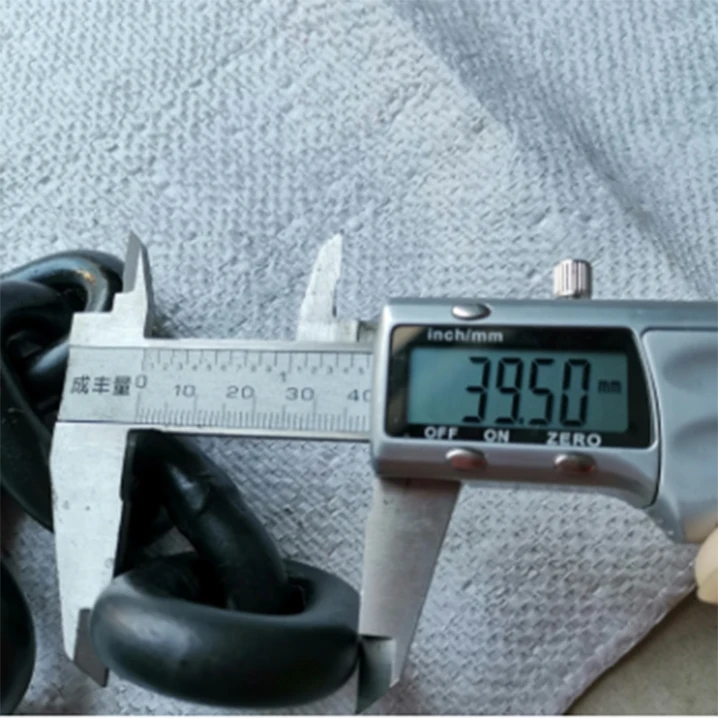

Outside width (mm):

Features:

1. Excellent material: high hardness, not easy to wear, impact resistance, good durability

2. Precision Machining: Strictly check and do best every step

3. Good carrying capacity: the lifting chain is an important device for the crane, with stable performance and good carrying capacity

4. On-demand customization: diverse specifications to meet  different customer needs

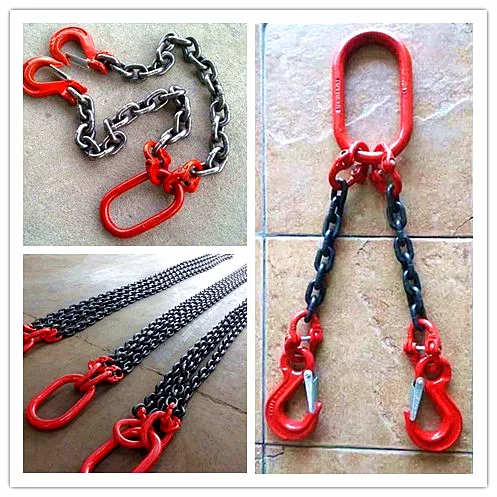

Use method show :

Warning: Never exceed the working load to use

 Workshop (Production machine and Test machine)

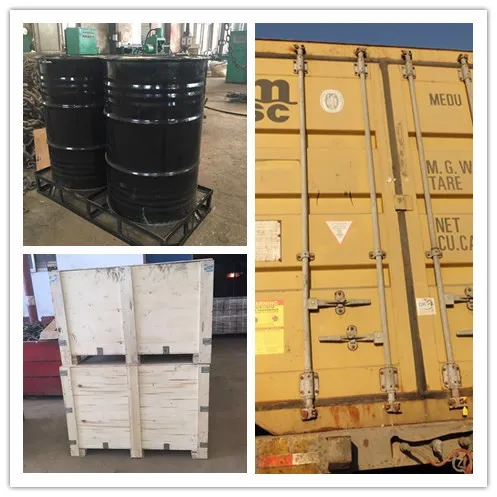

Packaging & Delivery:

Packing details: Bulk packing,Packed in wooden carton, then in pallet,Iron drum, then in pallet,According to your requirements

 Delivery Detail: Usually 30-40 days after receiving your advance payment.
