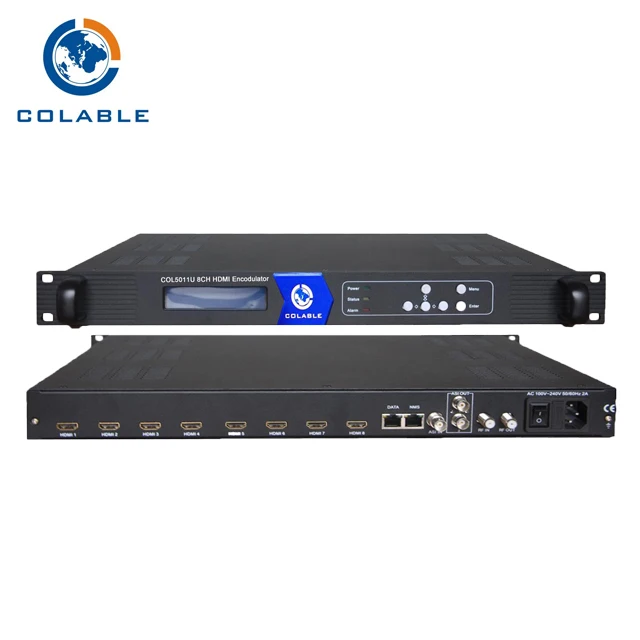

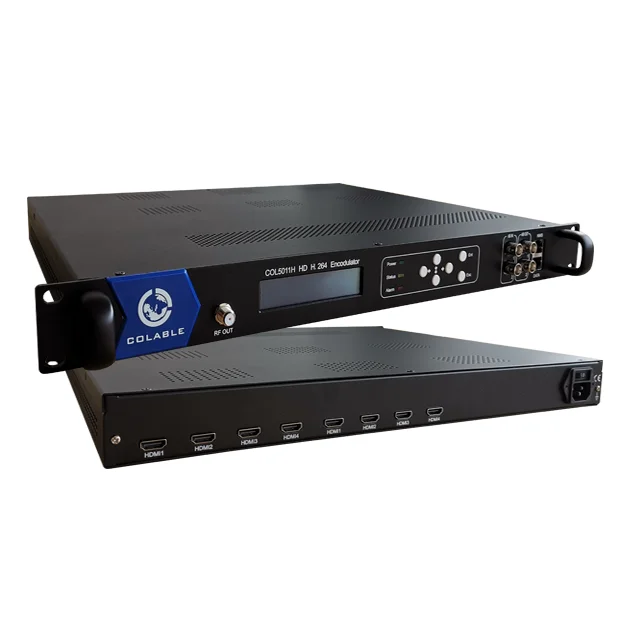

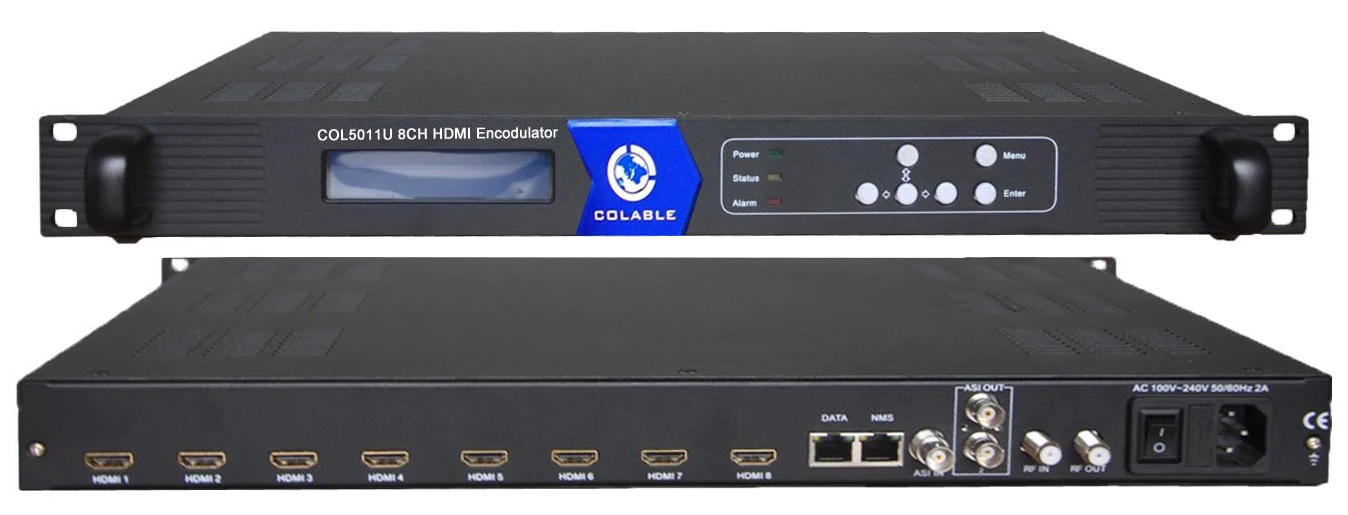

Digital TV Broadcasting 8 Channels HD Encoder to QAM Modulator COL5011U 8HC
- Category: >>>
- Supplier: Colable Electronics Co. Ltd.
Share on (60614030755):
Product Overview
Description
Digital TV Broadcasting 8 Ch HD Encoder to QAM Modulator Encodulator
Outline
This 1/24/8CH HD Encodulator is a professional HD and SD audio & video encoding and multiplexing device
with powerful functionality. It has 4/8 channel HD input interfaces, supporting MPEG4AVC/H.264 High Profile
code format. This device can simultaneously encode 4/8 channel HD programs; moreover, it has an ASI input and can multiplex the input TS with the 4/8 encoded SPTS to generate a MPTS output. Also, the PSI/SI informtion can be inserted into MPTS output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as CATV digital head-end, satellite and terrestrial
digital TV, etc.
Features
- 1/2/4/8×HD HD/SD video inputs
- 1× ASI input interface
- Low Latency Encoding
- Lower Resolutions Output
- Support MPEG4AVC/H.264 igh Profile code format
- PSI/SI editing and inserting
- PID remapping and passthrough
- Support CBR/VBR video bitrate mode
- Support 1080i,1080P,720P,576i,480i video format
- Outputs multiplexed MPST ASI
- 4*DVB-C RF output
- Support IP out(UDP/RTP/RTSP protocol,SPTS)
- Support IP null packet filter
- Support Web monitoring
- Support SNMP Ethernet software upgrade
- LCD display
Specification
Input | 8 channels hd inputs | |||
1×ASI input( BNC interface) | ||||
1RF input | ||||
Video | Resolution | 1920×1080_60p 1920×1080_50p | ||
1920×1080_60i, 1920×1080_50i | ||||
1280×720_60p, 1280×720_50p | ||||
720×480_60i, 720×576_50i(D1) | ||||
544×480_60i, 544×576_50i(3/4D1) | ||||
352×480_60i, 352×576_50i(HD1) | ||||
480×480_60i, 480×576_50i(2/3D1) | ||||
Encoding | MPEG4 AVC/H.264 High Profile Level 4.0 for HD and SD | |||
Bit-rate | 0.8Mbps~19ps (each channel) | |||
Rate Control | CBR/VBR | |||
GOP Structure | IBBP | |||
Advanced Pretreatment | De-interlacing, noise reduction, sharpening | |||
Audio | Audio encoding | Mpeg1 lay2 | ||
Sampling rate | 48KHz | |||
Resolution | 24-bit | |||
Bit-rate | 64Kb/s~384Kb/s each channel | |||
Multiplexing | Multiplex 1ASI input and 8 channels hd encoding programs | |||
Stream output | 2×ASI outputs, BNC interface(support PID filter and pass, support real time monitoring of the output stream.) | |||
Low Latency Encoding | ||||
Lower Resolutions Output | ||||
IP out SPTS(UDP,RTP,RTSP),support IP out null packets filter. | ||||
RF Out(DVB-C 4RF, DVB-T 2RF,ISDB-T 1RF,ATSC 4RF) | ||||
Modulator Section | standard | J.83A,J.83B,J.83C | ||
MER | >42dB | |||
RF Frequency | 30~999MHz,1KHz step | |||
RF output level | (80dbuv~115dbuv),0.1db step | |||
Symbol Rate | 5.0~9.0Msps | |||
RF carrier | 4 carrier | |||
J.83A | Constellation | 16/32/64/128/256QAM | ||
bandwidth | 8M | |||
J.83B | Constellation | 64QAM,256QAM | ||
bandwidth | 6M | |||
J.83C | Constellation | 64QAM,256QAM | ||
bandwidth | 6M | |||
System function | LCD/keyboard operating, web based management software, English control interface | |||
SNMP Ethernet software upgrade | ||||
General | Dimensions (W×D×H) | 482mm×455mm×44.5mm | ||
Approx weight | 3.5Kg | |||
Temperature range | 0~45℃(Operating), -20~80℃(Storage) | |||
Power Requirements | AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz | |||
Power consumption | 65W | |||
Packing Information for HD qam modulator
Hot Products
Latest hot products
Some tv system solutions with qam modulator for reference
Why choose us?
Colable Electronics Co.,Ltd
We specialize in Digital TV broadcasting equipment for more than 15 years, and experienced in Digital
Cable/Satellite/ Terrestrial tv broadcasting solution and IPTV system, If you have any questions and ideas,
please don't hesitate to contact us!
Our experience: Continuous experienced and reliable R&D team , Engaged in DVB Head-end
system solution more than 15 years.
Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer
,Scrambler, Modulator, Encoder Modulator ,Tuner to ip gateway ,Tuner to RF modulator, Transmitter,Antenna,Set top box .
Our service: Life-long Technical support.
Warranty: 1 years ,free repair for headend in 3 years.
Lead time: 2-5 working days after payment confirmed
For more information and real price, please contact us freely, welcome to send us enquiry ^_^
