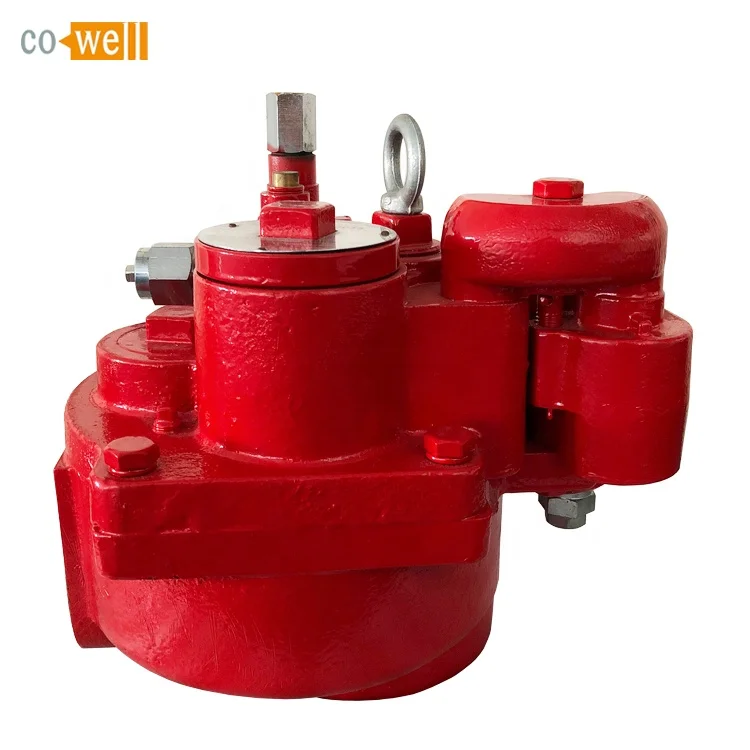

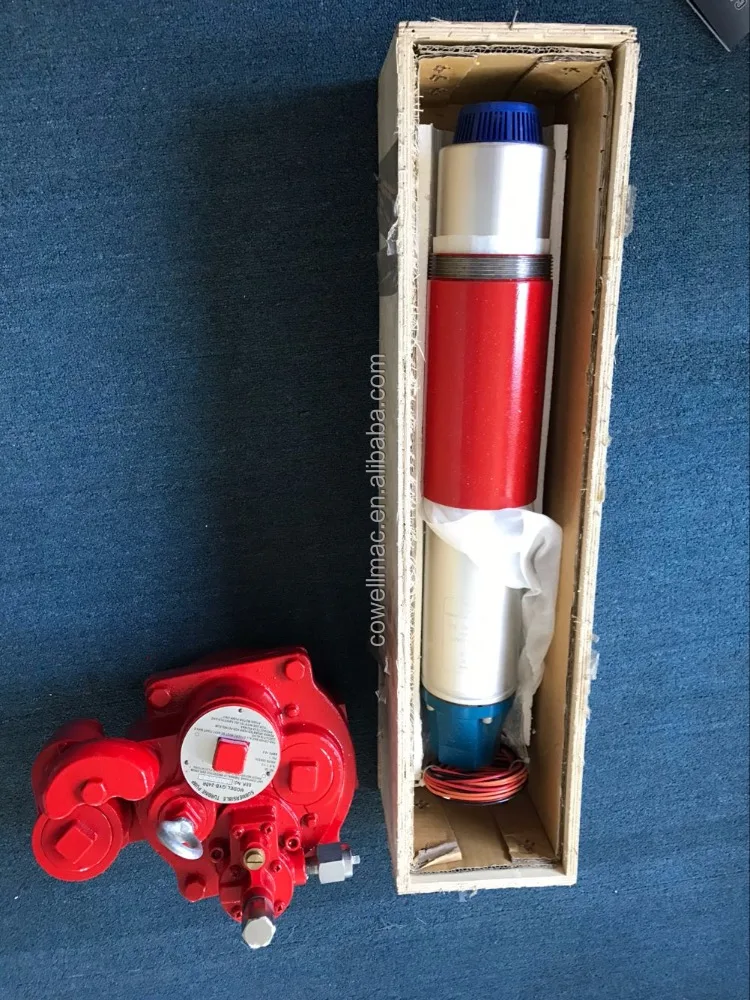

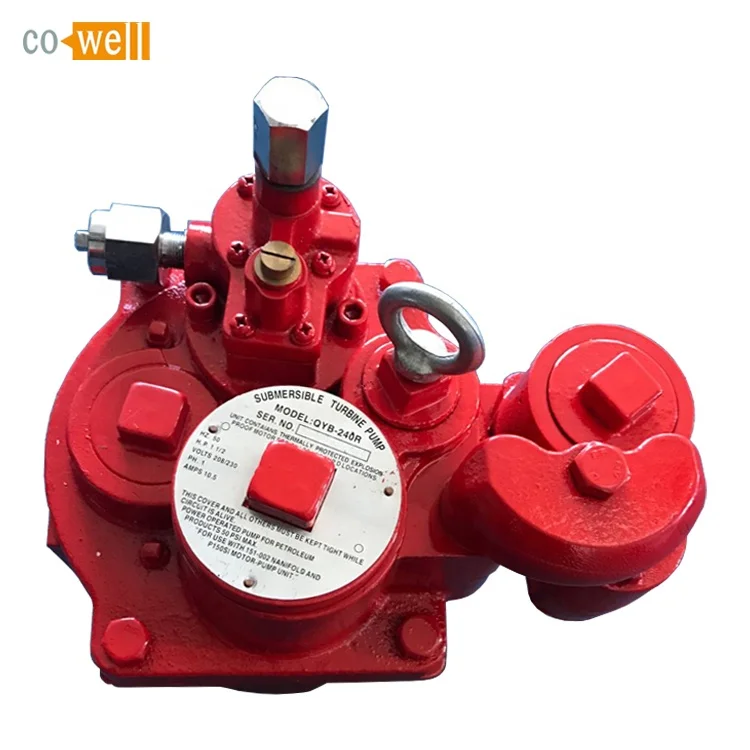

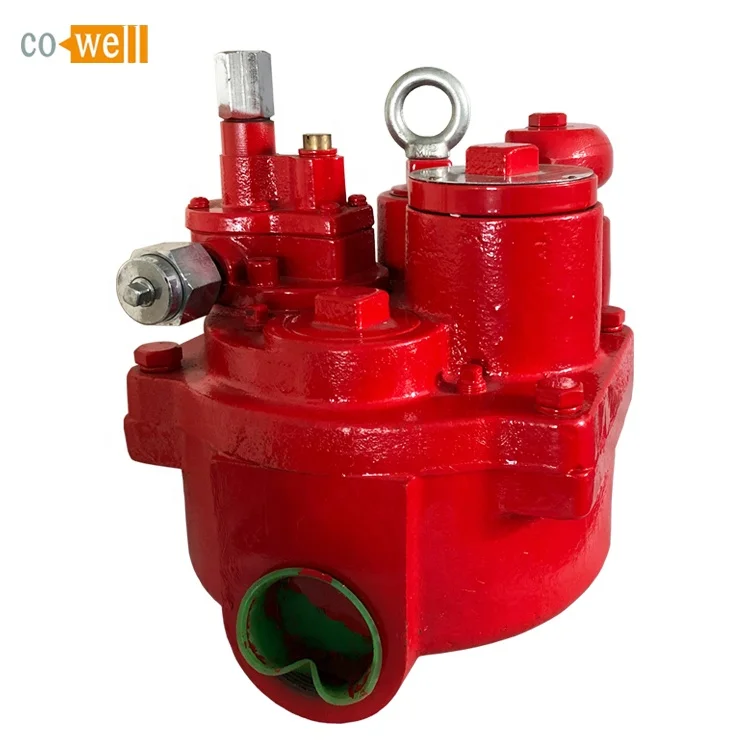

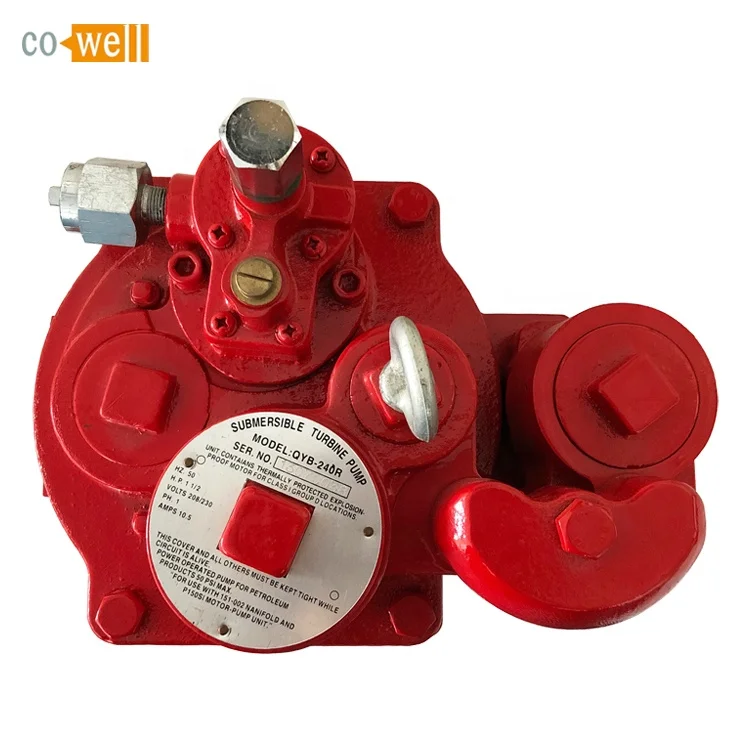

Red Jacket 1.5 HP Submersible Pump
- Category: >>>
- Supplier: Shanghai Cowell Machinery Co. Ltd.
Share on (60614043384):
Product Overview
Description
Submersible Turbine Pump for petrol station equipment
Description
A. Best performance, long time service, lower noise
B. Easy to install and service. Quick, simple and safe electrical connections
C. Manifold allows for vertical or horizontal discharge
D. Save time, lower service costs
E. Built with check valve, by pass valve, vacuum valve
F. For diesel, gasoline, kerosene, etc.
G. Vapor-free, suction head longer than suction pump
Technical Specification | |
Max Flow Rate | 200L/min, 240L/min |
Rotating Speed | 2820RPM |
Voltage | 220V,50Hz / 380V,50Hz |
Current | 9A |
Power | 1.1Kw/1.5H, 1.3Kw/1.8H |
Ex-proof Class | IP×6 |
| Fixation Thread | BSPF4" BSPF/NPT4" |
| Inlet | BSPF1 1/2 " BSPF/NPT1 1/2 " |
| Outlet | NPT2" |
| Adjustable Pressure | 21KPa-207KPa |
| Factory Pressure Range | 79KPa-93KPa |
| Working Pressure | >34KPa |
| Rating Pressure | 0.1MPa |
| Net Weight | 55kg |
| Gross Weight | 58kg |
| Dimension | 38×31×38cm 81×21×21cm |
| Package | 1PC/2Cartons |
Construction
