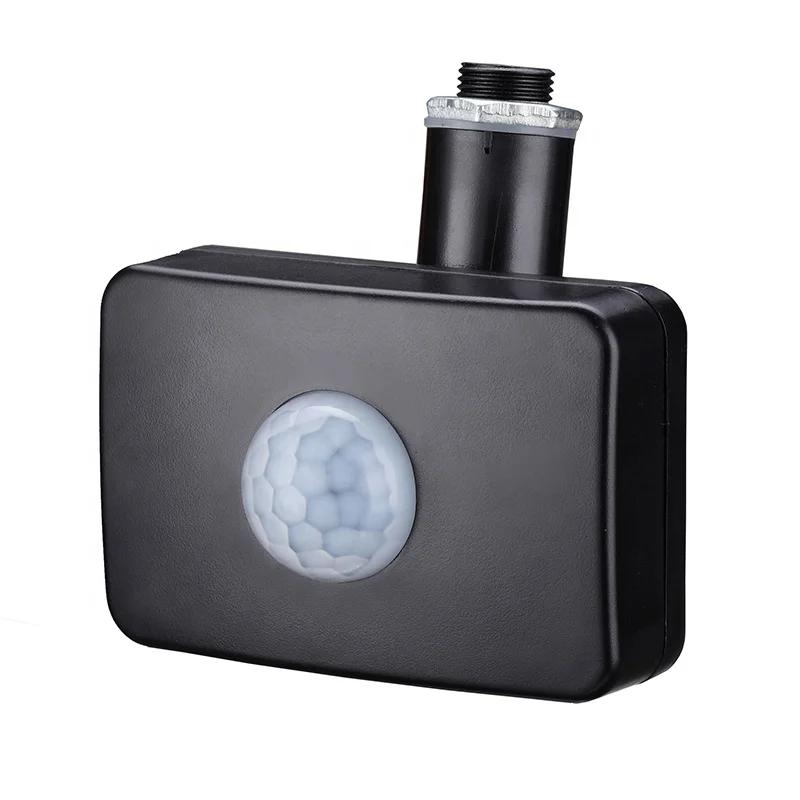

Hot New Design IP65 Waterproof ST25B Time Delay LED Infrared Human Body Motion Sensor Electric Light Wall Sensor Switch

Product Overview

Description



Welcome to read ST25B infrared motion sensor!

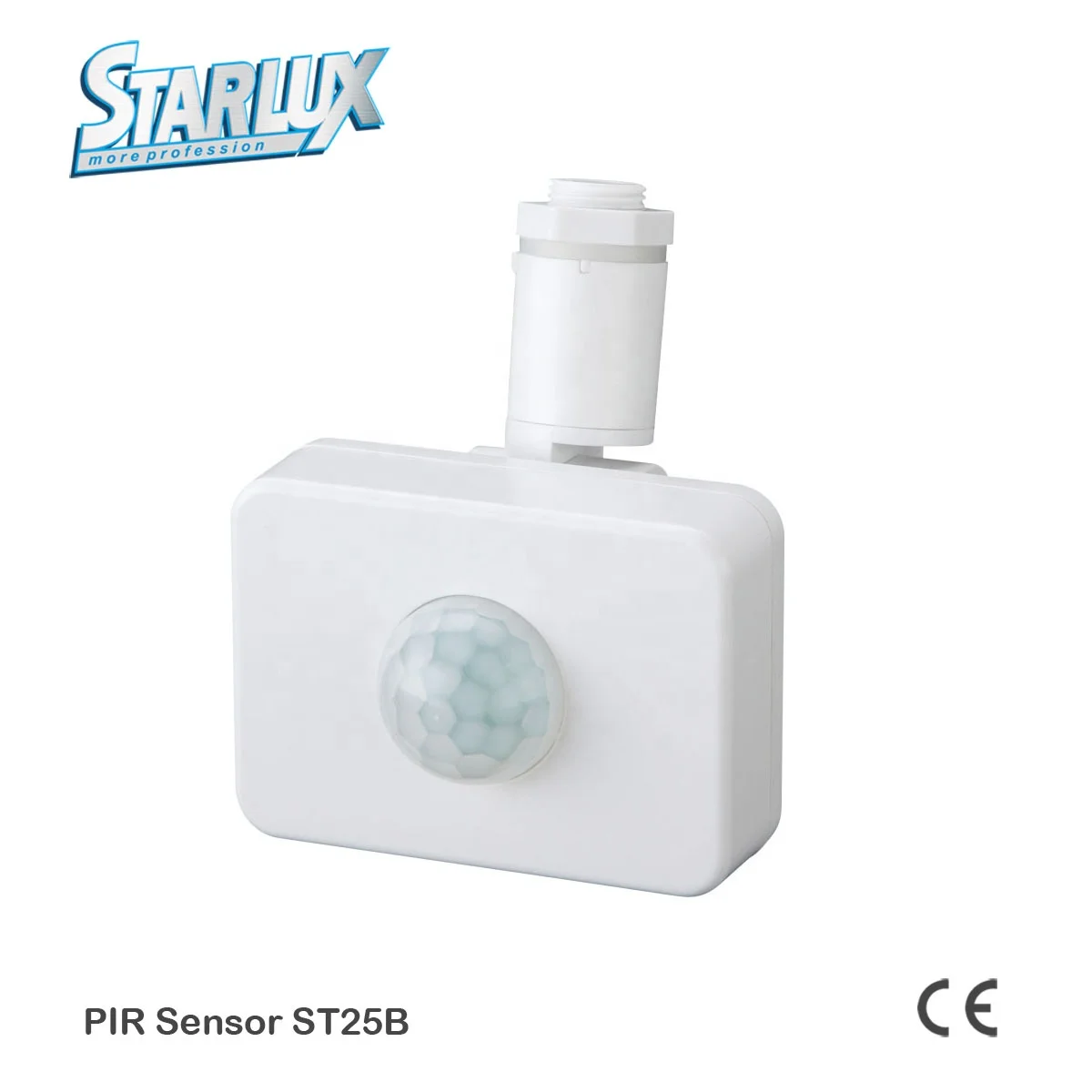

Hot New Design IP65 Waterproof ST25B Time Delay PIR Infrared Human Body Motion Sensor Electric Light Wall Sensor Switch

The product adopts good sensitivity detector and integrated circuit. It gathers automatism, convenience, safety, saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source and it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely.



SPECIFICATION:

Power Source: 110 -130V/AC   220 -240V/AC     Detection Range: 120°



Power Frequency: 50/60Hz                                 Detection Distance: 3-10m (<24℃) adjustable



Ambient Light: <3-2000LUX (adjustable)             Working Temperature: -20~+40℃



Time Delay: Min.10sec±3sec                              Working Humidity: <93%RH



                    Max.7min±2min                               Power Consumption: approx 0.5W



Detection Moving Speed: 0.6-1.5m/s                  Installation Height: 1.8-2.5m



Rated Load: Max.500W



Lifetime and Warranty:

Lifetime(hr)	26000-45000 at least
Warranty	3 years



FUNCTION:

Ø  Can identify day and night: The consumer can adjust work ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “moon” position (min). As for the adjustment pattern, please refer to the testing pattern.

Ø  SENS adjustable: It can be adjusted according to using location. The detection distance of low sensitivity could be only 3m and high sensitivity could be10m which fits for large room.

Ø  Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment.



INSTALLATION ADVICE:

As the detector responds to changes in temperature, avoid the following situations:

Ø  Avoid pointing the detector towards objects with highly reflective surfaces, such as mirrors etc.

Ø  Avoid mounting the detector near heat sources, such as heating vents, air conditioning units, light etc. Avoid pointing the detector towards objects that may move in the wind, such as curtains, tall plants etc.



CONNECTION:

Ø  Connect the power and the load according to the connection-wire diagram.

Ø  Fix the bottom on the selected position with the inflated screw.

Ø  Switch on the power and test it.



CONNECTION-WIRE DIAGRAM:(See the below figure)



PRODUCT CAPACITY:

Our company adopts automatic machines,such as:SMD,auto component inserter,wave solder,auto injection machine and so on.And the daily output is up to 20000~30000pcs.



CERTIFICATE:

The concept of our company is"advocating new modern living environment",which focuses on researching and developing the contemporary household intelligent product.Our product can be truly satisfied for different customer's requirement,most of them are available with CE GS ROHS R&TTE REACH certification.
