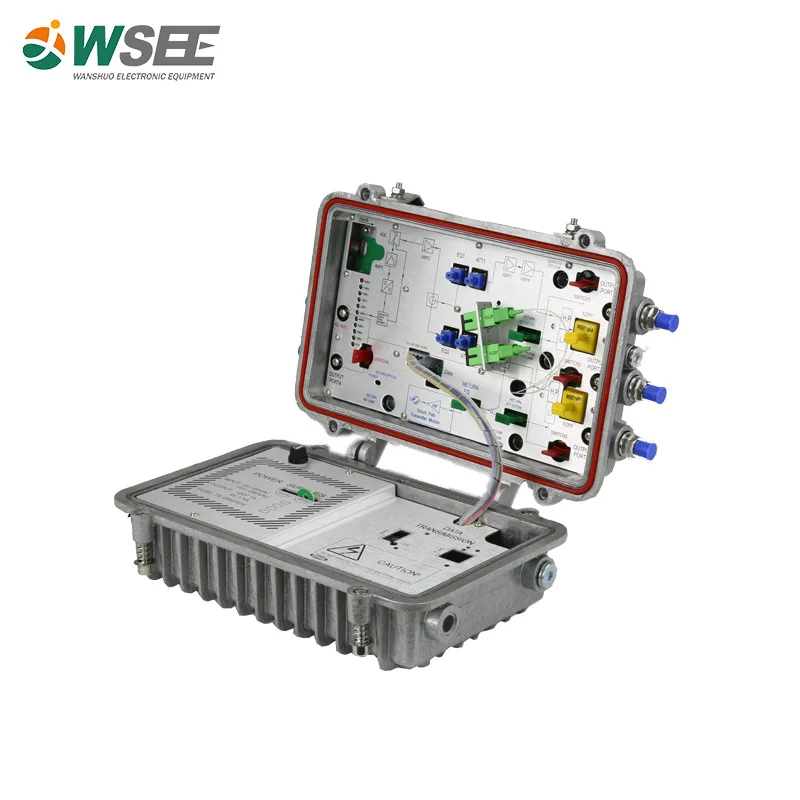

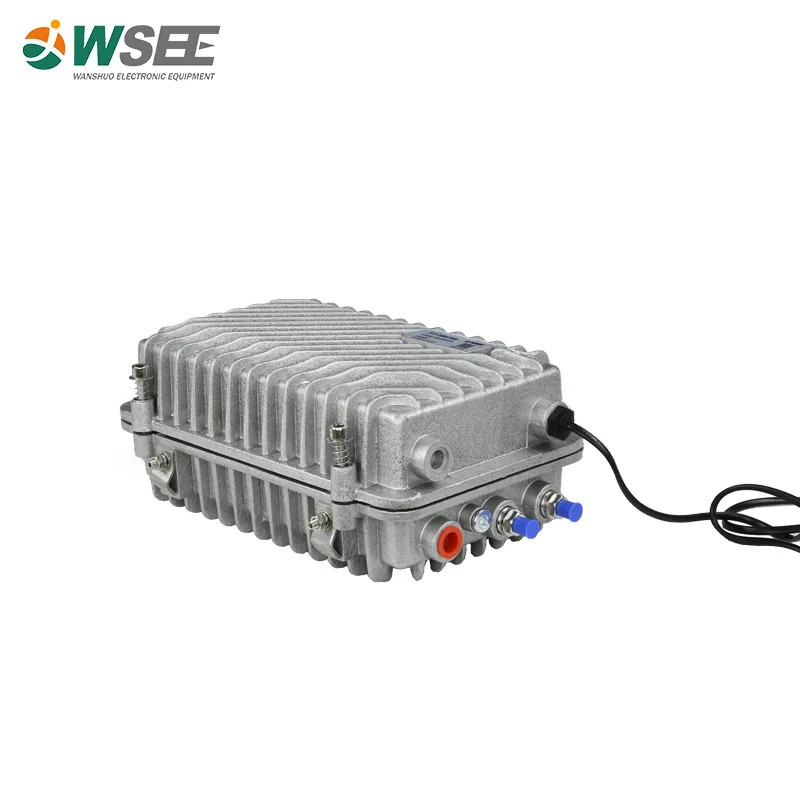

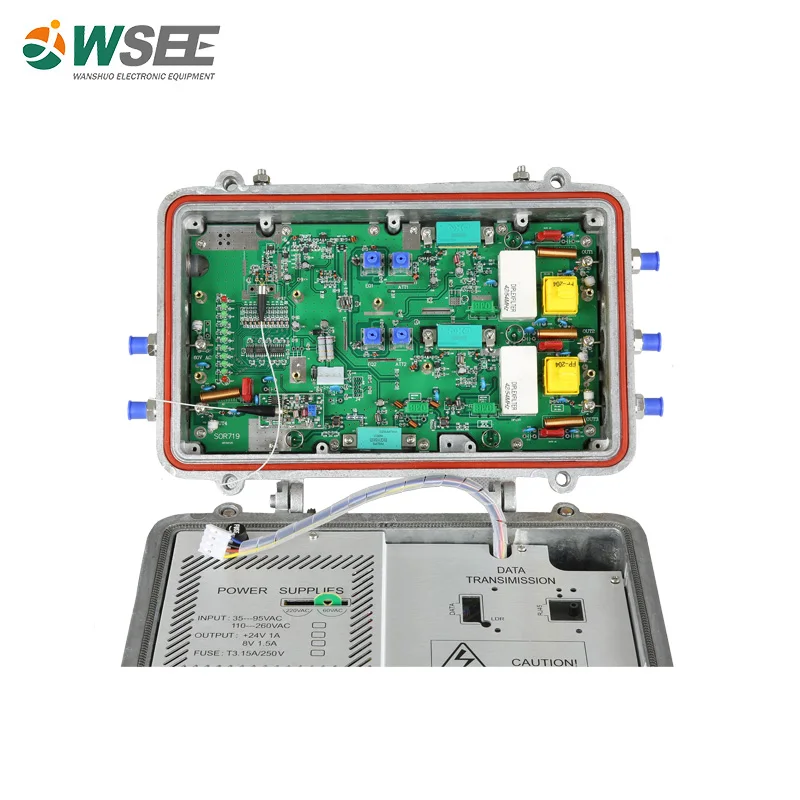

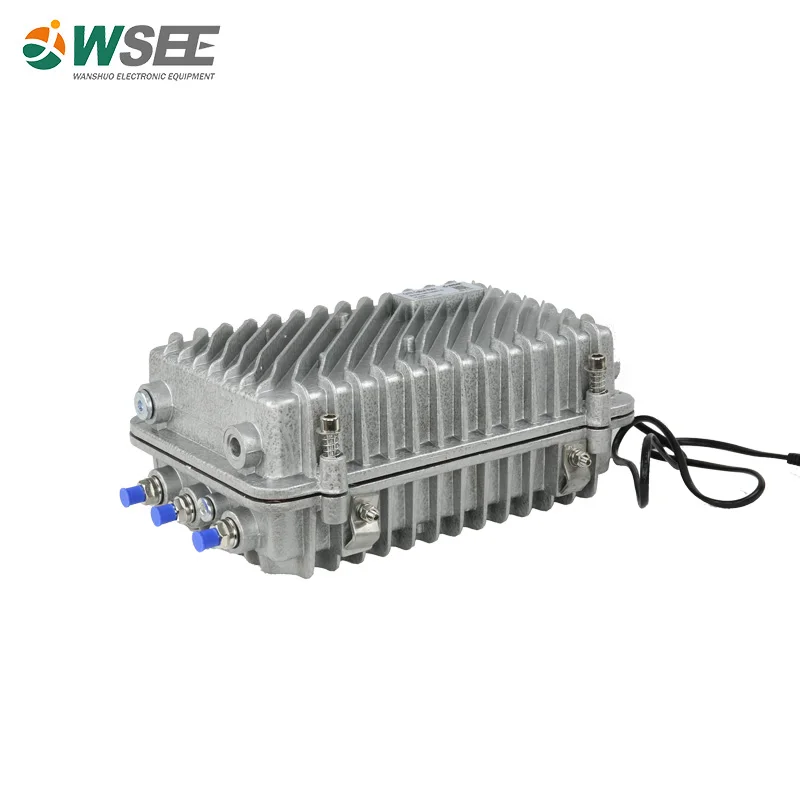

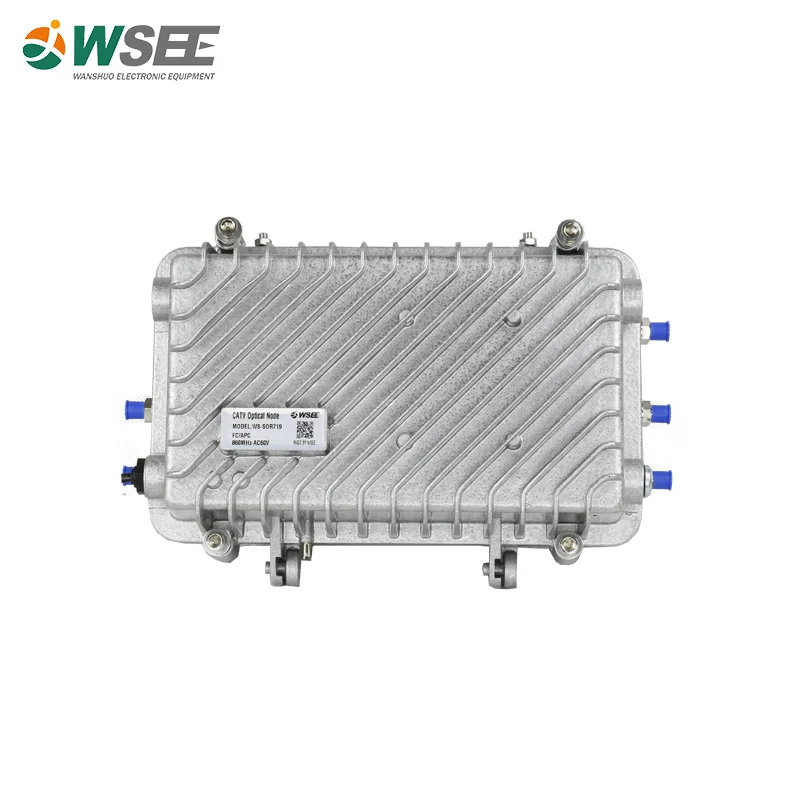

CATV Outdoor Optical Node / Fiber Optical Receiver ( 1GHZ / SNMP / Dual way switch optical receiver )

Product Overview

Description

CATV Outdoor Optical Node / Fiber Optical Receiver ( 1GHZ / SNMP / Dual way switch optical receiver )

OR719 optical receiver is an outdoor 2 outputs and waterproofing receiver. It is mainly used in the FTTB network that can realize the analog and digital signal to the users. It can work together with ONU or EOC to realize the network convergence. OR719 AGC control range is +2~-8dBm, when the optical input power +2~-8dBm, the output level will be same, which is easy for debug.



Technical Data	OR719
Wave Length	1100~1600nm
Optical input power	-8dBm~+2 dBm
Optical AGC range	-8dBm~+2 dBm
Optical Return Loss	>45dB
Optical Connector	FC/APC&SC/APC
Bandwidth	40~750&862&1006MHz
Flatness	±0.75dB@40~750 MHz      ±1dB@40~862&1006 MHz
RF return loss	≥16dB@40~550MHz   ≥14dB@550~750@862&1006MHz
ATT adjustable range	0-30dB
EQ adjustable range	0-18dB
RF Impedance	75Ω
C/N (Note3)	≥51dB
CTB(Note 3)	≥65dB
CSO(Note 3)	≥62dB
Return Path Wavelength	1310nm&1550nm
Return Path Bandwidth	5-30MHz & 42MHz & 65MHz(max:200MHz)
Return Path Output Power	1&2MW@1310nm| or customized
Return Path Flatness	±0.75dB
Power supply	AC35-AC90V & AC140V-265V or customized
Main board voltage	+24V,+8V
Working Tem.	-25℃~+55℃
Consumption	≤27w
Power supply way	220V@ Chinese outlet with 1m power cord  60V@G283 independent power supply port
Net Size	325X200X120mm
Weight with inner box	3.4kgs(N.W.2.8kgs)
Whole carton weight	29kgs(8pcs)

Model sample: WS-OR719-8CC2H-FM-N-R165

Model explanation: OR719 AGC optical receiver, bandwidth 860MHz, Chinese transistor module, Model: WS-OR719 220V power supply, output level more than 105dBuv, FC/APC optical connector, female RF type, with SNMP and return path, output power for the return path is 1mW, bandwidth for the return path is 65/87MHz.
