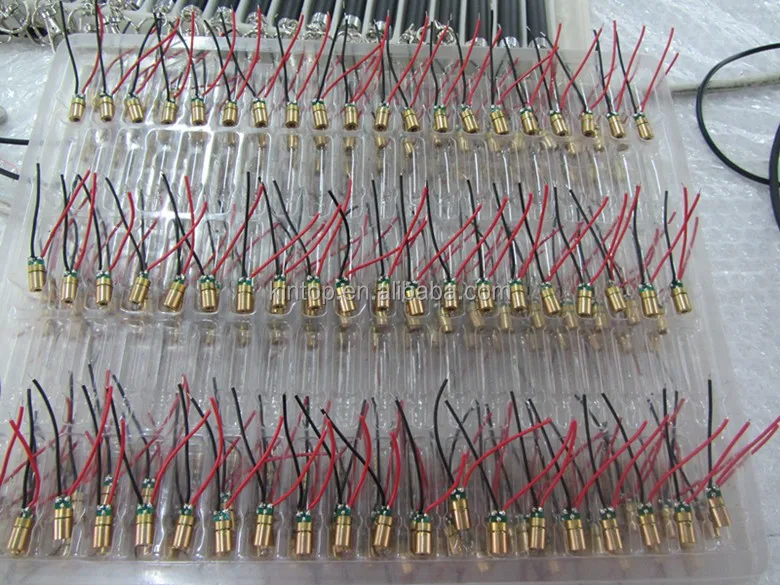

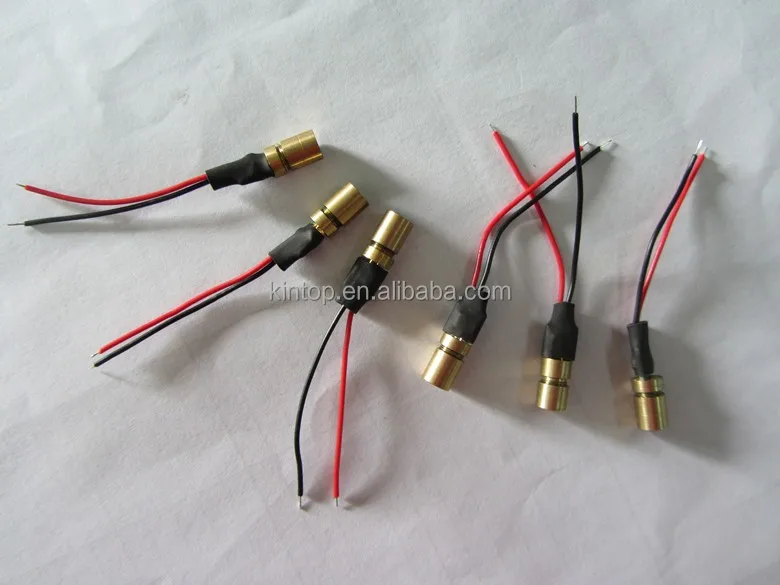

Hot Selling Mini Red 650nm 1mw 5mW 6.2x10.1mm Laser Diode Module With PCB and wire
- Category: Laser Equipment Parts >>>
- Supplier: Dongguan Kintop Electronic Co. Ltd.
Share on (60614178184):
Product Overview
Description
Hot Selling Mini Red 650nm 1mw 5mW 6.2x10.1mm Laser Diode Module With PCB and wire
Product Description
Parameter | Symbol | Min | Typ | Max. | Unit |
Peak wavelength | λ | 63 | 650 | 670 |
|
Threshold current | Ith |
| 12 | 60 | mA |
Operating current | Iop |
| 18 | 105 | mA |
Operating voltage | Vop |
| 2.3 | 2.5 | V |
Slope efficiency | η | 0.3 | 0.16 | 0.3 | mW/mA |
Beam divergence(FWHM)- Parallel | θ | 6 | 8 | 12 | deg |
Beamdivergence(FWHM)-Perpendicular | θ⊥ | 24 | 27 | 32 | deg |
Emission point accuracy | xyz | -80 | 0 | 80 | um |
Parallel FFP deviation angle | θ | -3 | 0 | 3 | deg |
Perpendicular divergence angle | θ⊥ | -3 | 0 | 3 | deg |
Operating Temperature | TStg | -15 | 25 | 85 | °C |
FAQ
Service & Warranty
1. We can do OEM for the packaging and the product shape.
2.Our MOQ is small,1pcs aslo can be sent. and accept mixed order.
3. We can provide competitive price with high quality.
4. Professional team worker.
5. Warranty: 12 months
6. Free replacement within warranty period.
6. Solve your problems within 24 hours.
Company Information
Dongguan Kintop Electronic Co., Ltd. was established in 2003, Our factory produce electronic products, such as: Laser Pointer, Wireless Laser Presenter, Laser Diode, Digital Laser Distance Meter.
Our Main Market is Europe and America, etc.
Our factory have passed ISO9001, products have passed CE, FDA, FCC, ROHS, etc.
Our factory have professional team workers, we insist on the business concept of " Leading Technology and Excellent Quality"!
