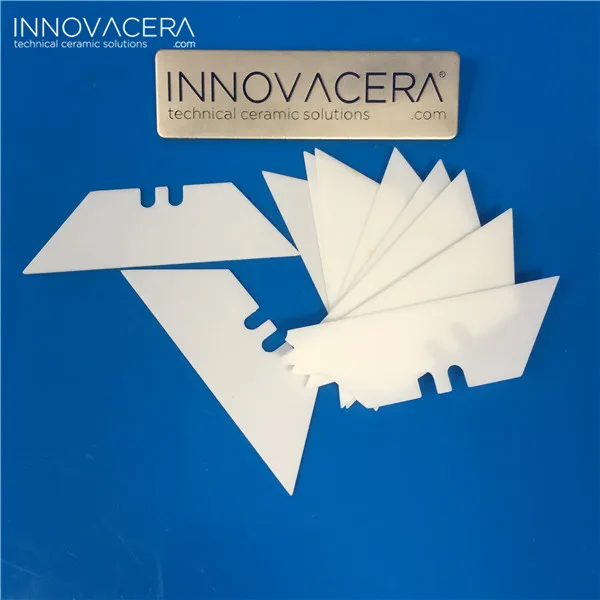

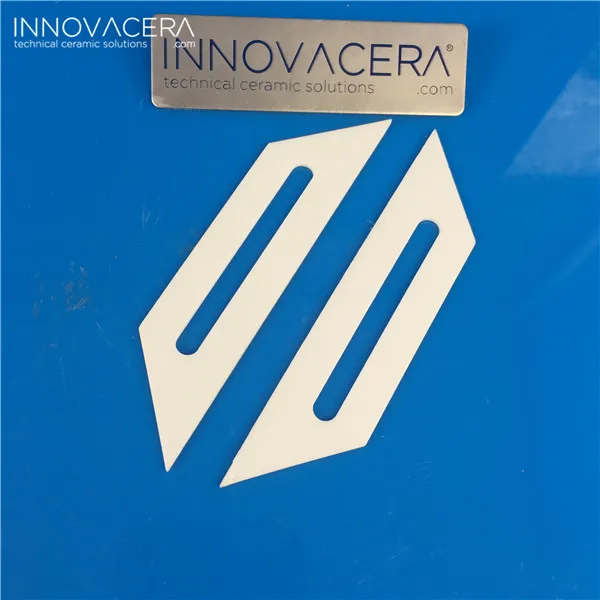

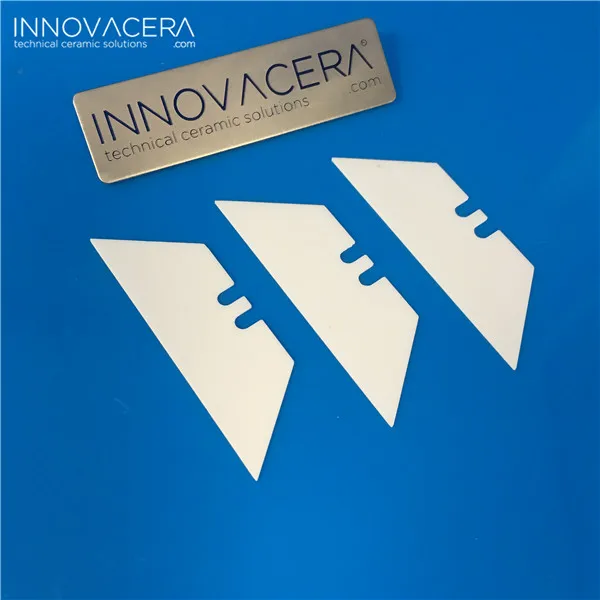

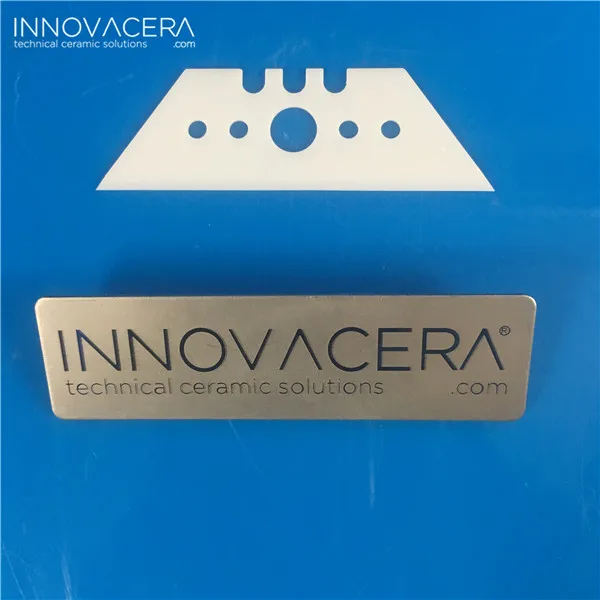

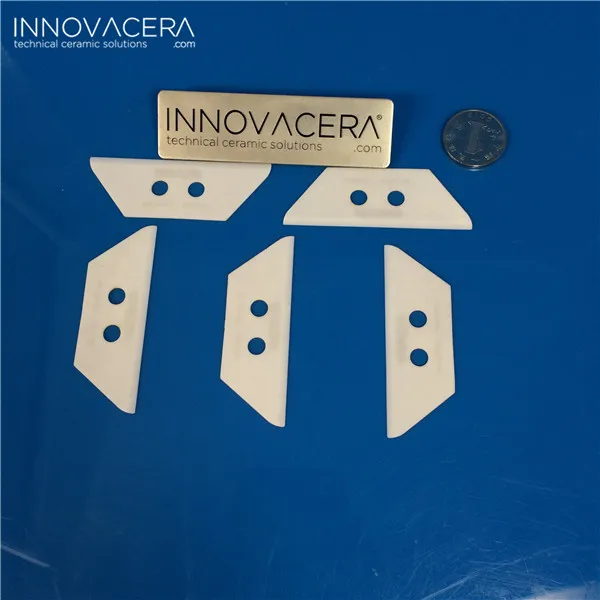

Trapezoid Black Zirconium Oxide Ceramic Blade for Utility Blade
- Category: >>>
- Supplier: Xiamen Innovacera Advanced Materials Co. Ltd.
Share on (60614209547):
Product Overview
Description

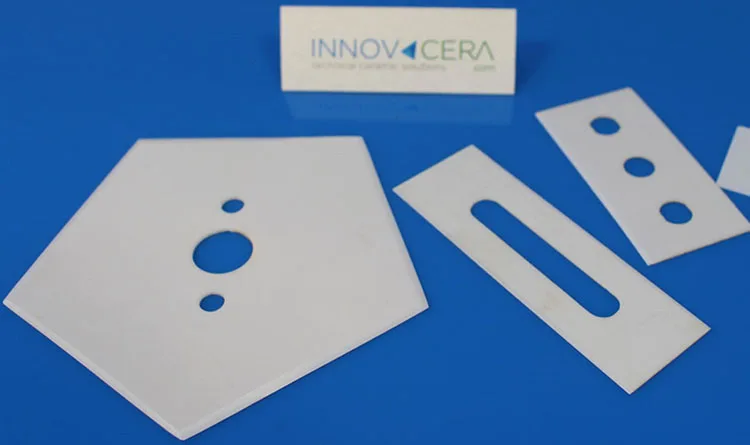

Zirconia Ceramic blades are very suitable for fibers, tapes, film, leather, paper cutting machine application. Our material is yttrium stabilizes zirconia ceramic. Unlike other ceramic matetials, Zirconia ceramic is a material with high flexural roughness.Therefore it is not fragile and proper for producing blades. Another advantage is very sharp. Cutting performace is better than Tungsten carbide.
Features:
1. Faster cutting rates
2. Consistently good cutting quality, e.g. improved strength of spliced connections
3. No corrosion
4. Smooth running
5. Extended maintenance intervals
6. Universal cleaning possibilities using acids, alkaline solutions and organic solvents
1. Faster cutting rates
2. Consistently good cutting quality, e.g. improved strength of spliced connections
3. No corrosion
4. Smooth running
5. Extended maintenance intervals
6. Universal cleaning possibilities using acids, alkaline solutions and organic solvents
Precision manufacturing:
Cylindricity up to 0.004mm, linear tolerance up to 0.001mm, dimensional accuracy up to 0.001mm, thread minimum machinable internal thread M2, thickness up to 0.02mm, concentricity up to 0.003mm, minimum aperture up to 0.07mm...And other parameters.
Cylindricity up to 0.004mm, linear tolerance up to 0.001mm, dimensional accuracy up to 0.001mm, thread minimum machinable internal thread M2, thickness up to 0.02mm, concentricity up to 0.003mm, minimum aperture up to 0.07mm...And other parameters.
· 95%--99.99% Alumina (Al2O3)
· Silicon Carbide · Silicon Nitride
· TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2)
· ZDY: Yttria fully stabilized Zirconia (ZrO2)
· Silicon Carbide · Silicon Nitride
· TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2)
· ZDY: Yttria fully stabilized Zirconia (ZrO2)

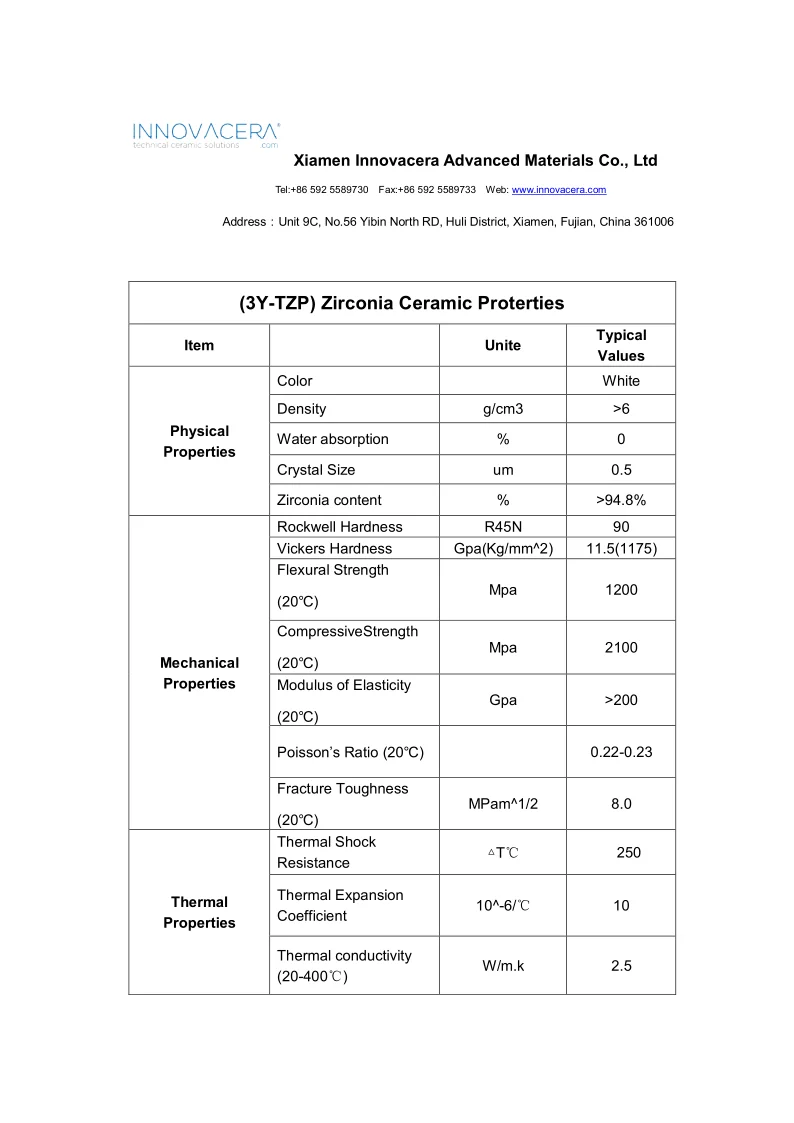

Zirconia Ceramic Properties:
Item | Value |
ZRO2 | 94.9% |
Y2O3 | 5.4% |
Hardness（HRA） | 88-90 |
Density(g/cm3) | 5.5-6.05 |
Flexural strength (MPA) | 1100 |
Young's Modulus (Gpa) | 220 |
Thermal Expansion Coefficient(20-1000℃) (×10-6/K) | 6.5-11.2 |
Flexural Toughness(Mpa m1/2) | 12 |
Benefits:
. Safe and easy blade change
· Finger-friendly edge stays sharp 11 times longer
· Reduces injuries, lowers costs
· Safe up to 1600°C
· Ceramic blades never rust
· Ceramic blades are chemically inert
· Ceramic blades are non-conductive of electricity
· Finger-friendly edge stays sharp 11 times longer
· Reduces injuries, lowers costs
· Safe up to 1600°C
· Ceramic blades never rust
· Ceramic blades are chemically inert
· Ceramic blades are non-conductive of electricity
Application:
·Capsule cutters
·Exacto-style blades and cutters
·Medical device blades
·Receipt cutters for registers and point-of-sale use
·Knife sharpeners(Ice skates,black)
·Knife sharpeners(Ice skates,black)
·These zirconia ceramic blades are used for cutting packaging, rubber, fiber, plastics, film,
foil, mat board as well as other products.
foil, mat board as well as other products.
