1080P 4.3 Inch LCD Screen Portable CCTV Tester Pro 2 In 1 For AHD CVBS Analog Camera Security Monitor

Share on (60614219844):


Price:$35.50 - $43.50

Quantity:


Product Overview

Description


1080P 4.3-Inch LCD Screen Portable CCTV Tester Pro 2 In 1 For AHD CVBS Analog Camera Security Monitor



Product Overviews


 1234567

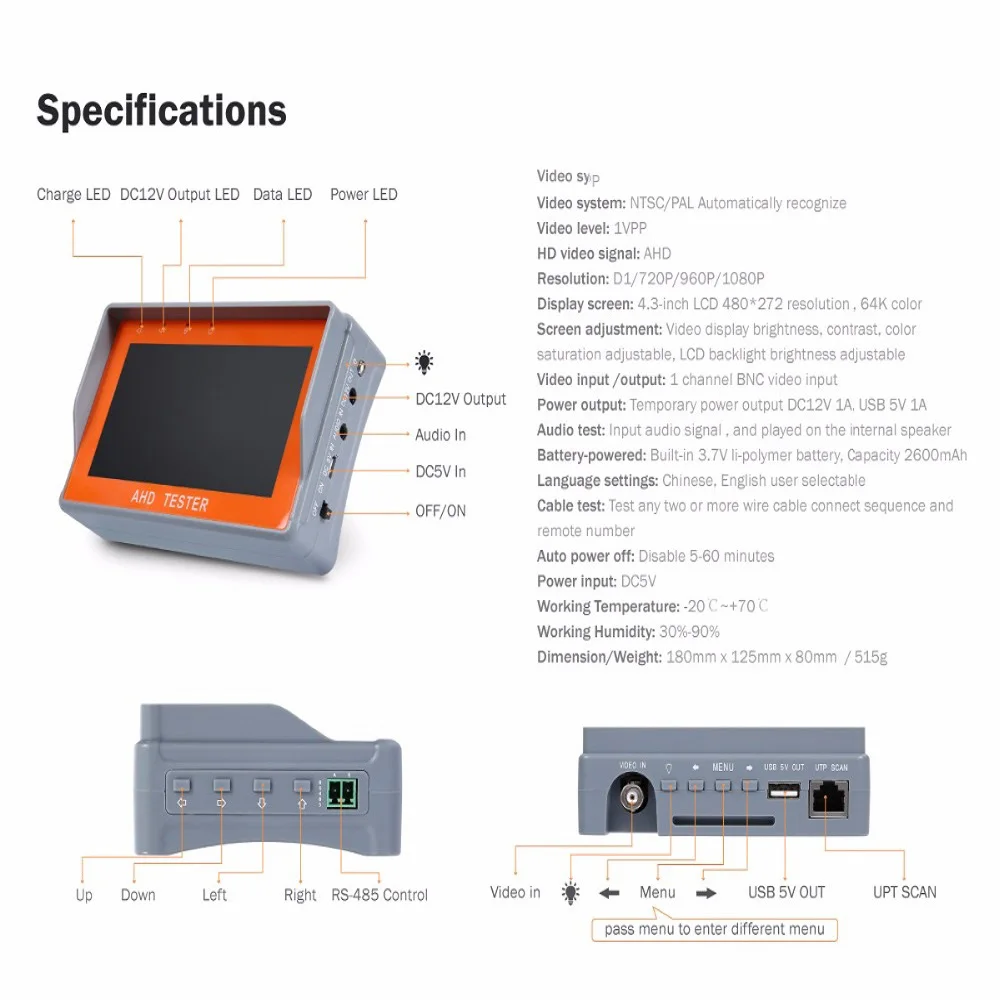

Product Description















































Model



IV7A



Video test



Video System



NTSC/PAL Automatically recognize



Video level



1VPP



Display screen



4.3-inch LCD 480 * RGB * 272 (QVGA) resolution, 64K color



Screen adjustment



Video display brightness, contrast, color saturation adjustable, LCD backlight brigh tness adjustable



Video input / output



1 channel BNC Video IN


























HD AHD Test



SD signal Format



NTSC ,PAL



HD video signal



HD AHD



Resolution



D1,720P,960P 1080P



Signal Level



1Vpp

























































12V power output



Power output



Temporary power output 12V 1A DC







USBX1  5V1A output



Audio test



Audio test



Input audio signal, and played on the internal speaker



Power supply



External power supply



DC 5V(2A)



Battery-powered



Built-in 3.7V li-polymer battery, Capacity 2600mAh



Charge



Charge time 3-4 hours Battery power time 8 hours



Power saving features



Low power consumption, automatic power off, Real-time display of battery level



System settings



Language settings



Chinese, English user selectable



Auto power off



Disable / 5-60 minutes
















Cable test



cable test



Test any two or more wire cable Display connect sequence and remote number











LED Light



1*35lm LED light
















Working environment and Specifications



-20degree---+70degree



30%-90% Rh












Company Information


company information_01












Certifications


certificate_02





Transaction Flow


tracation flow


Packaging & Shipping


In Color Box or Netural Packaging , Do As Customer 's Requirement


1.EXPRESS: around 3-7 working days to arrive
2.INTERNATIONAL AIR MAIL: around 2-4 weeks to arrive according different country


3.BY air &BY sea





Payment


we accept T/T ,Paypal,Alibaba Trade Assurance,Escrow.Western Union,L/C etc





Tesimonials


temmion





Work Flow


_02





FAQ


Are you manufacturer?
Yes, we are designer and manufacturer for CCTV camera for more than 8 years!
What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, wide angle fisheye lens and varifocal lens etc


can according customer's requirement use different lens !


What certificate your products have?

CE, FCC, partial have RoHS and UL

 Do you accept small order?
A: Yes, Sample order available. we can also provide drop ship service.
What's your Trade Terms and Payment?
Ex-work Shenzhen as our standard trade terms, CIF, FOB is available. Payment by L/C, T/T, Western Union,Paypal, Escrow are accepted.recommend use alibaba trade assurance !
what’s your warranty policy?
A: All of our products has 2 year warranty. we are supplying free spare part for customer repair if quality issue.
.Are OEM & ODM available?
Yes, The lens, cable, panel. chips, gift box, carton, mould, screen logo is available.
 What's the delivery date for my order ?
Most of item have stock. Bulk order 10-15 days.
How could I get samples?
For New Customer ,We can provide samples if you have a Fedex or DHL account or other courier freight collectable account and agree to pay the courier freight.or, you send us the samples charge together with the courier cost by T/T. For Old customer ,we offer free charger samples for testing!
