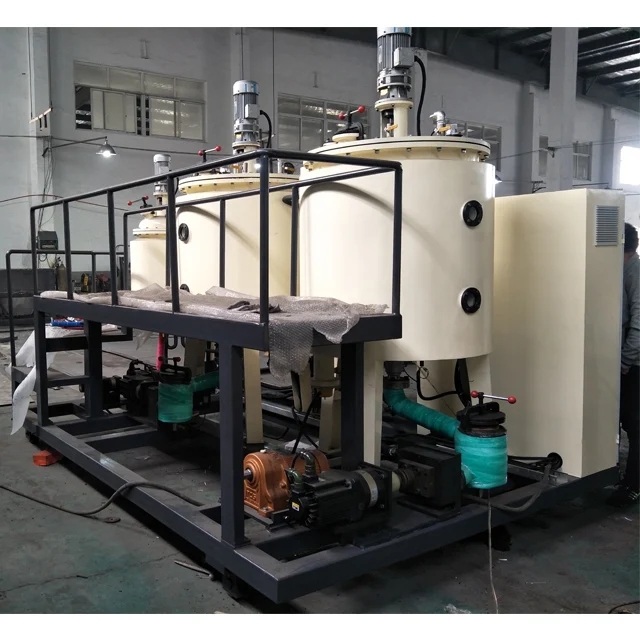

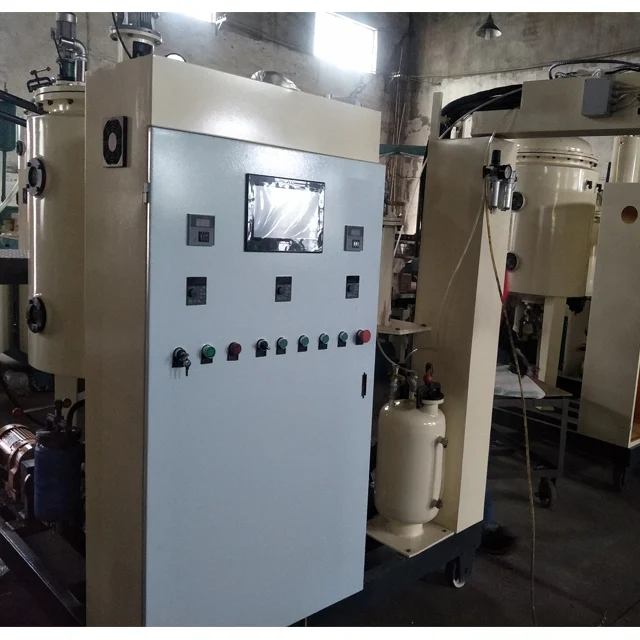

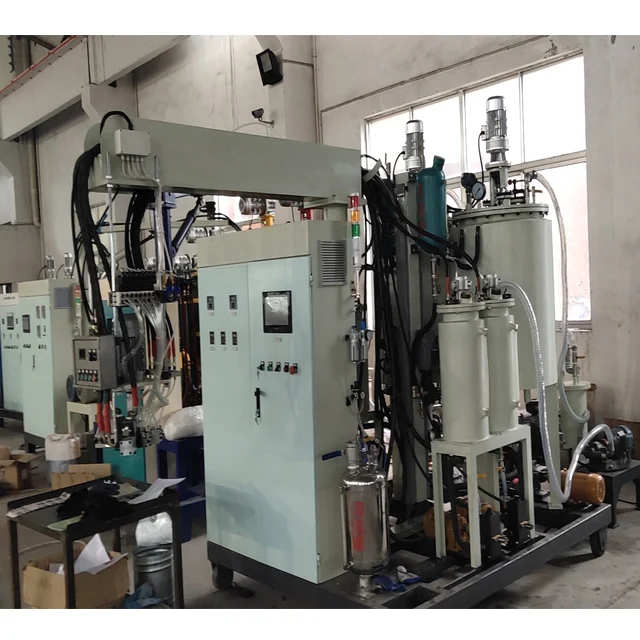

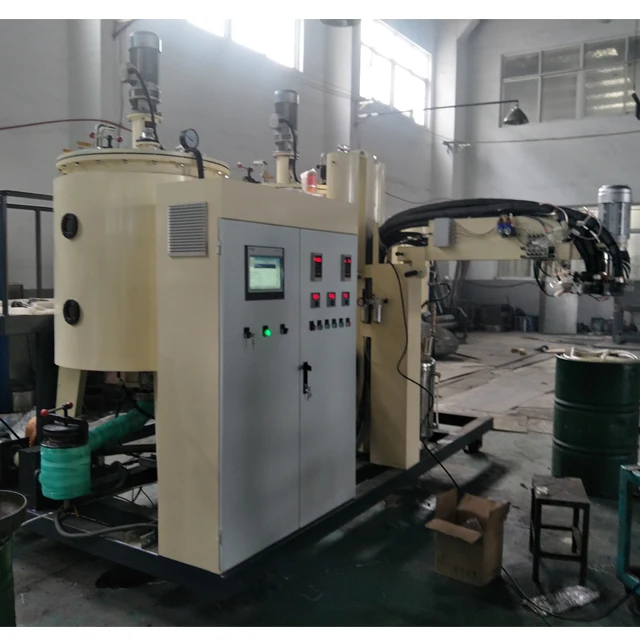

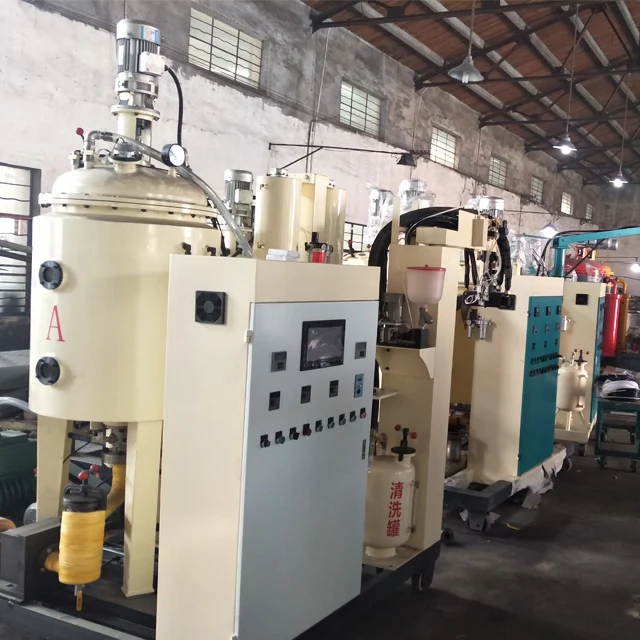

Castable polyurethane elastomers machine

Product Overview

Description

Product Description

Application

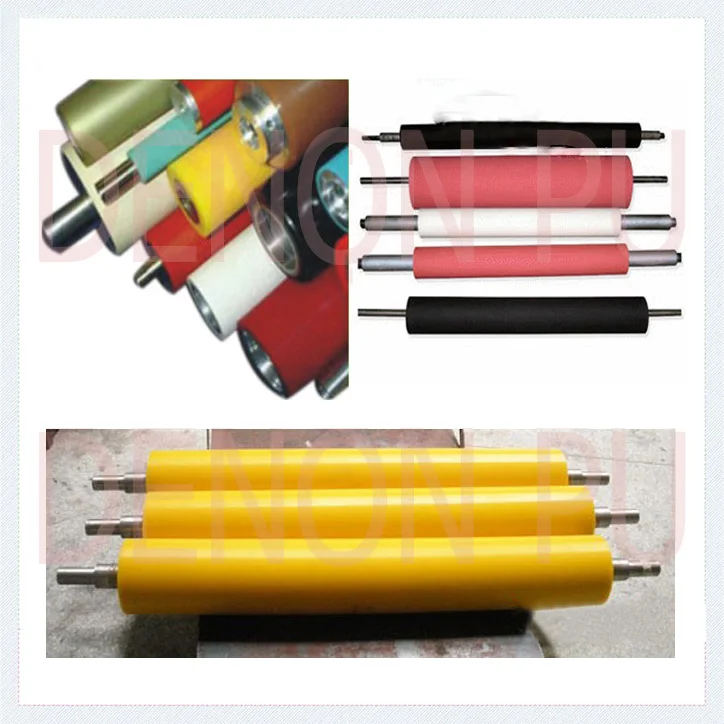

Used for producing PU rollers.

Construction

Included of electric control system, mixing head, chemical tanks, metering pumps, conditioning controller of temperature, rotational speed and pressure display, cleaning system, air washing system, vacuum system and based frame etc.

Feature

1. Adopt high precision metering pumps, variable frequency  speed regulation, ratio accuracy, output error≤0.5%.

2.Adopt closed oil-way to heat. preclude carbonization between air and conduction oil, temperature error≤2℃.

3.Adopt reverse screw device in mixing head to prevent countercurrent of chemical.

4.Adopt treaded armored hose of both chemicals, easily to dredge when blocking whether conduction oil or chemicals.

No	Item	PUM-2E01	PUM-2E02	PUM-2E03	PUM-2E04	PUM-2E05
1	Output (g/min)	200-800	1000-3000	2000-5000	3000-8000	5000- 15000
2	Volume of A tank (L)	120~160~220~300~400~500(Optional)
3	Volume of B tank (L)	30~40~60~80(Optional)
4	Volume of cleaning tank (L)	5	5	5	5	5
5	Volume of cleaner tank (L)	20	20	20	20	20
6	Volume (L/S)	2X-8	2X-15	2X-15	2X-20	2X-30
7	Power (KW)	21	23	25	28	32
8	Weight (kg)	1200	1500	1600	1800	2000

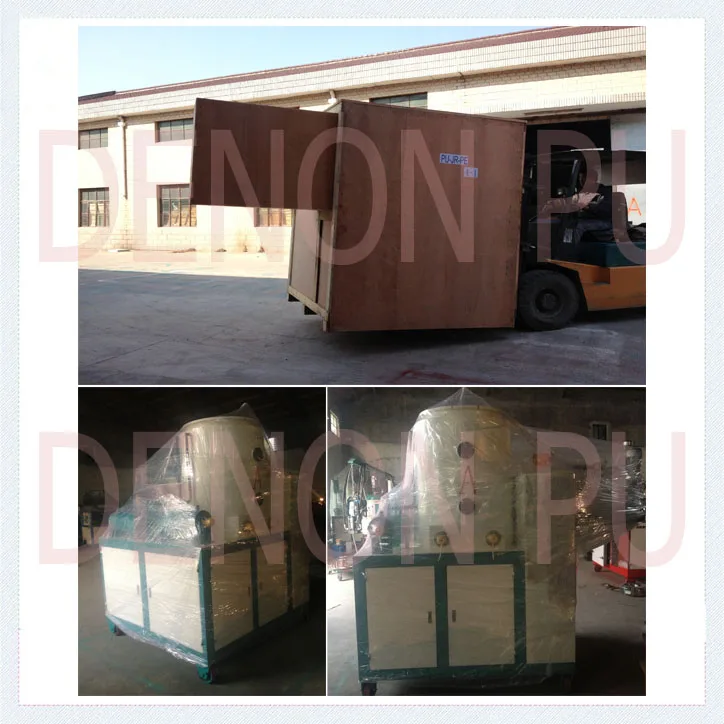

Packing & Shipping

1.Export standard plywood cases for better care when transport;

2.Easily to Shanghai/Ningbo/Tianjin/Guangzhou ports for ocean shipping, air transportation or main airports and railway stations for choices.



Company Information

1. More than 20 years PU equipment industry experience;

2. Advantaged production equipments and modern industrial workshops;

3. Strong R & D team and skilled assembly workers;

4. Strict quality control and perfect after-sales service.



Our services

After sales service & Guaranty

1.Supply full manuals, videos and online support to guide machine operation and maintain after order confirmation.

2.Also can arrange engineer direct buyer operate machine, and buyer need to bear travel expenses (plane tickets, board and lodging, subsidy etc. )

3.Quality guaranty is valid for one year since delivered the machine, during this period the seller would provide free accessory if any broken caused by non-human cause.

Value-added services

Corresponding chemical material can be advised if needed.



FAQ

1. Application field: Manufacture various PU rollers, wheels, sheet, stick, sieve plates etc;

2. Chemical material: TDI/MDI/NDI/HDI/IPDI etc prepolymers and MOCA/1,4- butanediol etc

curing agents;

3. Components and capacities: 2 or 3 even more components,0.25-0.8Kg/min,1-3Kg/min,

2-5Kg/min, 3-8Kg/min, 5-15Kg/min etc;

4. Temperature types: High / Middle temperature for choices;

5. Multicolor products manufacture: additional color paste adding systems selectable.
