Best selling shell end mill tool holder fma collet chuck for cnc machine center
- Category: >>>
- Supplier: Dongguan Mihong Mechanical Hardware Co. Ltd.
Share on (60614333751):
Product Overview
Description
Product Description
Best selling shell end mill holder fma face milling chuck for cnc machine center
Featuer
1.High Precision BT40 milling arbor , Run out precision
0.003mm,greatly improve your workpiece accuracy.
2.Maximum Speed: 30,000RPM.
3.Dust-proof design could extend toolholder lifetime.
4.C-type wrench attached for each collet chuck.
Application:
The c BT40 FMA milling arbor are mainly used for clamping face milling
cutter. for JIS B4113 face milling working.
Specification:

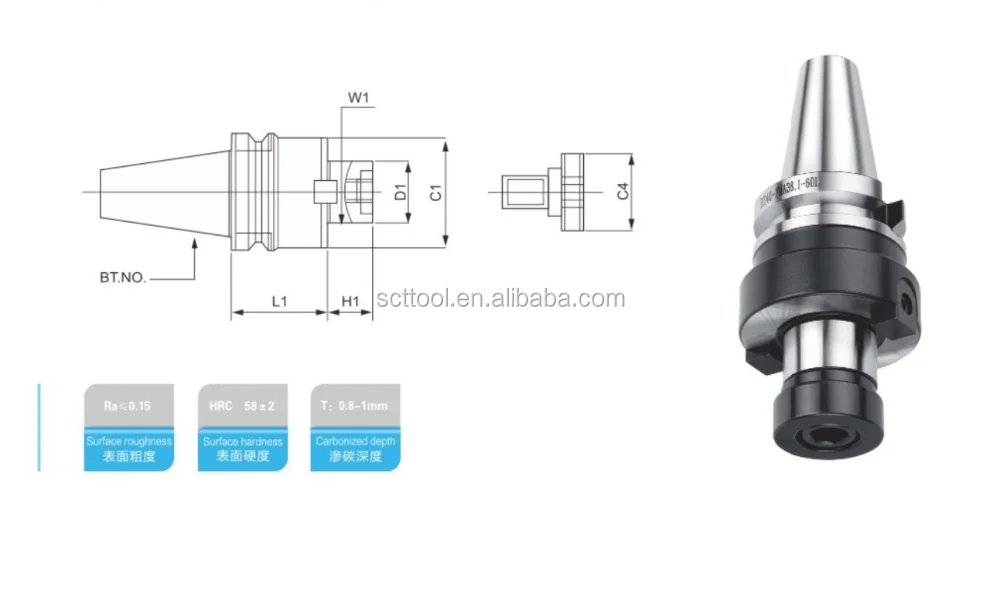

Model No | D1 | L1 | H1 | C1 | W1 | C4 |
BT30-FMA25.4--45 | 25.4 | 45 | 20 | 45 | 9.5 | 33 |
BT30-FMA25.4-60 | 25.4 | 60 | 20 | 45 | 9.5 | 33 |
BT40-FMA25.4-45 | 25.4 | 45 | 20 | 60 | 9.5 | 33 |
BT40-FMA25.4-60 | 25.4 | 60 | 20 | 60 | 9.5 | 33 |
BT40-FMA31.75-45 | 31.75 | 45 | 22 | 70 | 12.7 | 40 |
BT40-FMA31.75-60 | 31.75 | 60 | 22 | 70 | 12.7 | 40 |
BT40-FMA31.75-90 | 31.75 | 90 | 22 | 70 | 12.7 | 40 |
BT40-FMA38.1-60 | 38.1 | 60 | 23 | 85 | 15.9 | 50 |
BT40-FMA38.1-90 | 38.1 | 90 | 23 | 85 | 15.9 | 50 |
BT50-FMA25.4-75 | 25.4 | 75 | 20 | 60 | 9.5 | 33 |
BT50-FMA25.4-150 | 25.4 | 150 | 20 | 60 | 9.5 | 33 |
BT50-FMA31.75-45 | 31.75 | 45 | 22 | 70 | 12.7 | 40 |
Product Overviews

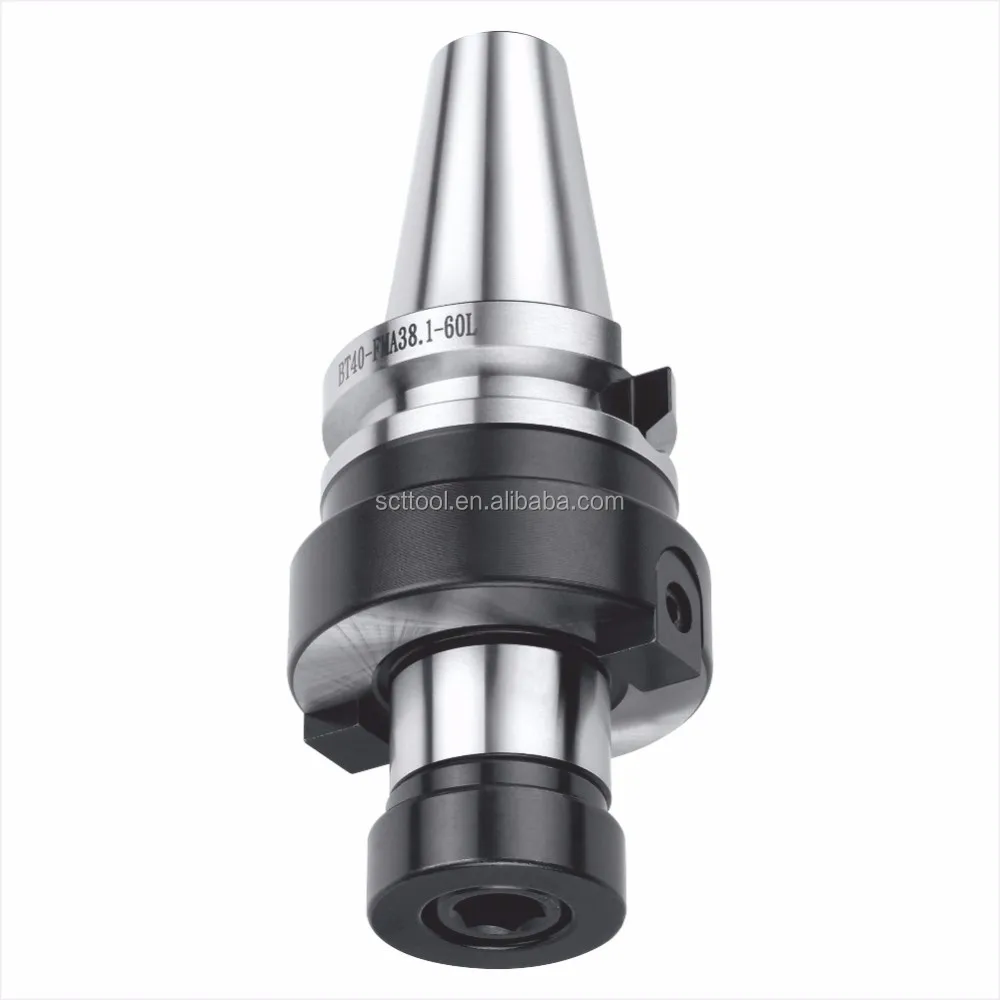

Face milling tool holder picture
Face mill tool chuck picture
Packaging & Shipping
Company Information
FAQ
Q: Are You Trading Company Or Manufacturer ?
A: SHIN CHENG is a professional manufacturer,have more than 30 years experience in tool holder and NC rotary table.
Q: Is Free Shipping Possible?
A: We don't offer free shipping service,but we will give you some discount if you buy large quantity products.
And we have cooperation Express Companies,can offer you the best price of shipping cost.
Q: Can You Send Products To Our Forwarder In China?
A: Yes,if you have Forwarder in China,we will glad to send products to him/her.
Q: What's The Warranty Of The Goods?
A: All products from us wanrranty is 12 months .
Q: What's The System Of Your NC Rotary Table Use ?
A:Our NC rotary table support :FANUC , Mitsubishi,GSK etc.
