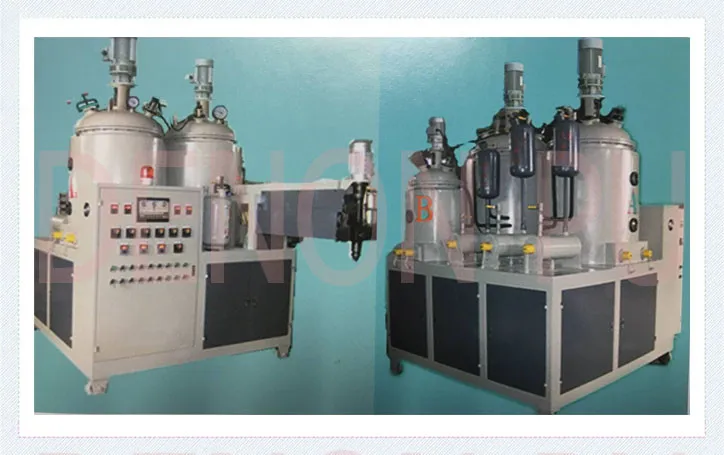

elastomer soft polyurethane casting machine

Product Overview

Description

Product Description

Application

Used for producing PU industry rollers.

Construction

Included of electric control system, mixing head, chemical tanks, metering pumps, control & adjust system of temperature, rotate speed and pressure, cleaning system, vacuum system,air push system and base frame etc.

Feature

1.Double prepolymers (formulas) can be instantly switched to produce different colors or hardnesses products.

2.Multiple formulas instantly switch, and blend in mixing chamber directly, improve work efficiency, insure same color of finished products.

3.When same formulas, same or different colors with same hardness products can be produced. Can be considered as two component casting machine (double volume of A chemical), cut down time of adding chemical oil or chemicals.

4.Adopt threaded armored hose of both chemicals, easily to dredge when blocking whether conduction oil or chemicals.

5.Adopt Rotary valve type mixing head, no bubbles, prevent countercurrent of chemical, and better performances.

6.Equip single or double or three outlets type nozzle, be applicable to different weight product to cast.

No.	Item	PUM-3E01	PUM-3E02	PUM-3E03	PUM-3E04	PUM-3E05
1	Output  (g/min)	250-800	1000-3000	2000-5000	3000-8000	5000-15000
2	Volume of A tank  (L)	120~160~220~300~400~500(Optional)
3	Volume of B tank  (L)	30~40~60~80(Optional)
4	Volume of cleaner tank  (L)	20	20	20	20	20
5	Volume  (L/S)	2X-8	2X-15	2X-15	2X-20	2X-30
6	Power  (KW)	30	32	34	36	38





Packing & Shipping

1.Export standard plywood cases for better care when transport;

2.Easily to Shanghai/Ningbo/Tianjin/Guangzhou ports for ocean shipping, air transportation or main airports and railway stations for choices.



Company Information

1. More than 20 years PU equipment industry experience;

2. Advantaged production equipment and modern industrial workshops;

3. Strong R & D team and skilled assembly workers;

4. Strict quality control and perfect after-sales service.



Our services

After sales service & Guaranty

1.Supply full manuals, videos and online support to guide machine operation and maintain after order confirmation.

2.Also can arrange engineer direct buyer operate machine, and buyer need to bear travel expenses (plane tickets, board and lodging, subsidy etc. )

3.Quality guaranty is valid for one year since delivered the machine, during this period the seller would provide free accessory if any broken caused by non-human cause.

Value-added services

Corresponding chemical material can be advised if needed.



FAQ

1. Application field: Manufacture various PU rollers, wheels, sheet, stick, sieve plates etc;

2. Chemical material: TDI/MDI/NDI/HDI/IPDI etc prepolymers and MOCA/1,4- butanediol etc

3. Components and capacities: 2 or 3 even more components, 0.25-0.8Kg/min,1-3Kg/min,

2-5Kg/min, 3-8Kg/min, 5-15Kg/min etc;

4. Temperature types: High / Middle temperature for choices;

5. Multicolor products manufacture: additional color paste adding systems selectable.
