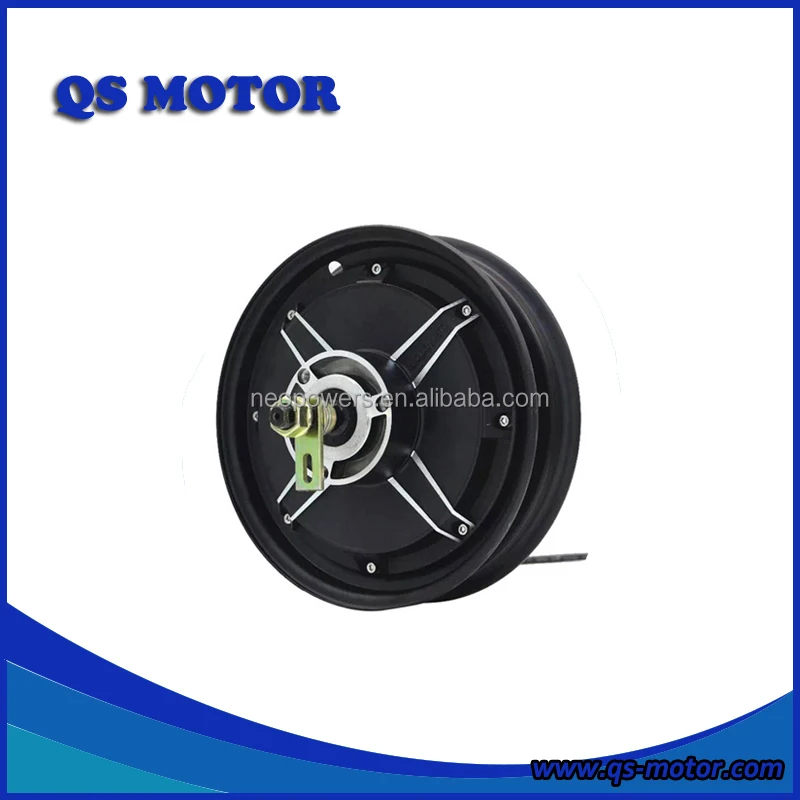

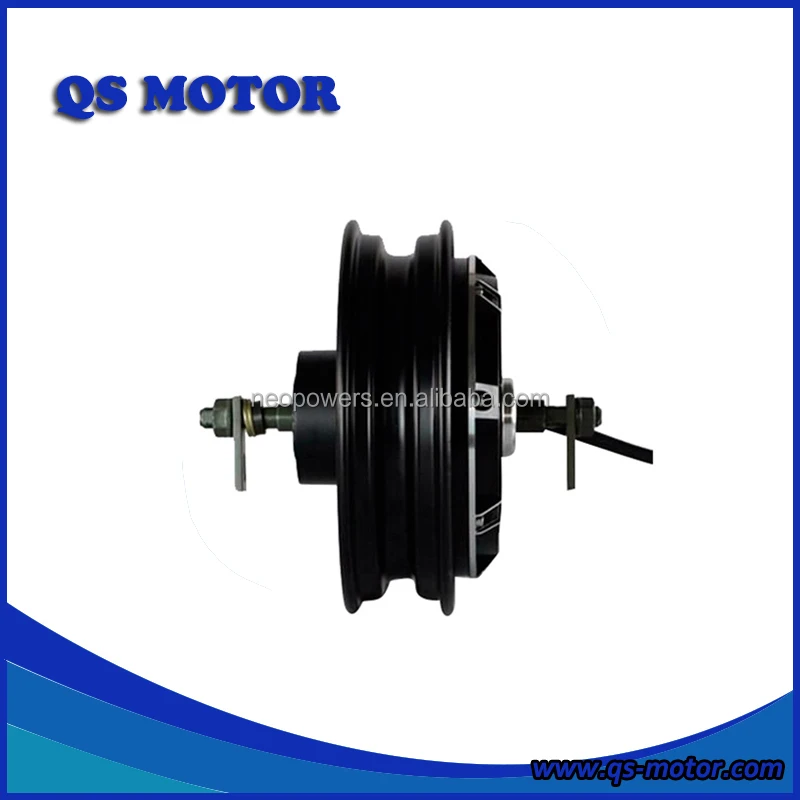

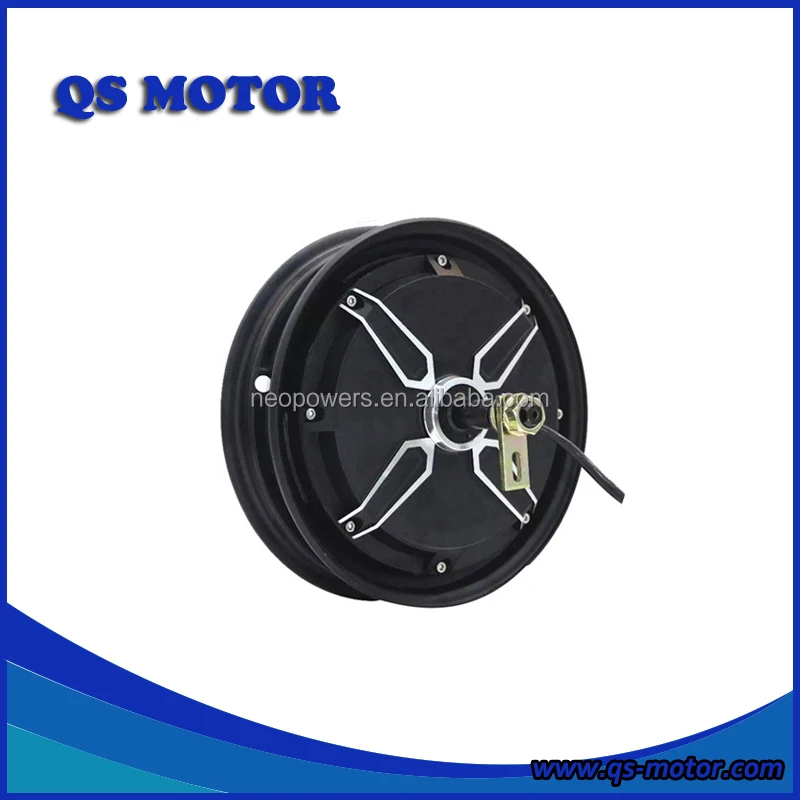

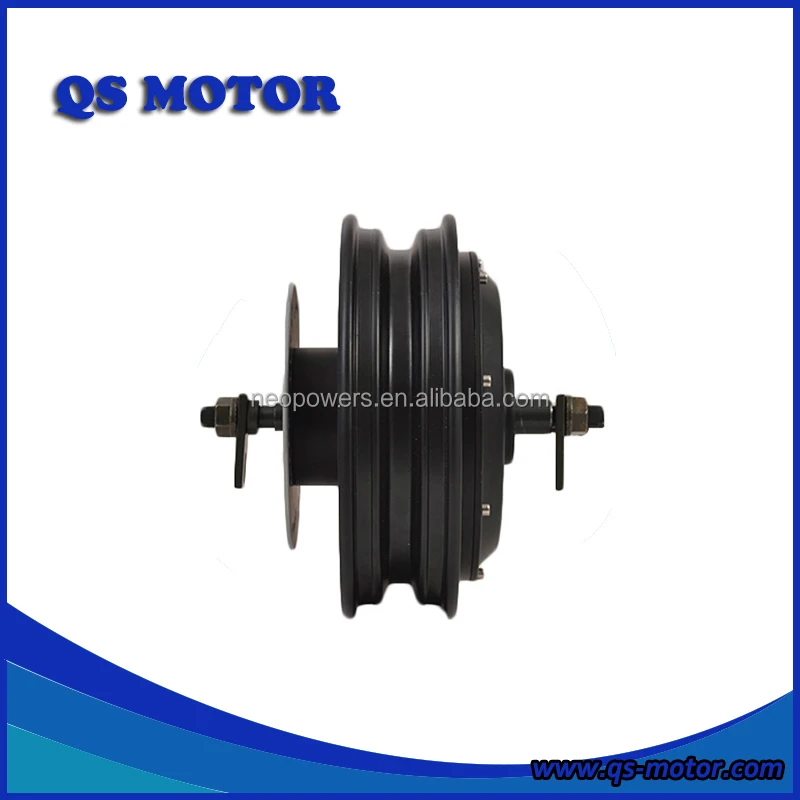

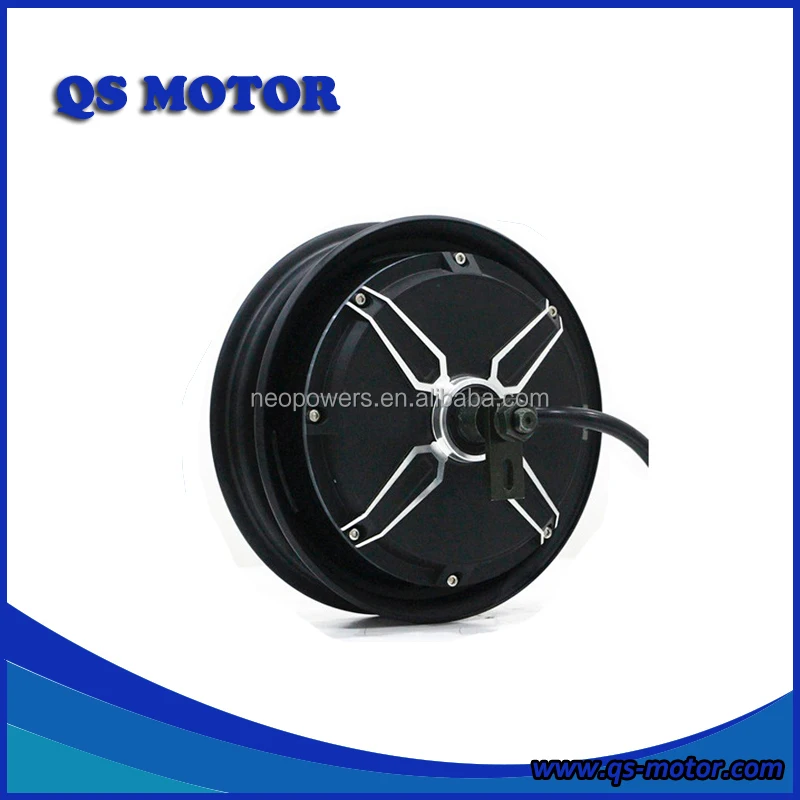

QS Motor 10 inch 4000W 72V E Scooter In Wheel Hub Motor (50H) V2 Type, Brushless DC Motor

Product Overview

Description









10inch E-Scooter In-Wheel Hub Motor(50H) 4000W 72V





10inch 4000W Hub Motor specially designed for powerful electric scooters with disc brake, the max speed can reach 90-100km/h.









1.      Motor Type: BLDC Hub Motor with Permanent Magnet

2.      Motor design: Double axle out with 10inch rim

3.      Rim size:2.15-10

4.      Matching Tire: 3.0-10, 3.5-10

5.      Magnet Height: 50MM

6.      No. of Pole Pairs: 23 pairs

7.      Rated Power: 4000W

8.      Peak Power: 5100W

9.      Rated Voltage: 72V

10.  Speed: 90-100km/h

11.  Max No-load RPM: 1400RPM

12.  Max Torque: 150N.M

13.  Max Efficiency: 88%

14.  Continious current:61A

15.  Max current:90A

16.  Brake type: Disc brake

17.  Rear Fork width for installation: 200mm

18.  Winding Core material: Aluminium

19.  Cross Section of Phase wire: 10 mm2

20.  Hall sensor phasing angle: 120 degree

21.  Temperature Sensor: Optional

22.  Max. Working Temperature: 70 degree, Peak 120 degree

23.  Waterproof Grade: IP54

24.  Color: Black or Silver

25.  N.W./ G..W. : 14kgs / 15kgs



26.  Package Size: 34*34*33CM
