Product Overview

Description

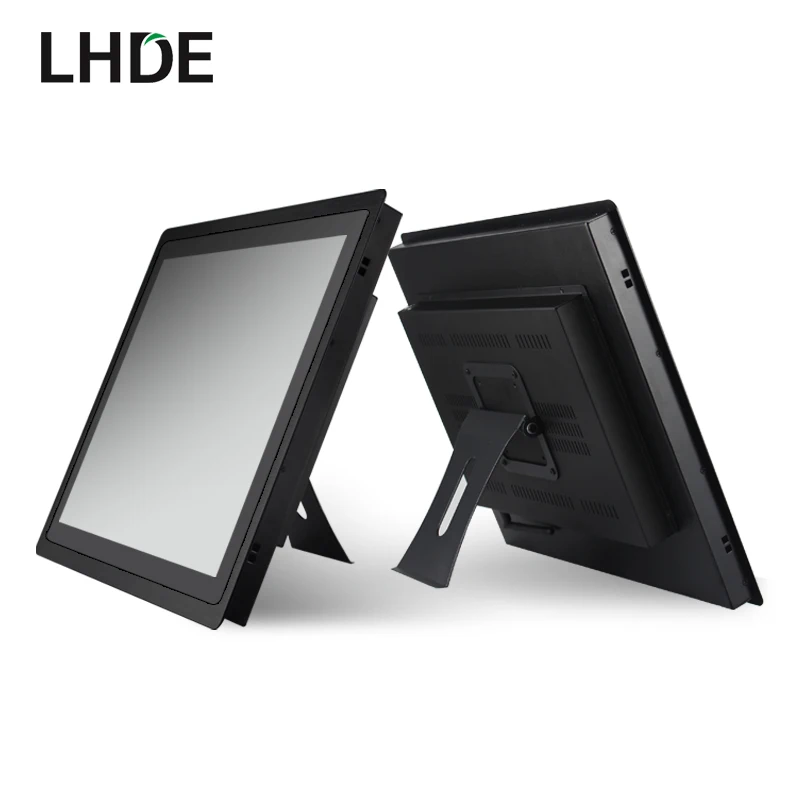

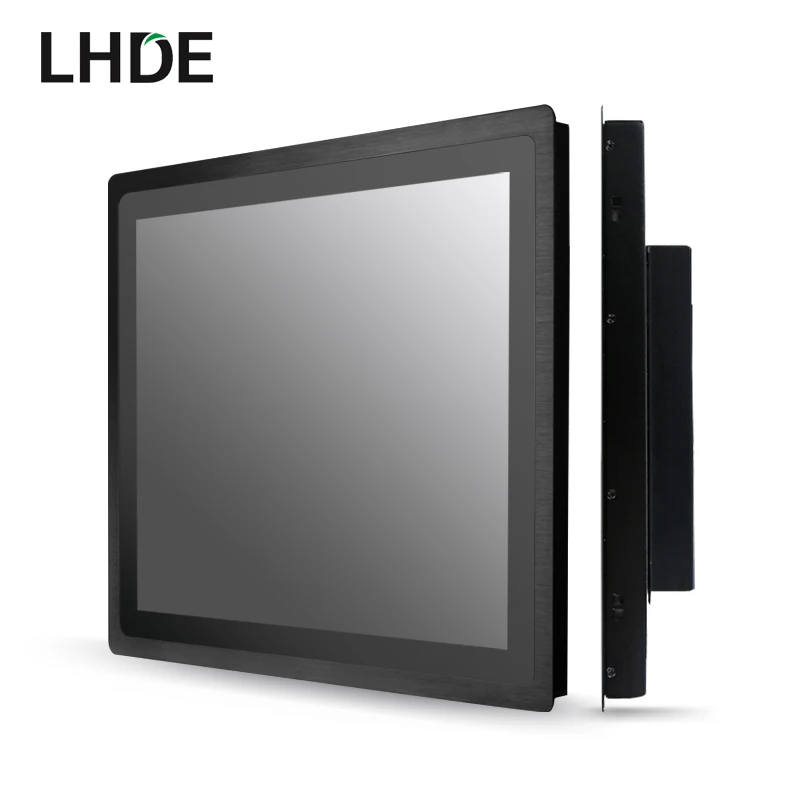

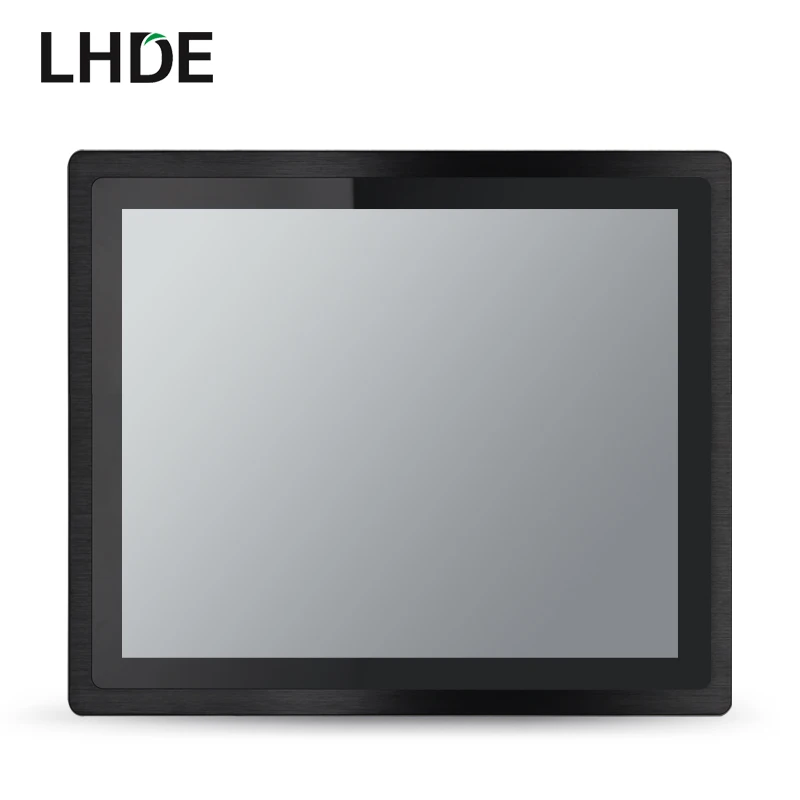

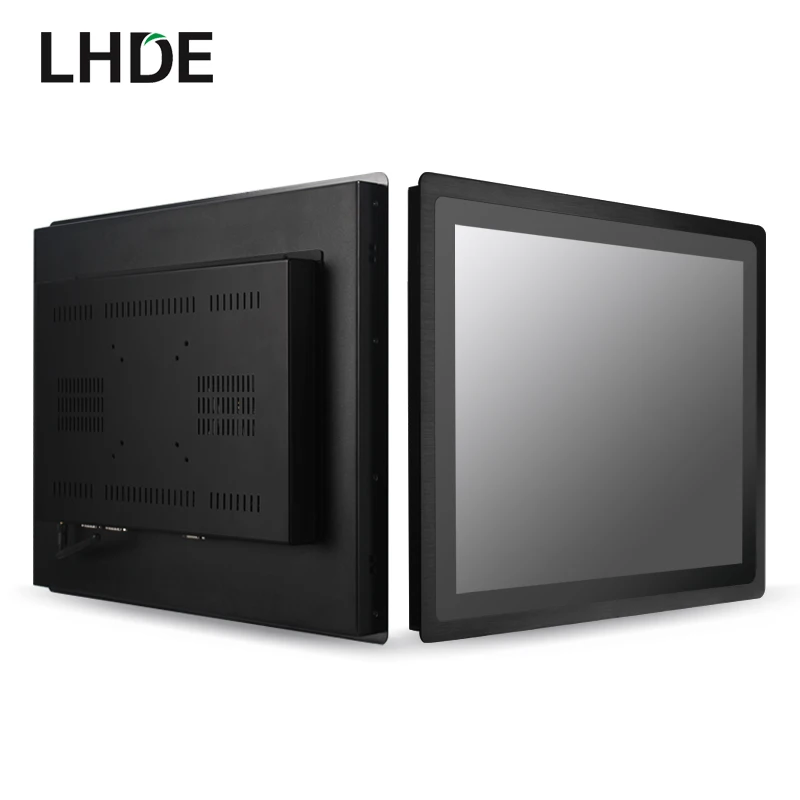

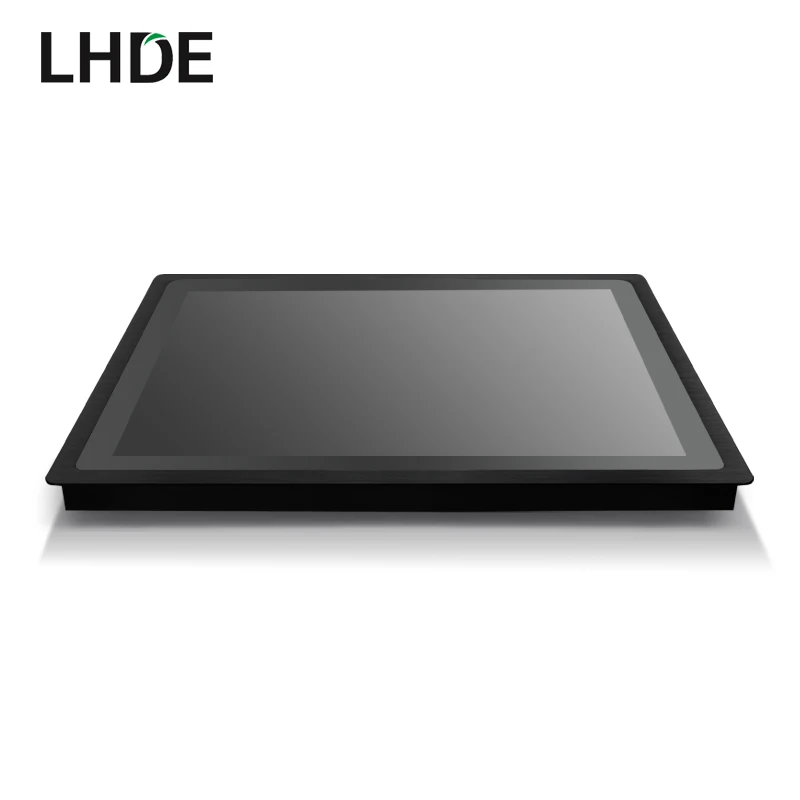

17inch industrial touch screen panel pc with 1280x1024 resolution,aluminum case



Panel
Size	17" panel pc,10.1",10.4",12",15",15.6",17",17.3",19",21.5"option
Panel Type	LCD display with LED back-light
Aspect Ratio	4:3
Resolution	1280*1024
Contrast	1000:1
Luminance	350nit,can expandable to 1000nits
Response time	5ms
Active Area (mm)	337*270mm
Display colors	16.7M(8-bit)
View angle	85/85/85/85
Touch screen
Touch type	projected capacitive touch  with 10-point touch option
Touch Times	50million times for Projected capacitive touch screen
SYSTEM CONFIGURATION
CPU	Intel celeron J1900(Fanless), Intel Core I3/I5/I7 option
System Memory	2G RAM,can expandable to 4G/8G
WIFI	Built-in, 802.11a/b/g/n
Hard Disk	32G/64G/128G/256G SSD
I/O PORTS(Intel celeron J1900 CPU)
USB Ports	3xUSB2.0 Ports+1xUSB3.0
Serial Ports	2xRS232 COM Ports
LAN Port	1x100M bps auto
HMI Port	1xHMI output Port
VGA Port	1xVGA Port
Audio Port	1xAudio output Port,1xAudio input Port
DC Output	1xDC 12V output
POWERING SYSTEM
Power Supply	External DC Power supply(placed inside the system  base)AC 100V to 240V
Power Button	1xSystem on/off button
Installation method	VESA hole,wall mount, arm bracket, desktop stand, embedded.
SAFETY & ENVIRONMENT
Product certification	CCC,CE,FCC,ROHS,ISO
Operation Temperature	-30°C-65°C
Storage Temperature	-30°C-70°C
Operation Humidity	10%--80%
Storage Humidity	10%-90%
OS Compatibility	Windows XP,Windows7/8.1/10,Ubuntu(Linux)
Color option	Black/silver
Material	Aluminum alloy enclosure



The selling point(advantages) of our industrial pc as below:



1.Using new A+grade industrial TFT LCD screen



2.Touch screen is 5 wire resistive touch from Taiwan.

Projected capacitive touch screen with 10-point tempered cover lens option.



3.The screen is full flat with IP66 dust and waterproof resistance.



4.The material is Aluminum alloy enclosure with efficient heat dissipation.



5.Using Industrial grade motherboard with reliable performance.



6.Our products have got FCC,ROHS,CE,CCC,ISO certification approval.



7.There is 2 engineers and 10 technicians in our company to deal with the tech problems.

And we have QA staff team:20 people(IQC:3,IPQC:9,FQC:5,OQC:3).

Let you buy our products without worry about after-sale service.



 Delivery Time

Samples: 1-5 working days

500PCS or More orders: 12-17 working days



Warranty conditions

1.All products have 1 year warranty, no artificially damaged.

2.If there are some problems with the goods, the buyer needs to supply related documents (Photos, video etc) or damage to the original spare parts to old change new. Please contact the seller before you disassemble machines. please note, we will be not responsible for the goods you disassemble any goods without the seller's permit.

3.Repair of the freight, based on specific product damage reason and responsibility. If it is product quality problems, we will bear the freight.

4.For the RAM policy: We will fix it for free within one year. The buyers need to pay for the freight cost of returning, we will pay for the freight cost of sending back, but man-made damage is not included..
