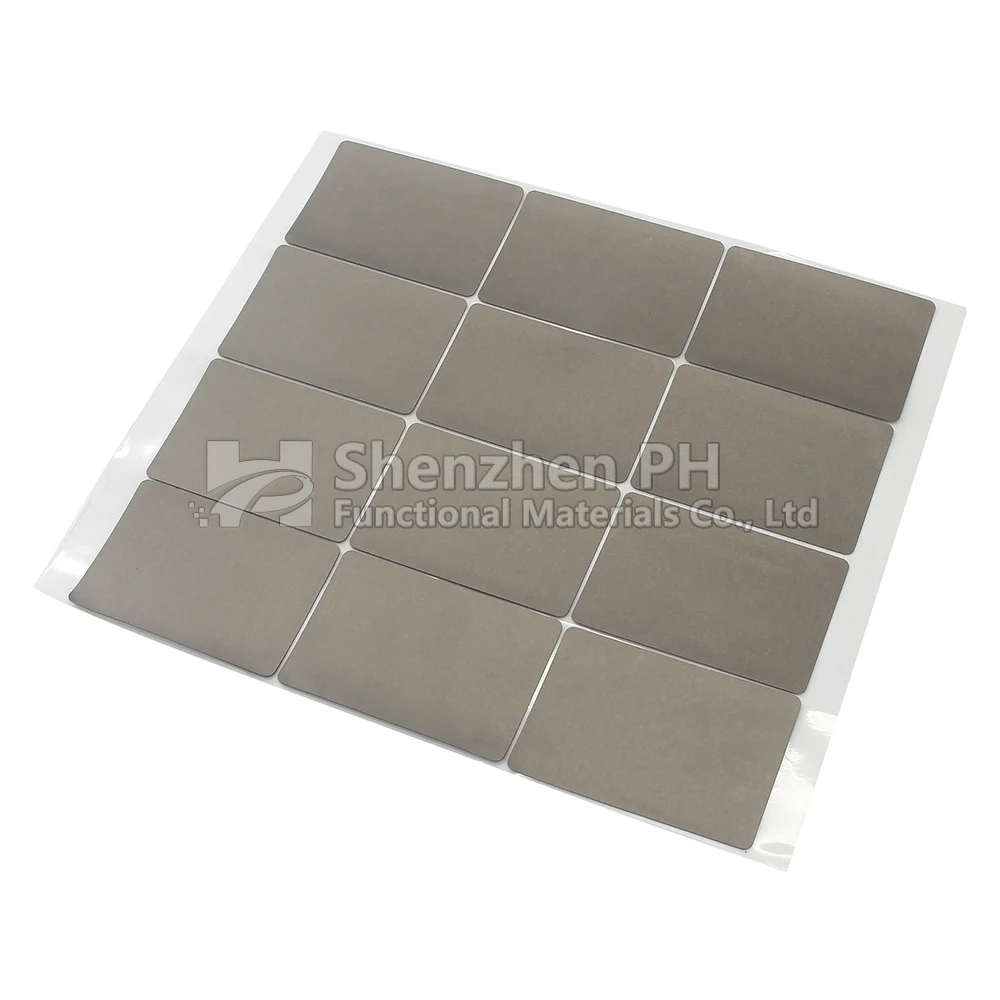

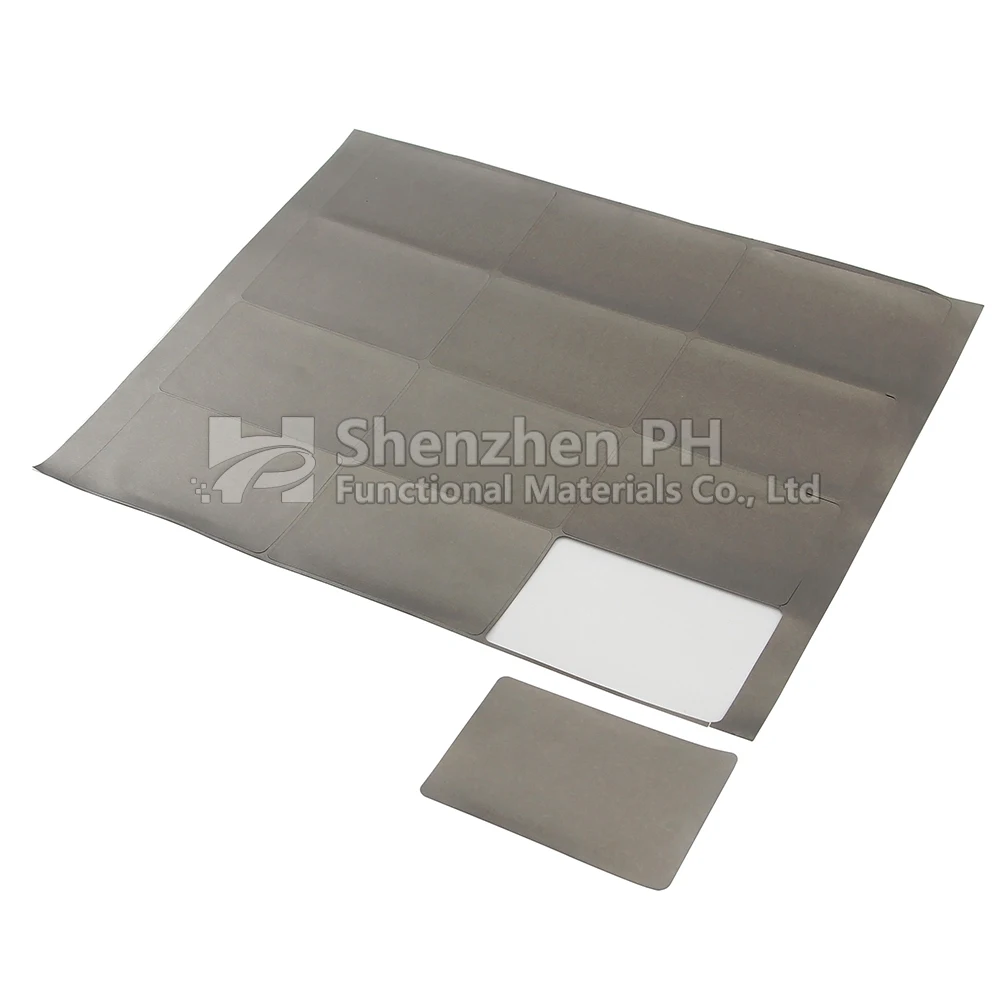

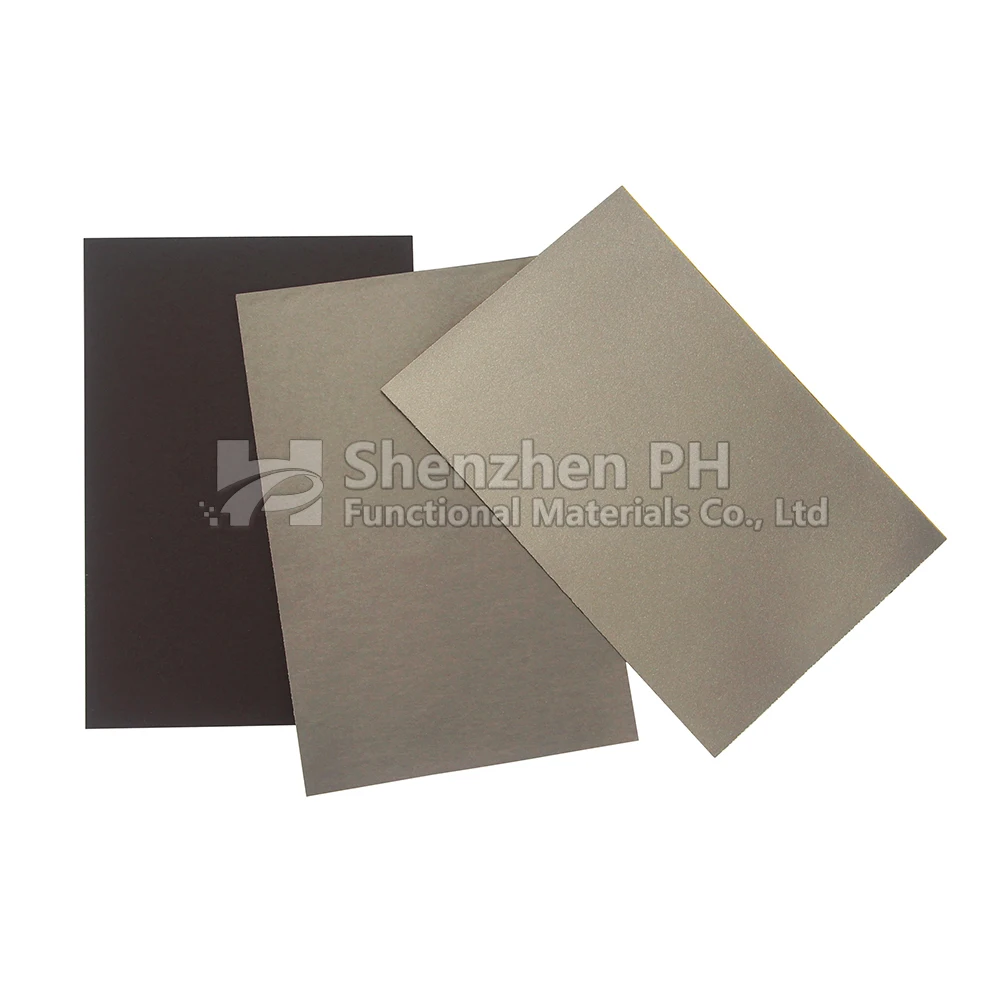

13.56MHz electromagnetic shielding material magnetic suppression sheet for RFID

Product Overview

Description

13.56MHz electromagnetic shielding material magnetic suppresion sheet for RFID



PH RF absorber materials including three categories, they are magnetic fabric (low-end), Soft magnetic alloy (middle end) and sintered ferrite (high-end) . All the items possess the function of magnetic.

By attached between the antenna and the back metal, forming a magnetic conduction channel, which can eliminate the interfere to antenna from metal (Or other sources of interference) , Enable the antenna to transmit a signal normally.





Application:





Anti metal tag / card







NFC mobile phone battery / rear lid









Anti metal card reader









iphone protective sleeve

















Characteristic of Magnetic fabric:



Low cost

General permeability, low magnetic loss

High resistivity

Meet ROHS and halogen free

Flame retardant grade:UL94-V2

Common thickness:0.3~0.5mm

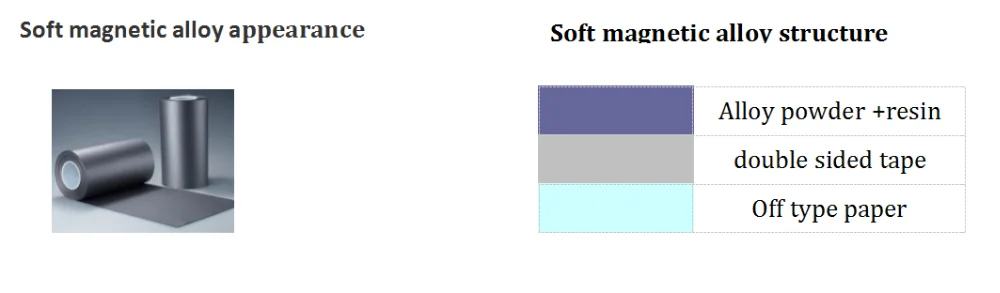

Characteristic of Soft magnetic alloy:



middle and upper cost

middle and upper permeability, low magnetic loss

High resistivity

Meet ROHS and halogen free

Flame retardant grade:UL94-V2

Common thickness:0.05~0.5mm

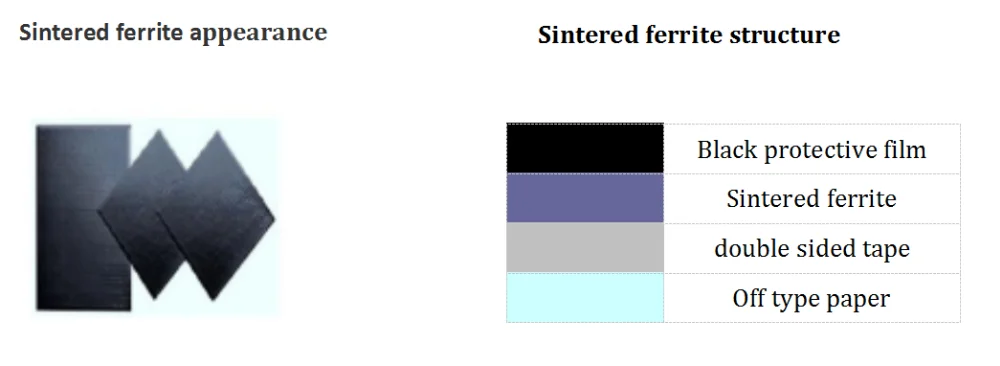

Characteristic of Sintered ferrite:



High cost

High permeability, low magnetic loss

High resistivity

Meet ROHS and halogen free

Flame retardant grade:UL94-V2

Common thickness:0.06~0.1mm











Product features:



1 Soft texture materials, good fit;

2 Perfect absorption performance, can absorb the electromagnetic wave in the wide band range;

3 Meet the ROHS environmental protection requirements

4 Can be cut into required size and shape based on customer requirements





Company certification:IS09001



Product certification:ROHS and Halogen Free



Guarantee period:5 years
