one port power pass CS 2 way splitter
- Category: >>>
- Supplier: Yuyao Hengtong Network Equipment Co. Ltd. [Zhejiang China]Yuyao
Share on (60614807628):
Product Overview
Description

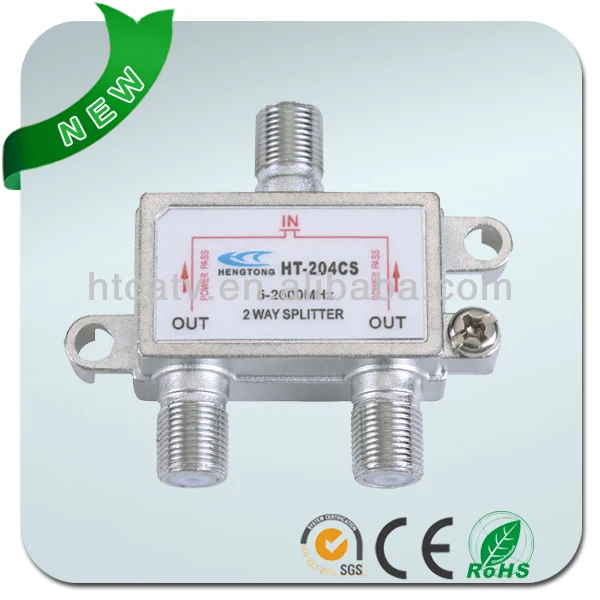

one port power pass CS 2 way splitter
We produce catv 2way splitter which is used in satellite TV system. We focus on product quality to satisfy each customer's requirement.
Specification
1.Technical parameters:
Item | Model | |||||
HT204CS | HT306CS | HT408CS | HT610CS | HT811CS | ||
| Frequency Range(MHz) | 2-Way Splitter | 3-Way Splitter | 4-Way Splitter | 6-Way Splitter | 8-Way Splitter |
Insertion Loss (dB) | 10-76 MHz | ≤4 | ≤6.5 | ≤8 | ≤11 | ≤12.5 |
76-300 MHz | ≤4 | ≤6.5 | ≤8 | ≤11 | ≤12.5 | |
300-770 MHz | ≤4.5 | ≤7 | ≤9 | ≤12 | ≤13 | |
770-1335 MHz | ≤5 | ≤8 | ≤9.5 | ≤14 | ≤15 | |
1335-2150 MHz | ≤5.5 | ≤10 | ≤11 | ≤15 | ≤16 | |
2150-2400 MHz | ≤6 | ≤11 | ≤12 | ≤16 | ≤17.5 | |
Isolation (dB) | 10-76 MHz | ≥20 | ||||
76-300 MHz | ≥20 | |||||
300-770 MHz | ≥20 | |||||
770-1335 MHz | ≥18 | |||||
1335-2150 MHz | ≥18 | |||||
2150-2400 MHz | ≥18 | |||||
Return Loss (dB) | 10-76 MHz | ≥10 | ||||
76-300 MHz | ≥10 | |||||
300-770 MHz | ≥10 | |||||
770-1335 MHz | ≥10 | |||||
1335-2150 MHz | ≥10 | |||||
2150-2400 MHz | ≥10 | |||||
Power Pass |
| OUT-IN (All Ports ,DC Power Passing 500mA) | ||||
Ordering Information
2.Product photos:
Model | ||||

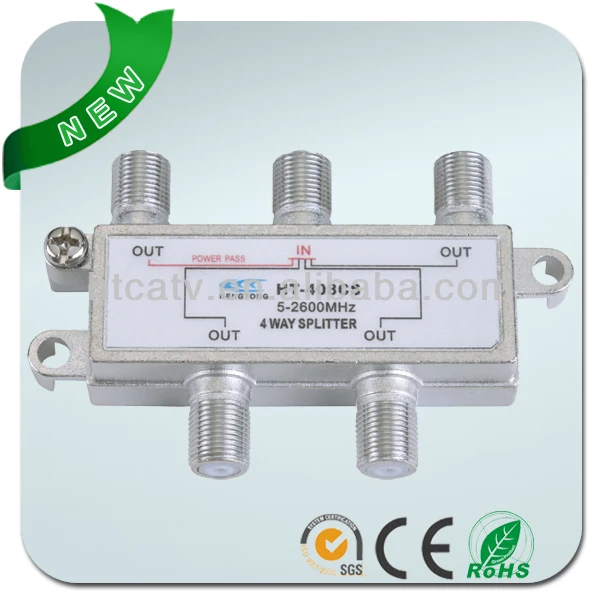

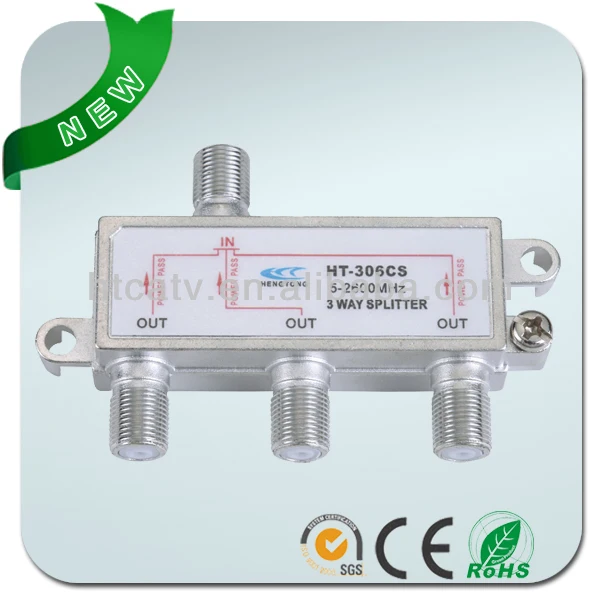

HT204CS | HT306CS | HT408CS | HT610CS | HT811CS |
2-Way Splitter | 3-Way Splitter | 4-Way Splitter | 6-Way Splitter | 8-Way Splitter |
3.Delivery time:
Our delivery time is between 5-20 days.
4.After sale service :
We have a professional after sale service team, Any questions will receive our feedback in the first place .
