Structured Trickling Filter Media, Cooling Tower Fill Sheet

Counter Flow Cooling Tower Fill with a 19mm pitch. The larger sheet spacing is suitable for water quality slightly less than ideal.
RF1900 is used in counterflow or crossflow cooling tower applications and is available in glued blocks 305mm wide x 305mm high, and either 1830mm or 2440mm long.
RF1900 can also be cut to length to your specific requirements, or supplied as loose sheets.
Counter Flow Cooling Tower Fill improve water distribution by splitting the water stream as it descends through the fill pack. The CF1900 splits the water stream 8 times in a 12” (305 mm) vertical path. High thermal performance (high KaV/L) and low pressure drop are simultaneously achieved through engineered flute/microstructure design and the highest manufacturing standards.

Technical Data

Counter Flow Cooling Tower Fill Features and Benefits:

• Bonded edge with dedicated bond points for added durability
• Engineered microstructure for improved water distribution and thermal mixing
• High thermal performance
• Improved water distribution
• Proprietary edge trim that directs water to both sides of sheet
• Material meets Cooling Tower Institute (CTI) Standard 136
• Available in PVC

Surface Area	Sheet Spacing	Flute Angle	Sheets Per Ft.	Media Pack Sizes: Depth(D), Width(W), Length(L)
48 ft2/ft3 (157.5 m2/m3)	0.75 in (19 mm)	31°	16	Minimum	Maximum	Standard
								D: 6 in  (153 mm) W: 6 in (153 mm) L: 1 ft (305 mm)	D: 24 in (610 mm) W: 24 in (610 mm) L: 12 ft (3658 mm)	D: 12 in (305mm)  or 24 in (610mm) W: 12 in (305mm) or 24 in (610 mm)  L: 4 ft (1220 mm), 6 ft (1829 mm), 8 ft (2439 mm) or 10 ft (3048 mm)

Detailed Images

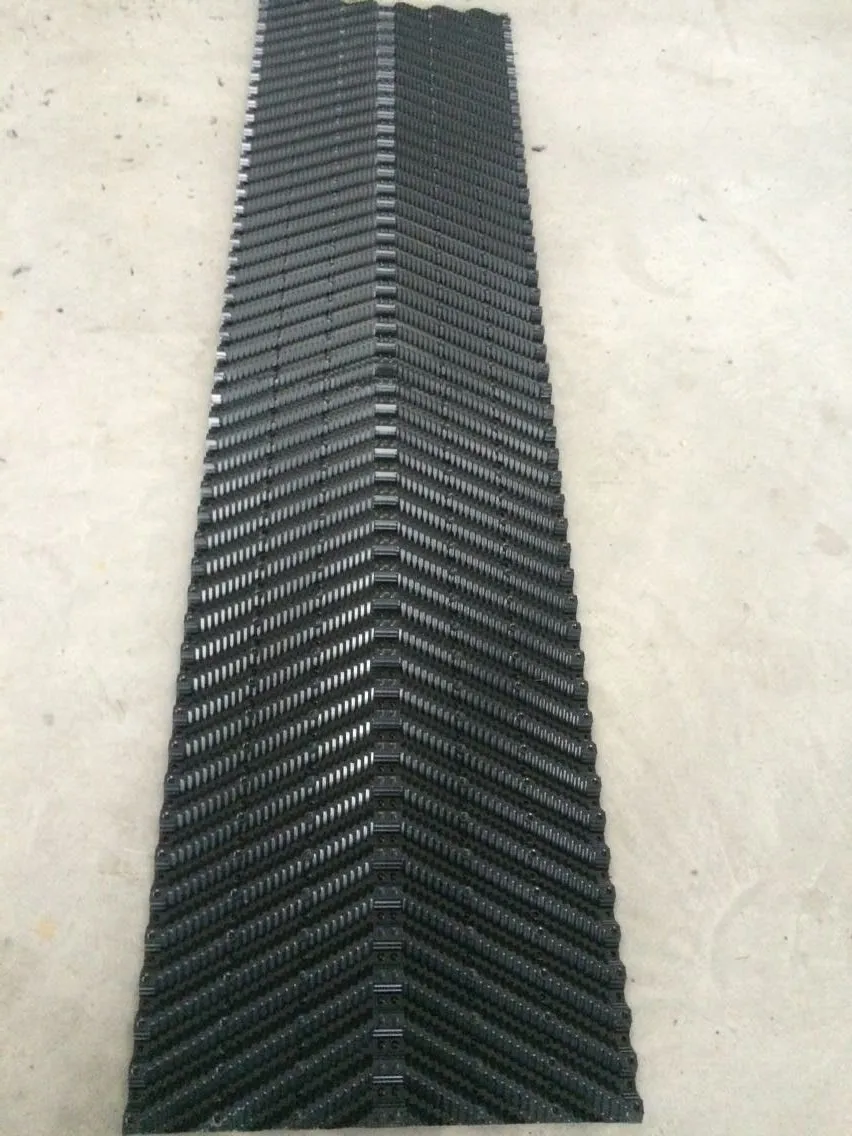

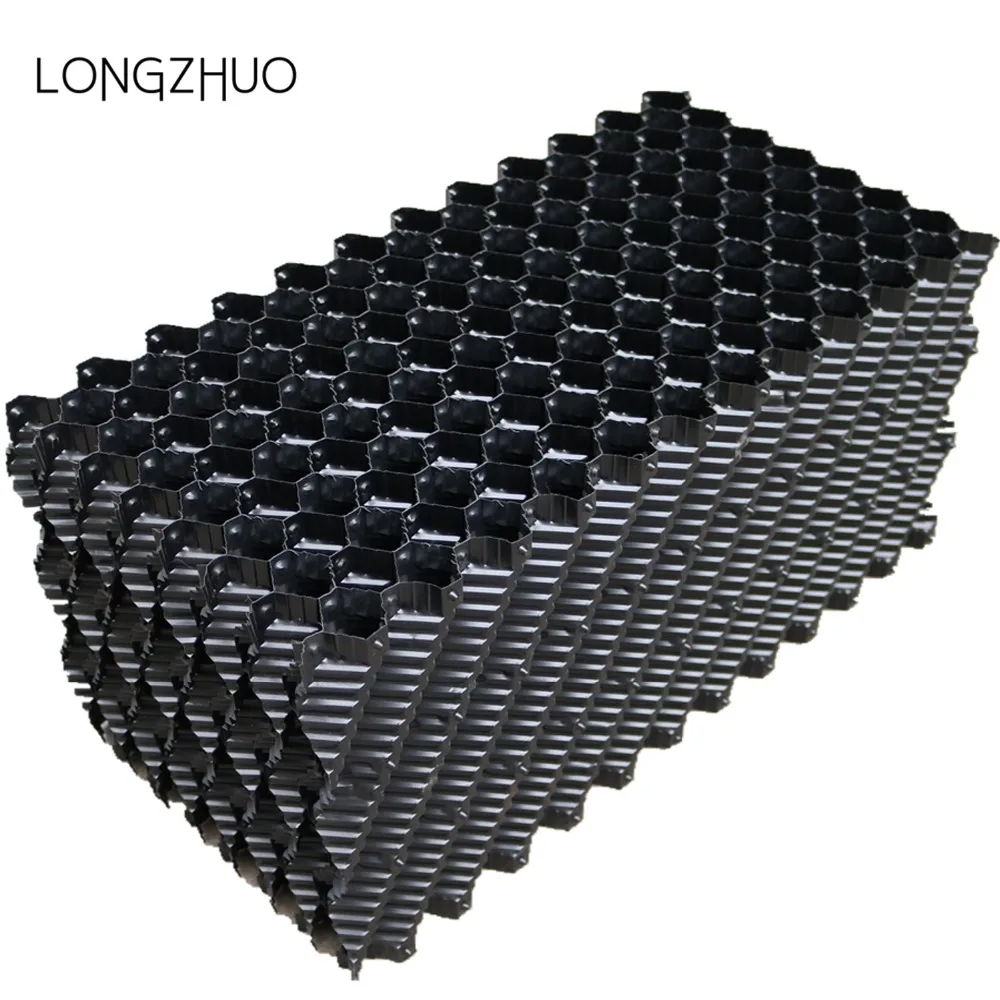

Width 305mm

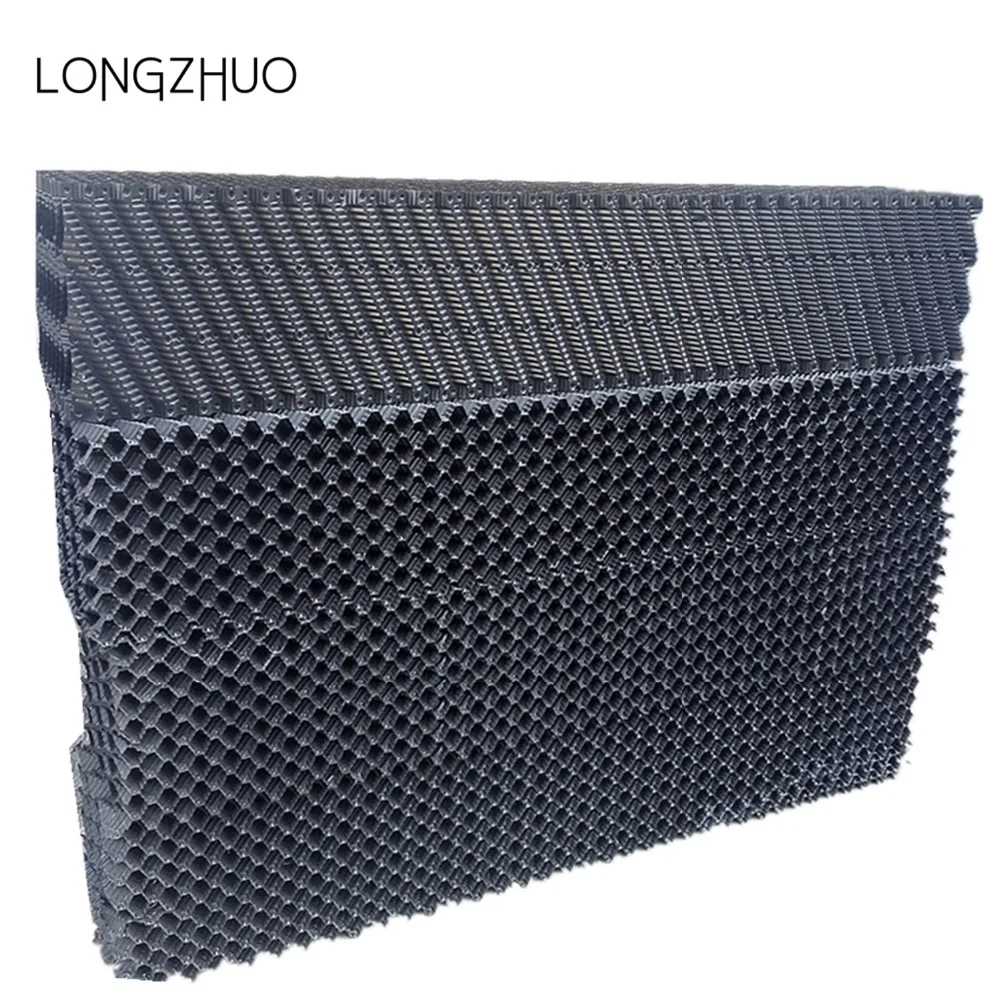

Width 610mm

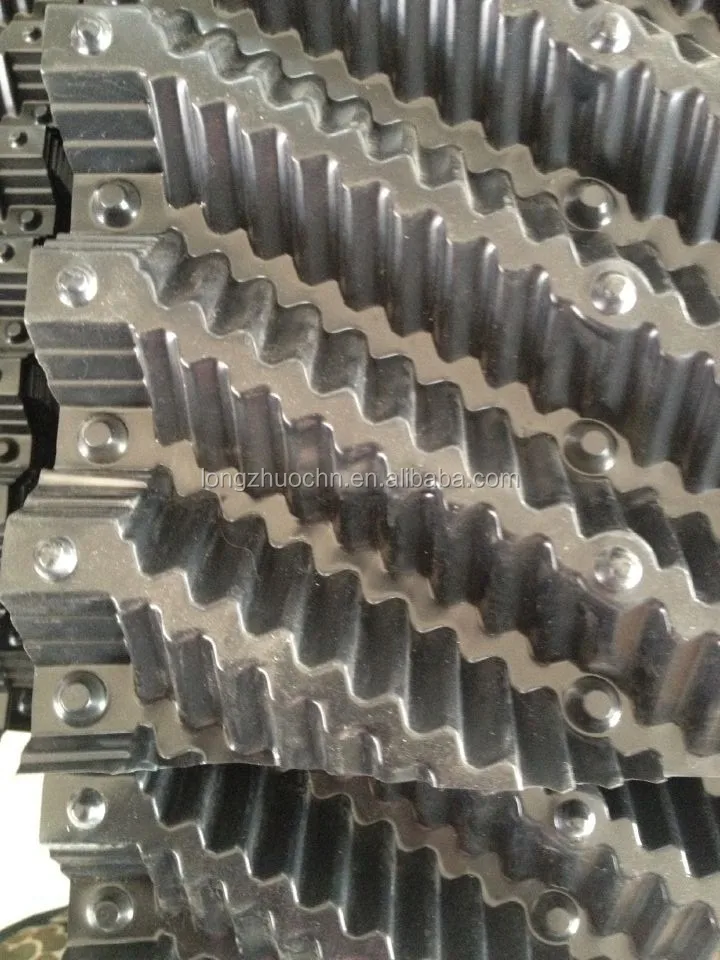

Cooling Tower Fill Block Assemble Point

Cooling Tower Fill Block Assemble Point

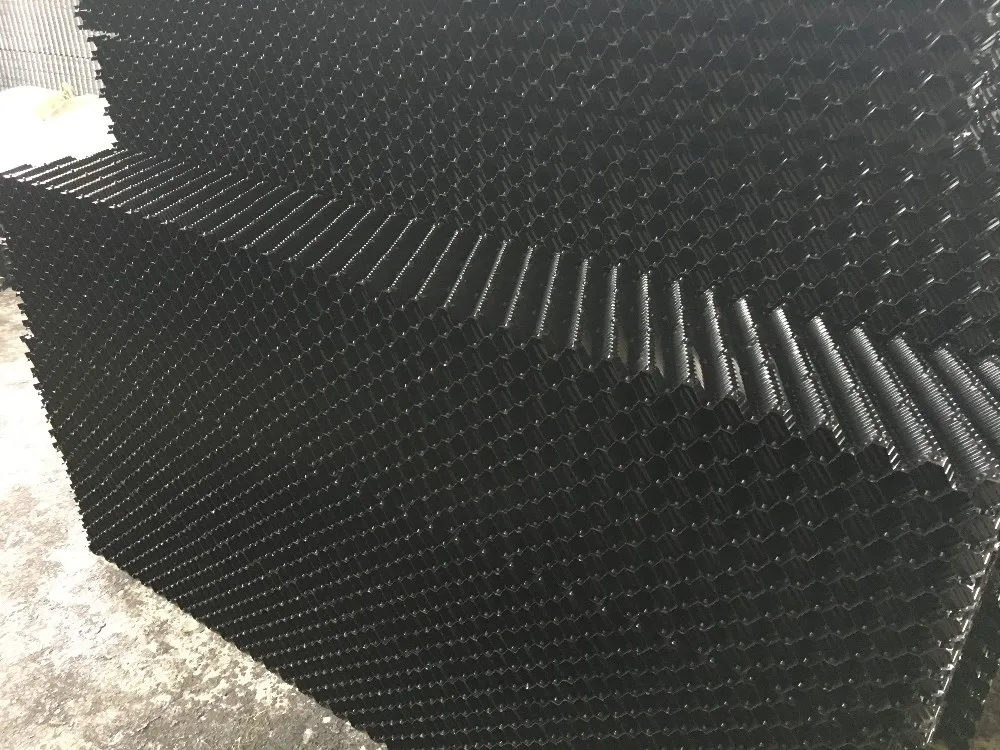

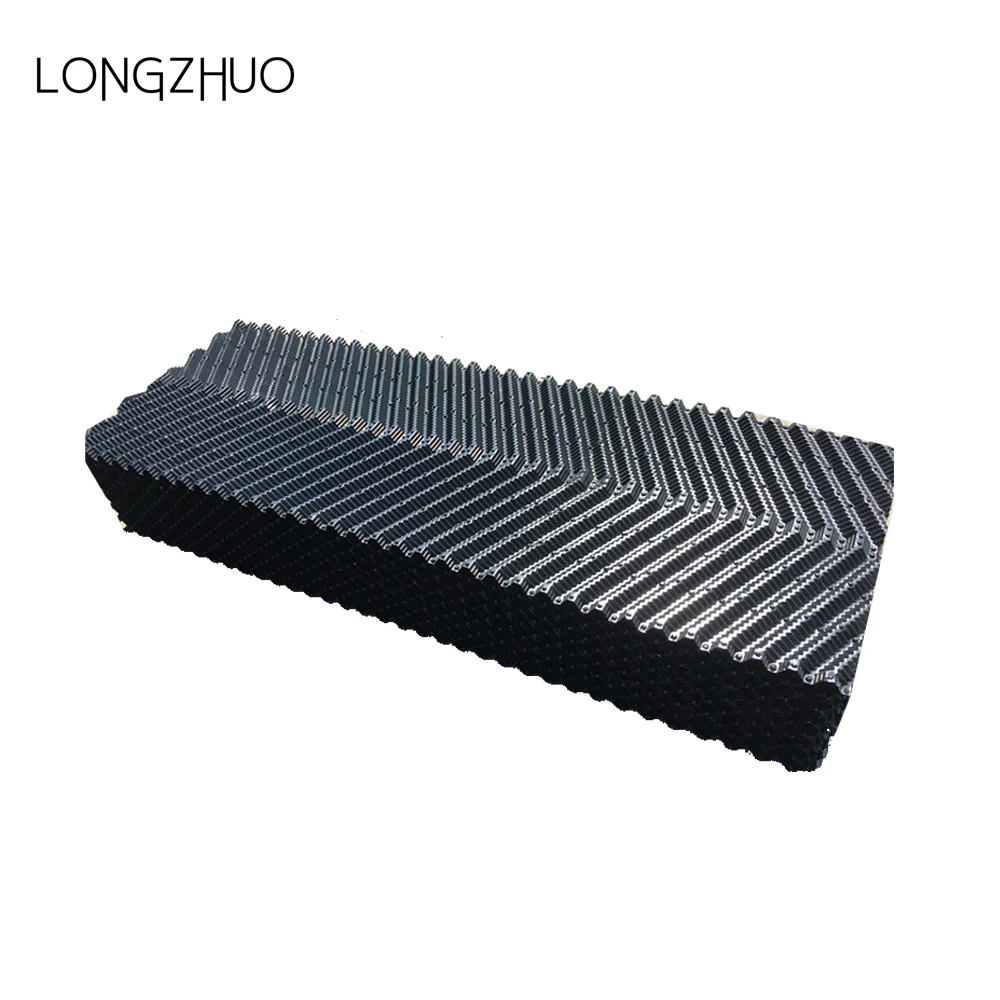

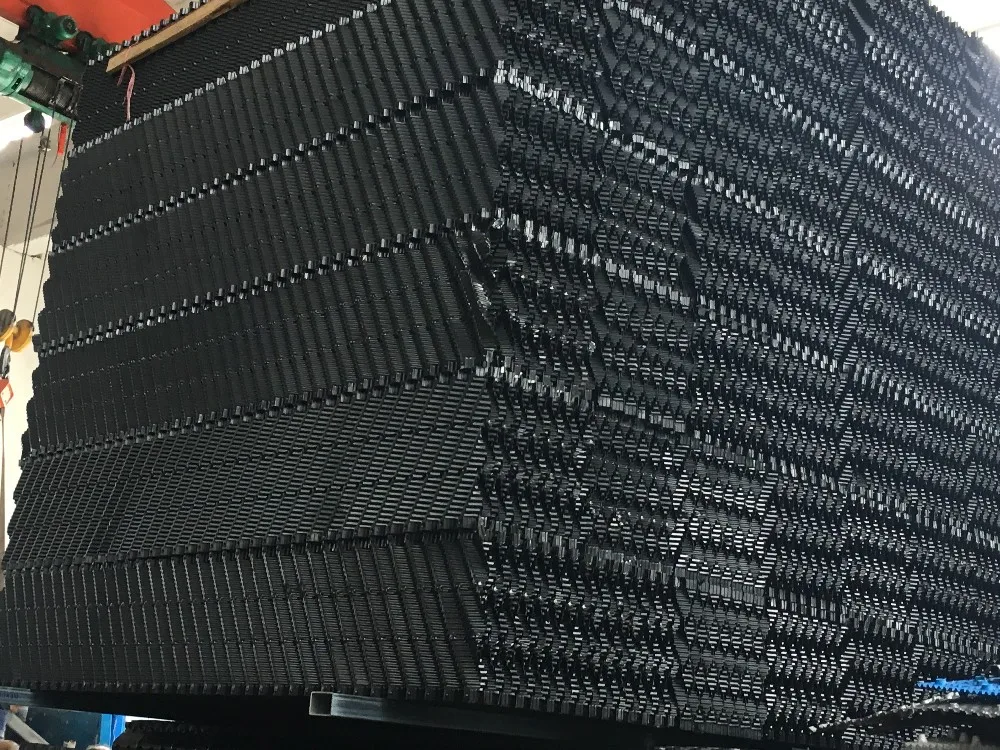

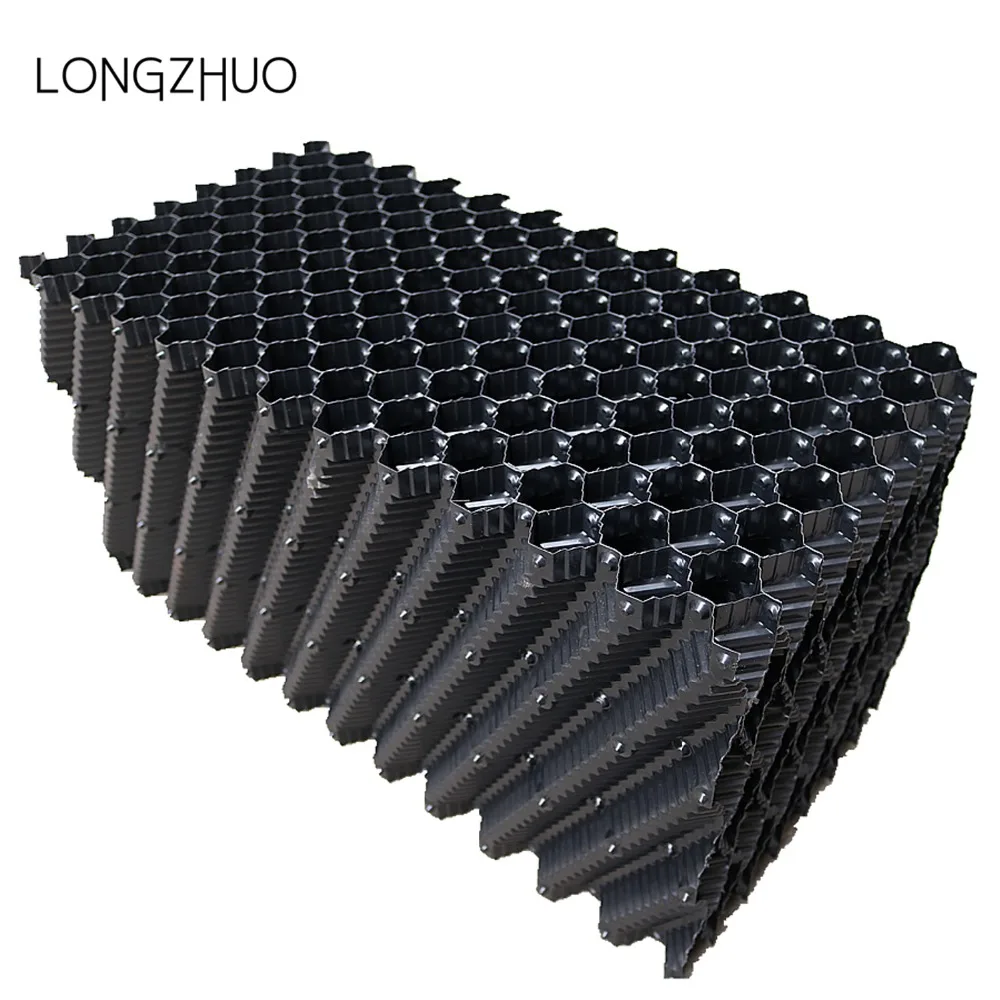

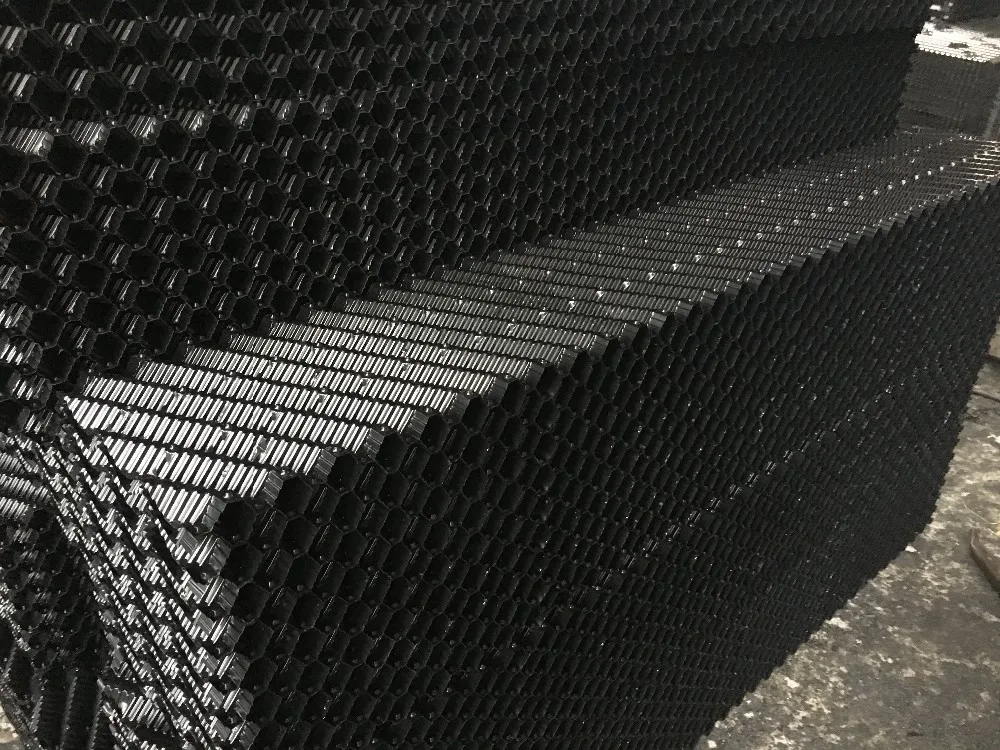

Cooling Tower Fill Block

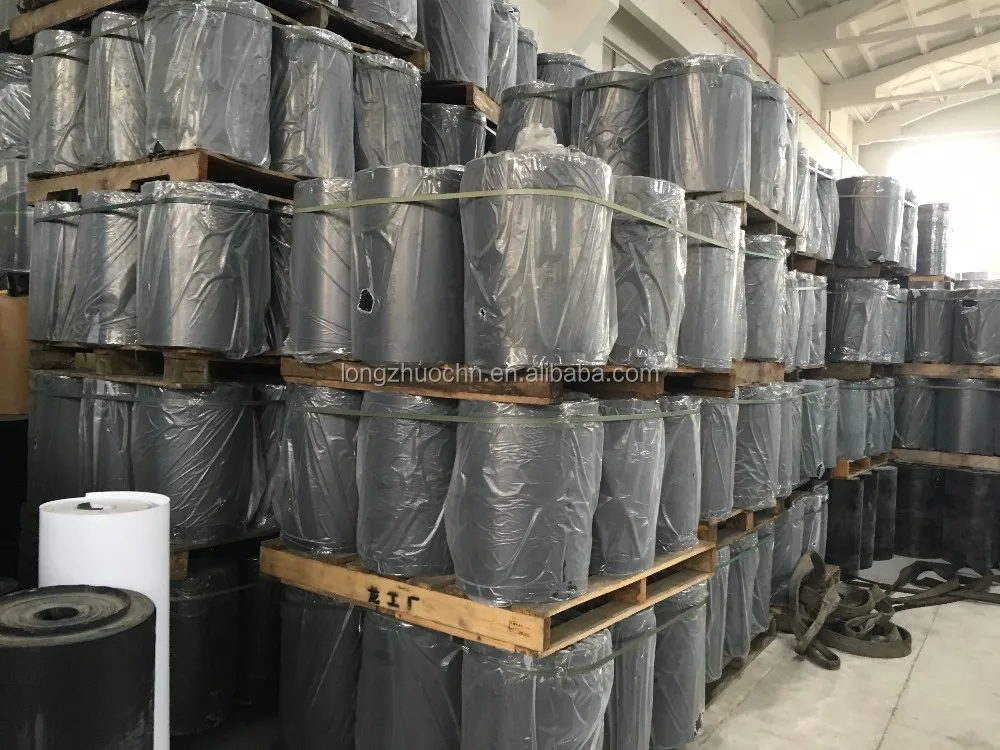

Production Line

Application

The CF1900 is the popular choice for field-erected or package counterflow cooling towers. For use in Power, Refining, Chemical, Steel, and Food Processing applications where water quality is “average-to-good”.

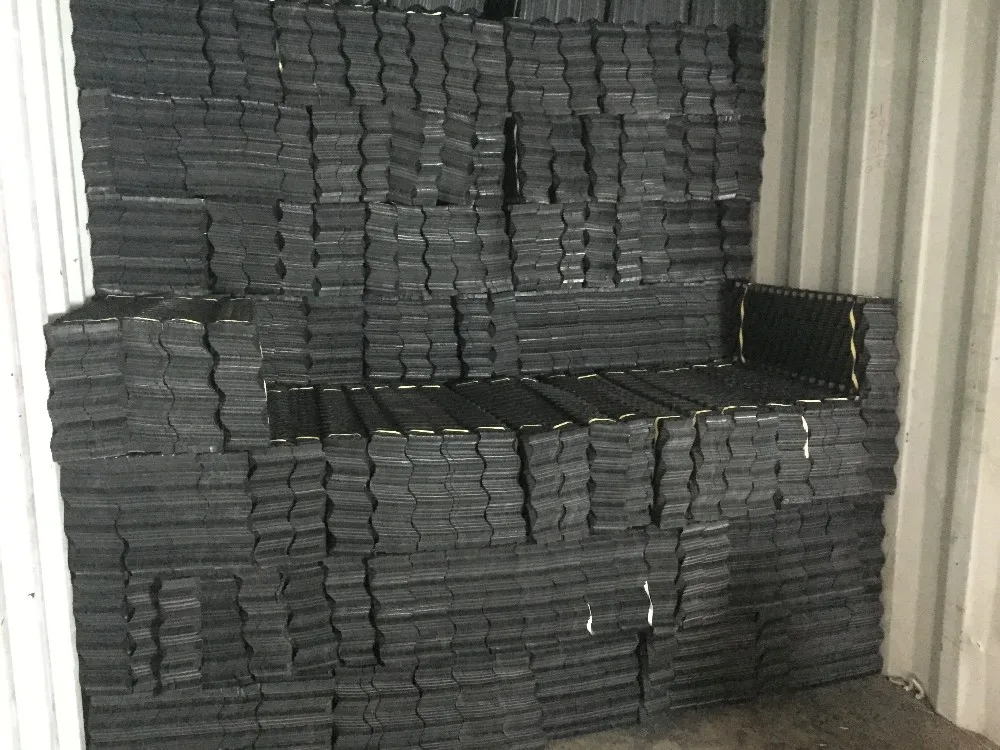

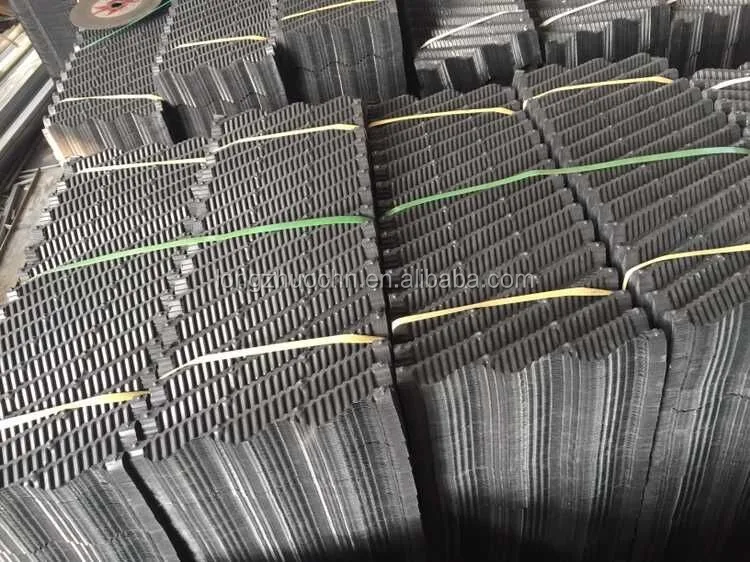

Packing & Delivery

Cooling Tower Fill can be packaged in Wooden Crate, Wooden Pallet, Container or as your request. We also can ship by assembled blocks.
