Automatic Side Sealer Shrink Tunnel Heat Shrink Wrapper

Product Overview

Description

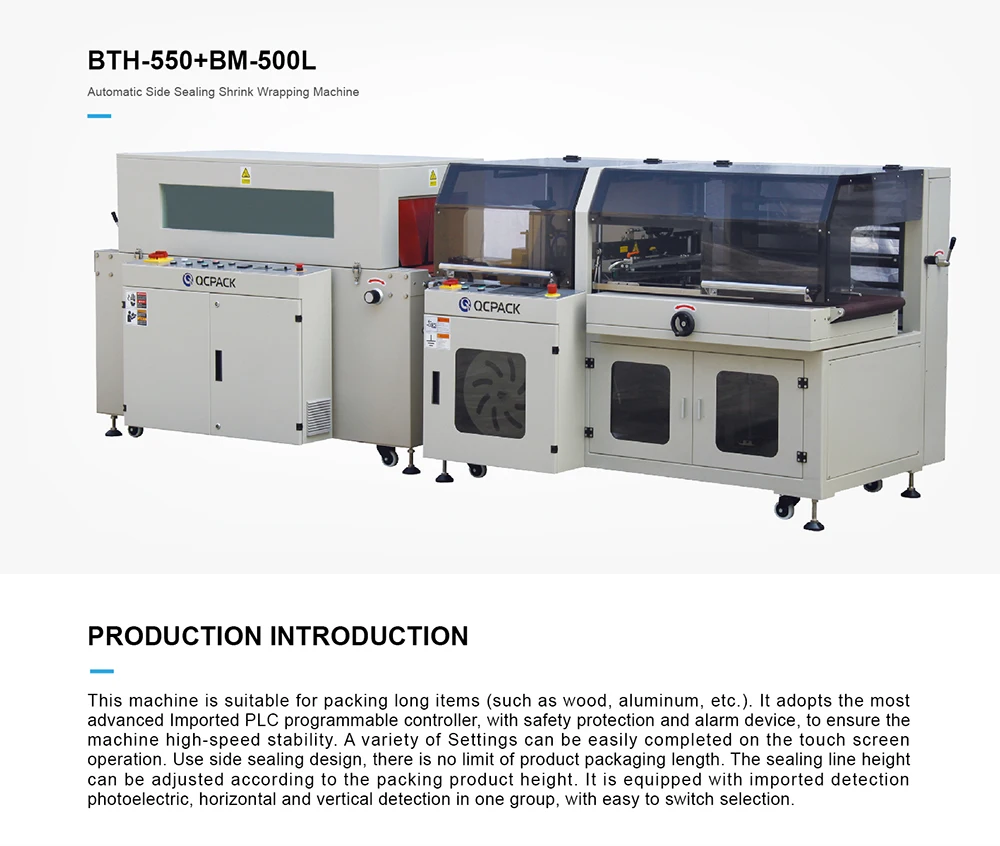

BTH-550+BM-500L Automatic Side Sealer Shrink Tunnel Heat Shrink Wrapper

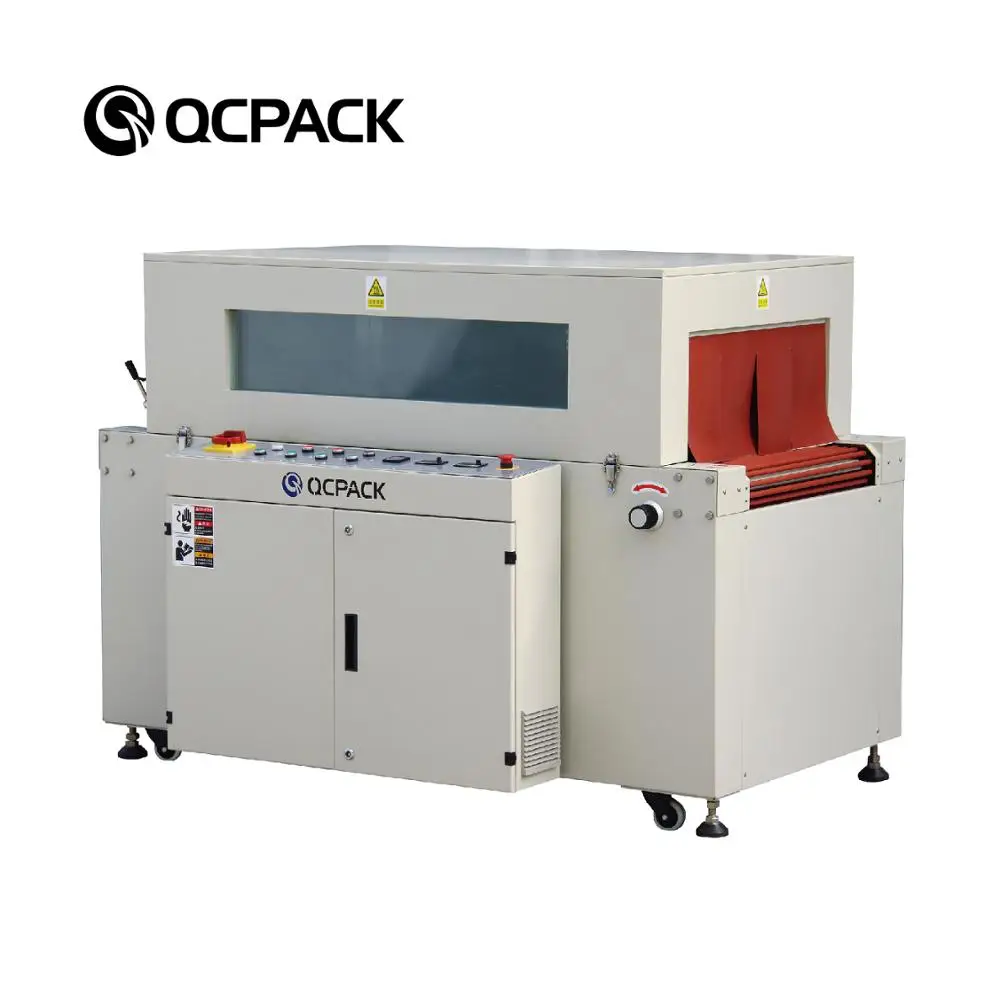

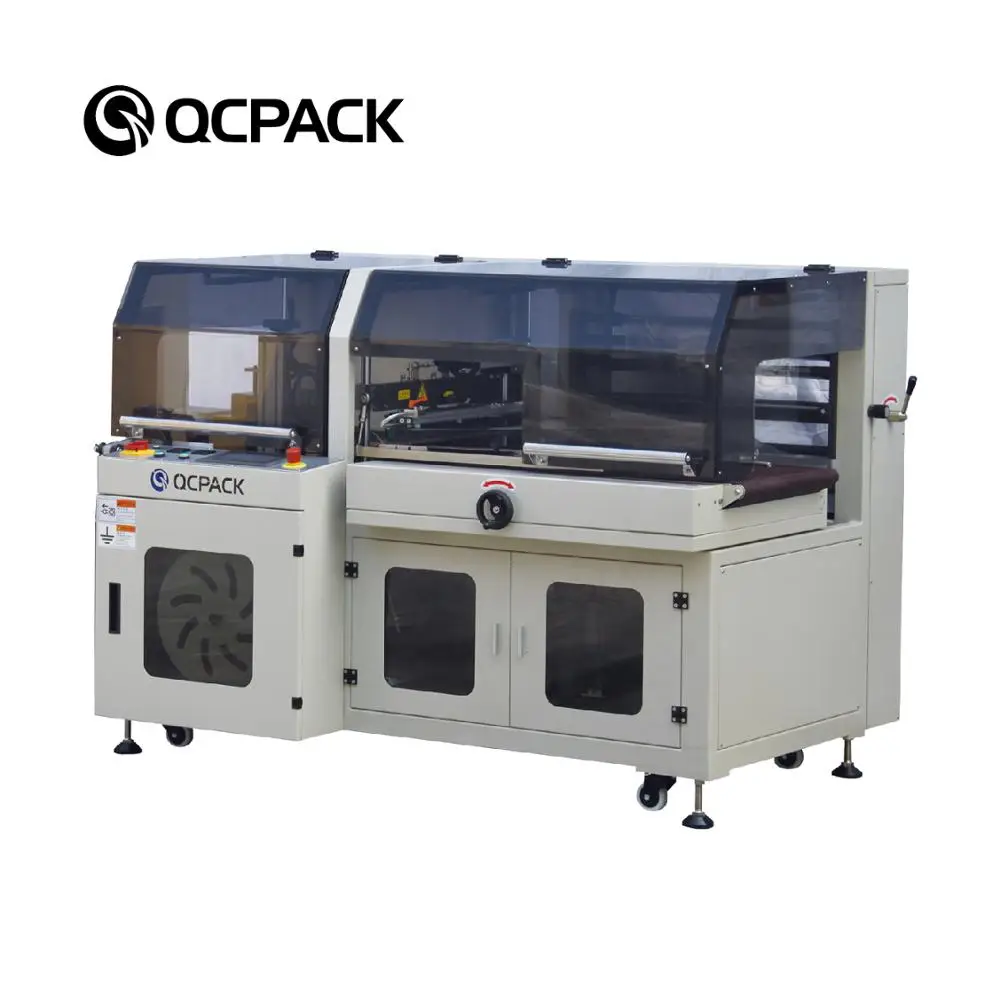

1. Machine photo:



Videos FYI:

Company instruction: https://youtu.be/n2cWQHDI7SM

Machinery running:  https://youtu.be/mygz1Hfc-hc

high capacity custom carpet shrink wrapping machine

2. Packing result :

 automatic shrink wrapping packing machine

3.  Performance Characteristics shrink packing machine :

1. Side blade sealing continuously makes the unlimited length of the product;
2. Side sealing lines can be adjusted to the desired position which based on the product’s height in order to achieve excellent sealing results;
3. It adopts the most advanced OMRON PLC controller and touch operator interface. Touch operator interface accomplish all working date easily;

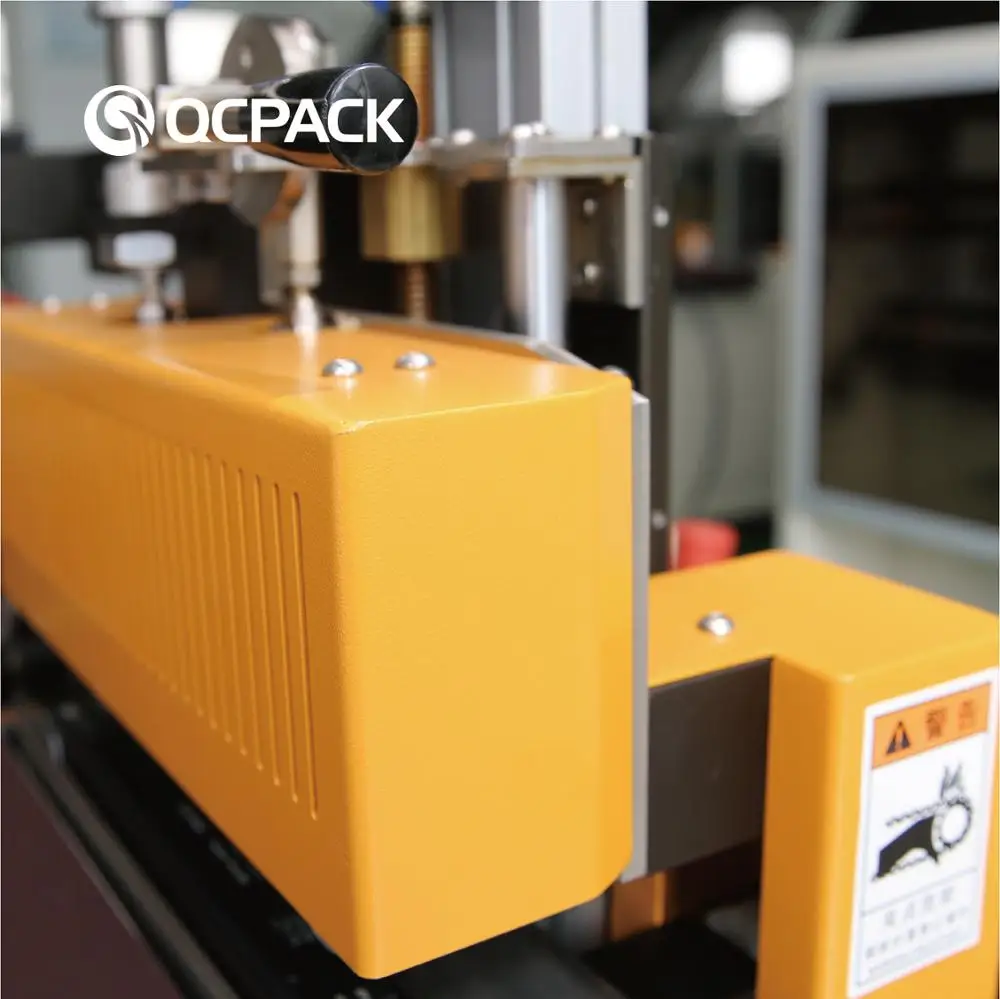

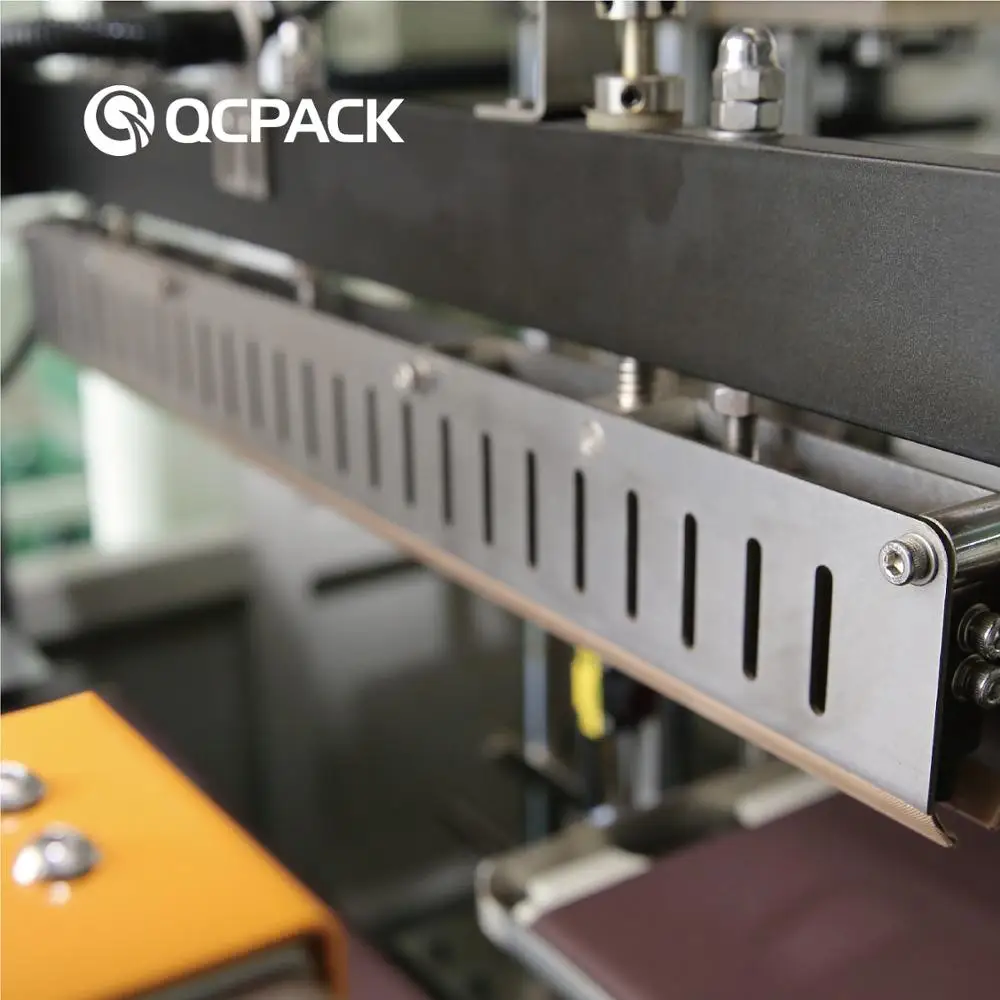

4. Sealing knife uses the alloy steel with DuPont Teflon with anti-stick coating & anti-high temperature to avoid cracking, coking and smoking with zero pollution.The sealing balance itself is also equipped with automatic protection function which effectively prevent from accidental cutting;
5. Automatic film feeding punching device is to drill away the air and make sure the packing result is good;
6. Equipped with imported USA Banner photoelectric of horizontal and vertical detection for choice to easily finish the sealing of thin and small items;
7. Manually adjustable film-guide system and feeding conveyor platform make the machine suitable for different width and height items. When the packaging size changes, the adjustment is very simple by rotating the hand wheel without changing molds and bag makers;
8. BM-500L adopts advance circulation blowing from the bottom of the tunnel, equipped double frequency inverter controls blowing, adjustable blowing direction and volume form bottom.

Automatic Side Sealer and Shrink Wrapper Machine For Carton Boxes

4. Main Technical Parameters:

Model	BTH-550	BM-500L
Max. Packing Size	(L)No limited (W+H)≤500 (H)≤200	(L)No limited x(W)450 x(H)250mm
Max. Sealing Size	(L)No limited (W+H)≤550	(L)1500x(W)500 x(H)300mm
Packing Speed	30-40 packs/min.	0-30 m/min.
Electric Supply & Power	220V / 50Hz(customized)  3 kw	380V / 50Hz(customized) 16 kw
Max Current	16 A	32 A
Air Pressure	5.5 kg/cm3	/
Weight	800 kg	400 kg
Overall Dimensions	(L)2000x(W)1270 x(H)1300mm	(L)1800x(W)1100 x(H)1300mm



5. spare parts:



Component List for BTH-550
NO	NAME	BRAND	QTY
1	product infeed motor	SESAME (Taiwan)	1
2	product output motor	SESAME(Taiwan)	1
3	Film deliver motor	SESAME(Taiwan)	1
4	waste film recycling motor	SESAME(Taiwan)	1
5	The main cylinder	SHAKO(Taiwan)	1
6	Side sealer cylinder	AIRTAC	1
7	Breaker	Schneider(France)	2
8	PLC programmable controller	OMRON (Japan)	1
9	Temperature controller	OMRON (Japan)	2
10	Touch screen	MCGS	1
11	Intermediate relay	OMRON (Japan)	7
12	Solid state relay	OMRON (Japan)	2
13	vertical sensor	BANNER(USA)	2
14	Horizontal sensor	BANNER(USA)	2
15	Cylinder solenoid valve	SHAKO(Taiwan)	2
16	Air Filter	SHAKO(Taiwan)	1
17	Proximity switch	AUTONICS(Korea)	1
18	Conveyor belt	SIEGLING(Germany)	2
19	Synchronous belt	EVER-POWER(USA)	2
20	Seal cutting knife	DAIDO(Japan)	2



automatic sh

For more information about this Automatic Side Sealer Shrink Tunnel Heat Shrink Wrapper, please feel free to contact us.
