7 Wire Compacted 15.2mm Steel Strand for Prestressed Concrete

Share on (60615064101):


Price:RUB 41,699.90 - RUB 50,039.88

Quantity:


Product Overview

Description

Product Detail

Quick Details

  • Place of Origin: Tianjin, China (Mainland)
  • Brand Name: GTQC
  • Model Number: High Tensile Strand
  • Material: Steel
  • Product Name: pc strand
  • Type: Low Relaxation PC Strand
  • Application: Construction
  • Raw Material: SWRH 82B Wire Rod
  • Chemical Composition(%):C=0.81,Mn=0.2,Si=0.75,P=0.013,S=0.011,Cr=0.25
  • Tensile Strength: 1860MPa
  • Yield Strength: 1320MPa--1760MPa
  • Min. Elongation at Max Load (%): ≥3.5%
  • Initial Load (%): No more than 70%
  • Relaxation(1000h): No more than 2.5%















Packaging & Delivery

Packaging Details:Standard Export Package (Wrapped by steel strips, waterproof cloth sheet, fumigated wooden pallet) for seven wires strand 1/2'' steel strand bridge use
FAQ

 Q: Are you trading company or manufacturer ?

A: We are trade & factory company.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Product Description



PC Stranded Steel Wire



Construction:  1*2, 1*3, 1*7, 1*19

Standard:  ASTM A416, ABNT NBR 7483:2008, BS5896-1980, EN10138-3, GB/T5224-2003, IS6006, JISG3536

Grade:  250K / 270K / 290K, Tensile Strength: 1770Mpa / 1860Mpa / 1960Mpa, the 1000h Relaxation is 2.0% max and the elongation is 4.0% min.

Categories:  plain, spiral ribs, indented, galvanized, PE coated, epoxy resin coated.

Diameter:  9.3mm, 9.53mm, 11.1mm, 12.5mm, 12.7mm, 12.9mm, 15.2mm, 15.7mm, 17.8mm, 18.9mm, 21.6mm, 21.8mm

Package:  Standard export packing and each package roll is 2000-4000kgs.

The third party inspection:  BV SGS China national construction steel quality supervision and test centre

PC strands are used for precast concrete railway sleeper, subway track board; post-tensioned concrete beams, girders, slabs of bridges, concrete floor, underground park, of industrial buildings, commercial buildings; water projects, rock-coil anchoring, slope protection, coal mine; long span stadiums, station.

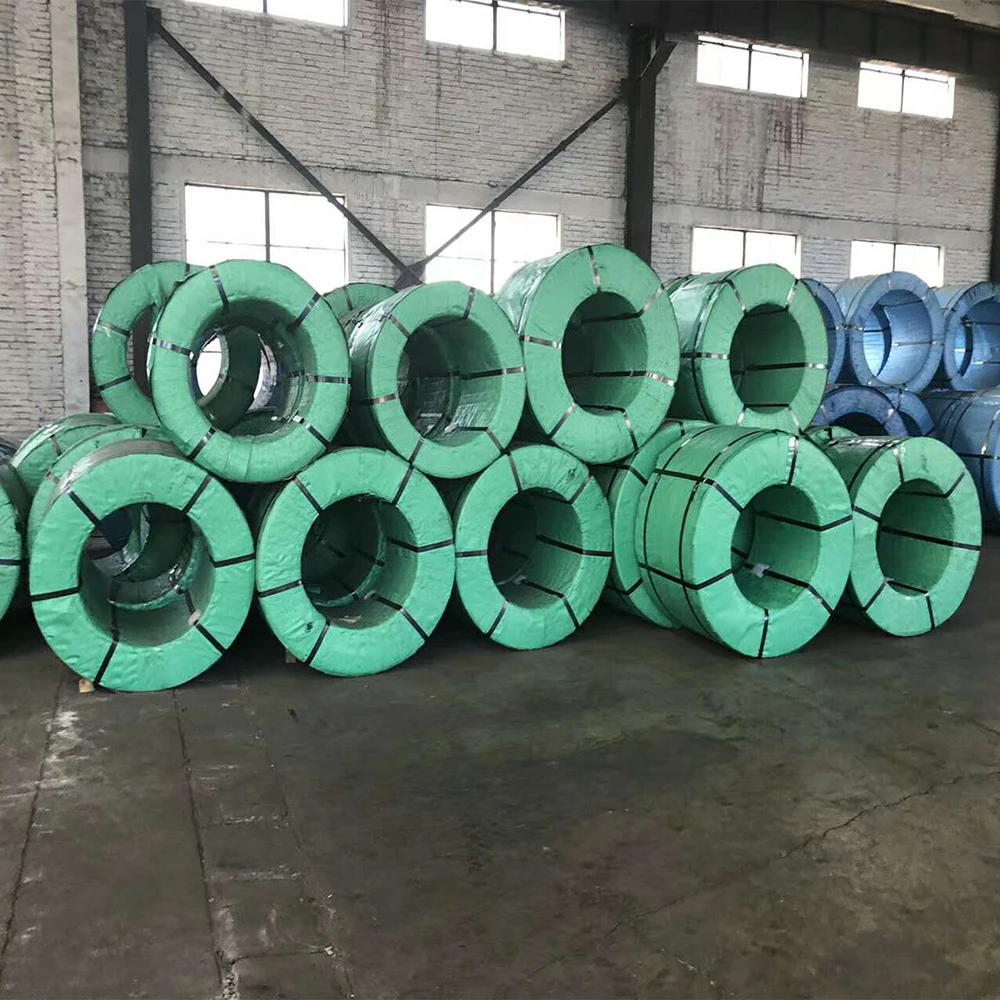

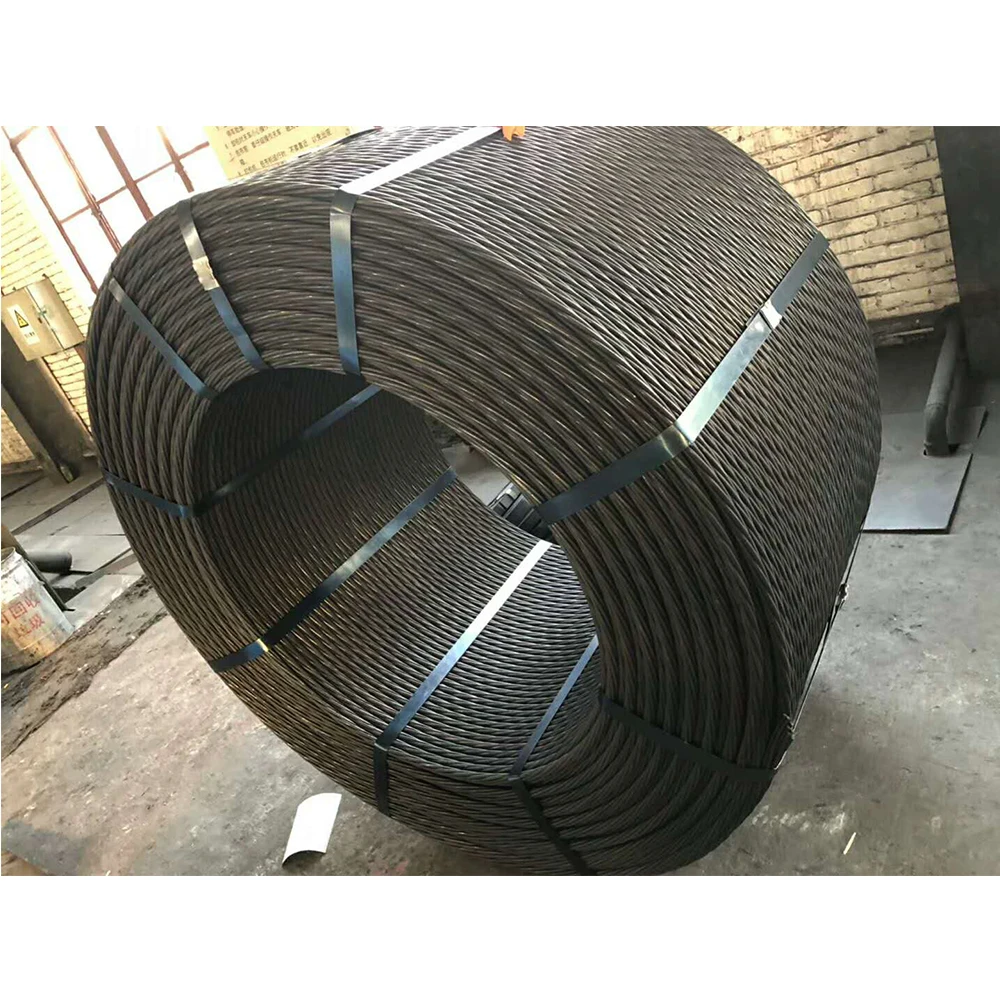

Picture of PC Stranded Steel Wire:





Specification of PC Stranded Steel Wire:

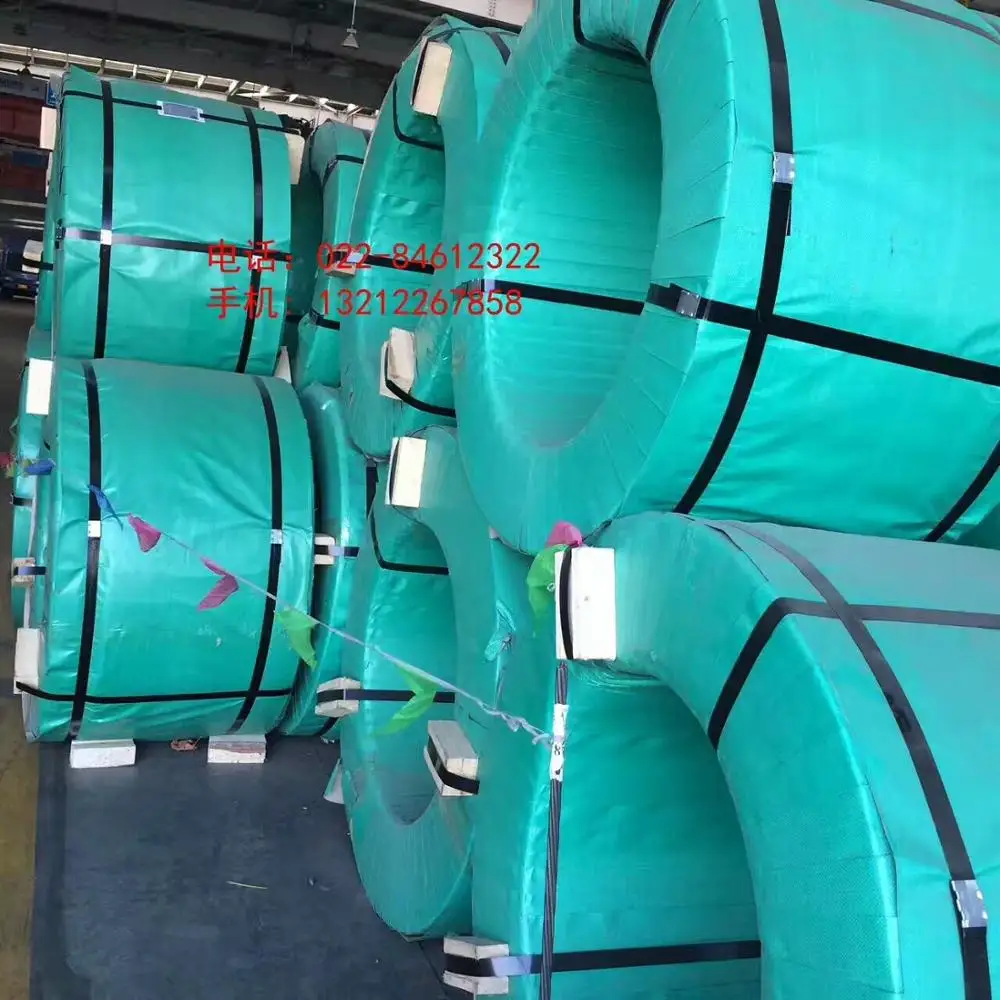

Packaging & Shipping





Company Profile:

  Tianjin Guotai Qiancheng Iron & Steel Co., Ltd. is mainly engaged Screw thread steel bar and the Prestressed steel strand hollow anchor rod export , We are the biggest

agent of the TIANJIN TIANTIE ZHAER STEEL PRODUCTION CO.,LTD and TIANJIN STEEL GROUP. We can produce and provide screw thread steel bar about HRB500, PSB785, PSB830, PSB930, PSB1080 China standard

specifications and PC strand about 12.7mm, 15.24mm.

    At the same time, our company also with China's large iron and steel group cooperation, joint development of steel bar products in overseas markets.In order to better

develop overseas steel market, to better to overseas customers with top quality and reasonable price of architecture steel, steel wire and other steel products,Tianjin

-_11_02

Tianjin Cathay Pacific Steel Co.,Ltd export PC Strand to the world. We will be on the trade platform serves the masses of overseas customers.

    Now our customers throughout southeast Asia and the Middle East and Africa, etc. Our firmly believe, rely on our strength, in the steel trade will make the new and old customers

satisfied. Our business philosophy is: Cultivating customers, profit from the, sustainable operation. Our business objective is: Excellent brand building gold reputation.
