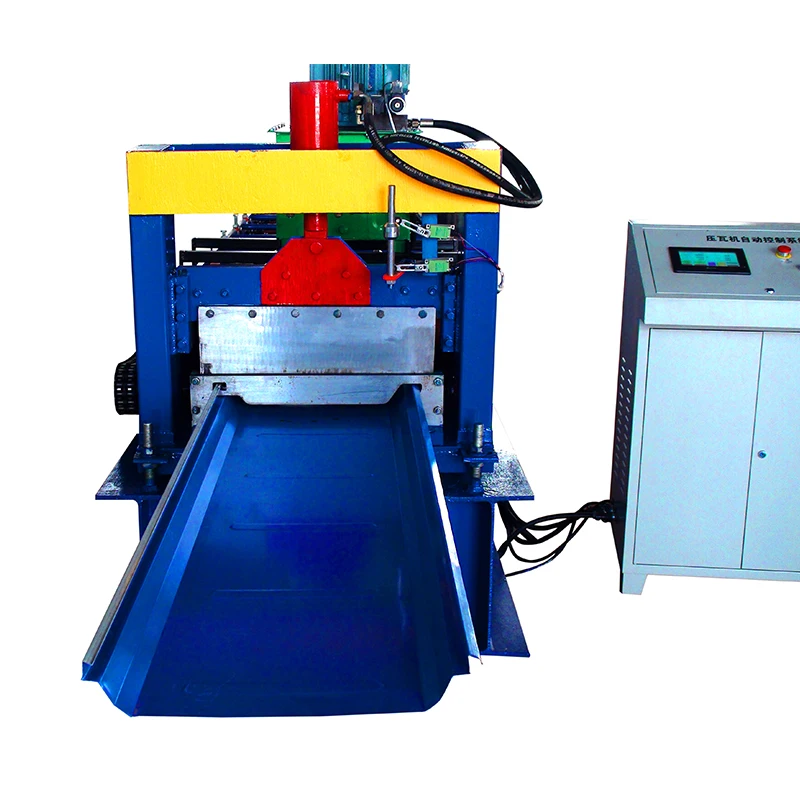

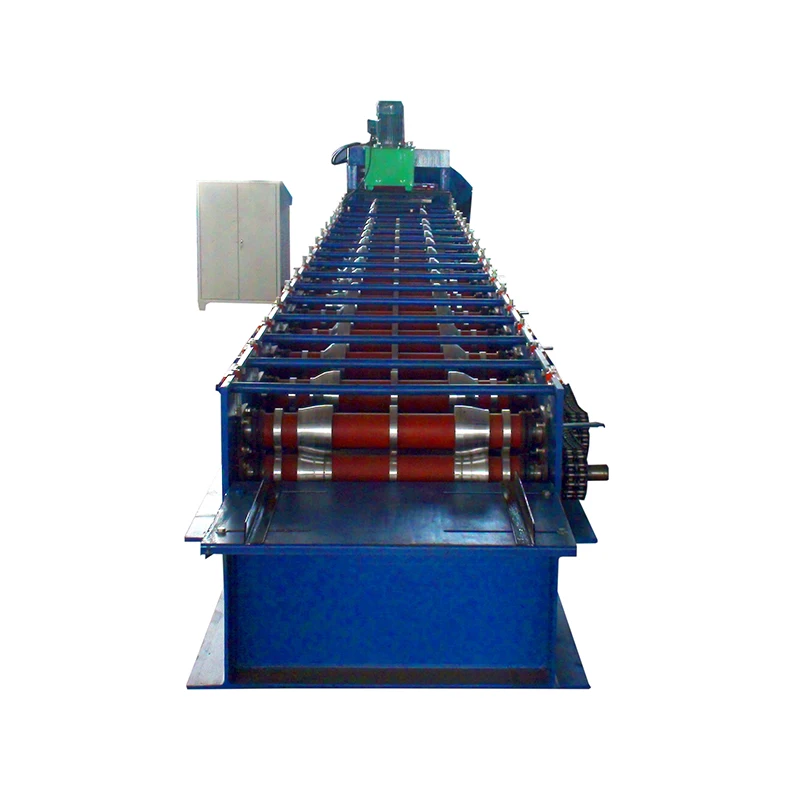

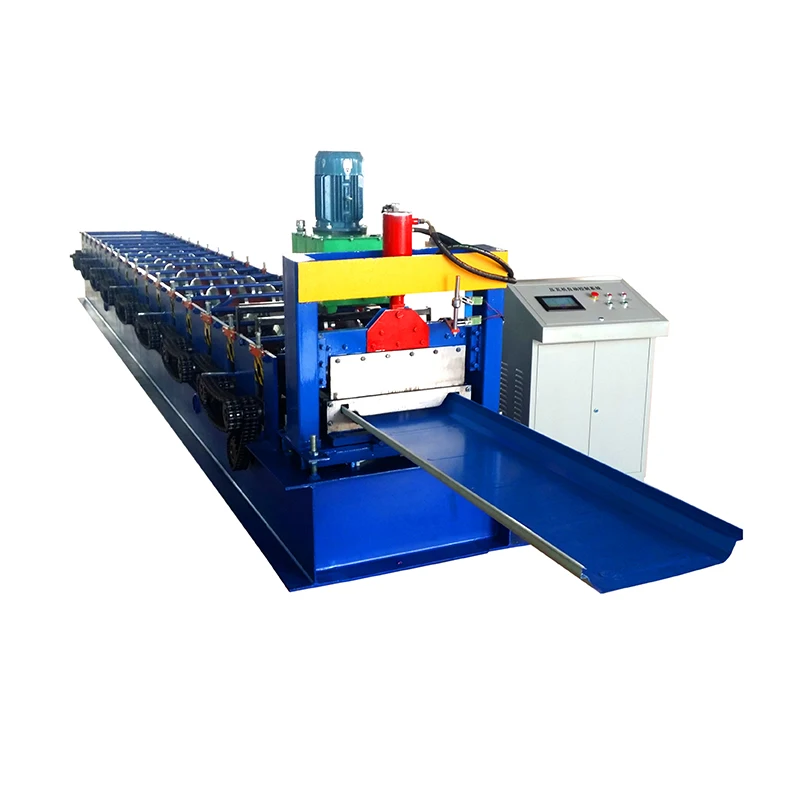

botou kexinda standing seam metal roof roll forming machine
1
suitable material
Color steel plate, galvanized sheet, aluminum coils and etc.
2
Width of the feeding material
600mm
3
Roller station
16 rows
4
Thickness of feeding material
0.3-0.8mm
5
Productivity
8-12m/min
6
Rollers' material
45# steel with chromn on the surface
7
Diameter of shaft
70mm
8
Voltage
380V 50Hz 3phases
9
Wall thickness of main forming machine
16mm steel plate
10
Main forming machine body
300 mm H steel
11
Motor power
5.5+4 kw
12
Size
9500*1500*1400mm
13
Weight
About 5.8 T

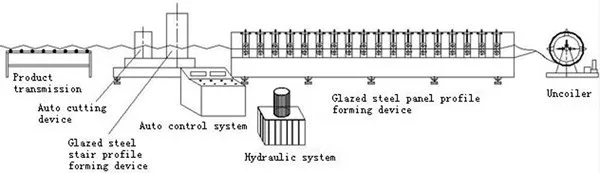

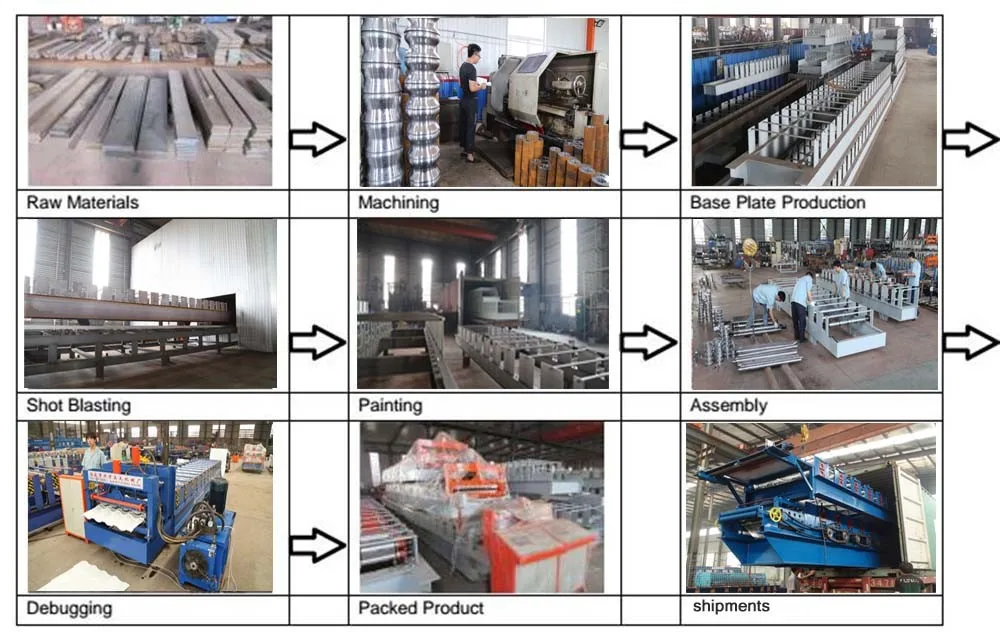

♦ PROCESS DRAWING:
Spare Parts
Spare Parts
After sale service
After Sale Service
♦ GUARANTEE:
12 MONTHS GUARANTEE. IF SOME PART OF THE MACHINE IS BROKEN.WE WILL SUPPLY THE BEST PART, BUT IF THE DAMAGED PARTS DUE TO OPERATE ERROR, BUYER WILL PAY FOR THE SHIPPING FEE.
♦ AFTER-SALE SERVICE:
WE SENT TECHNICIAN TO YOUR COUNTRY TO FIX THE MACHINE.THE BUYER SHOULD BEAR ALL THE COST INCLUDING:VISA,ROUNDTRIP TICKET AND SUITABLE ACCOMMODATION,ALSO BUYER SHOULD PAY THE SALARY 100USD/DAY.
