Vertical Air floating Fine Boring Machine Cylinder boring machine TB8016

Product Overview

Description

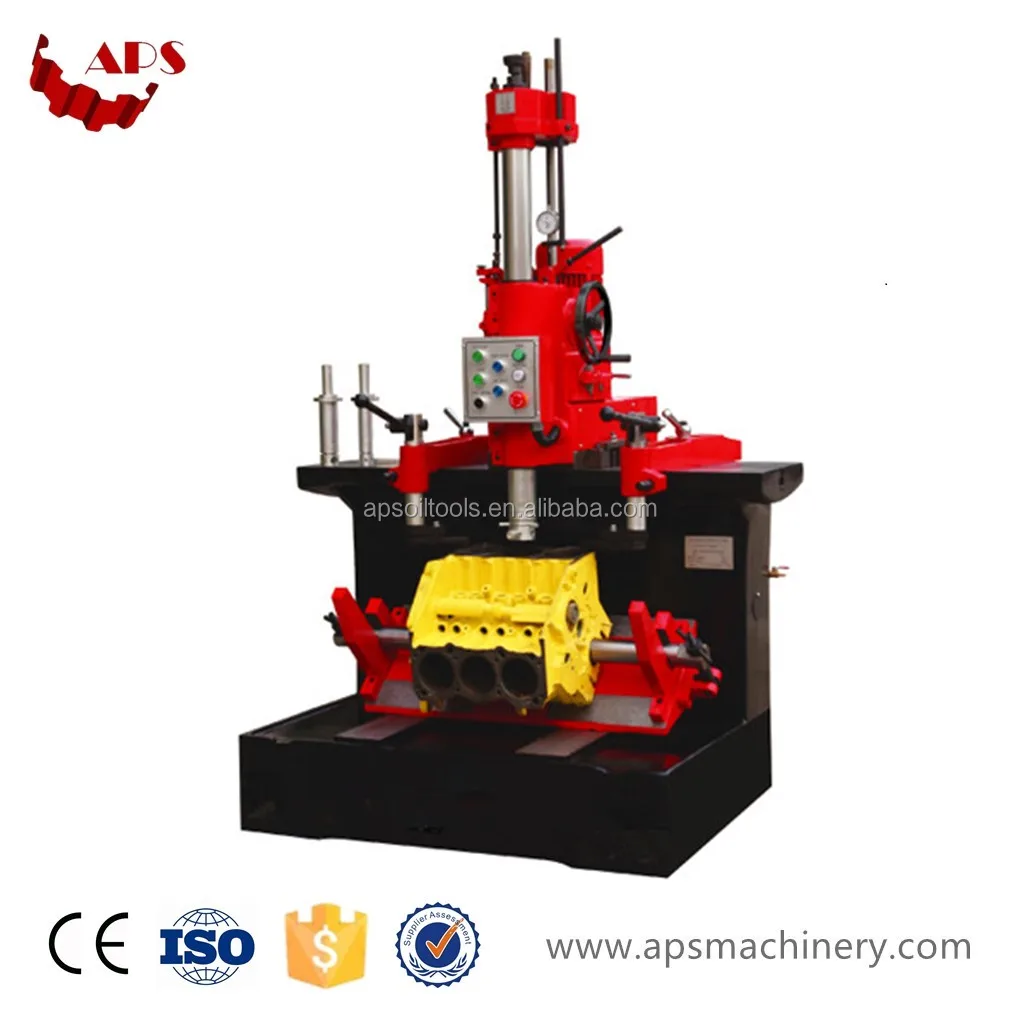

The boring machine TB8016

Vertical Air-floating Fine Boring Machine





The boring machine is a mecharically electrically-pneumatically-integrated new product of our works which is applicable for boring various, bores especially those bores on automobile and tractor cylinders. If V-shaped baseplaces are provided the machine can also bore various V-engine cylinders. After air-float boring head it can rapid search the center of cylinder with accuracy. It has the features of operation, quick location, high precision and high productivity.

·Reliable performance widely use , processing accuracy , high productivity
·Easy and flexible operation
·Air-floating location quick and precise , automatic pressure
·Spindle speed is suitability
·The tool setting and measuring device
·There is a vertical measuring device
·Good rigidity , amount of cutting







Model		Unit	TB8016
Boring diameter		mm	Φ39-Φ160
Max. boring depth		mm	320
Boring head travel	Longitudinal	mm	1000
	Transversal	mm	45
Spindle feed		mm/s	0.09
Spindle speed		r/min	125,185,250, 370 ( 4 steps)
Spindle rapid reset		mm/s	430 , 640
Pneumatic pressure		Mpa	0.6
Motor power		Kw	0.85 / 1.1
V-block fixture patented system		degree	30°,45 °
Overall dimensions		mm	1250×1050×1970
Packing dimensions		mm	1500×1140×2070
N.W./G.W.		kg	1300/1500







Standard Accessories:

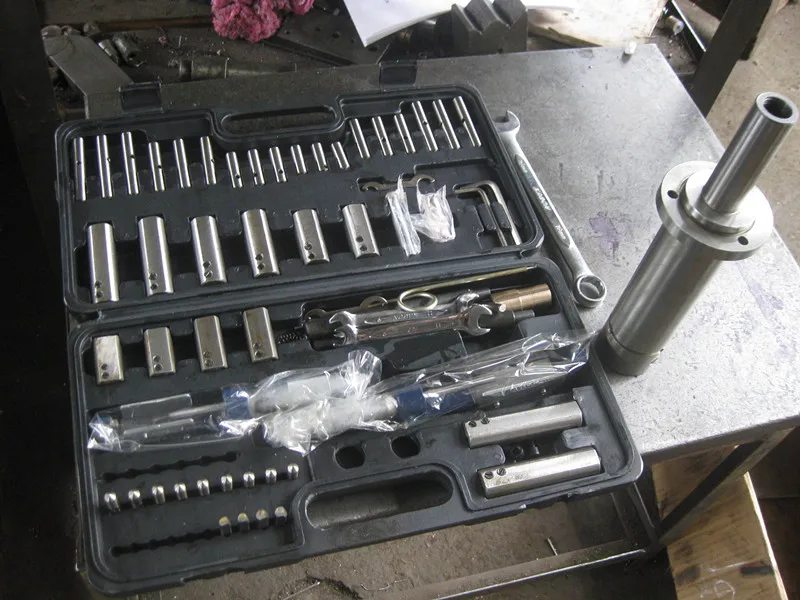

Spindle  Φ50-Φ72mm, Φ72-Φ150mm, Measuring device







Optional accessories:
V-type cylinder fixture
Spindle   Φ38-Φ52mm

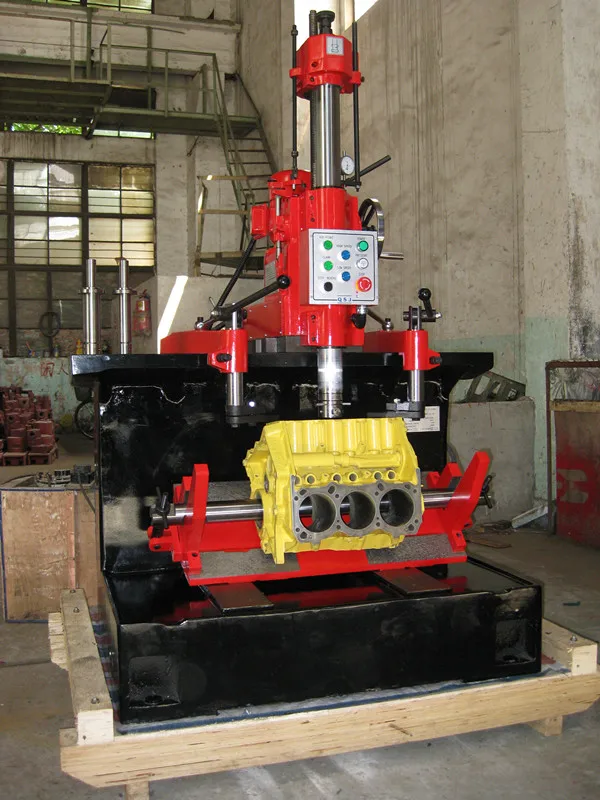

Machine photos:
