New Design Confined Space Rescue Tripod with Competitive Price

Share on (60615222553):


Price:$208.00-275.00

Quantity:


Product Overview

Description



New design confined space rescue tripod with competitive price



Product Description







Brief:


Item name :rescue tripod


Material is High strength Aluminum


134-214cm  working scope


134cm Closed Height


Specifications:


Max. Opening Distance of Blades > 28mm
Rated Working pressure :63Mpa


High quality and using long time


Relative datas:










Technical Specification




























































Rescue


Tripod



Model



MT-FT1



Material



High strength Aluminum



Operating Load



300Kg



Breaking Force



22KN(Steel wire Rope)



Working Scope



134-214cm



Closed Height



134cm



Extend Height



214cm



Dimension for reference



177*25*28cm



Weight



16.5Kg



Winch



Length of Wire



25m



Operating Load



200Kg



Breaking Force



1800KN













2. Working Principle


MT-FT1 rescue tripod is the rescue tool specialized to used to prevent dropping from high place.


It has passed the EN795 inspection. It confirm to the B level standard.


It only can one person use.

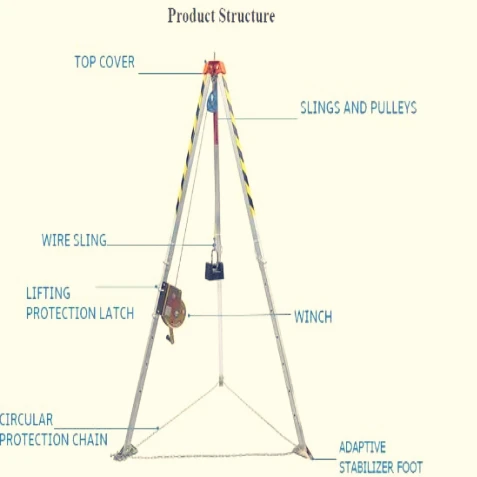

3.Main Structure

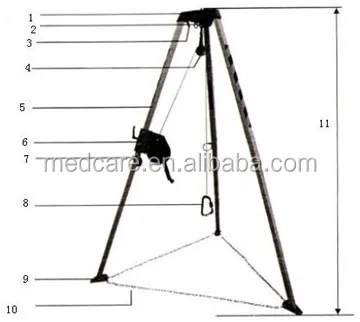

The structure of MT-FT1 rescue tripod is shown as Pic #1.


Pic # 1. Structure of MT-FT1 Rescue Tripod


self-lock confined space rescue tripod


(1)The top head


(2)Eyebolt


(3)Fastening handle


(4)Pulley


(5)Outer tube of the frame


(6)Handle control capstan


(7)Positioning pin


(8)Hook


 ( 9 ) Branch sleeve


 (10) Chain-guard


 (11) Working height: extension height: 214cm


                      Closed height: 134cm


4.Basic Configuration


The top head: High strength Aluminum.


Eyebolt:one is in the center, one is in the back, it's convenient to install equipment.


Frame:extension type frame equipped with propel rod, it can push the frame up and down. The bottom of the frame equipped steel support. Effective guarantee the equipment can use on the uneven ground.


Handle control capstan: 30 meters steel wire.


Chain:Safety chain can effectively reduce the horizontal force,prevent frame slide.


 5.Specification






















































Technical Data of Rescue Tripod



Model



MT-FT1



Material



High strength aluminum material



Operating load



200kg



Max. Prevent breaking force



22KN(Steel Wire Rope)



Height scope



134-214cm



Working height



Closed height






134cm







Extension height



214cm



Packing Dimension



177*25*28cm



Weight



30kg



Technical Data of Rescue Tripod



Model



 MT-FT1



6.Operating Process


Fix The Tripod

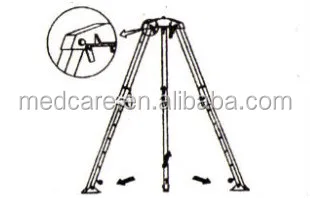

1. Let the tripod keep flatting on the smooth and hard ground. Open the frame, use the positing pin to fix the length of tripod.


  self-lock confined space rescue tripod


   Set up the tripod, and fixed by bolt-locking.


  self-lock confined space rescue tripod

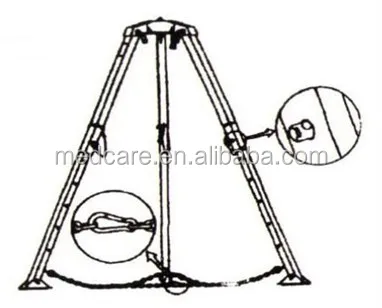

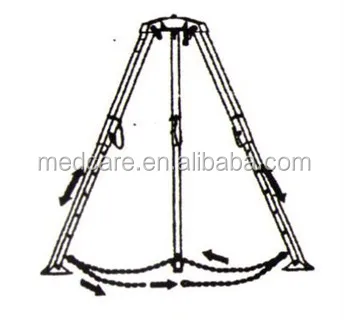

  Confirm Branch sleeve is steedy.  Adjust teles copic frame to ensure that the three fulcrum in the same plane. To install the chain and lock the chain by the connection button.


Notes: don't stumble by the chain when install and use the chain.


  self-lock confined space rescue tripod


Inspect if the positing pin is firm and if the position is right.


Confirm the chain install the bottom of the frame, and let it e ffectively  prevent slipping caused by the horizontal force.


  self-lock confined space rescue tripod

Pack up The Tripod

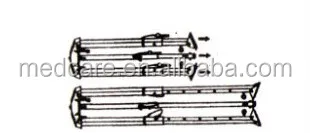

Press the lever connect with the lock, and contraction the frame.



  1. Put the tripod lie flat on the surface, remove the positioning pin, then pack up the frame.

  2. The rescue tripod must retract immediately after using, and as the manufacture request to inspect the equipment.

  3. Can be inspected by the person:

































































Model Number
MT-FT1 self-lock confined space rescue tripod

Brand Name
Medcare self-lock confined space rescue tripod

Place of Origin
China (Mainland)

China (Mainland)
Jiangsu

OEM
available for self-lock confined space rescue tripod

packing size
177*25*28cm

net weight
26kg

gross weight
30kg

Certificate
CE

material
aluninum alloy

advantages
good quality and competitive price

stock
yes

payment terms
T/T,West Union,Paypal

self-lock confined space rescue tripod
self-lock confined space rescue tripod









Product Image




Product Pictures

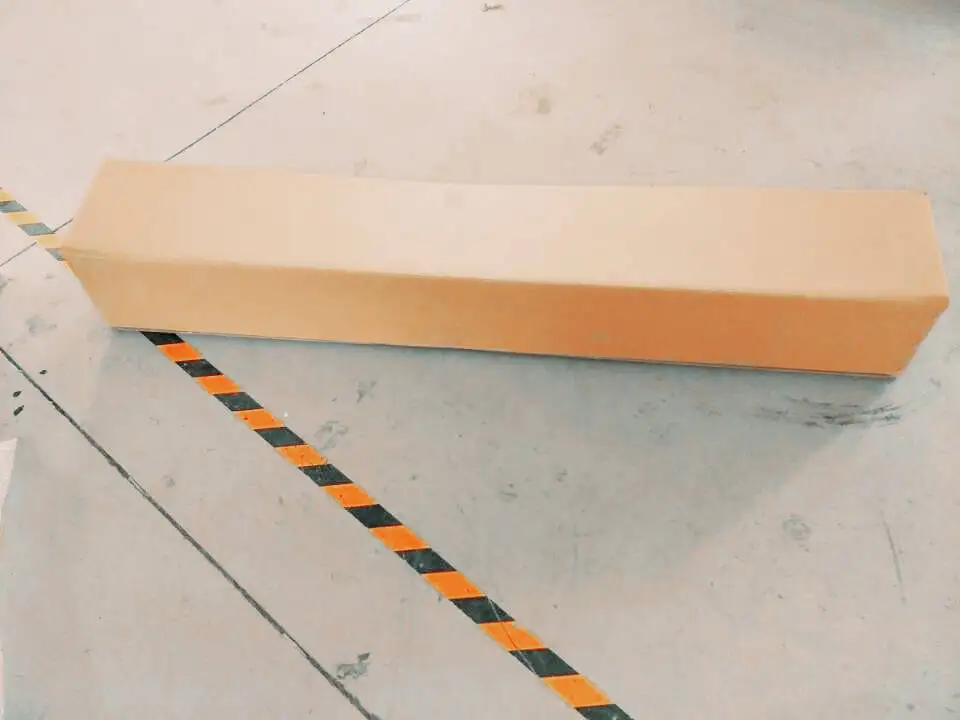

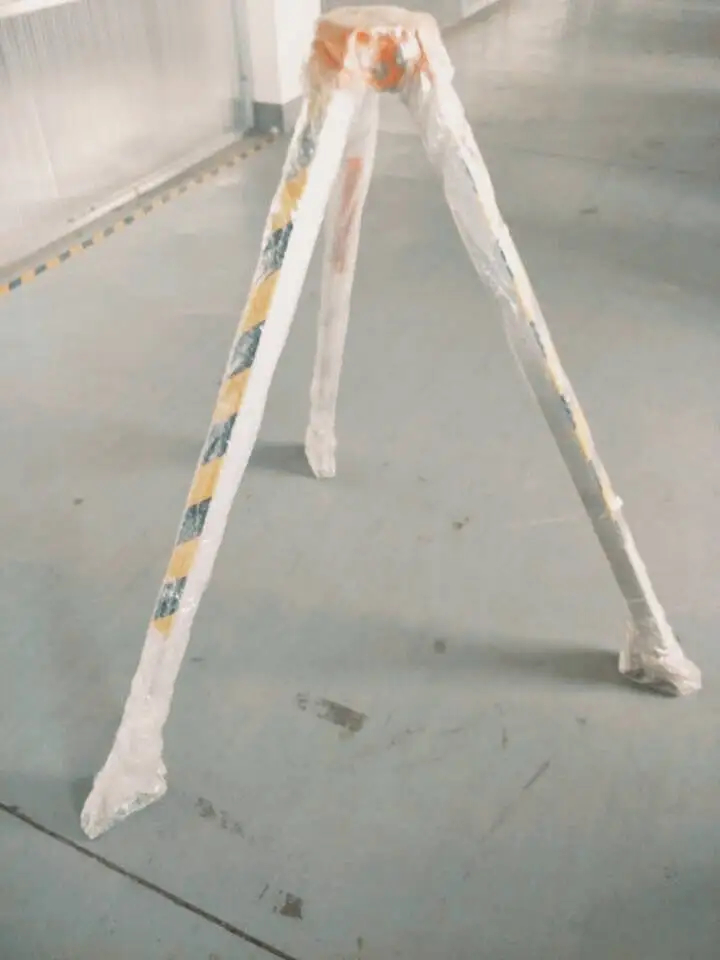

safety tripod 11tripod 1tripod packing
