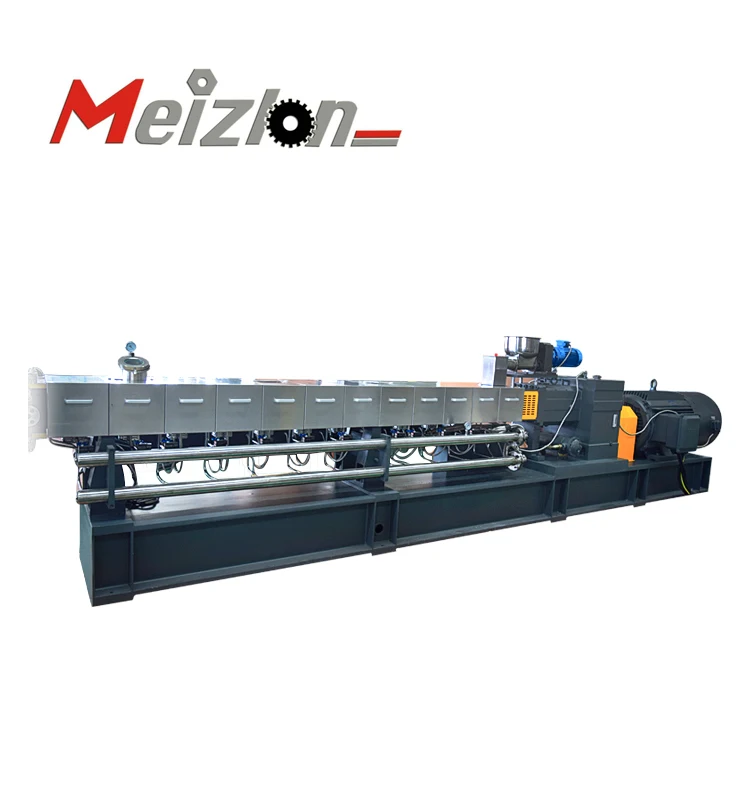

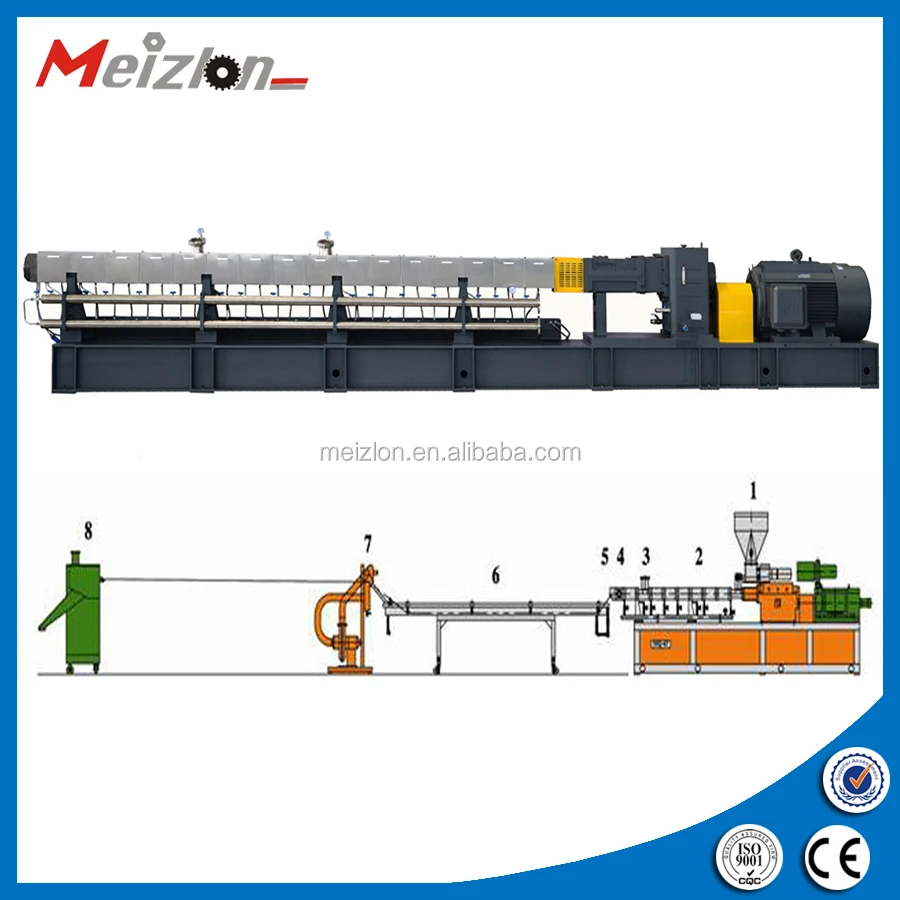

engineering plastic extrusion line/twin screw extruder/plastic granulator

Product Overview

Description



--Polymer blending & filling modification

--Engineering polymer & glass fiber reinforcement

--Universal color masterbatch, functional masterbatch

--Special material, powder coatings

--Reactive extrusion, degassing & devolatilization



MT series twin screw extruder machine data sheet

Model/Parameter	Screw Diameter/mm	Groove depth/mm	L/D	Main motor power/KW	Screw rotating speed(rpm/min)	Output(kg/h)
MT-20	21.7	3.85	28/60	4	600	5-15
MT-26	25	4.1	28/60	5.5-10	600	10-40
MT-36	35.6	6	28-60	15-22	600	15-80
MT-40	41	7	28-60	30-37	500/600	50-150
MT-50	50.5	9	28-60	37-55	500/600	80-200
MT-60	60	10	28-60	45-75	400/500/600	100-300
MT-65	62.4	11	28-60	55-90	400/500/600	150-400
MT-75	71	12	28-60	185-315	400/500/600	1000-2000
MT-95	92	16.3	28-60	200-315	400/500/600	650-1500
MT-135	133	23.5	28-48	600	300/400	1500-3000

Gearbox

Parallel & tri-axial structure and dual rack drive system. Gear and shaft made of fine quality material, SKF bearing oil-immersion lubricating system, low oil position & overpressure alarming system. High rotating speed high torque high yield.



>Screw

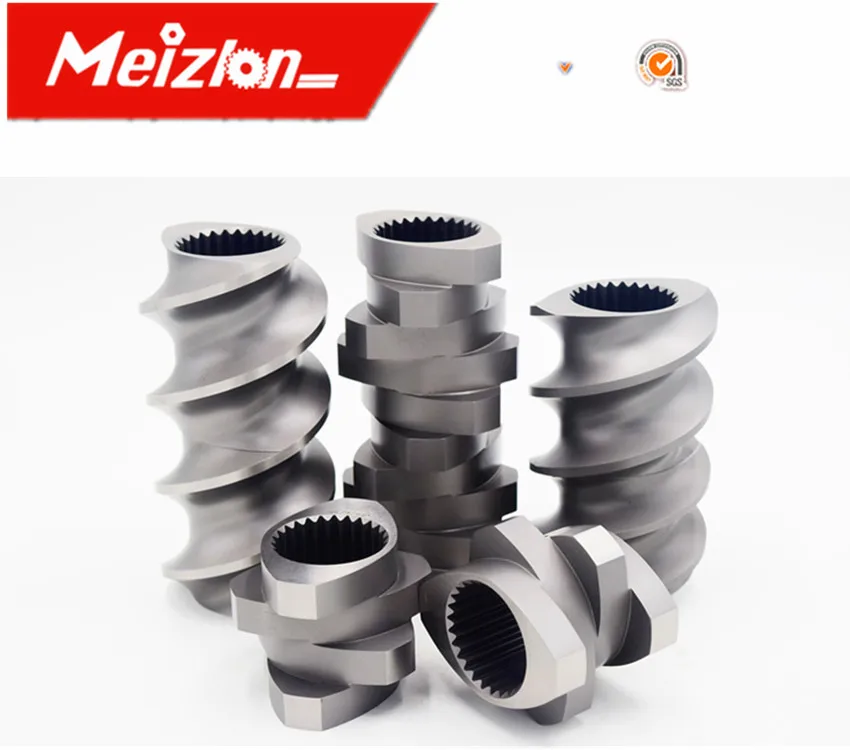

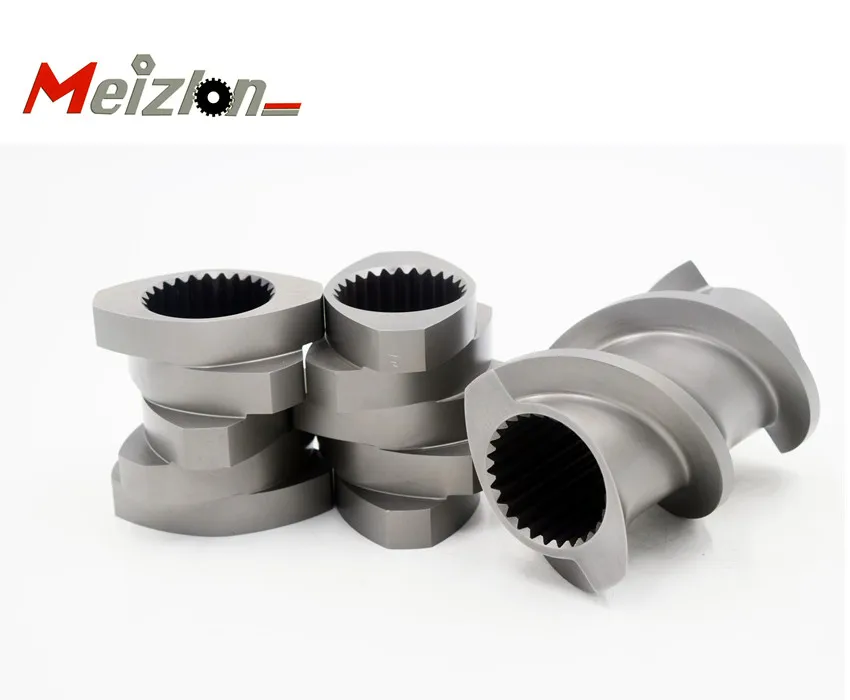

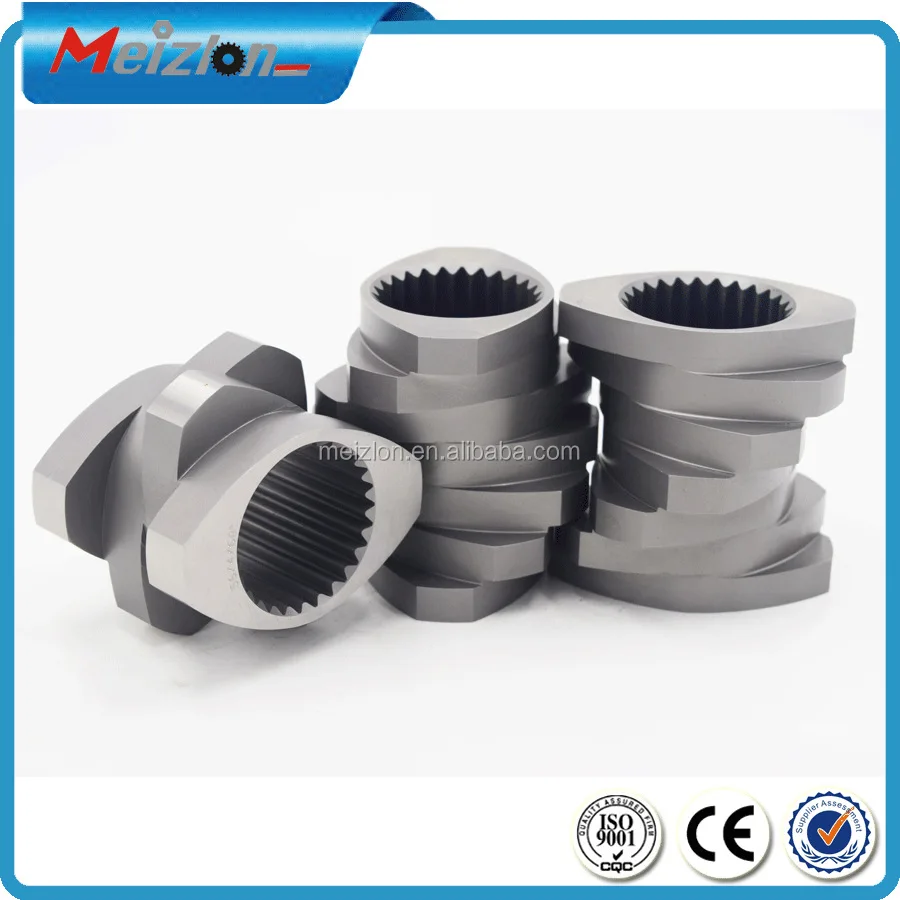

Screw Kneading block built on modular principle allows various L/D ratio of screw easily be changed to suit different material. Screw component made of high speed & wear-resisting steel.





>Barrel

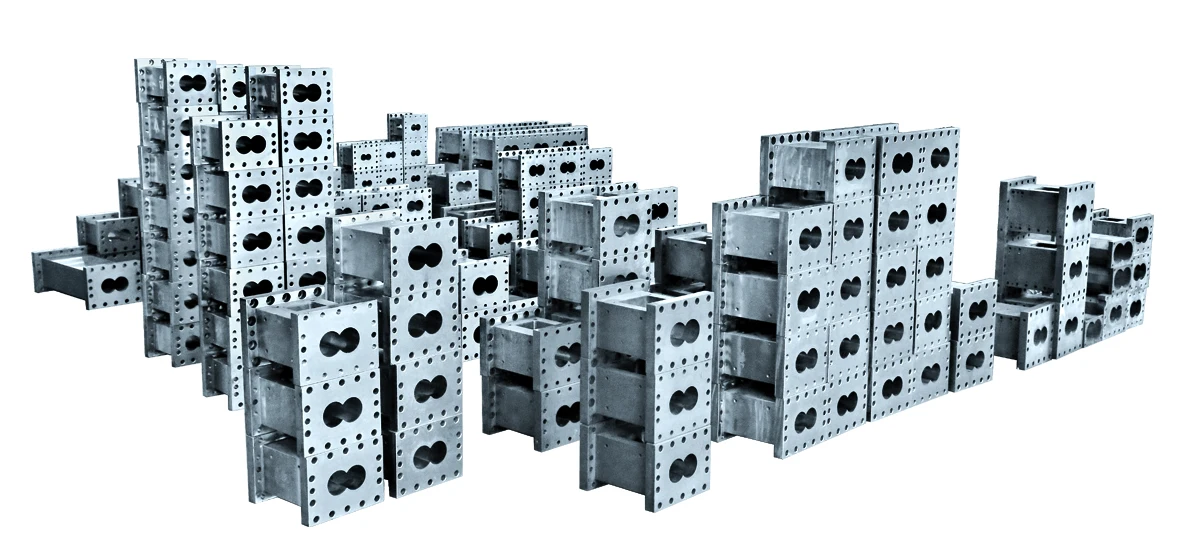

By means of the replaceable screw barrel sections, the processing sections is devided into individual zones. The barrels are heated electrically. In addition, the barrels are provided with longitudinal bores for cooling with water. Uniform temperature distribution, namely on the circumference of the eight-shaped barrel bore, is achieved by a reverse force-flow temperature control circuit. Connections of pipes for temperature control are in groove-tongue design to balance alternating thermal stress and avoid leakage.

>introducing in detail features and application of the products to customer

>Selecting economical and practical machine & equipment for customer

>Providing operation data of the related machine & equipment

>Providing means of trial performance for customer

Sales service:

>Recommending engineering conditions required for installation of the machine & equipment

>Communicating in time the manufacturing progress of the machine with user

>Providing assistance in technical conditions, screw combination and barrel disposition needed for product

After-sales service:

>Providing on-the-spot technical assistance in installation, commission and training

>Filling in detail customer’s information

>Providing long-term maintenance service and spare parts

>Giving technical support to customer for developing new product

>Providing free maintenance for a year
