High Quality silicone Spray Paint ink coating
- Category: Rubber Coating >>>
- Supplier: Dongguan City Betterly New Materials Co. Ltd.
Share on (60615317718):
Product Overview
Description
High Quality silicone Rubber Spray Paint ink coating
Product Description
Introduce of coating and ink
The product adopts low temperature vulcanizing technology. It is a double component ink which is suitable for surface decoration of the silicone products. It has the advantages of simple operation, strong adhesion, good painting appearance, strong covering power and excellent weather and chemical resistance.
Using method of coating and ink
Post curing the silicone rubber object at 150℃ for 1 to 2 hours and cleaning up the surface before printing; Use white gas to dilute the ink before processing; diluting rate (ink:1: white gas:3-4). Please dilute the ink by white gas in three times with the principle of less to more. Then add the catalyst of CAT-SPL-11 2%, stir well; filter and spray it with filter cloth of 200-300 mesh. Vulcanizing the painted products after keep it in non-dust environmental for 5-10 minutes

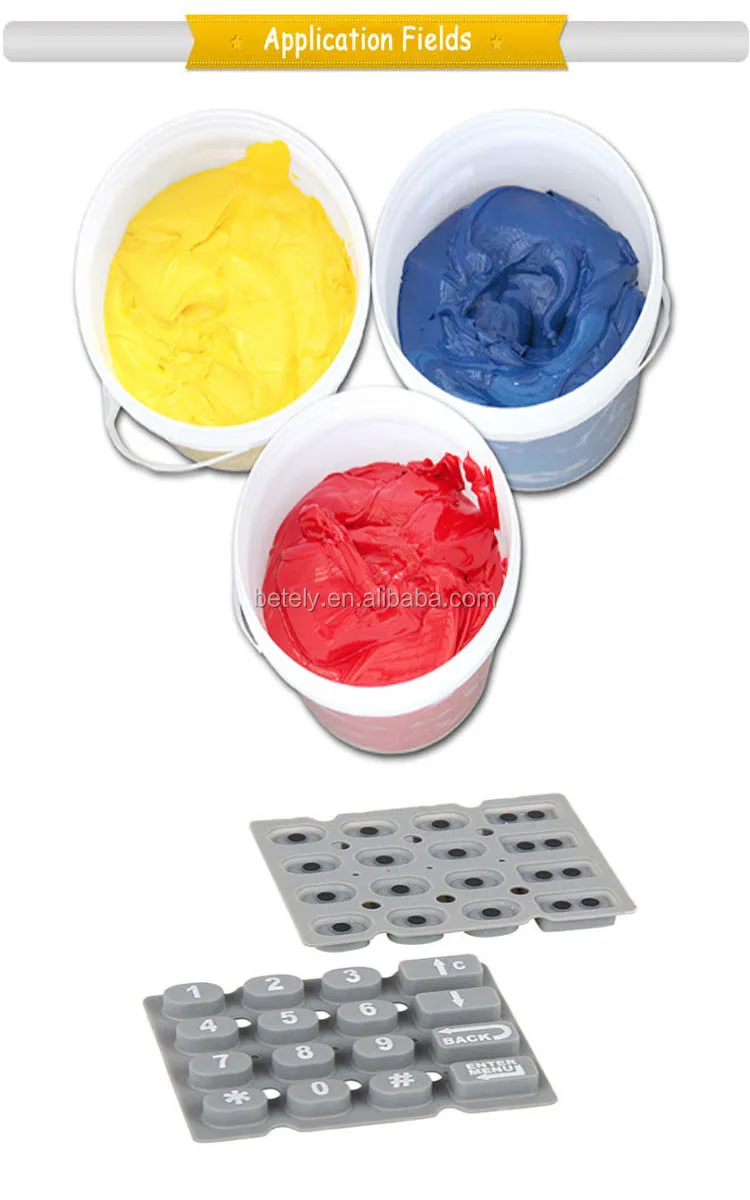

Application of coating and ink
The product can use in the field of mobile phone,telephone, notebook PC, fax-machine, copying machine,remote-operated controller and so on of the electronic product’s keypads which made of silicon rubber .
Typical properties of silicone coating and ink
Properties | Value |
Viscosity (Iwata 2 # cup, 25 ℃), S | 8.5-9.5S |
Spray distance (cm), diameter (mm), pressure (Mpa.S) | 20-25,0.8/1.0,0.2-0.3 |
Forcible dry (100-120℃),Min | 30-60 |
Film ,μm | 20-30(decided by product’s shape) |
Typical properties of silicone coating and ink
Testing Items | Test conditions and methods | Test result |
Adhesive | The case method,3M610# tape 3 times | 5 B |
High Temperature & Humidity Test | 80℃/98%RH | 48h no error |
Salt Mist Resistant | 5%NaCl, Spray box temperature 35℃ The suction volume of salt water:1ml/h | 72h no error |
Rubber Friction Test | Positive pressure:500g,S75215 rubber;,Stroke16mm, Back and forth at speed of 68 /min | Cycles 400 no error |
Alcohols Resistant | 99.3% alcohol,US75215 rubber, positive pressure 500g,Stroke16mm, Back and forth at speed of 68 /min | Cycles 500 no error |
UVA Resistant | Energy :250μW/cm2 | 300h no error |
Thermal Shock | (80℃×1hr ~—40℃×1hr), transform in 15s | 27 cycles no error |
Company Information
FAQ
1) Why choose your company?
1.Research power
2. Plentiful talent reserve
3.Patents
4.External cooperation
5. Customors
6. Strict quality control system
7. Production capacity
2) How do you guarantee the price is most competitive?
Compare with trading companies or distributors, as a manufacturer, the price we offer is first-hand; Compare with general manufacturers, with high quality, we have 10 years experience, strict production cost control enable us to offer best price for customers
3) What will be delivery time when I complete the payment?
We promise to deliver the materials within 3 working days after payments confirmed in our bank.
For more information about silicone rubber, pls feel free to contact with
Doris Guo
Wechat : +8613686608942(whatapp)
Skype : btlxcl
