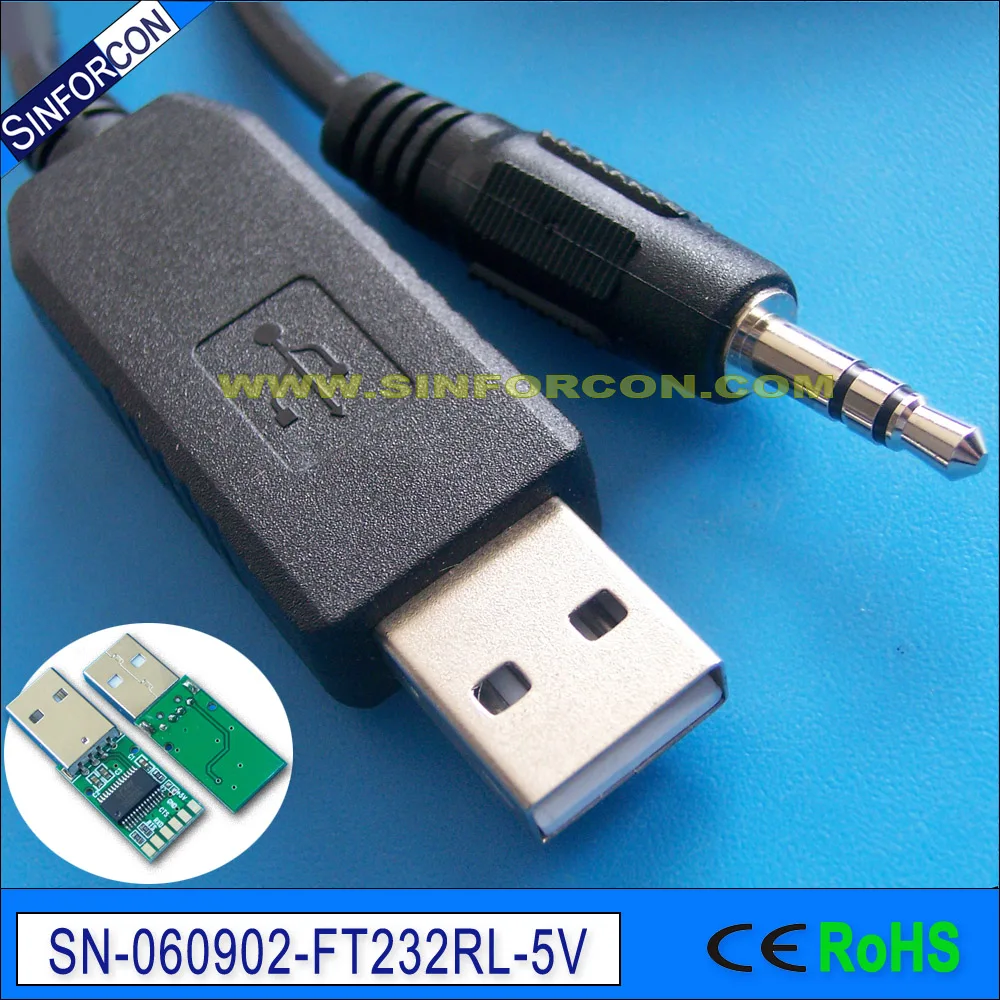

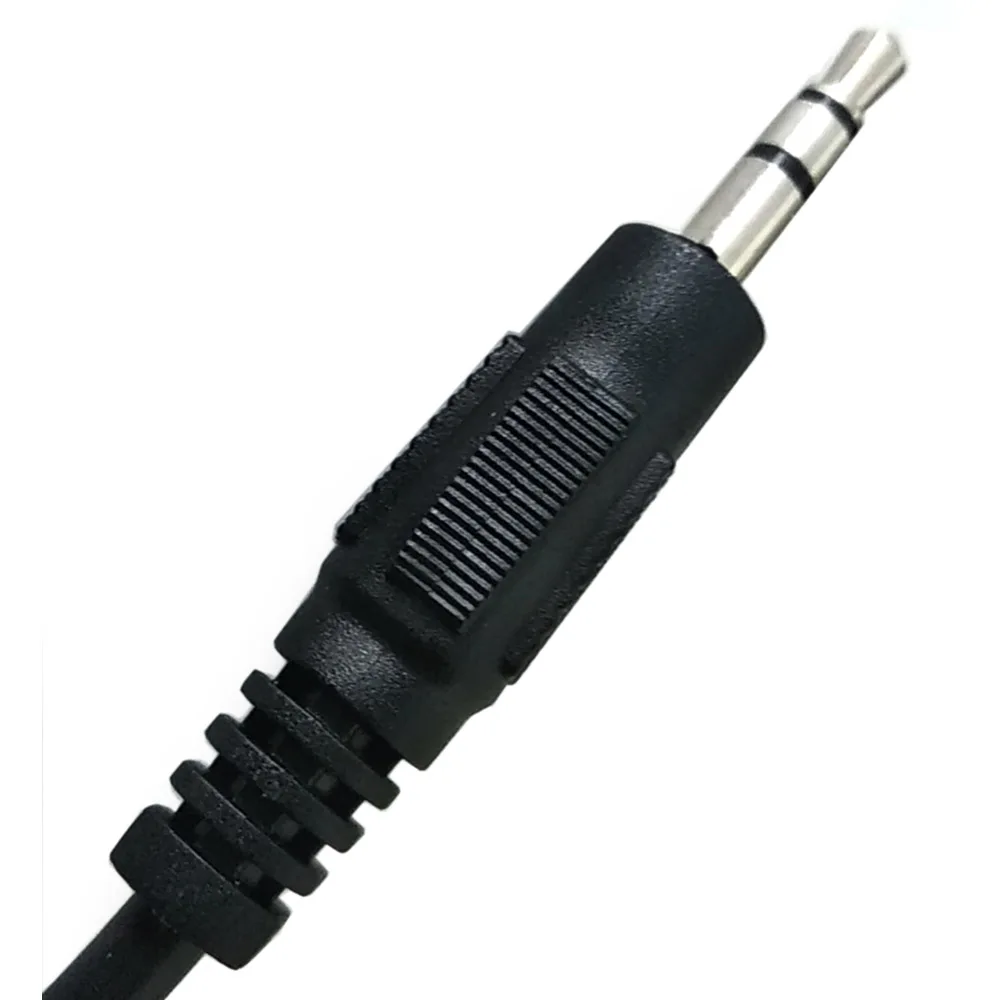

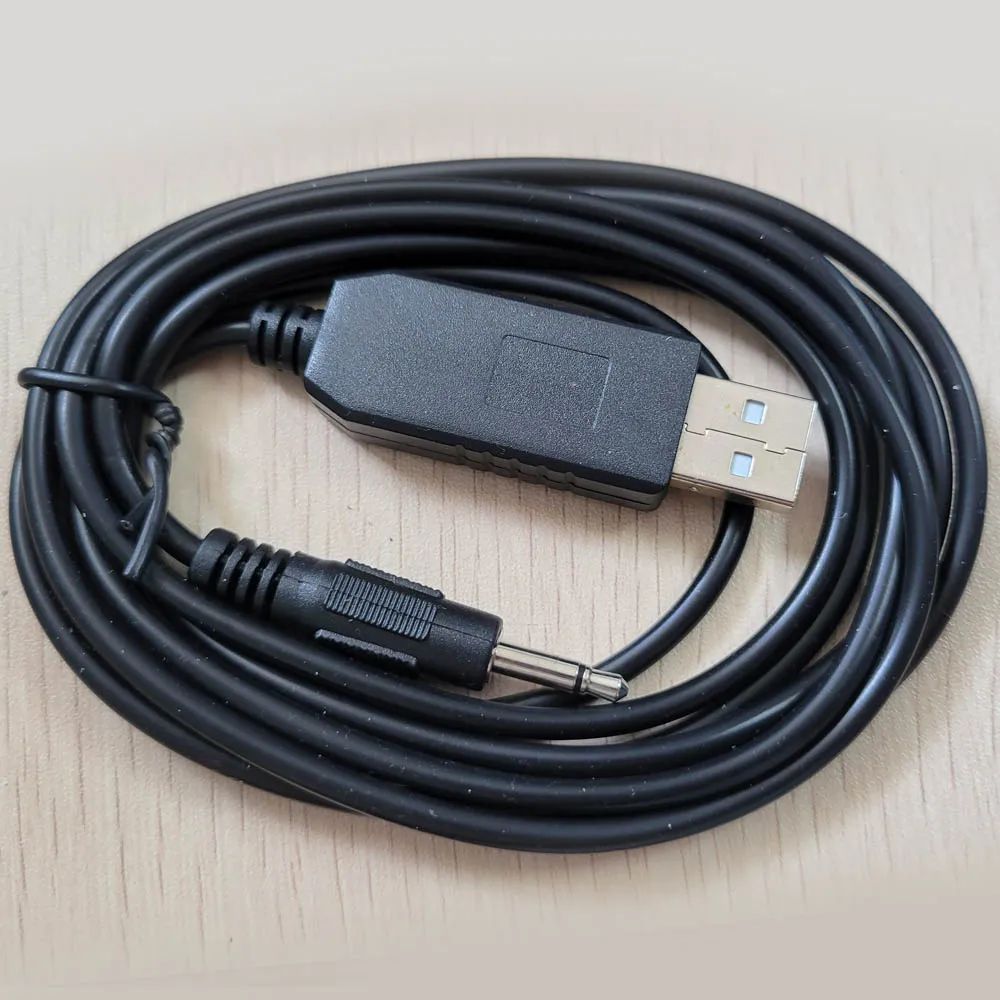

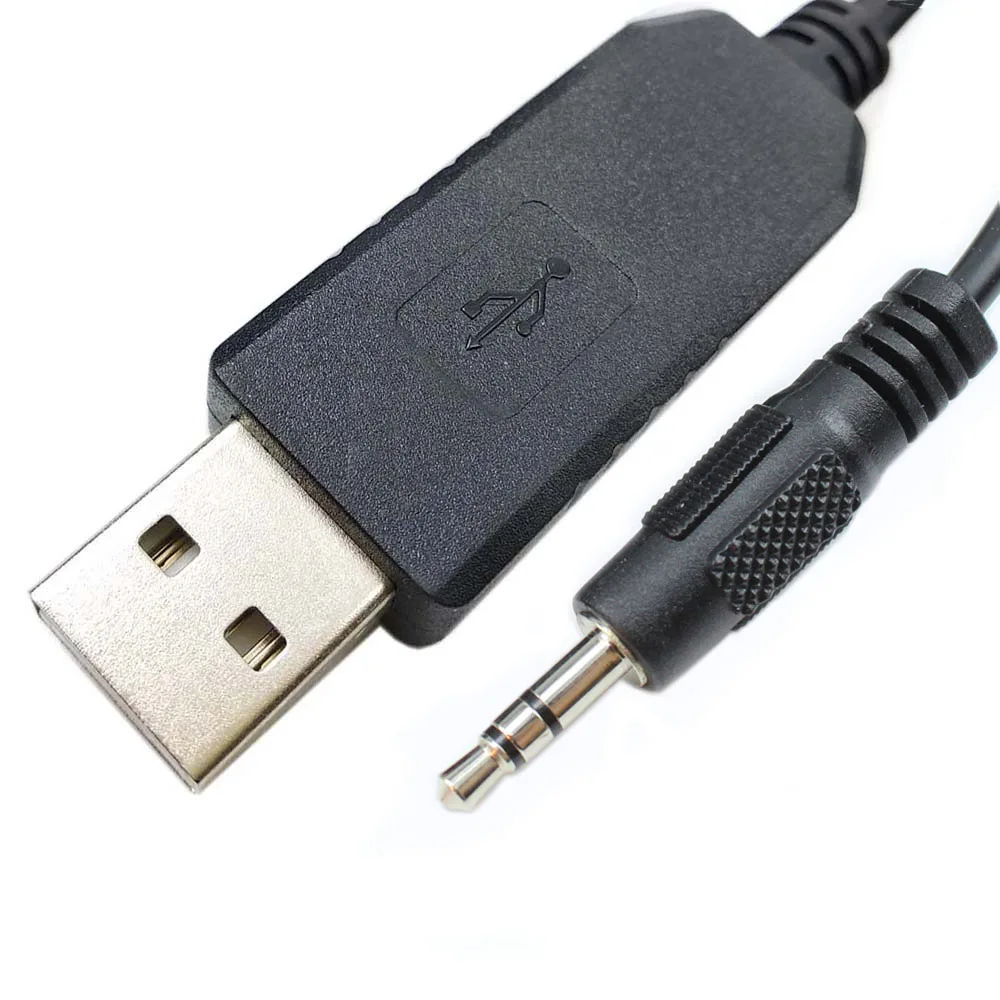

FTDI FT232 USB to UART TTL 5V PicAxe Micro controller Console Configuration Lead Download Cable

Product Overview

Description

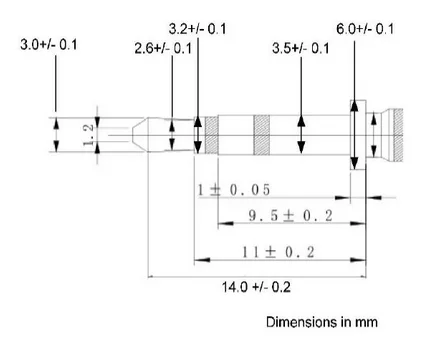

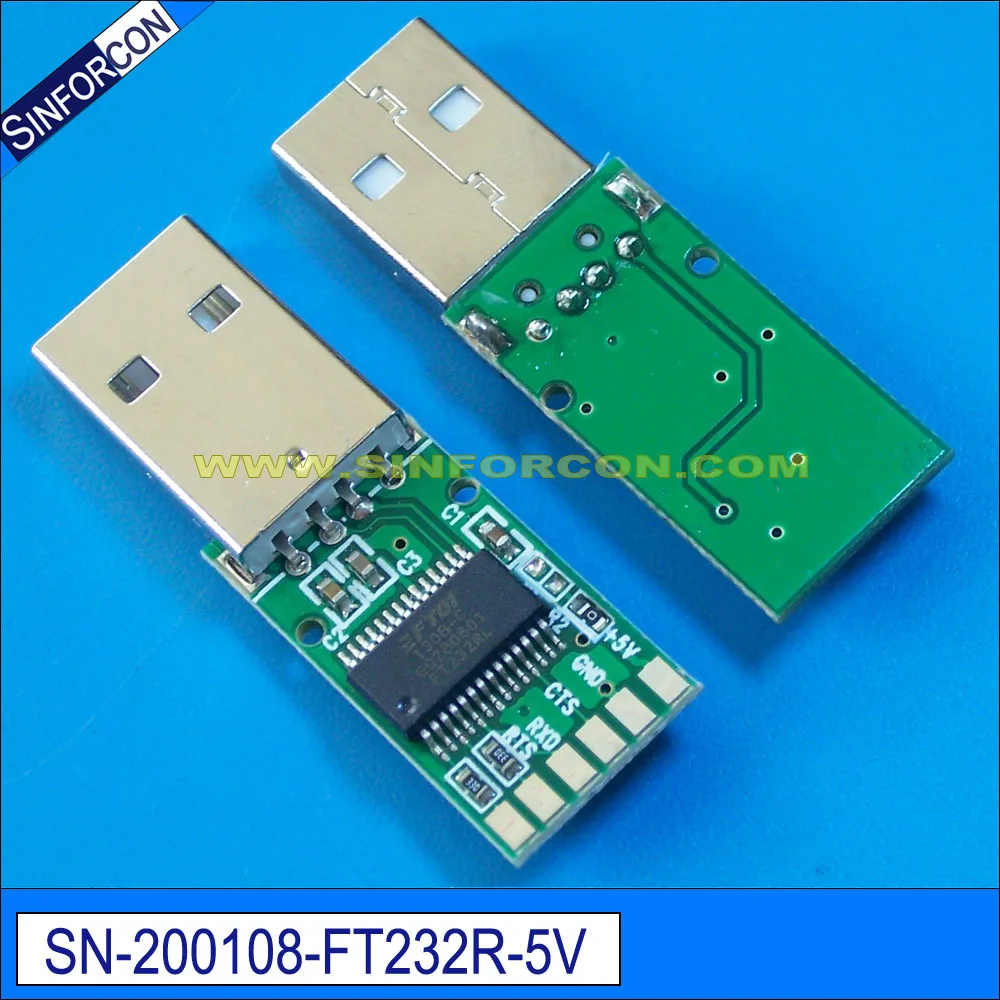

 About FT232RL

The FT232R is the latest device to be added to FTDI range of USB UART interface Integrated Circuit Devices. The FT232R is a USB to serial UART interface with optional clock generator output, and the new FTDIChip-ID? security dongle feature. In addition, asynchronous and synchronous bit bang interface modes are available. USB to serial designs using the FT232R have been further simplified by fully integrating the external EEPROM, clock circuit and USB resistors onto the device.

The FT232R adds two new functions compared with its predecessors, effectively making it a "3-in-1" chip for some application areas. The internally generated clock (6MHz, 12MHz, 24MHz, and 48MHz) can be brought out of the device and used to drive a microcontroller or external logic. A unique number (the FTDIChip-ID?) is burnt into the device during manufacture and is readable over USB, thus forming the basis of a security dongle which can be used to protect customer application software from being copied.

• Single chip USB to asynchronous serial data transfer interface.


• Entire USB protocol handled on the chip - No USB-specific firmware programming required.


• UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.


• Fully assisted hardware or X-On / X-Off software handshaking.


• Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).


• In-built support for event characters and line break condition.


• New USB FTDIChip-ID? feature.


• New configurable CBUS I/O pins.


• Auto transmit buffer control for RS485 applications.


• Transmit and receive LED drive signals.


• New 48MHz, 24MHz,12MHz, and 6MHz clock output signal Options for driving external MCU or FPGA.


• FIFO receive and transmit buffers for high data throughput.


• 256 Byte receive buffer and 128 Byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.


• Adjustable receive buffer timeout.


• Synchronous and asynchronous bit bang mode interface options with RD# and WR# strobes.


• New CBUS bit bang mode option.


• Integrated 1024 bit internal EEPROM for I/O configuration and storing USB VID, PID, serial number and product description strings.


• Device supplied preprogrammed with unique USB serial number.


• Support for USB suspend / resume.


• Support for bus powered, self powered, and high-power bus powered USB configurations.


• Integrated 3.3V level converter for USB I/O .


• Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic.


• True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.


• High I/O pin output drive option.


• Integrated USB resistors.


• Integrated power-on-reset circuit.


• Fully integrated clock - no external crystal, oscillator, or resonator required.


• Fully integrated AVCC supply filtering - No separate AVCC pin and no external R-C filter required.


• UART signal inversion option.


• USB bulk transfer mode.


• 3.3V to 5.25V Single Supply Operation.


• Low operating and USB suspend current.


• Low USB bandwidth consumption.


• UHCI / OHCI / EHCI host controller compatible.


• USB 2.0 Full Speed compatible.


• -40°C to 85°C extended operating temperature range.



        Sinforcon is a specialized manufacturer in cable assemblies with 3000square meters manufcturing sites and 300 works in Shenzhen, China.

        Main products are USB converter cables: usb to RS232, USB UART TTL 3.3v level and USB UART TTL 5v level. USB RS485 to RJ11, RJ45 cables, USB RS422 cables, USB Parallel cables, USB to Audio cable.  The chips are availavble for PL2303, CP2102, FT232RL, ZT213. SP485, MAX3232, CM119, etc. These products are widely used in POS terminal applications, serial mouse, modem, router cotrolling, data acquisition and industrial automation applications.

       The products and service are widely accepted by the customers from more than 60 countries and regions. Most products are certificed by CE, RoHS, CCC



       Sinforcon means Sincere for connecting. We will be keeping Sincere for customers and contnuous developing on connecting cables and hope to establish business relationship with the customers all over the world on the base of mutual equality and benefit.
