High Loading Composite Walkway FRP Plastic Grating

Share on:

Price in USD:Details


Product Overview

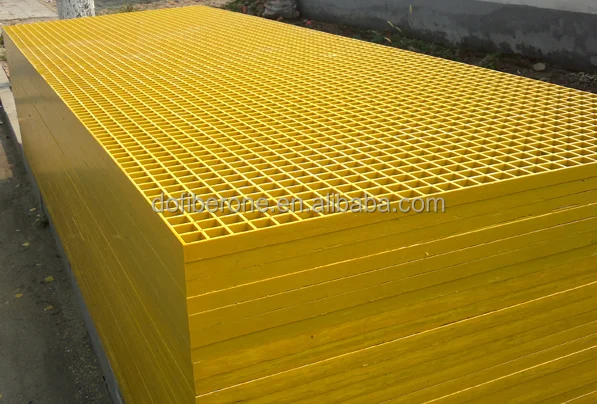

 High Loading Composite Walkway  FRP Plastic Grating




Product Description









1 Introduction


Molded grating process:


Molded grating is manufactured by laying continuous glass fibres in the mould in the direction of vertical and horizontal, and thurougly wetted out with resin, layer by layer. When the weaving process is completed, the mould is heated to cure the panel. After curing, the panel is ejected from the mould. The standard panel would have meniscus (concave) top surface. Any process such as post applied grit could be bonded after as a secondary operation. This continuous process produces an integral, one piece panel, which offers excellent corrosion resistance as well as bi-directional strength.


Pultruded grating process:


Pultrusion is a manufacturing process for producing continuous lengths of reinforced polymer structural shapes with constant cross-sections. Raw materials are a liquid resin mixture (containing resin, fillers and specialized additives) and flexible textile reinforcing fibers. The process involves pulling these raw materials (rather than pushing, as is the case in extrusion) through a heated steel forming die using a continuous pulling device.



2 Specification of FRP molded grating



 photobank (5)





3 Specification of FRP pultruded grating



 photobank (4)






4 Surface







5 Advantage of fiberglass grating:


      High strength




      Light but high loaded strength

      Long service life and maintenance free

      Non-conduction or magnetic

      Easy install and

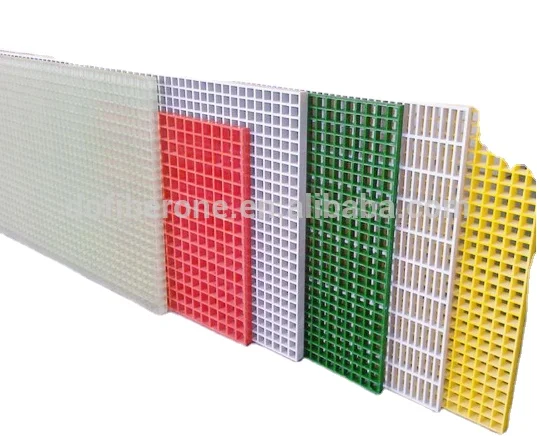

      Various sizes and colors available


6 Application of fiberglass grating:


    1)Anti-slippery floor, stair tread, foot bridge
    2)Operation platform, trench cover
    3)Off-shore oil rig, moor shipyard, shipping deck, ceiling
    4)Ramp ladder, scaffold, railway footpath
    5)Decorative grid, man-made fountain pool grid






7 The package and loading




market (2).jpg






Place of rigon: Shanghai China (Mainland)                           Brand Name:Dofinberone

Model Number: FRP GRP Grating                                        Application:Chemical enterprise,etc

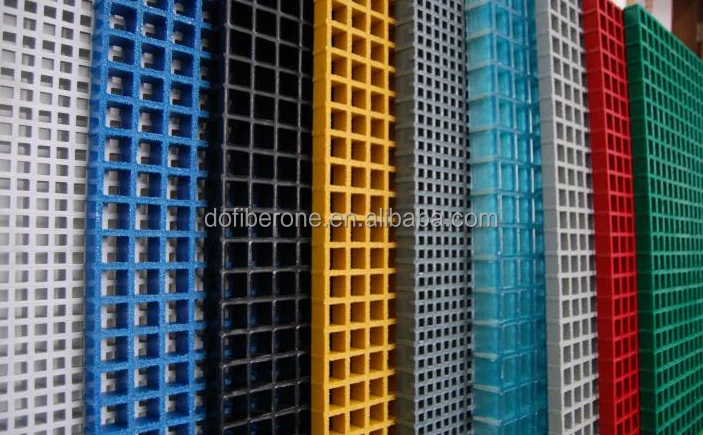

Technique: Molde and pultruded                                        Color: yellow, blue, green, gray, red orcustomizable

Surface Treatment: concave,covered,smooth,grit               Material:Fiberglass \\Glassfiber\\FRP\\GRP+ Resin

Certificated: ISO9001,                                                  Height:15mm,25mm,30mm,38mm,etc

Panel size: 1220x3660mm,customized                               Mesh size:19*19mm/38*38mm/40*40mm,etc


Paking & Delivery:


Packaging Details: fiberglass grating Packed in metal pallets and customers' requirement is accepted.

Delivery Detail: 10 days



Our market


market (1).jpg




Company Information




factory show.jpg







Other products



other products.jpg






Q1:Can you provide sample?

      Yes, sample is free. We can send to you anytime.


Q2:What's your payment terms?

      L/C or T/T
