hamada offset Printing machine CF47IINP 2

Product Overview

Description

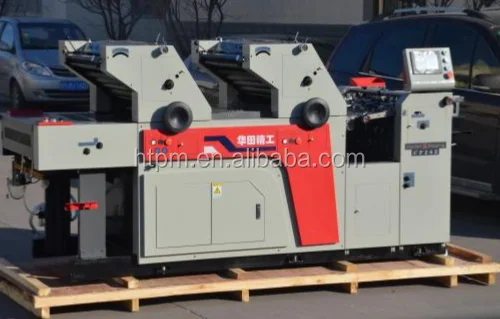

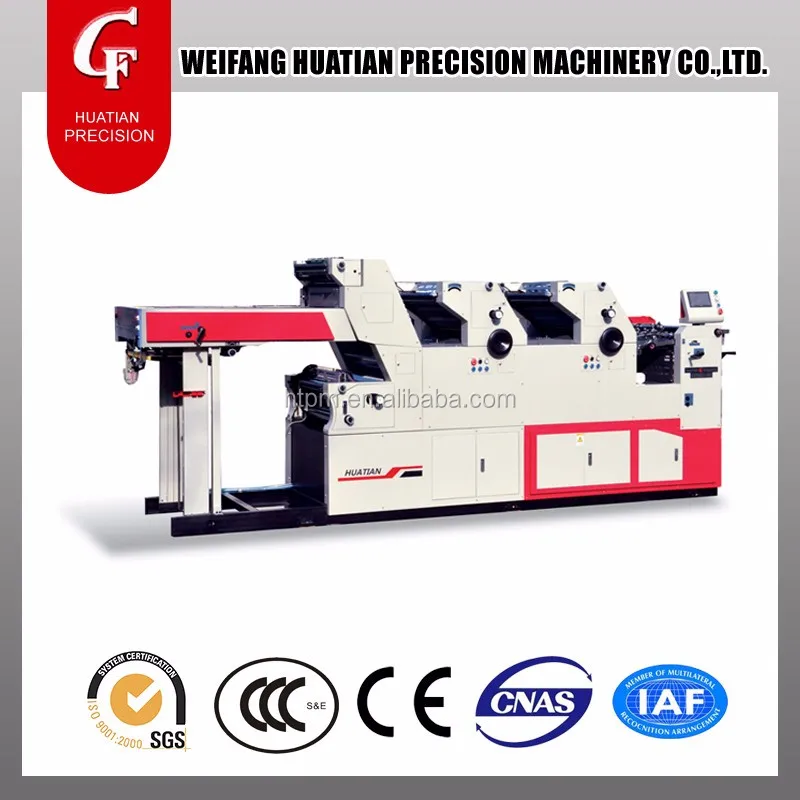

Double colors automatic offset printing press machine



CF47IINP-2/CF56IINP-2 offset printing machine,offset printing press,machine.



A .Instractions:



1.  Applicable scope:This machine is suitable for schools,hospital,Medium and small    companies etc.



2. Products: business forms,exam papers, prescription sheet,NCR(carbonless) bills,notebooks,exercise book etc.

3.consumable items:paper from 17-250gsm,normal 1.95mm blanket,common aluminium plate.



4.Main fuction: Printing,Numbering,perforating can be finished at a time.

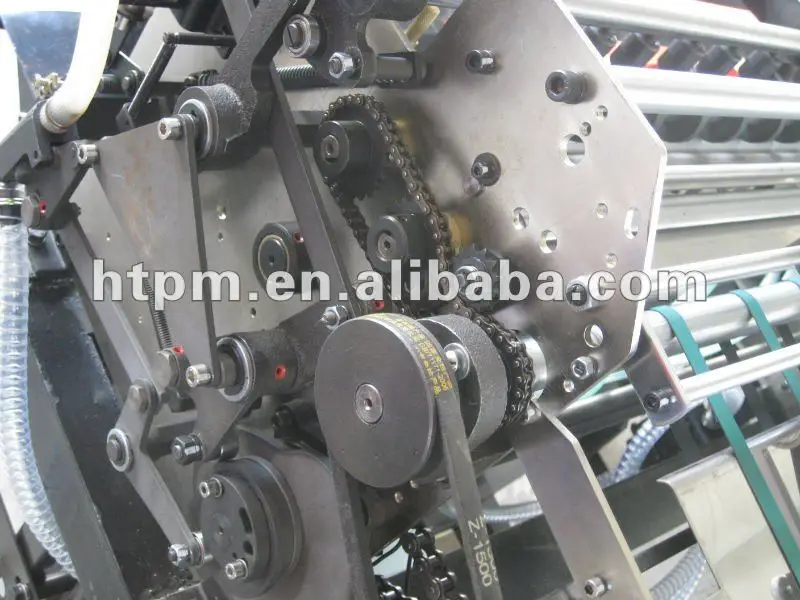

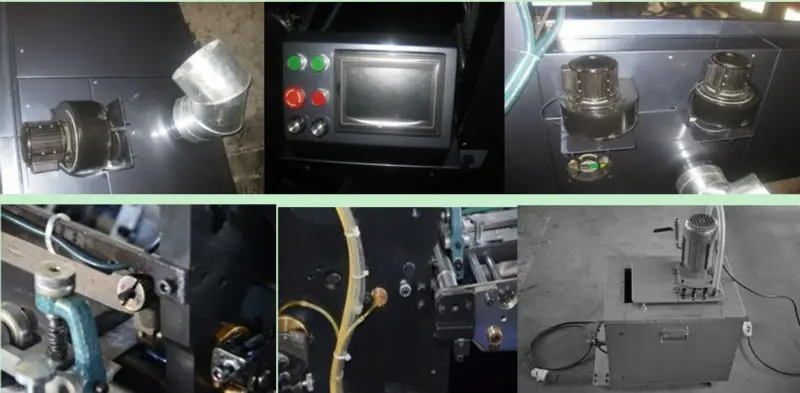

5.Main parts:

a)much thicker and heavier cylinder Pressure NO PROBLEM!

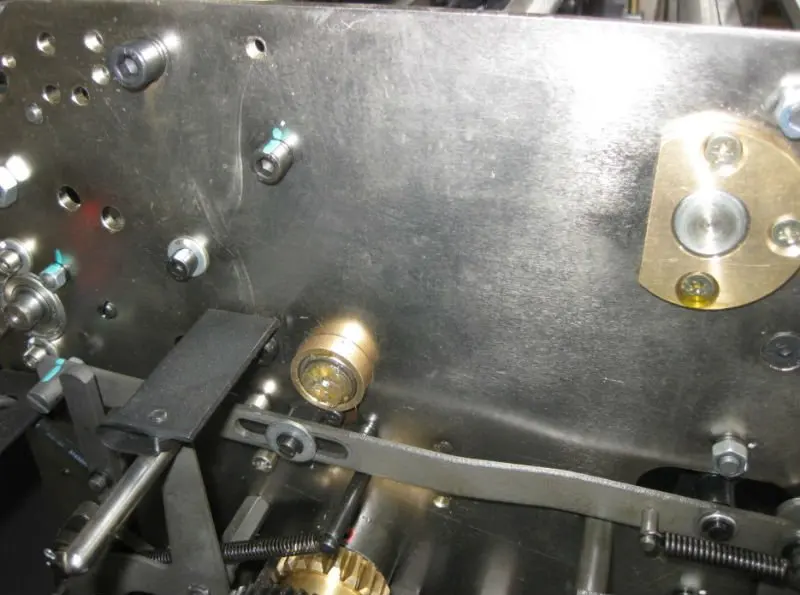

b.)cast iron wall and metal case hardening and galvanized .

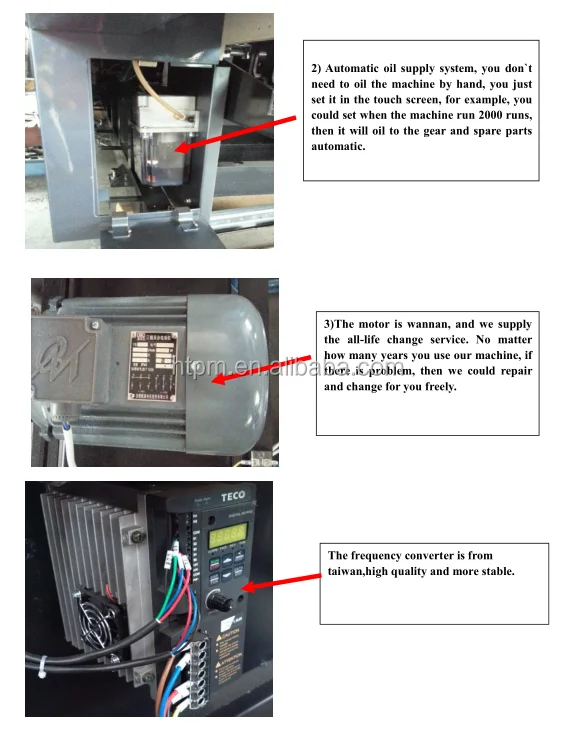

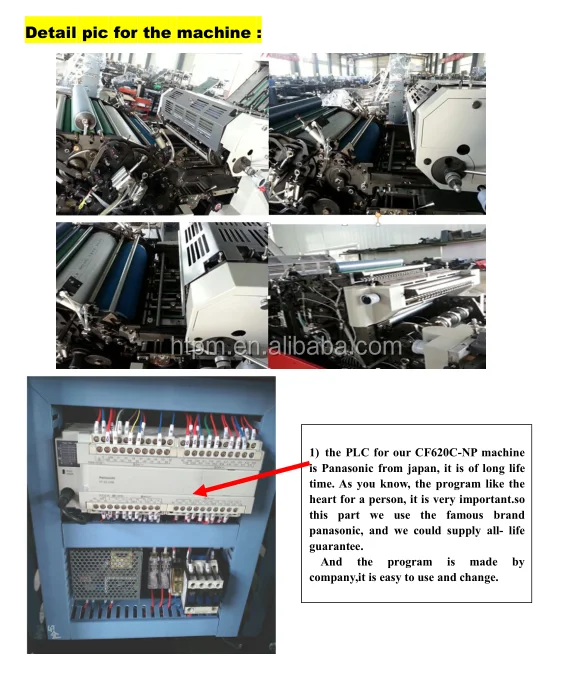

c) gears and bearings hardened.4)electric apparatus.Panasonic PLC,Taian Converter.Mikom sensor. Automatic controll system.

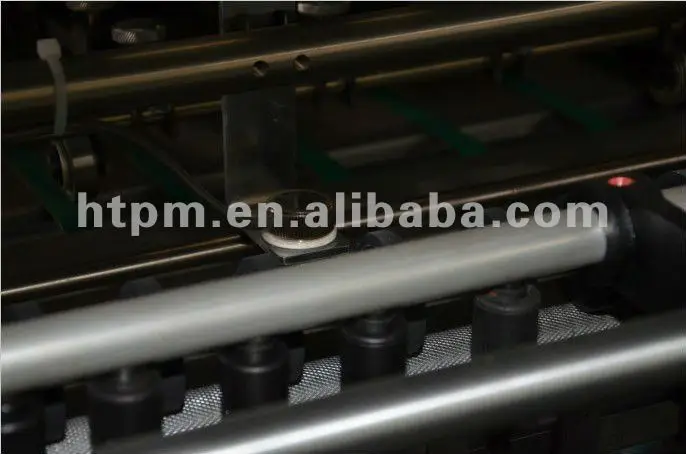

6.Feed system/Inking system/numbering system/delivery system:Auto-feeding system,double sheet

sensor. Auto damping and inking device/numerbing perforating 2 in 1./delivery auto up and down system.



7.Operation: We send the manual and videos. If possible we can send the techician.



8.Aftersale service: The machine have a year warranty. We send as many spare parts as possible.



B. Specifications:



	CF56IINP-2	CF47IINP-2
Maximum printing size	544*380mm	454*345mm
Maximum paper size	560*390mm	470*365mm
Minimum paper size	200*148mm	90*140mm
Paper type	17g-250g/
Number of inking rolls	First printing unit: 11, with 2 forme rolls Second printing unit: 14, with 3 forme rolls
Number of water rolls	4 in each printing unit (1 forme roll in each unit)
Registering mechanism	Roller type side lay
Printing speed	2000-8000 sheets per hour
Motor power	Main motor: 1.5KW	Air pump motor: 0.55KW
Electric supply	380v/50HZ (380v/60HZ optional)
Machine size	CF56 series 2030(L)*1040(W)*1280(H) mm CF47sereis 2030(L)*940(W)*1280(H) mm
Weight	840KG	750KG



C. Spare parts list:



 the important spare for this machine is imported, and all the other spare parts have been done hardness process.









 D. Printed Sample :



our machine could print 1-4 color work on the 17-250gsm paper

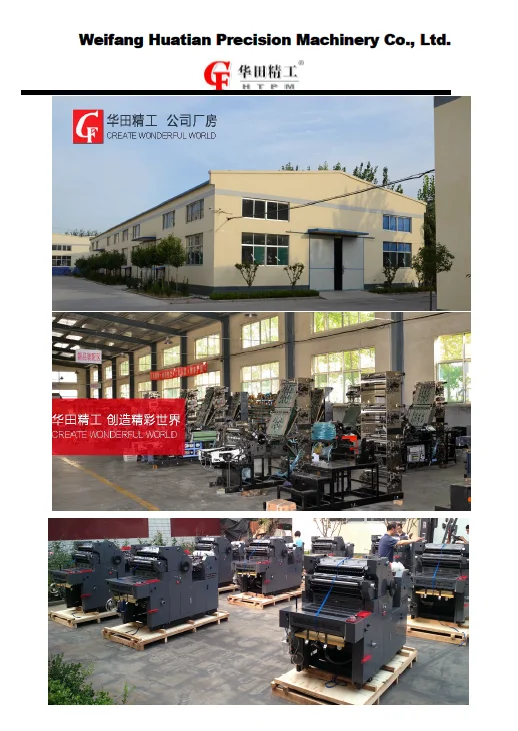

  Factory profile and Delivery



       We could delivery the machine within 10-20 days after we receive the deposit.





   If there is any need ,please don`t hesitate to tell us ,we will provide 1 year guarantee for our machine ,and we also provide install and train .



F,Payment term and guarantee

   1)we accept TT,30% prepaid, when we deliery the machine, you need to pay the balance.

   2)we provide 1 year guatantee, we could change spare parts for you freely within one year.

   if there is any need or question ,please call me



     Contact person:Niki    tel:0086-13793642280
