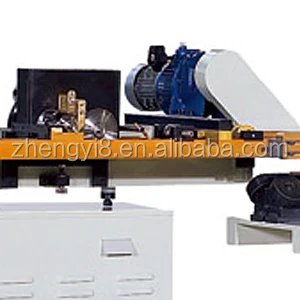

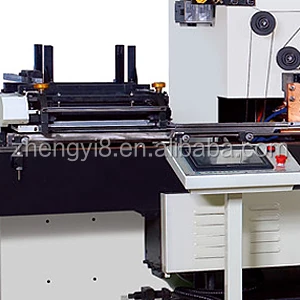

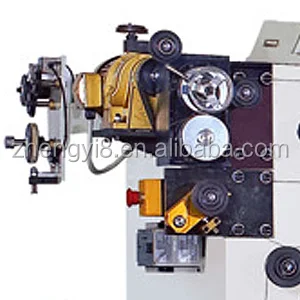

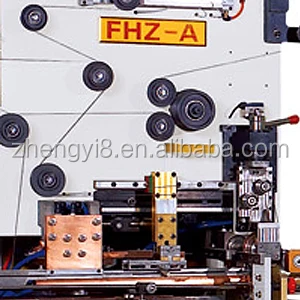

FHZ A Автоматическая производственная линия для небольших банок
- Category: Packaging Forming Machines >>>
- Supplier: Shantou Zhengyi Tincan Machine Co. Ltd.
Share on (60615563604):
Product Overview
Description
Product Description
With frequency converter and inverter power supply, the welding current can be enhanced and attenuated as you wish, and the frequency is continously adjustable.
With well-known electrics such as Mitsubishi, Omron, SMC, system reliability is ensured.
| can diameter: φ52~105mm | sheet thickness: 0.16~0.3mm |
| can height: H51-310mm | copper wire diameter: φ 1.38mm |
| capacity: 80~150cans/min | cooling water pressure: 0.4MPa 12~18℃ 20L/min |
| overlap: 0.4mm, 0.6mm | coating width: 10~14mm |
| welding speed: 6~24m/min | welder dimension: 1730(L)*1695(W)*1920(H)mm |
| welding point distance: 0.5~0.9mm | coating machine dimension: 2100(L) *820(W)*1800(H)mm |
| material: tinplate, Niplate | drying machine dimension: 8500(L)*800(W)*1550(H)mm |
| compressed air: 0.5MPa | input power three-phase: AC380V 50Hz |
| compressed air consumption: 800L/min | capacity of the line: 80KVA |
| coating speed: 6~30m/min | weight of the line: 4600kg |
| coating manner: roller coating | welder weight: 2200kg |
