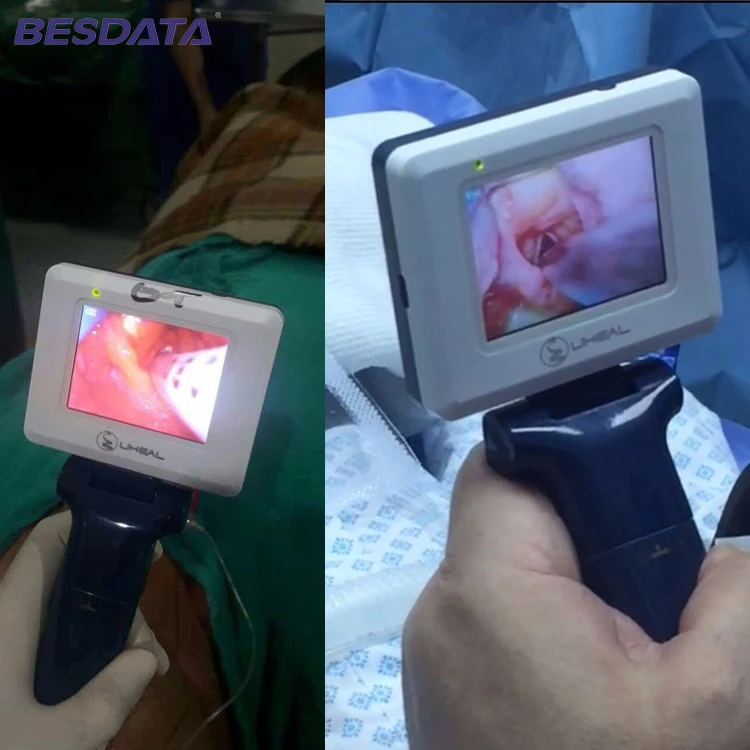

BD AD Pediatric anesthesia tracheal intubation video BeScope laryngoscope

Product Overview

Description

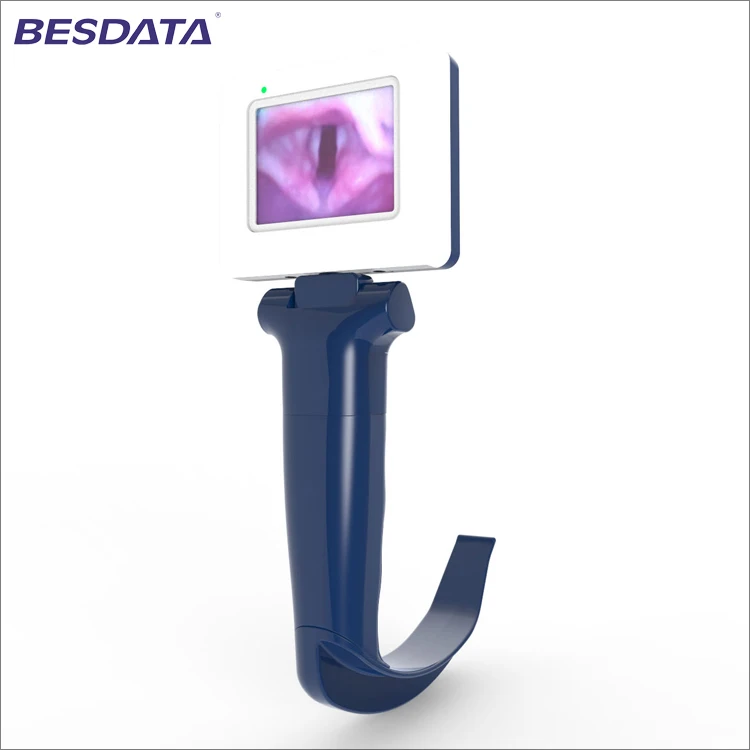

Portable reusable anesthesia video laryngoscope



As a professional instrument using in anesthesiology.Unicare  devoted to invent a economic and practical flexible video laryngoscope to cope with more difficult airway management.



Application range:
Conventional and difficult tracheal intubation,
Could be used in Anesthesia,ICU/NICU/CCU, Operating Room, Emergency Rescue, ENT,ambulance, etc.
Clinical training and teaching of tracheal intubation.



Main Features:
1. 2.5'' display
2. Camera Resolution: 0.3 Mpixel
3. Reusable blade: Adult, Children, Neonate
4. Compatible with disposable blade
5. Video synchronous transmission to big monitor by AV cable
6. Easy to input the tracheal tube by good view of glottis

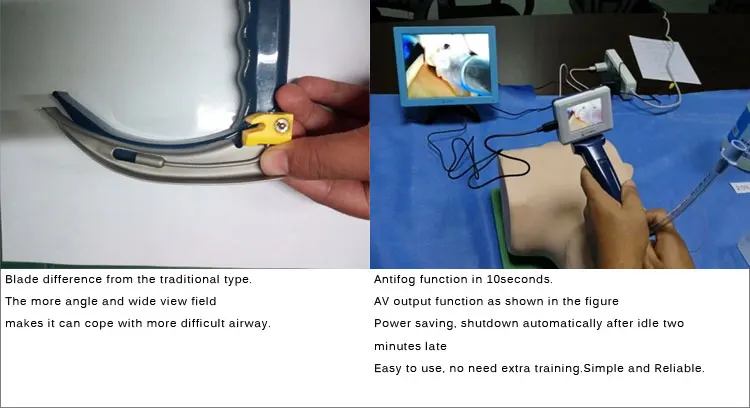

7. More curved blade angle makes it can cope with most difficult airway management



Blade:

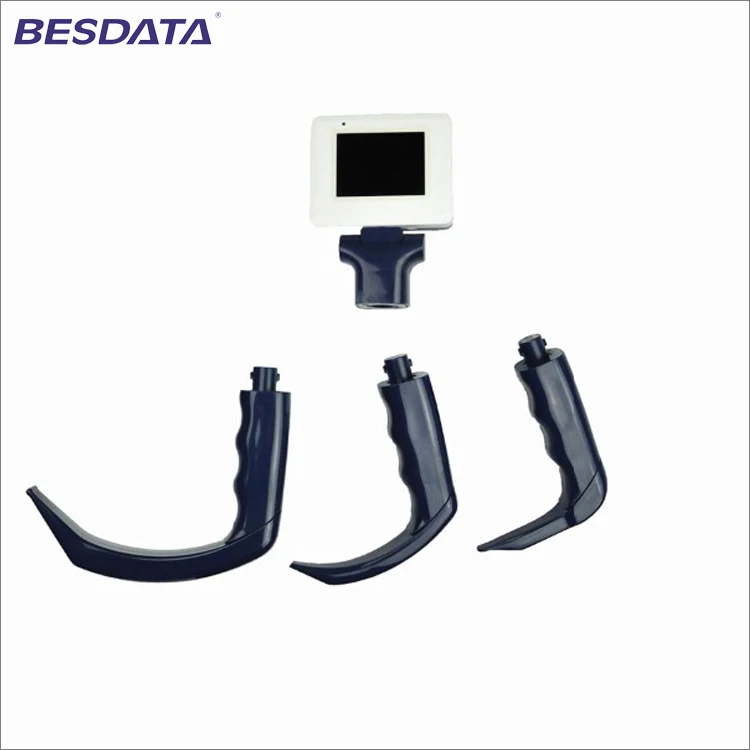

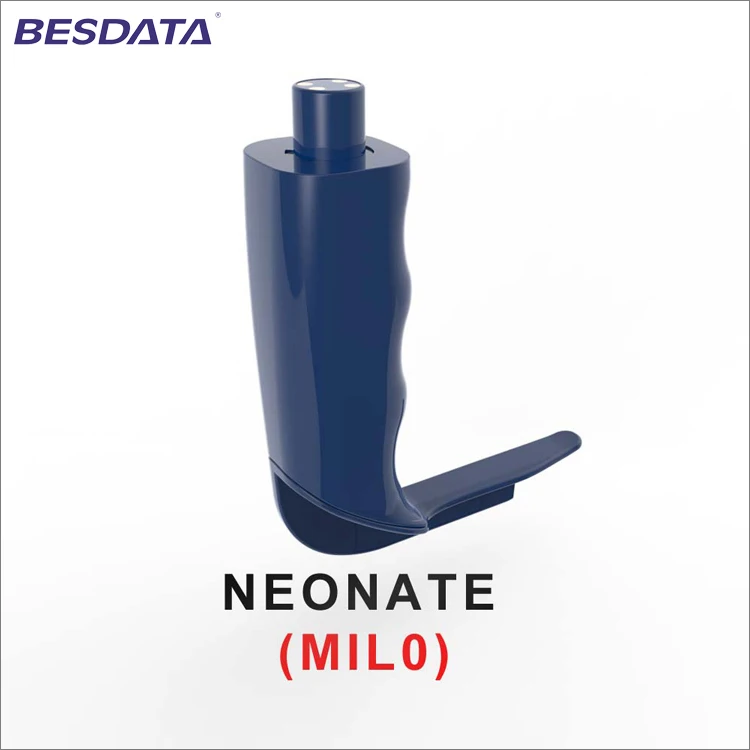

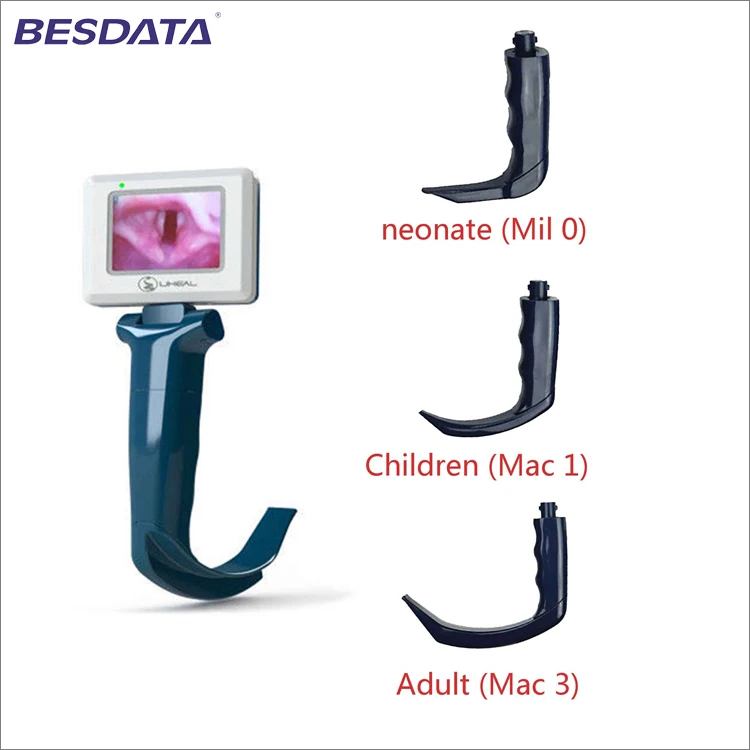

reusable,Adult, Children and Neonate 3 size, Mac style Anti-fog camera.
Video laryngoscope can connector bigger LCD monitor by AV output cable Easy to Disinfect.
More curved blade angle makes it can cope with most difficult airway management cost-optimal in the market.

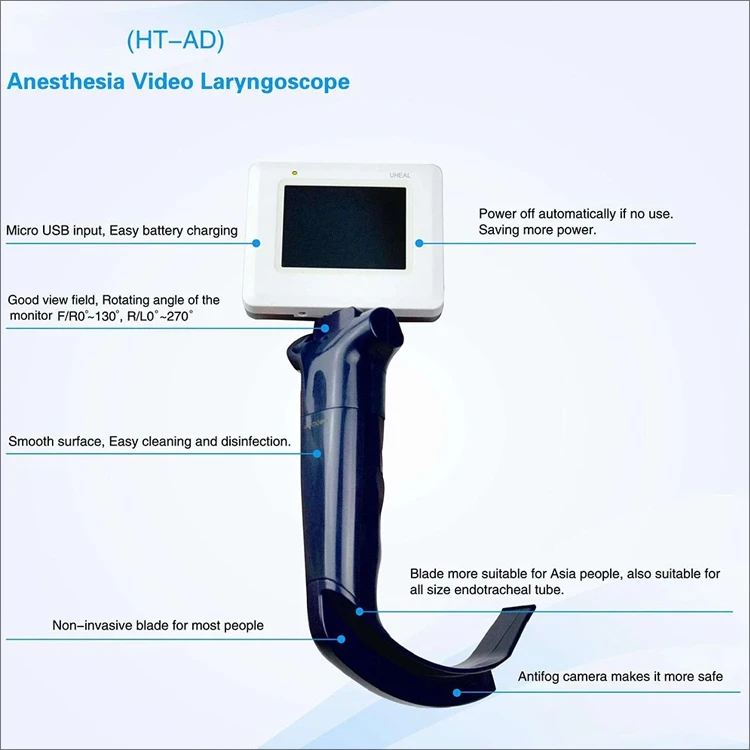

Main struction description

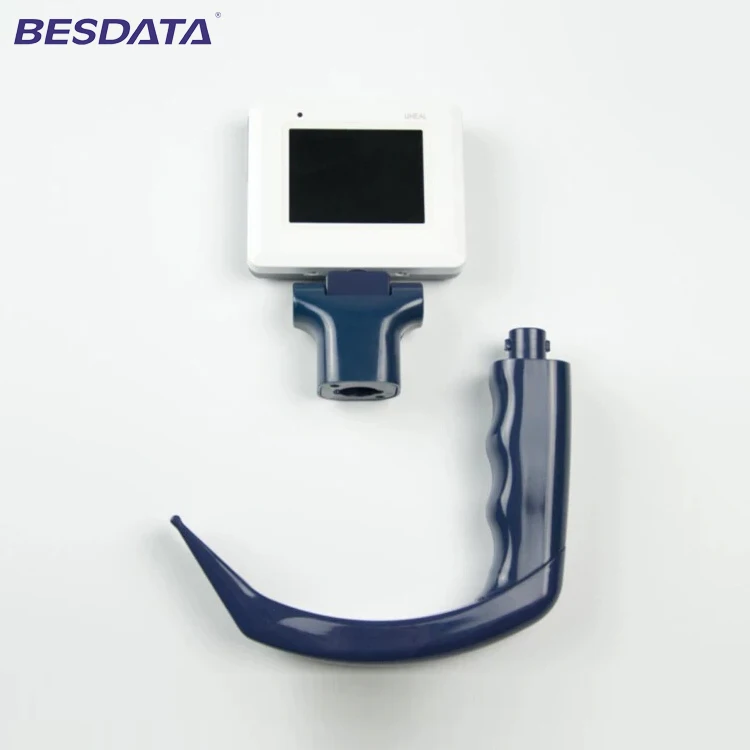

 Detachable and Battery rechargeable All android usb cable is suitable for battery charge.

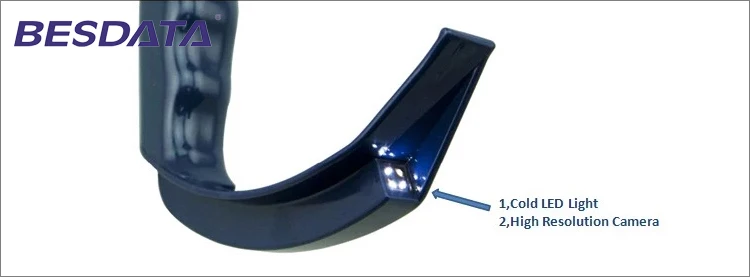

High Resolution Camera and Low temperature LED light source.

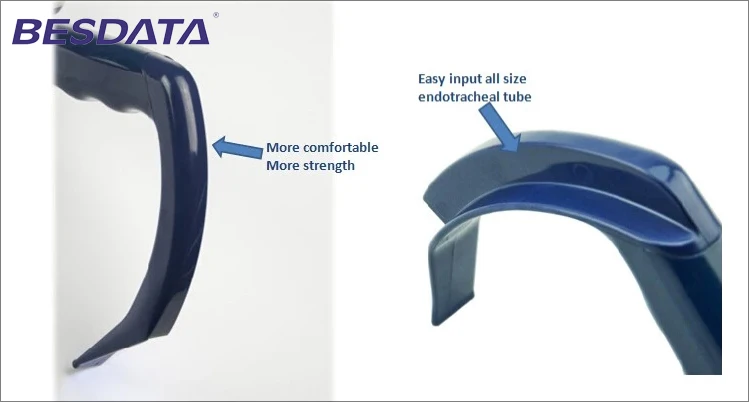

Special blade design more confortable for patient,  more suitable for all size endotracheal tube.

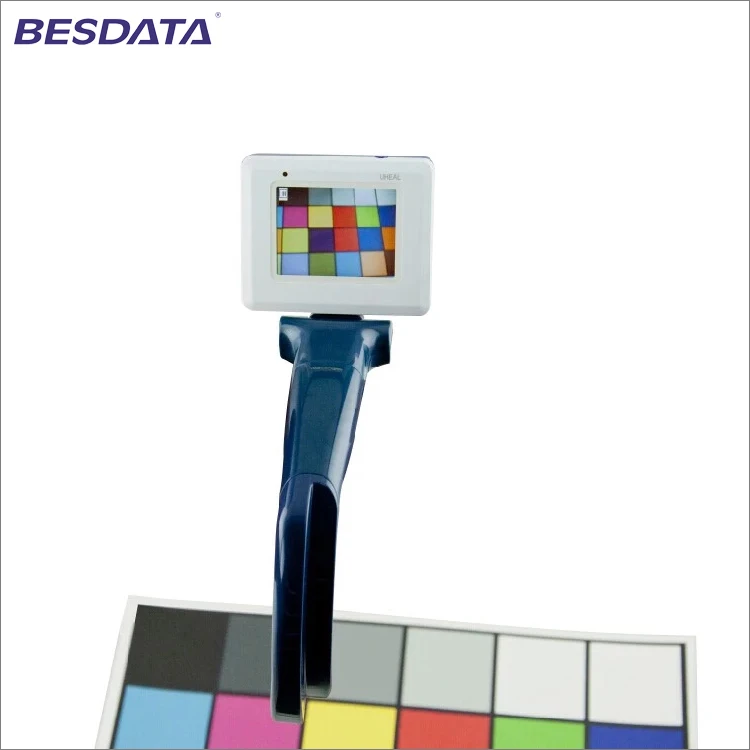

Ture color can get a good view of the glottis.

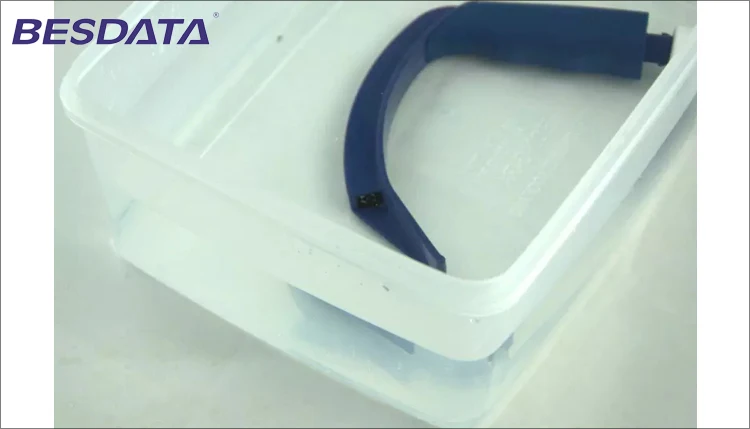

 Operation part waterproof makes it more economic than disposable video laryngoscope.

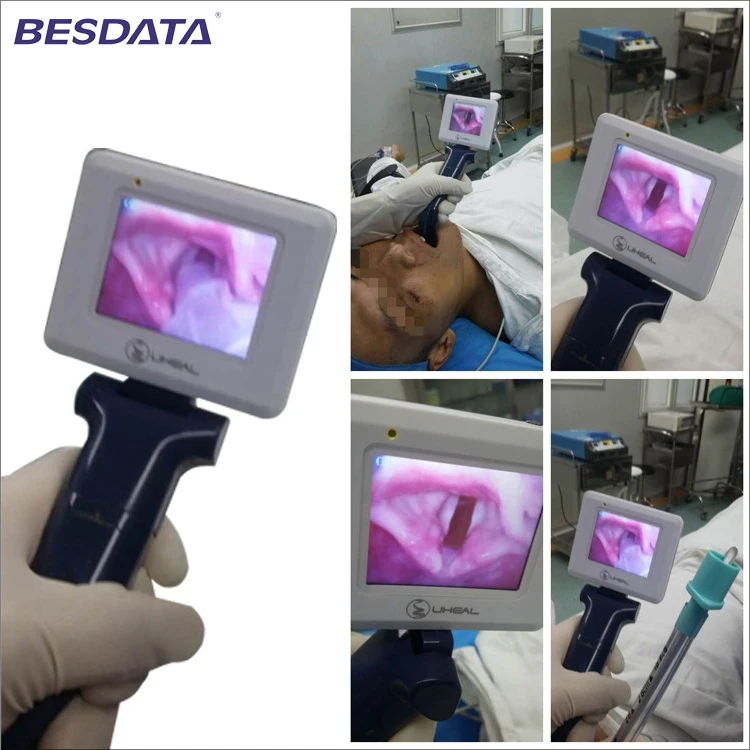

 Medical application of the Anesthesia Video Laryngoscope --- Oral intubation

Name	Technical Name	Technical Parameter	Clinical Significancel
Displayer	Size	2.5''  (3.0'', 8.0'' for optional)	Light weight, conveniently to operate
	View Field	50º±15%	The image proportion of glottis is the  best,smoothly to intubation
	Resolution	640*480	N/M
	Power	≤ 1.5VA	N/M
	Backlight	LED	N/M
	Up/Down the rotation angel	0~130°	Application for kinds situbation  intubation
	Turn right/ left angle	0~270°
Laryngoscope blades  (including camera)	Resolution	≥ 0.3Mpixels	N/M
	Material	PC material	Suitable for all size tracheal tube,  Enables blade changes without  powering down
		Aluminum material
	FOV	≥ 90°	N/M
	Illuninance	≥ 70LUX	bring low fevering, keeping good  image
Battery	Type	lithium battery	N/M
	Charge input	220V/50Hz	N/M
	Charge output	5V, 1000mA	N/M
	Cycle count	> 300 times	Keep laryngoscope to work  long time
	Charging time	< 4 hours	N/M
	Continuous using time	> 5 hours	Can be used  continuously for a long time
Working environments	Temperature	10℃~40℃	N/M
	Humidity	10%~90%	N/M
	Atmospheric pressure	500hpa~1060hpa	N/M
Transportation storage  environments	Temperature	-40℃~+55℃	N/M
	Humidity	≤93%	N/M
	Atmospheric pressure	500hpa~1060hpa	N/M
Function	Automatic power off	2 mins in quiescence	Avoid forgeting to turn off machine
	Battery indicator light	(low)Battery indicator	Remaining Charge indicator  eliminates guessing
	Smart Anti-fog	10s demisting	Smart and quick demisting,  operate machine as soon as turn on
	Outer connect monitor	USB/AV output connector	To big monitor for training
	Charger	Micro USB	Normaly type charger,  convenient to charge in anytime

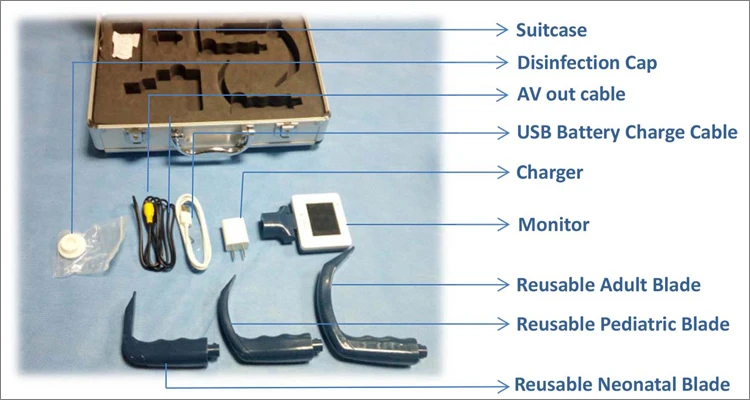

Packing List:

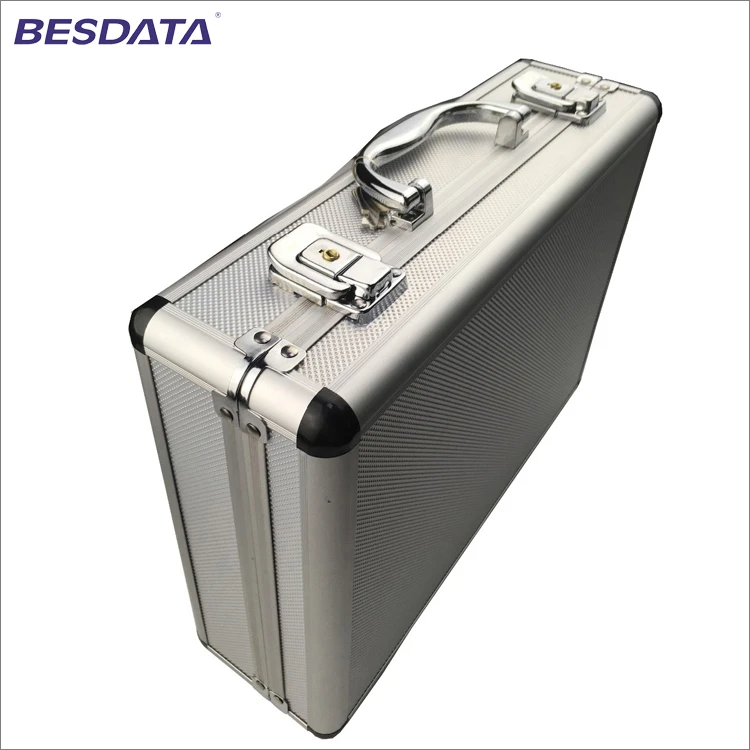

1. 1 X Suitcase

2. 1 X Monitor
3. 3 X Reusable blade
4. 1 X USB battery charge cable + charger
5. 1 X AV adaptor cable

6. 1 X Disinfection capMaking Machine Bottle Moulding Machine



Medical Application:

1: General endotracheal intubation/Difficult airway intubation.

2: Double-lumen endobronchial intubation positioning.

3: Difficult airway management.



Our video laryngoscope have been exported more than 25 countries,, like Argentina, Spain, Brazil,

USA,Pakistan,Italy,Thailand, UK,Bhutan,Mexico,Colombia,Saudi Arabia,Philippines,Turkey,etc
