CF47IINP 2 new generation two color offset Printing machine
- Category: >>>
- Supplier: Weifang Huatian Precision Machinery Co. Ltd.
Share on (60615649869):
Product Overview
Description
High quality offset printing machine CF47IINP-2
Product Description
A .Instractions:
1. Applicable scope:This machine is suitable for schools,hospital,Medium and small companies etc.
2. Products: business forms,exam papers, prescription sheet,NCR(carbonless) bills,notebooks,exercise book etc.
3.consumable items:paper from 17-250gsm,normal 1.95mm blanket,common aluminium plate.
4.Main fuction: Printing,Numbering,perforating can be finished at a time.
5.Main parts:

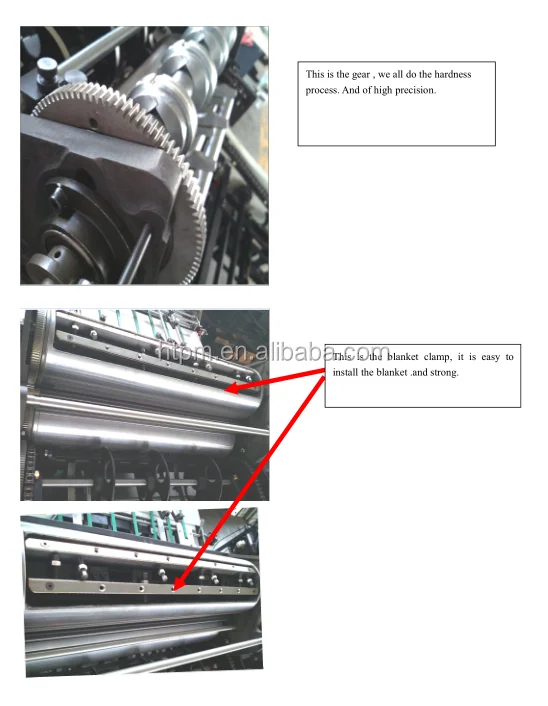

a)much thicker and heavier cylinder Pressure NO PROBLEM!
b.)cast iron wall and metal case hardening and galvanized .

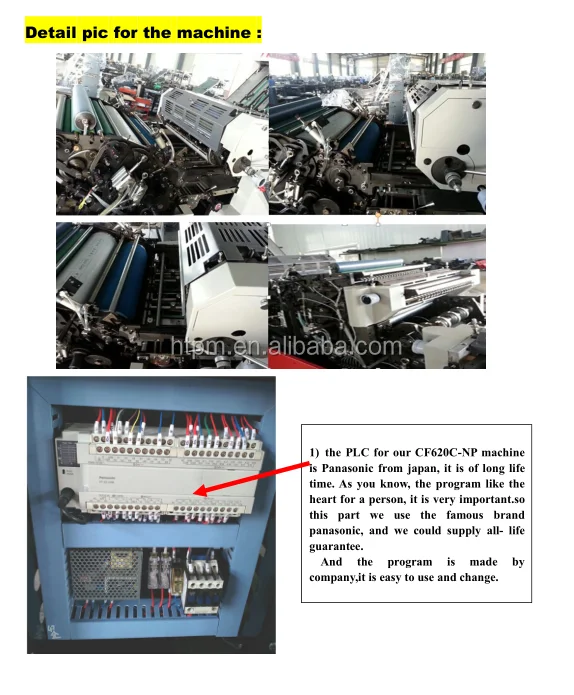

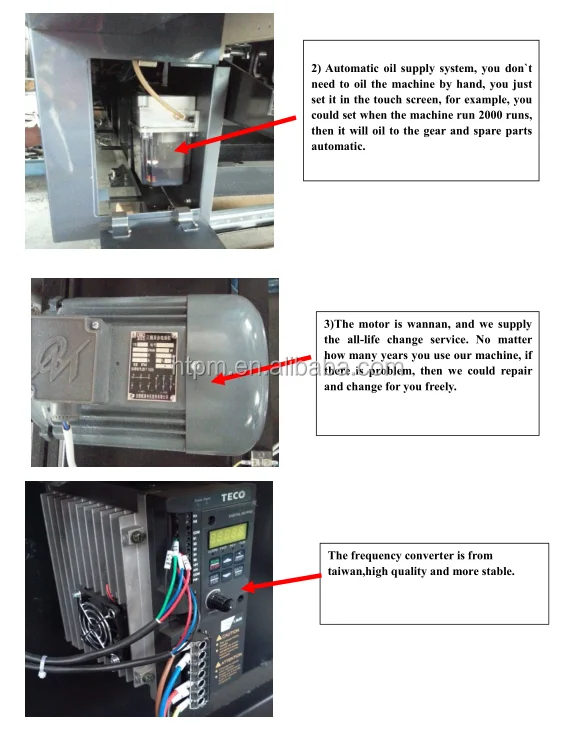

c) gears and bearings hardened.4)electric apparatus.Panasonic PLC,Taian Converter.Mikom sensor. Automatic controll system.

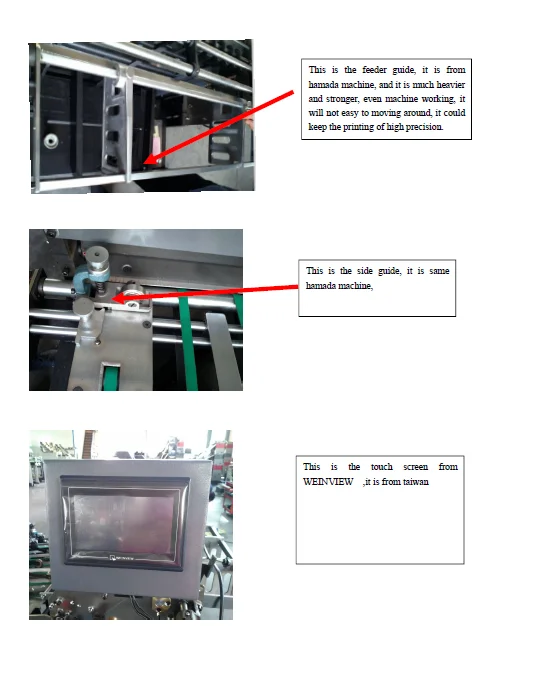

6.Feed system/Inking system/numbering system/delivery system:Auto-feeding system,double sheet
sensor. Auto damping and inking device/numerbing perforating 2 in 1./delivery auto up and down system.
7.Operation: We send the manual and videos. If possible we can send the techician.
8.Aftersale service: The machine have a year warranty. We send as many spare parts as possible.
B. Specifications:
| CF56IINP-2 | CF47IINP-2 |
Maximum printing size | 544*380mm | 454*345mm |
Maximum paper size | 560*390mm | 470*365mm |
Minimum paper size | 200*148mm | 90*140mm |
Paper type | 17g-250g/ | |
Number of inking rolls | First printing unit: 11, with 2 forme rolls Second printing unit: 14, with 3 forme rolls | |
Number of water rolls | 4 in each printing unit (1 forme roll in each unit) | |
Registering mechanism | Roller type side lay | |
Printing speed | 2000-8000 sheets per hour | |
Motor power | Main motor: 1.5KW | Air pump motor: 0.55KW |
Electric supply | 380v/50HZ (380v/60HZ optional) | |
Machine size | CF56 series 2030(L)*1040(W)*1280(H) mm CF47sereis 2030(L)*940(W)*1280(H) mm | |
Weight | 840KG | 750KG |
Accessories
C. Spare parts list:
the important spare for this machine is imported, and all the other spare parts have been done hardness process.
D. Printed Sample :
our machine could print 1-4 color work on the 17-250gsm paper
Packaging & Shipping
E. Factory profile and Delivery
We could delivery the machine within 10-20 days after we receive the deposit.
If there is any need ,please don`t hesitate to tell us ,we will provide 1 year guarantee for our machine ,and we also provide install and train .
After-Sales Service
F,Payment term and guarantee
we accept TT,30% prepaid, when we deliery the machine, you need to pay the balance.
Warranty
we provide 1 year guatantee, we could change spare parts for you freely within one year.
if there is any need or question ,please call me
Contact person:Niki tel:0086-13793642280
Company Information
we have been in this industry 14 years, and now we have the 1-4 color offset press machine / double side printing machine / ncr paper print number and collate / contunous form machine / uv and spot uv coatig machine / folding machine / number machine and binding machine .
FAQ
1.Question: Are you Manufacture or Trading Company?
Answer:We are manufacture for the offset printing machine for about 12 years. And we have customer in about 60 countries.we have the4 color offset press, collate machine . Uv coating and spot uv machine. computer paper production line ,folding machine. Binding machine ,die cutting machine and flexo graphic machine .
2.Question: what is your payment term and delivery time ?Answer: we accept TT,30% prepaid as deposit, and before we delivery the machine, you need to pay us the balance . We could arrange the delivery within 10-30 days after we get the deposit.
3.Question: How is the quality for your machine ?
Answer: for the spare parts, most of them are manufactured by ourselves,and most of them are done the hardness process treatment. So we can better control our quality from beginning. Electrical Part we had cooperated with good foreign brand, such as UBC, Yaskawa, Siemens, NSK, Delta, Panasonic etc.all the machine will be installed in high precision and be tested for many time before delivery.
