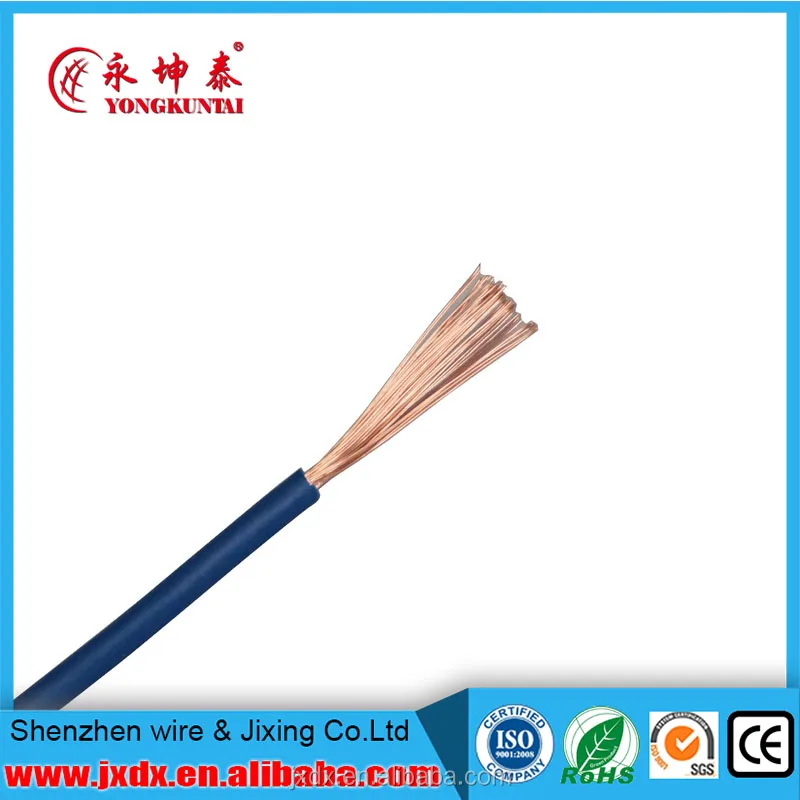

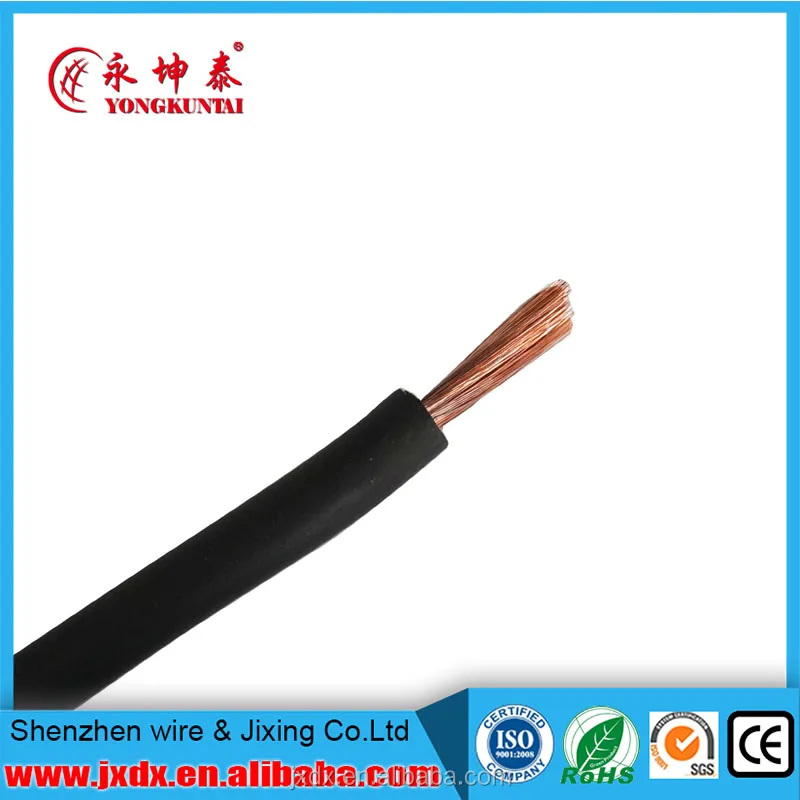

1.5mm 2.5mm 4mm 6mm 10mm house wiring single core 450/750V building Romex electric copper wire
- Category: >>>
- Supplier: Shenzhen Jixing Electric Wire & Cable Co. Ltd.
Share on (60615736508):
Product Overview
Description
1.5mm 2.5mm 4mm 6mm 10mm house wiring single core 450/750V building Romex electric copper wire
Product Description
| Porduct name | 1.5mm 2.5mm 4mm 6mm 10mm house wiring single core 450/750V copper building 4mm2 electric wire |
| size(mm²) | 0.5,0.75,1,1.5,2.5,4,6... |
| Insulation Material | PVC:EU RoHS environmental protection and low smoke halogen free material |
| Conductor Material | Anaerobic Copper Wire:Pure 99.99% Copper Conductor |
| Color | black,white,red,green,yellow,grey,blue etc |
| Rated Voltage(V) | 300/500 OR 450/750 |
| Pakege | 100 meter/roll |
| Certificate | CCC,CE,SGS,ISO9001,RoHS |
| Delivery period | 20-40 days,depending on your order quantity and destination |
| Sample service | support |
1.Product Description
Model:H07V-K,RV.
V means PVC insulation,R means flexible.
Specification:
Section-area of conductor:0.75 sq mm,1 sq mm,1.5 sq mm,2.5 sq mm,4 sq mm,6 sq mm,10 sq mm,16 sq mm,25 sq mm,35 sq mm,50 sq mm,70 sqmm.
Product Structure: Conductor + Insulation.Oxygen-free copper conductors + PVC Insulation.composed by the stranded copper wire and PVC insulation.
Implementation of the standards: HD 21.3 S3, VDE 0281-3, BS 6004
Quality Standard: CCC,CE,ROhs,SGS,ISO 9001 certification
Rated voltage:450/750V
Soaked one hour, Wire subjected to alternating current 50Hz 250V (450 / 750V), 2000V (300 / 500V) voltage test 5 minutes without breakdown.
Operating temperature: normal operating temperature does not exceed the maximum 70 ℃
Bending radius: For the Cable whose outer diameter (D) less than 25mm are not less than 4D; For the cable whose outer diameter (D) >= 25mm,the bending radius should not less than 6 D.
Color: yellow-green,red,black,blue,etc
Special Items: Similarly, according to the choice of different materials,BVR wire is also divided into fire-retardant wire (ZR-RV), fire-resistant wire (NH-BVR),low smoke halogen free wire (WDZ-RYJ).Users can choose according to their own needs depending on different occasion. The low smoke halogen free wire and produce a very small amount of smoke in the flame, the release of gas does not contain halogen (low halogen) elements, non-toxic (low toxicity). When a fire occurs, it can greatly reduce the damage of apparatus, equipment and the human body.That's why it has been widely used in high-rise buildings, hospitals, large library, gymnasium, disaster prevention and control building, railway stations and civil airports, passenger waiting room, key cultural relics protected places and subway, underground shopping malls or densely populated public places.
Key technical parameter of different specifications and models:
| Cross-section area (mm2) | Wire gauge (cores/mm) | Weight (kg/km) | Approximate OD (mm) | Maximum resistance at 20 ℃ (Ω/km) |
1 | ||||
| 1.5 | ||||
| 2.5 | 19/0.41 | 34.7 | 4.2 | 7.41 |
| 4 | 19/0.52 | 51.4 | 4.8 | 4.61 |
| 6 | 19/0.64 | 73.6 | 5.6 | 3.08 |
| 10 | 49/0.52 | 129 | 7.6 | 1.83 |
| 16 | 49/0.64 | 186 | 8.8 | 1.2 |
| 25 | 98/0.58 | 306 | 11 | 1.15 |
| 35 | 133/0.58 | 403 | 12.5 | 0.868 |
| 50 | 133/0.68 | 553 | 14.5 | 0.641 |
| 70 | 189/0.68 | 764 | 16.5 | 0.443 |
If you are not sure where it is what you need,you need our support.
Packaging & Shipping
package 1:2+4+5
package 2:1+5
package 3:3+5
package 4:6 (this package is use for big size cable.)
Which package as you wish.
| Model specification | Weight (kg / 100 meters) | Packing box size(mm) | pack rolls |
| 1.5mm² | - | 420*210*330 | 12 |
| 2.5mm² | 34.7 | 470*235*300 | 10 |
| 4mm² | 51.4 | 255*255*330 | 5 |
| 6mm² | 73.6 | 295*295*260 | 4 |
Related Products
Similar Products
Application
Installation in surface mounted or embedded conduits or similar closed systems and for fixed protected installation in or on lighting fi ttings and inside appliances, switchgear and control gear. Green/Yellow for use as earth.Insulated conductor(H07V-K) is used for laying in electric-installation tubes,under and on plaster installation in dry rooms and in closed installation conduits.Direct laying in cable guides is not permitted.Also applied for internal wiring of distribution and switching boxes equipment,same as for protective laying for lighting of nominal voltage up to 1000 V alternating current,or up to 750V direct current against earth.
More products
Our products
0.6/1KV plastic insulation, cross-linked insulated power cable, LSZH cables environmentally friendly, flame retardant cables, fire resistant cables, aluminum cable, branch cable, B series( rated voltage 450/750 and bellow) plastic wire and cable, XLPE wires and cables, wires and other environmentally friengdly LSOH 28 varieties, more thatn 6400 specifications, products are sold to foreign markets, the majority of users praise.
Certisficates
Certifications
If you want to see the certisficate clearly,please cntact us!
FAQ
FAQ
Q1: Are you a company or trading company?
A1:We are a ali baba shopping online China factory with ODM and OEM service.
Q2:How can I get the goods I bought?
A2:The goods you purchases will be delivered by DHL,UPS,FedEX,TNT,EMS. Etc.
Q3:Is the sample free?
A3:Yes,It is. But you pay the freight.than the freight fee will be return to you when you make the bulk order.
Q4:How long is your guarantee period?
A4:It;s 1 year for our product. for our china factory products.
Q5:What’s your payment term?
A5:It’s T/T 30% the deposit, the balance will be paid by T/T or L/C at sight before the shipment.
Q6:What’s about the lead time for sample and order?
A6:The sample usually in 2-3 days after receive your request. Lead time for order is 10-15 working days.
Q7:What’s your MOQ?
A7:It’s depend on the type of your purchases products,and please contact usali baba shopping online about the specification if you like.
Q8:Where you factory located? How can I visit there?
A8:Our factory is located in A3 building ,Dadi Industrial City,Yanchuan, Songgang Street, Bao’an District, Shenzhen, Guangdong, China. And you can fly to Shenzhen Bao;an International Airport and let me know you flight No. We will arrange to pick you up.
Company Information
Company profile
 | Shenzhen jixing Electric Wire & Cable Co., Ltd., is a medium-sized enterprise specializing in the production of wire and cable, the factory covers an area of 12, 000 square meters, existing staff of 126 people, including engineering and technical personal 11 people, six inspector, technical operation of front-line staff water up to the national average of the technical requirements. |
If you would like to know more about our company,please contact us!
Our products are sold to all cities in China and export to America, Europe, Middle East, Southeast Asia and Africal, more than 30 countries in the word.
From Dec to Jan., our company will recruit special agents in England, Austria, India and Italy. Those who meet the requirements will be strongly supported by our company. Specific information, please contact exclusive customer service.
