CE Certificated 3 Pass Water Tube Small Diesel Oil Fired Steam Boiler Capacity 35 50KG/h
- Category: >>>
- Supplier: Shanghai Yano Boiler Manufacturing Co. Ltd.
Share on (60615775074):
Product Overview
Description
Product Description
CE Certificated 3-Pass Water Tube Small Diesel Oil Fired
Steam Boiler Capacity 35-50KG/h
Main Features of Water Tube Small Diesel Oil Fired Steam Boiler Capacity 35-50KG/h :
1.Automatic LCD intelligent control system
2.,Safety and Science :with a safety valve, pressure controller, water level control protector,
3,multiple chain protection device, safe and reliable.
4,Choose imported Italian burner, burning more fully, more stable operation and lower noise.
5,High quality parts adopt domestic famous brand Delixi electric appliance
6,High Quality Steam Rapidly
7,Easy to install and operate
8,the boiler thermal efficiency above 93%
9,Product quality ensured by :Hydraulic teat ,X-ray ,non-destructive test .

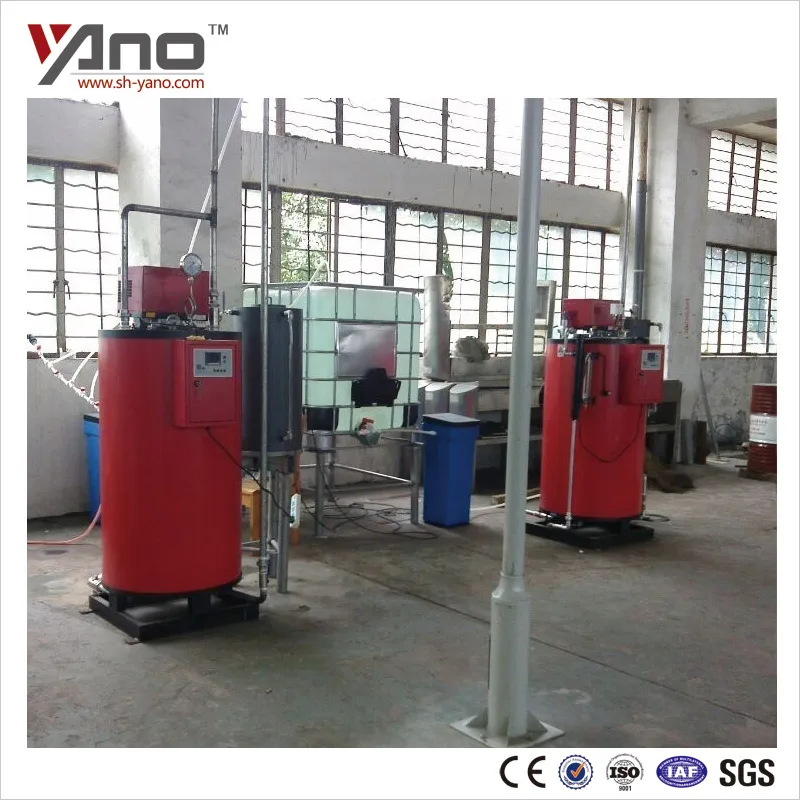

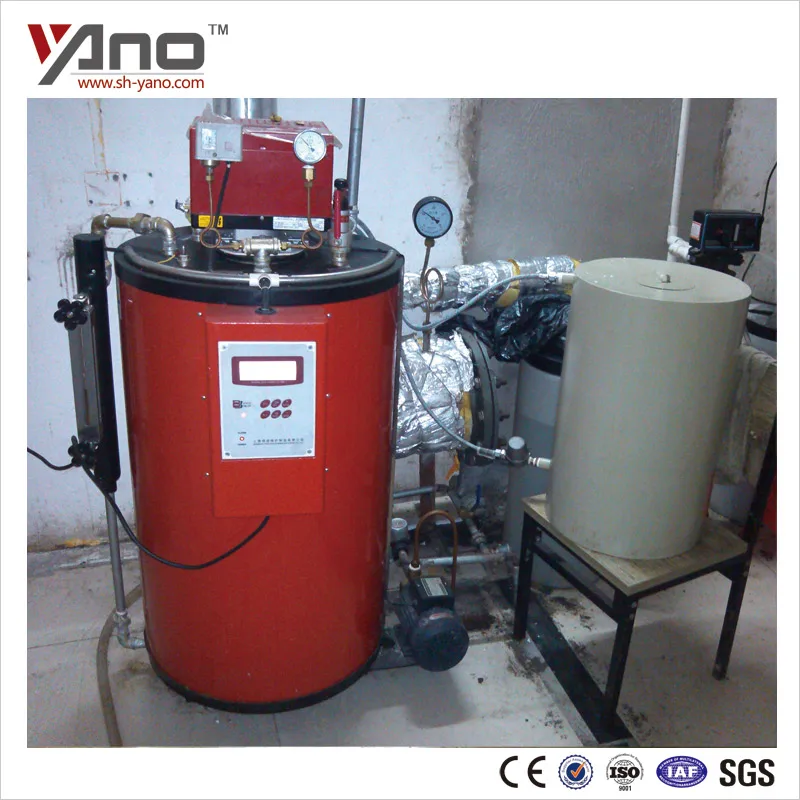

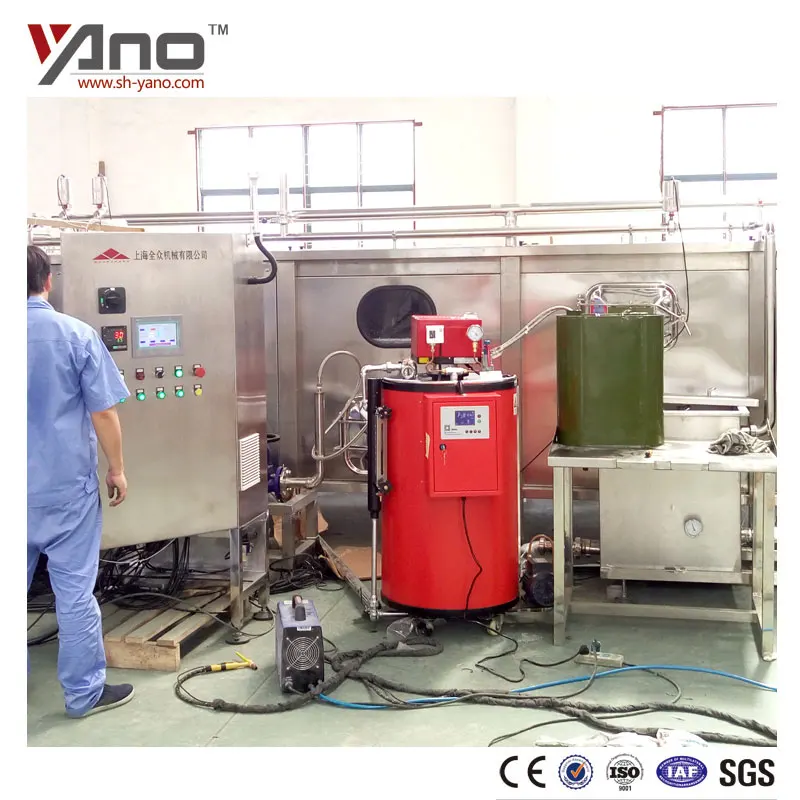

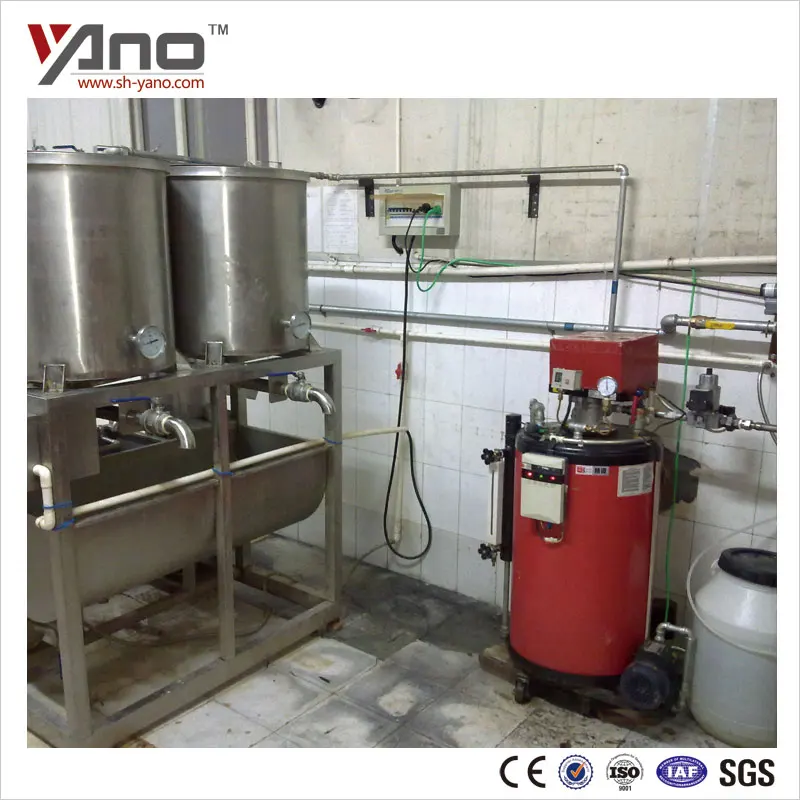

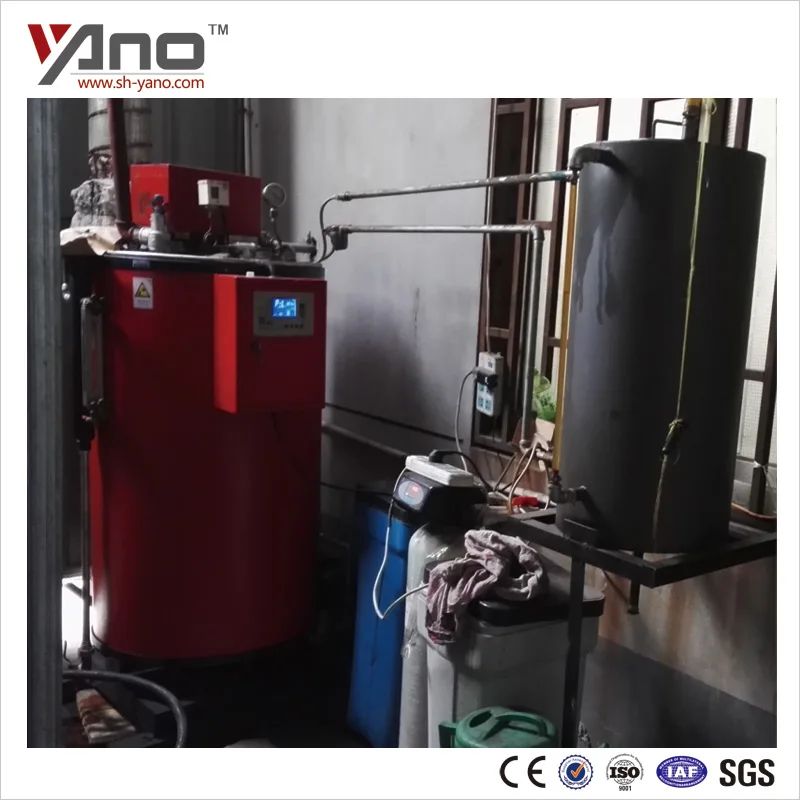

Photo of Water Tube Small Diesel Oil Fired Steam Boiler Capacity 35-50KG/h :
Spec/Type | LSS0.05-1.0-Y/Q | LSS0.1-0.8-Y/Q | LSS0.2-0.8-Y/Q | LSS0.3-0.8-Y/Q | LSS0.5-0.8-Y/Q | LSS1.0-0.8-Y/Q |
Capacity | 50 | 100 | 200 | 300 | 500 | 1000 |
Efficiency | >=90 | >=93 | >=93 | >=93 | >=93 | >=93 |
Rated Pressure | 0.7/1.0 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
Rated Temperature | 170/185 | 175 | 175 | 175 | 175 | 175 |
Diesel（kg/h） | 3.2 | 6.1 | 12.2 | 18.3 | 30.5 | 61 |
Coal Gas（Nm3/h） | 8.9 | 17.0 | 34.0 | 51.0 | 85.0 | 170 |
Natural Gas（Nm3/h） | 4.0 | 7.6 | 15.2 | 22.8 | 38.0 | 76 |
Liquefied Gas（kg/h） | 3.1 | 5.7 | 11.4 | 17.1 | 28.5 | 57 |
Dimension (mm) (L*W*H） | 800*770*1410 | 880*850*1760 | 960*960*2380 | 1100*1250*2440 | 1200*1500*2650 | 1480*1480*3300 |
Steam Caliber | DN15 | DN25 | DN25 | DN50 | DN65 | DN50 |
Drain Outlet Caliber | DN15 | DN25 | DN25 | DN25 | DN25 | DN40 |
Water Inlet Caliber | DN15 | DN15 | DN15 | DN25 | DN25 | DN25 |
Weight(KG) | 250 | 450 | 700 | 950 | 1200 | 1800 |
Detailed Images
Name: LCD Monitor
Brand: Yano
Original: China
Advantage：Domestic famous engines, strong driving force, low fuel consumption, high economic benefits .
Brand: Baltur
Original: Italy
Advantage:Stable in operation,low combustion noise,more energy efficient.Life of over 10 years.
Name: Water Pump
Brand: Oron
Original: China
Advantage：10 year life, high temperature of 100 degrees.Compact structure,high mechanical strength stable performance.
Name:Boiler Furnace
Brand:Yano
Original:China
Advantage:Advanced three-pass vertical water pipes tubular structure Smokes and finned tube are fully heat exchanged,the themal efficiency is higher than 92%
Certifications
Customer cases
500Kg/H Gas Steam Boiler
used in disinfectIndustry
200Kg/H Gas Steam Boiler
used in Food Mill Industry
2000Kg/H Diesel Steam Boiler
ued in Heating Industry
Packing & Delivery
Our Company
FAQ
Q: What is our Qualification?
A: We are a Class One Boiler Manufacturer,Located in Shanghai,with 15 years' experience in the field of boilers.
Q: What is our Product Range?
A: We specialized in Electric Steam Boiler, Gas Fired Steam Boiler, Oil Fired Steam Boiler, ElectricHot water Boiler, Electric Water Heater,Oil(Gas) Hot Water Heater
Q: How many countries we have exported?
A: We have exported to America ，Europe，FIJI, Bangladesh, South Africa, Peru, Chile, Malaysia, Philippines, Indonesia, Packistan, etc.
Q: What is our Warranty Period?
A: The Warranty Period is ONE YEAR with lifelong service.
