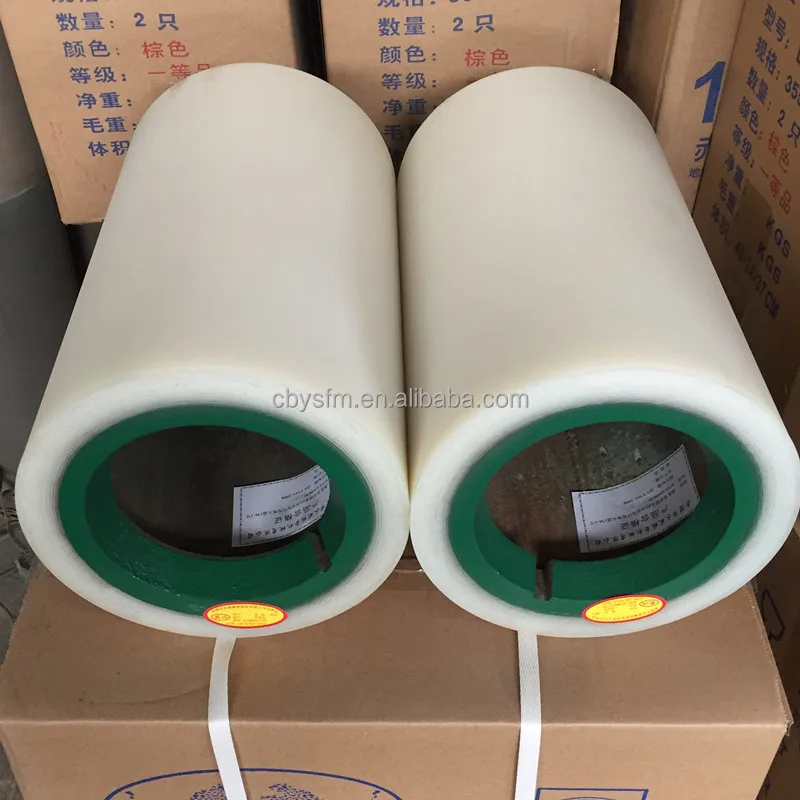

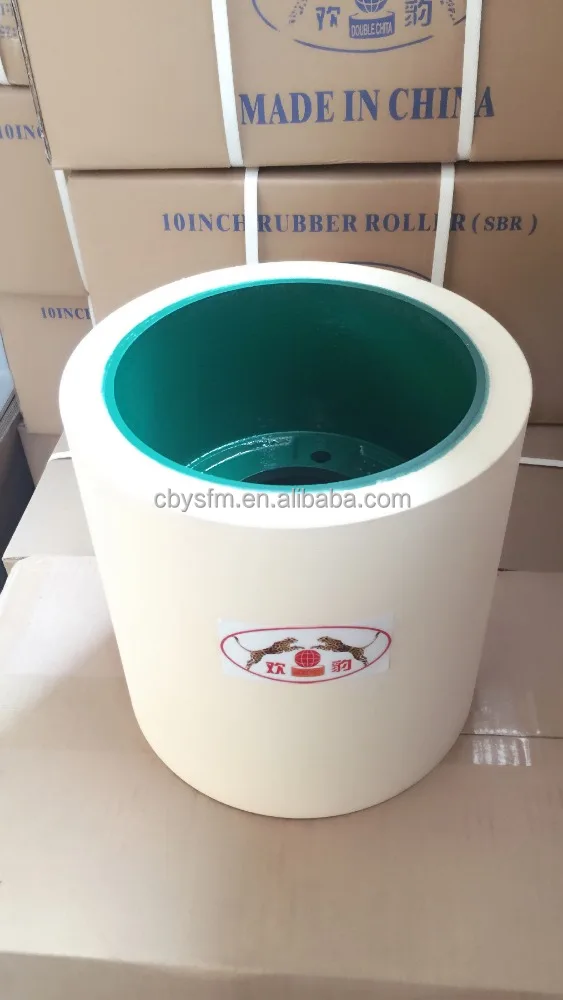

High quality rice mill huller rubber roller

Product Overview

Description

High Quality Rice Mill Huller Rubber Roller

General Information

1. Name:Rice mill huller rubber roller

2. Material:NBR, POLY

3.Color:white,transparent

4.Size:10 inch,20 inch

5.Minimum Order: 100pcs

6.Delivery Time:  Within 20 days after receiving the payment

7.Packing: shirnk film of each piece, carton box outside

8.Hulling capacity: 10" NBR  white 180mt

                                 20'' Polyurethane 800mt



Specification:

Type	Inch	Length(mm)	External Diameter           (mm)	Thickness of Rubber        (mm)±0.5mm
Wheel Type	4	100	222	19.5
	6	152	222	19.5
	7	178	222	19.5
	8(small)	200	225	25
	8(big)	200	254	25
	10	254	254	25
	12	300	270	33
	13.8	350	254	25
Casting Type	14	355	227	25.5
	18	457	232	25.5
	20	508	255	25.5
	25	635	255	25.5
	28	708	255	25.5



 Operating principle:

 Bedcause of speed difference of veer and reversion between rubber rollers,

 paddy are torns up by two rubber rollers, in the end, rice grain comes out.



Advantages:

1. Strong bonding between rice mill rolls and cast drum.
2. Ensure high degree of heat resistance and durability.
3. High peeling efficience at minimum broken rice to be attained by its well balance of elasticity, hardness and abrassion resistance.
4. Maximum hulling rate with lowest breakage and better output.



Pay attention:

1.Handle carefully during the transportation.

2.Store in dry place,away from Acid,Alkali,Salt,oil and dirty,forbidden to put under sun for long time.

3.Take sands away from the paddy,keep paddy dry and cleaning when using the rollers.

4.Two rollers should be at the same level,the space must be equal.

5.The paddy inputting should be keep the blance.

6.Keep the rate of the re-hulling under the limited.

7.Don't make the machine work for a long time,in case effecting the hulling capacity.

8.The surrounding temperature is better under the 50°C.

9.Change the fast and slow roller at a certain time.
