Wheel rim straightening machine suppliers manufacturer ARS26L
- Category: Other Vehicle Equipment >>>
- Supplier: Yancheng Yujie Machine Co. Ltd.
Share on (60615898257):
Product Overview
Description

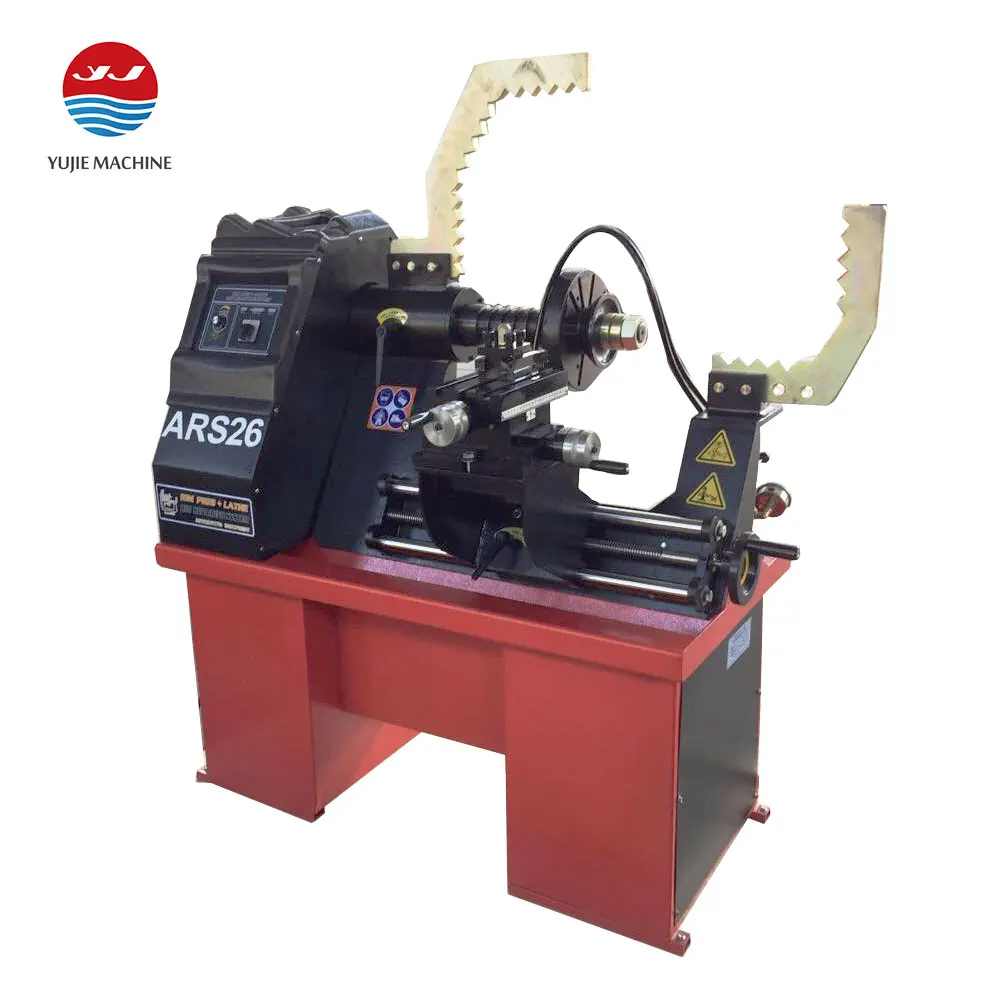

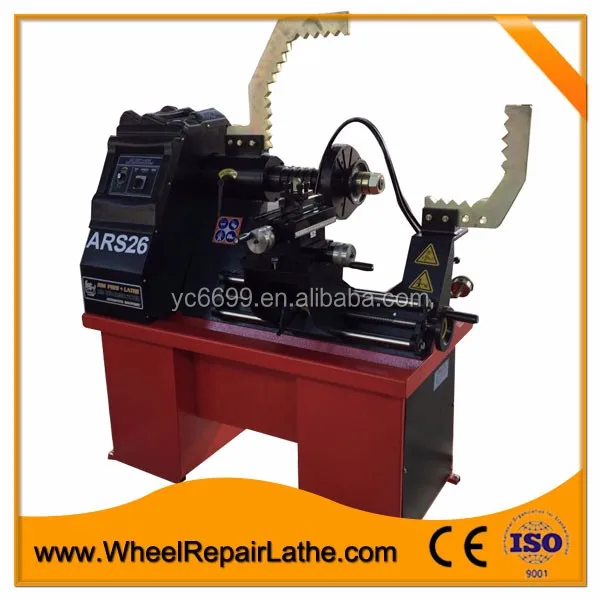

Rim Straightening Machine for wheel repair machine ARS26L
Rim Straightening Machine Features:
1. Mainly used for calibration, repair and various modifications, damage steel and alloy hub.
2. Working range: 10 “to 26″ all kinds of wheels.

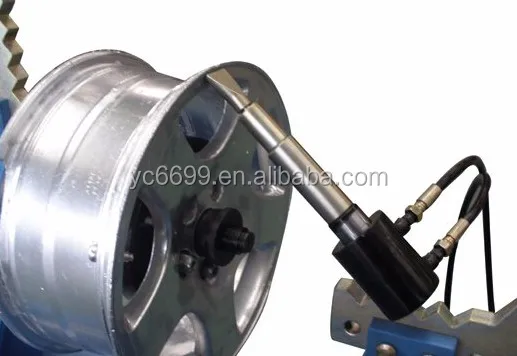

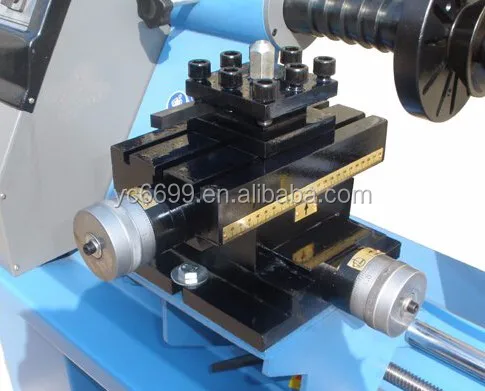

The full automatic Rim Straightening Machine With Lathe model ARS26L is designed and manufactured to repair by straightening all kind of steel,aluminums and alloy wheels with range diameter between 10″-26”. The system uses an easy to handle piston controlled by a hydraulic unit that,conveniently positioned,pushes on the damaged part of the rim taking it back to the original shape.Such operation is made easier with the aid of a wide set of shaped punches that perfectly lean toothed different rim profiles. ARS26L moreover is equipped with a lathe unit that allows,after the wheel straightening operation,to remove dents on the edges.
Standard Accessories:

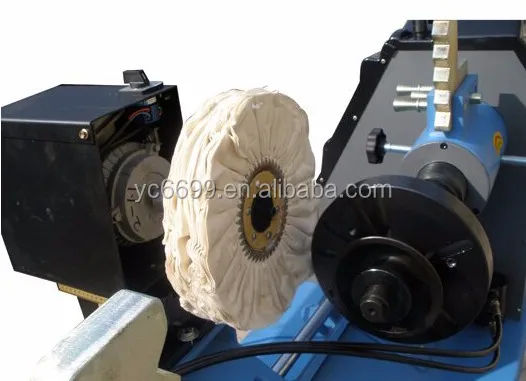

Optional: Polishing Set
A. SPECIFICATIONS
Specification | |
Height | 1250 mm |
Width | 1110mm |
Length | 900mm |
Machining capacity | 10”-26”(To 30” rim: Optional) |
Shaft speed | 0-200 rotates/min(Adjustable) |
Hydraulic piston power | 0.55kw/0.75hp Sound 35 db,3 |
Working motor Mechanic | 0.55kw,1hp,3phase -single |
Working pressure | 140 bar |
Net/Gross Weight | 350/400kg |

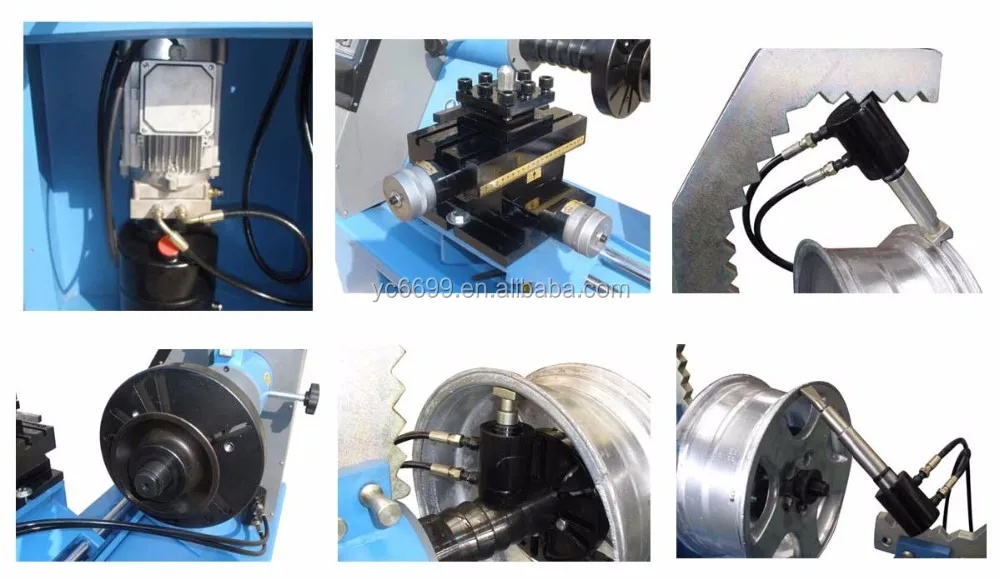

B.Pictures
