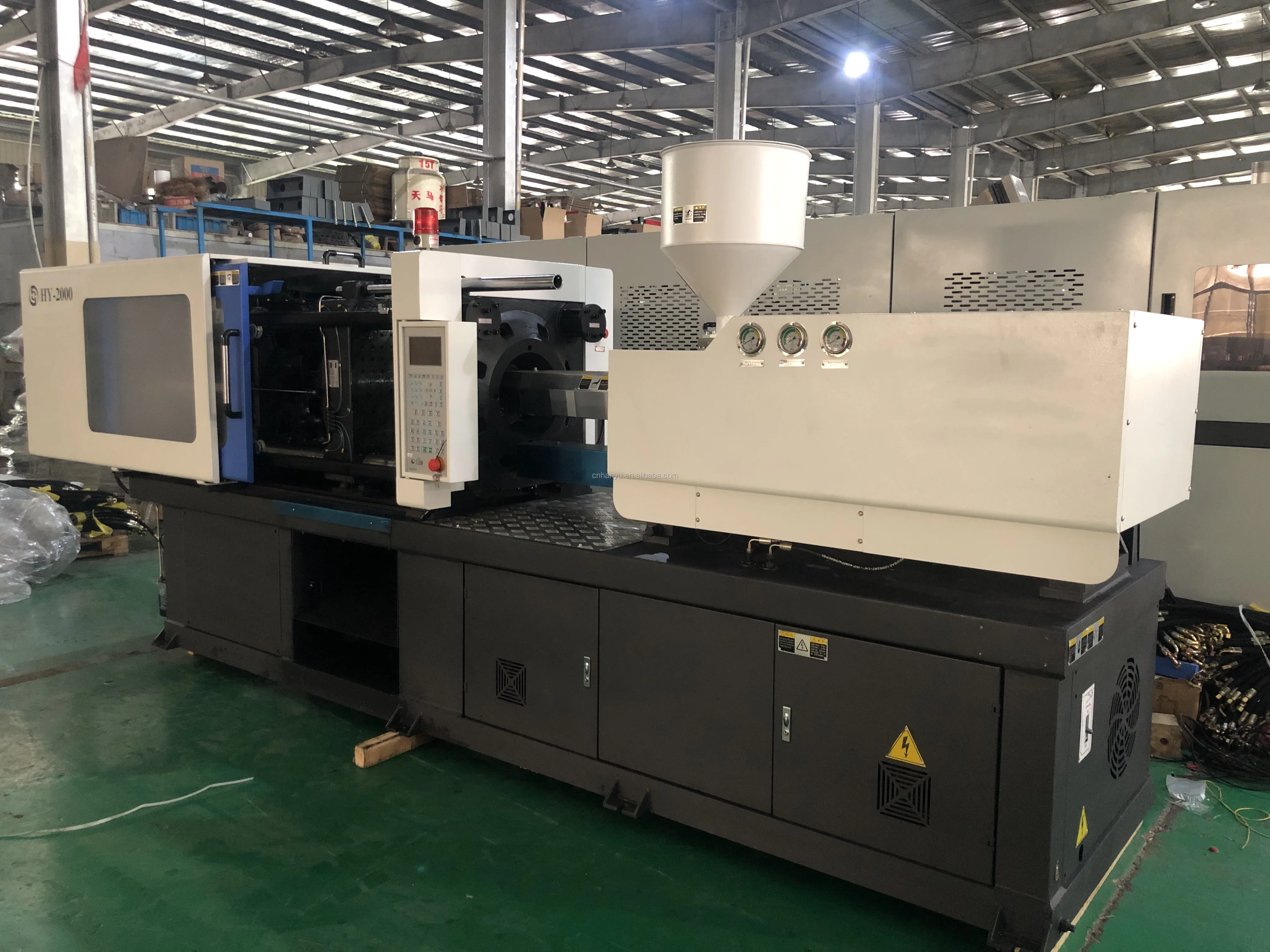

380T injection molding machine price
- Category: Injection Molding Machines >>>
- Supplier: ZHEJIANG,HANYU,AUTOMATION,TECHNOLOGY,CO.,LTD
Share on:
Product Overview
Description
Product Description
HY-3800 INJECTION MACHINE | ||||||
Injection Unit | Model | A | B | c | ||
Screw Diameter | 70mm | 75mm | 75mm | |||
Screw L/D Ratio | 1:24.2L/D | 1:22.6L/D | 1:16.5l/d | |||
Injection Volume | 1374cm³ | 1577cm³ | 1430cm3 | |||
Shot Weight | 1786.2g | 2050.1g | 1285g | |||
Plasticizing Capacity | 64.8g/s | 67.3g/s | 395g/s | |||
Injection Pressure | 157g/s | 136 g/s | 55g/s | |||
Screw Speed | 180 MPA | 155MPA | 137mpa | |||
Clamping Unit | Clamping Force | 3800KN | ||||
Opening Stroke | 670MM | |||||
Space Between Tie-bars | 730*710MM | |||||
Max. Mould Height | 720MM | |||||
Min. Mould Height | 250MM | |||||
Ejector Stroke | 160MM | |||||
Hydraulic Ejection | 110KN | |||||
General | Pump Pressure | 14MPA | ||||
Motor Power | 37KW | |||||
Heater | 23KW | |||||
Machine Dimension(L*W*H) | 7.4*1.8*2.5M | |||||
Machine Weight | 15.5T | |||||
Parts
Related Products
Preform mold
Cap mold
Packing & Delivery
Packaging | ||
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |

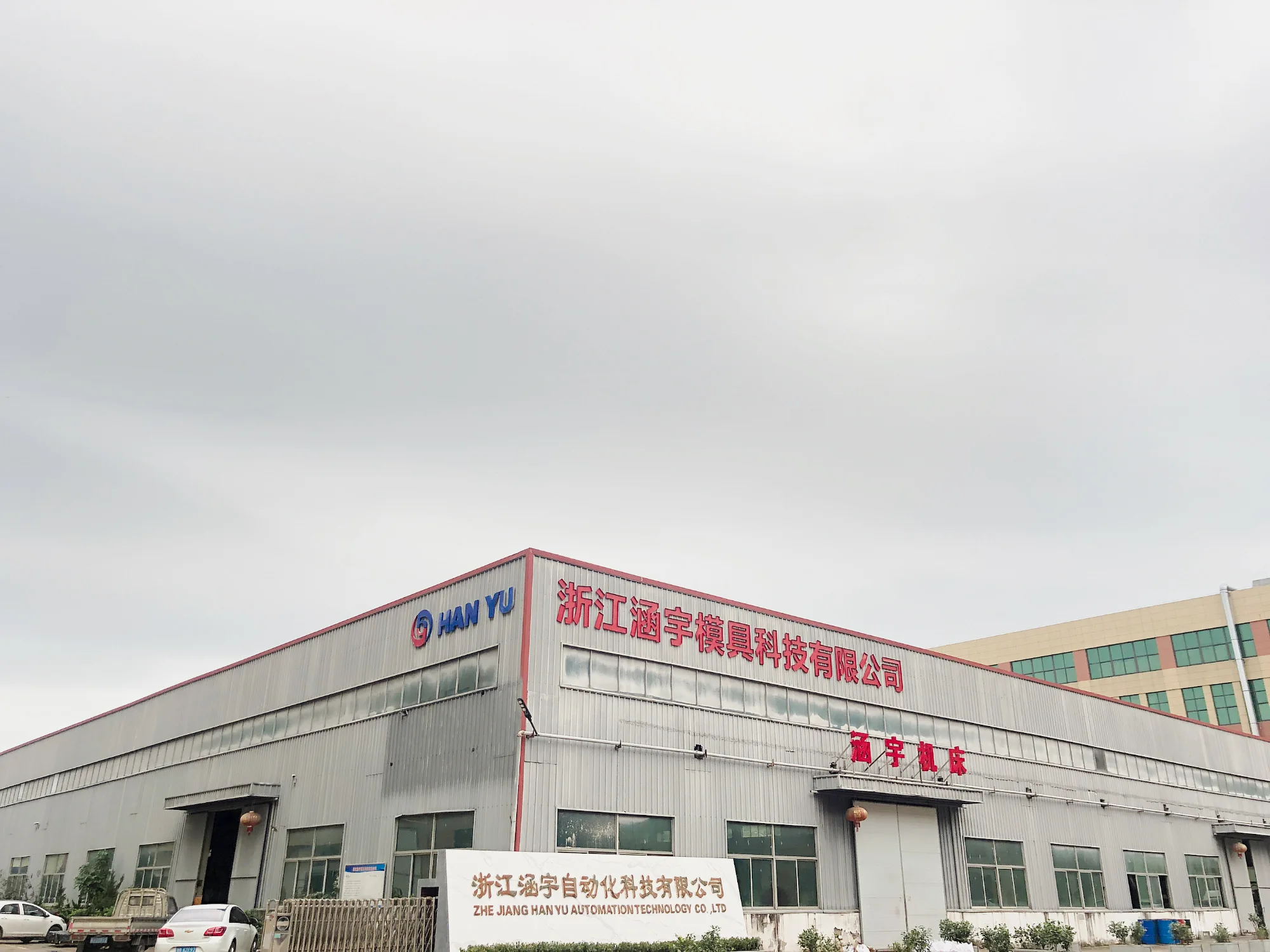

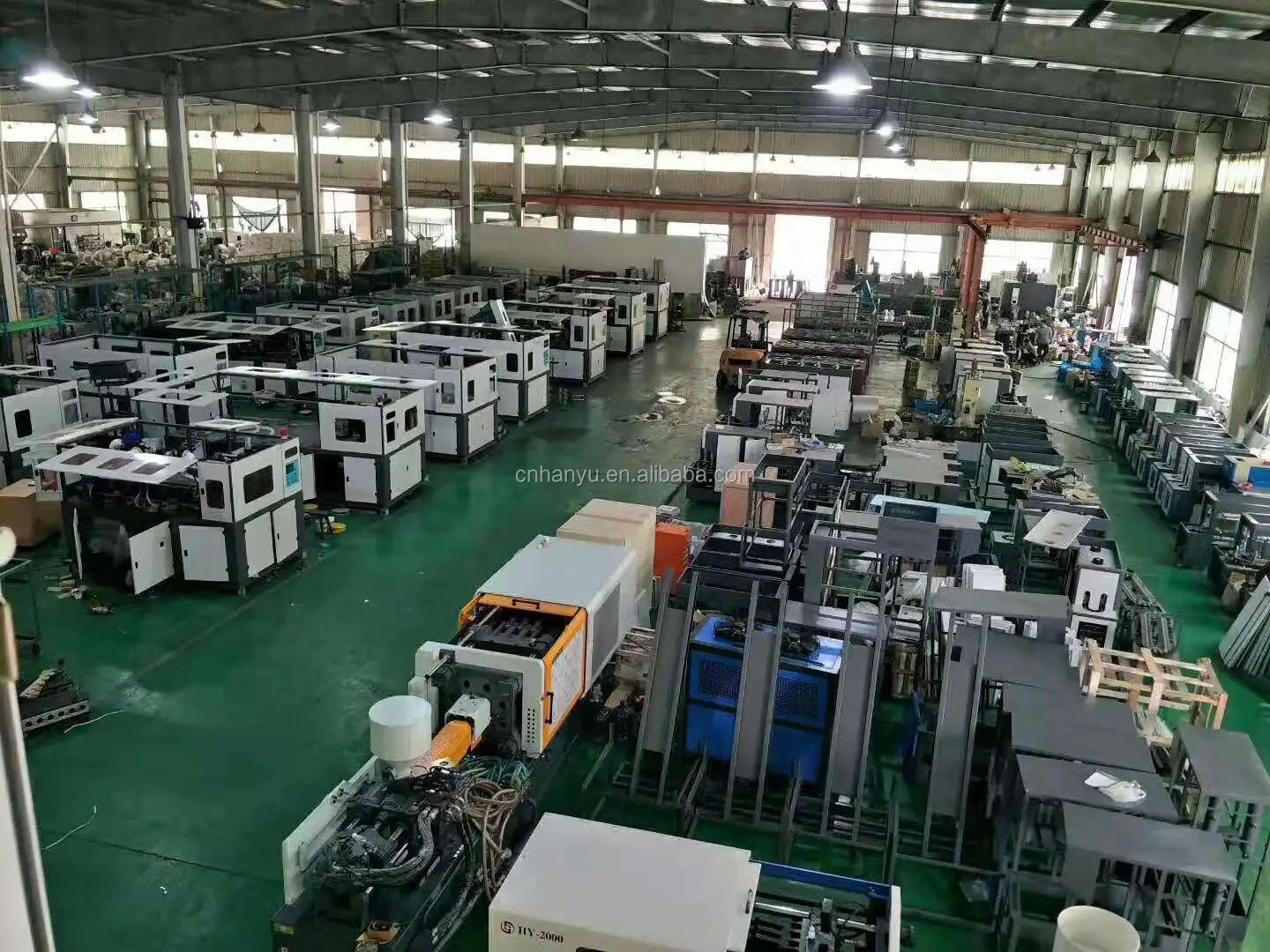

Our Factory
