Product Overview
Description
Avocado oil extraction machine
Working principle of avocado oil extraction machine
When Avocado oil extraction machine per and then moves forwards by the rotating pressing screw and is pressed. Under the high-pressure condition in the chamber, friction between material and screw, between material and chamber will be created, which also creates friction and relative movement among material particles. On the other hand, root diameter of the pressing screw varies larger from one end to the other. Hence, when rotating, it not only pushes particles moving forwards but turns them outwards as well. Meanwhile, particles adjacent the screw will rotate along with screw's rotating, causing every particle inside the chamber to posses different speed. Therefore, relative movement among particles creates heat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrea
Feature of avocado oil extraction machine
1. Simple,convenient,energy saving,competitive price.
2.This oil press machine is composed of feeder, gearbox, pressing cage, screw shaft and machine stand etc
3. final oil is high quality, good smell, and high yield rate.
4. this avocado oil extraction machine uses high carbon steel, which through high frequency quenching and heat-resisting, it is high hardness and strength, good abrasion resistance that suit for high temperature and high pressure continous working, all this had improved the service life of the oil press for decades
Main technical data for avocado oil extraction machine
Model:6YL-180
Dimensions: 2200x850x1560mm
Capacity:600-750kg/h
Power: 30kw
Weight: 1500kg or so
Shaft speed(r/min):28-35
Residued oil of the final cake < 7%
Type (6YL) | Power (kw) | Capacity (t/24h) | Size(mm) | Weight (kg) |
6YL 80 | 5.5 | 1.8-2.3 | 1320x540x1020 | 380 |
6YL 100/95 | 7.5 | 3.5-4.5 | 1640x640x1200 | 480 |
6YL 120 | 15 | 5-7 | 1750x640x1310 | 700 |
6YL 130 | 18.5 | 6-10 | 1930x680x1480 | 820 |
6YL160/165 | 22-30 | 14-18 | 2200x850x1560 | 1200 |
6YL 180 | 30 | 16-19 | 2350x1000x1760 | 1500 |
HPYL200 | 45 | 25-30 | 2230x790x1720 | 1600 |
Application for avocado oil extraction machine
Our avocado oil extraction machine are suitable for all kinds of plant oil materials such aspeanut, soybean, rapeseed, cottonseed, sesame, olive, sunflower, coconut, cocoa etc. Suitable for medium-small scale oil factory and private user, as well as for the pre-pressing of extraction oil factory.
The structure of avocado oil extraction machine
This avocado oil extraction machine are consisted of 5 parts including hopper, gearbox, press case, pressing screw, machine body.

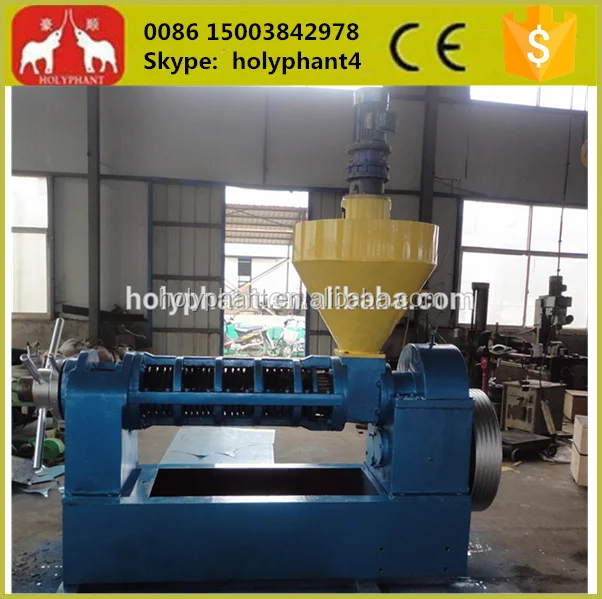

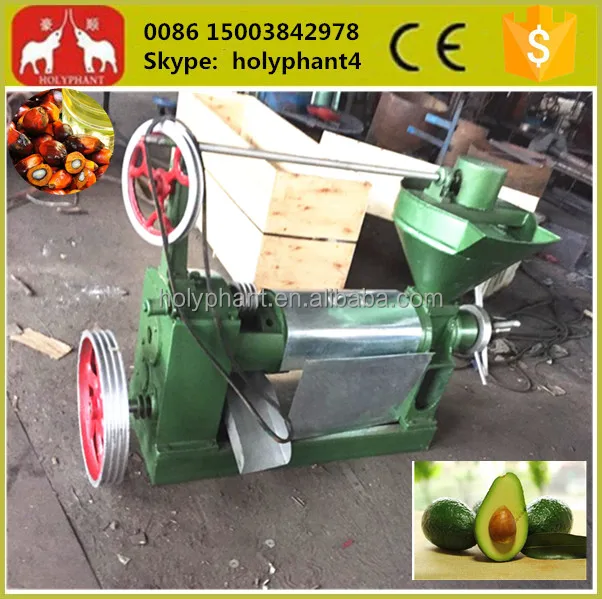

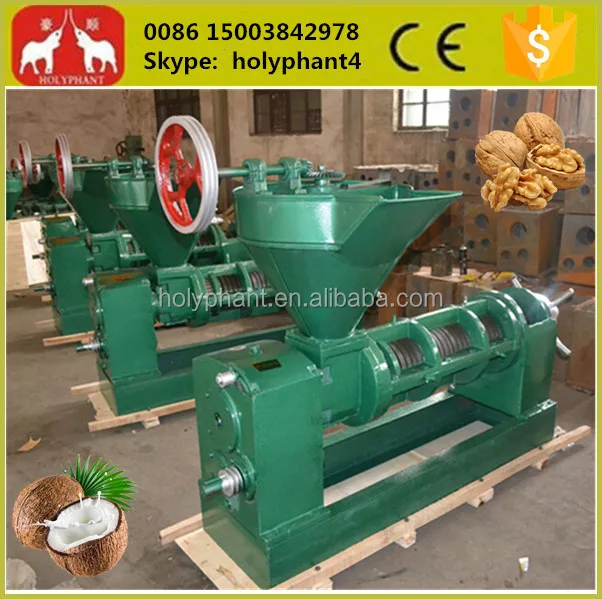

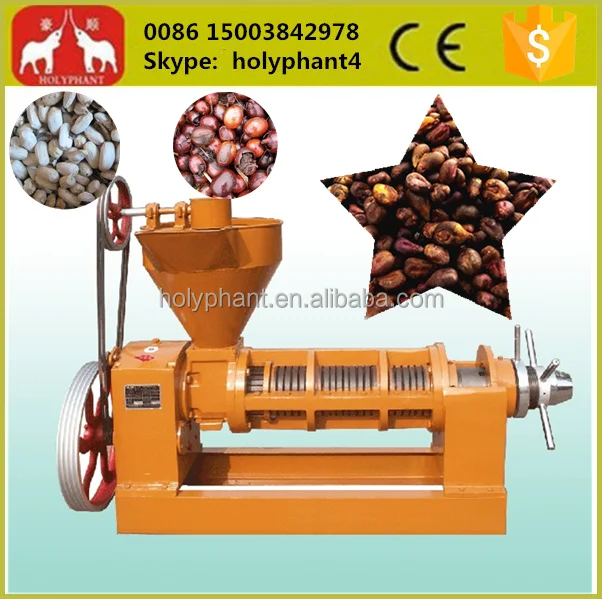

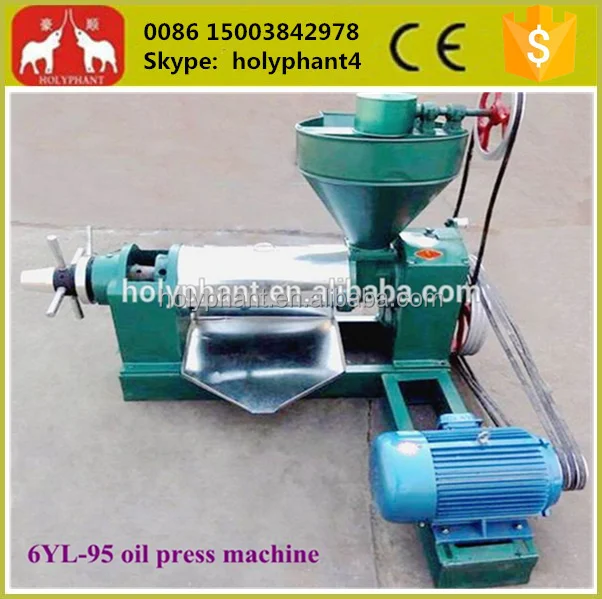

Photos of avocado oil extraction machine

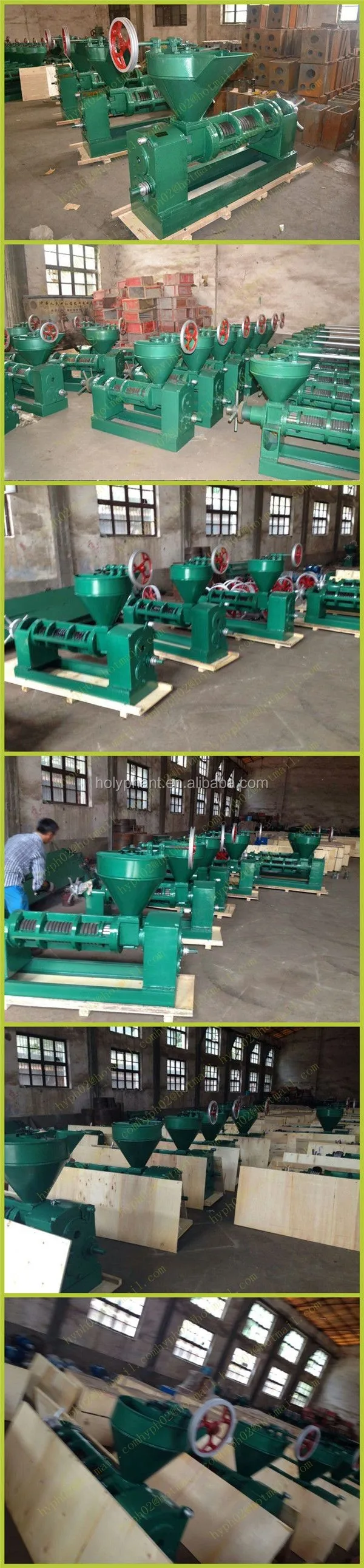

warehouse show

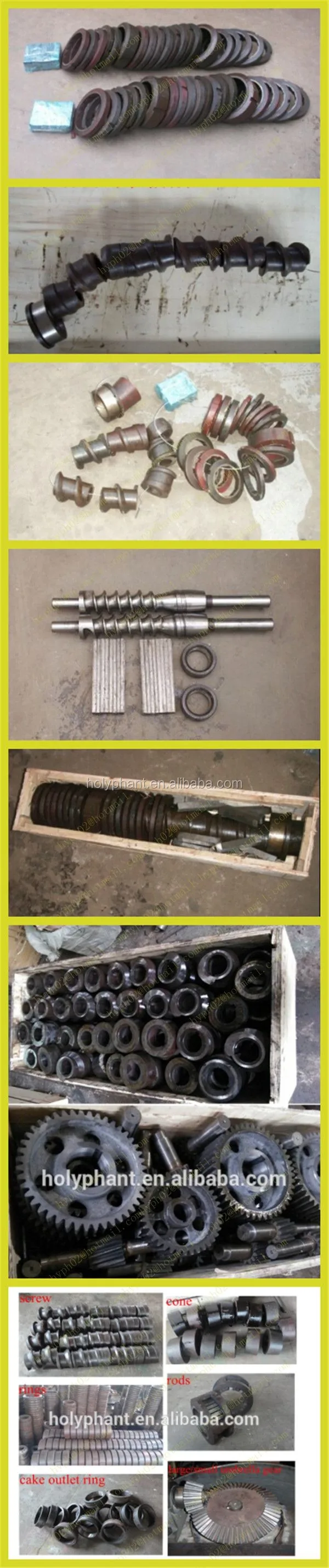

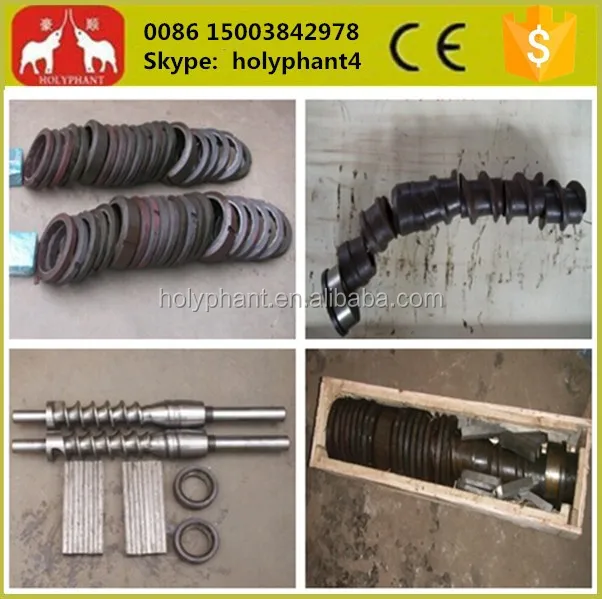

Spare parts for avocado oil extraction machine
Packaging & Shipping

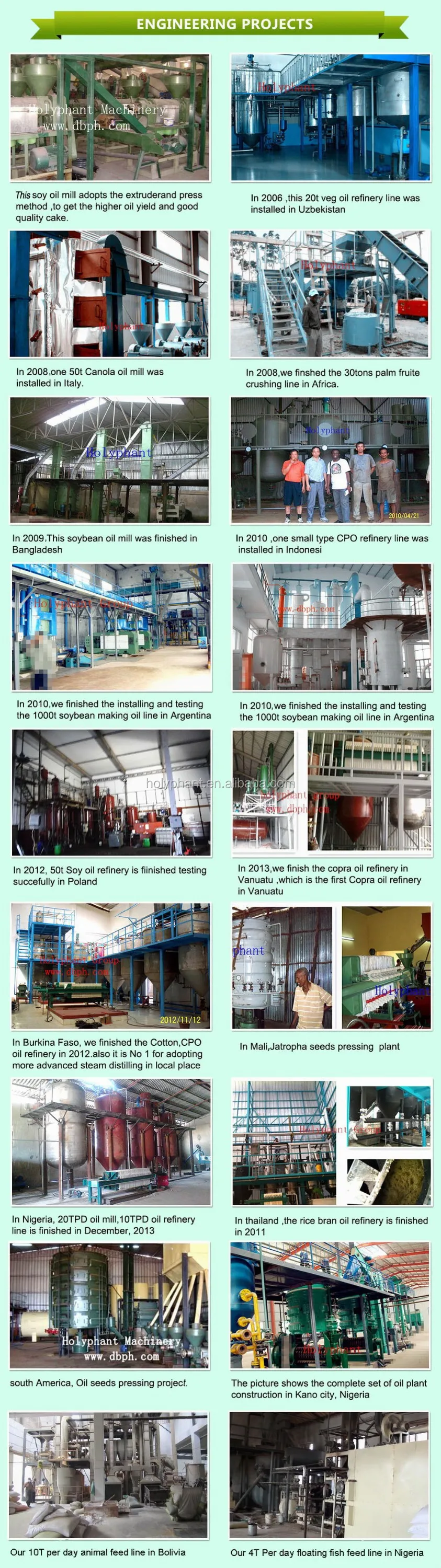

Company Information
Our Services
We insist on "Quality is the soul of company", we own outstanding team with the sense of innovation and cooperation.
Our professional service includes: Free training, Guidance Installation and Debugging.
Guaranteed Time: One Year (Calculated from the goods arrived the destination port.)
If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
FAQ
1.what oil seeds are used for ?
Wide application: ideal machine for pressing various oil seeds, such as peanut, soybean, sesame, flax seed, etc;
2.what is the oil yield?
the oil output is 35% - 50% higher than common oil press.
3.what is theresidual?
the oil residual in cake is only about 5%.
4.what size of land occupancy?
only 10-20 square meter is enough.
