High quality wood straw bales stalk alfalfa biomass pellet production line

Product Overview

Description

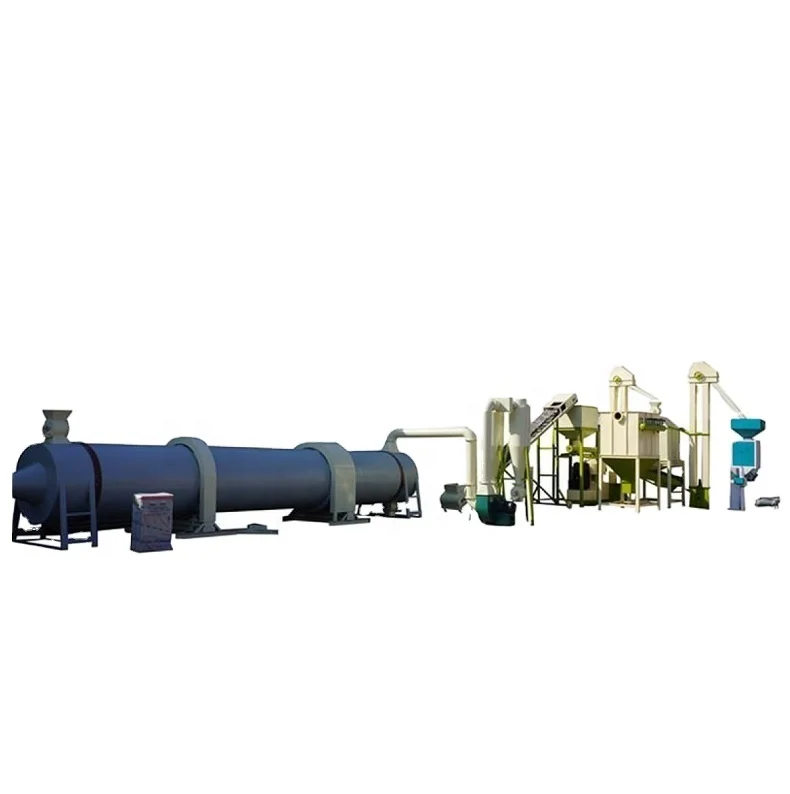

Complete Wood Pellet Mill Production Line

A complete production line contains nearly 10 sets machines, the detail design is depends on the client's detial requirements.

And depends on the client's raw materials.

Normally, it contains wood crusher, dryer, conveyor, pellet mill, hoisting machine, cooling and separator, dust collector and packing machine.

The line is controlled by electric cabinet which also display the working condition.

The whole line needs 5~7 workers to operate.



Composition of a complete pellet production line:

Pellet line for 1000KG/Hour
No.	Equipment name	Quantiy	Power	Size	Weight
1	Wood crusher	1 set	45KW	2.1*1.2*1.6m	1350kg
2	Drum dryer	1 set	18KW	10*1.2*2.2m	6100kg
3	Conveyor	1 set	2.2KW	7.0*1.0*1.0m	600kg
4	Pellet mill	1 set	90KW	1.9*0.95*1.8m	4500kg
5	Elevating conveyor	1 set	2.2KW	1.0*0.4*6.0m	450kg
6	Cooling separator	1 set	9KW	2.0*2.5*3.6m	1500kg
7	Pulsed dust collector	1 set	5.5KW	1.5*1.5*3.5m	1100kg
8	Elevating conveyor	1 set	2.2KW	1.0*0.4*6.0m	450kg
9	Anto-matic packing machine	1 set	5KW	2.6*1.4*2.8m	900kg
10	Electric cabinet	1 set	/	1.0*0.5*1.5m	600kg
