6 mm coreless electric vibration motor for electric toothbrush 13000 rpm 1.5v JMM1912
- Category: Vibration Motor >>>
- Supplier: Yichang Flourishing Import & Export Trade Co. Ltd.
Share on (60616231182):
Product Overview
Description
Product Description
Product Application
Best Quality for 1.5v electric boll vibration motor (JMM1912-0612Z) is widely used for Electric Toothbrush,Adult Products, Sex Toys, Sex product , Dental equipment, Fire security systems, Beauty product, Mobile Phone, Cell Phone, Pager, Personal care,Health product equipment ,Massager, Massage Rod, Eye Massager, Body Massager, Vibrator.etc.

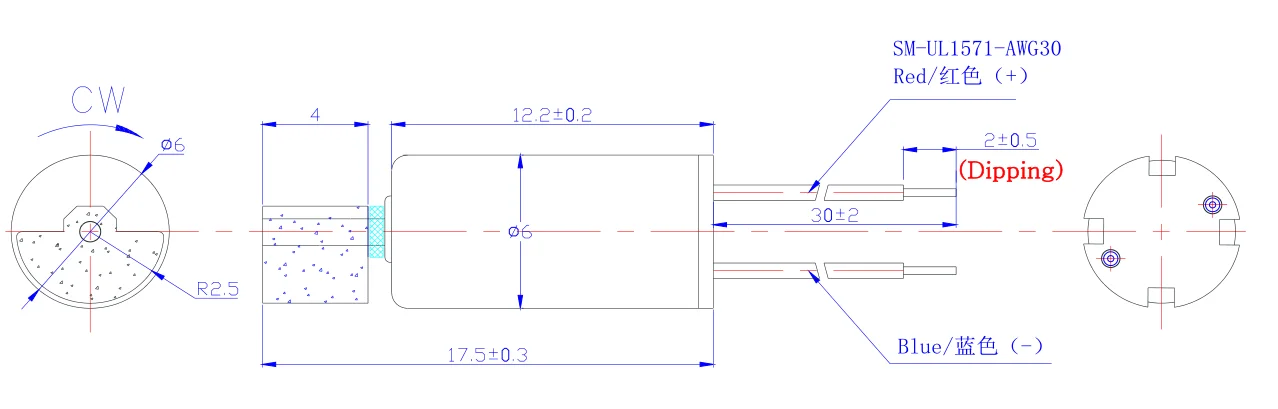

SPECIFICATIONS FOR BEST QUALITY FOR 1.5V ELECTRIC BOLL VIBRATION MOTOR (JMM1912-0612Z) | ||||||
Model Size | Counter weight | mm | R2.5*4.0 | |||
Motor diameter | mm | 6 | ||||
Body length | mm | 12 | ||||
Main performance parameters | Rated voltage | V | 1.5 | |||
Speed (max. & min.) | r/min | 13000 | ||||
Rated current | mA | 80 | ||||
Customize parts | Counter weight | mm | Customised | |||
Wire length/Colour | mm/Red,Black,White | Customised | ||||
Rotation | CW/CCW | CW/CCW | ||||
Main Features
1) Energy-saving:High energy conversion efficiency,more than 70%.
2) Reliable Operational Stability: Operates quietly and quickly with high efficiency and low resistance.
3) Low Noise : Starting and braking quietly, running with low noise.
4) High Speed : The rpm can reach 4500~51000±10%.
5) Fast Response:Rapid starting and braking with fast response, mechanincal time constant is less than 28 milliseconds.
Some can reach 10ms or less.
Certifications
Our factory has passed SGS ,CE,ISO9001:2008
Quality Management System Certificate .
Related Products
3.7v Dia 7mm length 16mm DC Motor
100% Response Rate
3.7v Dia 6mm length 12mm DC Motor
100% Response Rate
3.0v Dia 6mm length 15mm DC Motor
100% Response Rate
1.5v Dia 6mm length 10mm DC Vibration motor
100% Response Rate
3.0v Dia 6mm length 12mm DC Vibration motor
.100% Response Rate
1.5v Dia 6mm length 12mm DC Vibration motor
100% Response Rate
Our Company
Packing & Delivery
Packaging For Samples | ||
Size | 175(L) * 95(W) * 75(H)(MM) | |
Weight | 0.5KG | |
Packaging Details | The normal package is foam box(Size: 175L*95W*75H), inner use plastic bag or pack it according to customers special request. | |
Packaging For Quantity | ||
Size | 510 (L) * 300 (W) * 300 (H) | |
Weight | 9.5KG | |
Packaging Details | The normal package is carton box(Size: 500L*300W*300H). Inner use plastic tray (Size:205L*165W*5H),or pack it according to customers special request. | |
Our Service
We can make motor according to your request designing motor ,voltage ,speed ,motor
rotation CW or CCW ,shaft length ,wire length ,matched gear ,matched vibrator ,etc.
Pre-Sales Service
* Inquiry and consulting support,design new product .
* Sample testing support.
* View our Factory.
After-Sales Service
* Any questions can solved .
* Engineers available to service overseas.
FAQ
Q: Is there a MOQ for your motors?
A: Yes. The MOQ is 1,000pcs for different models after sample approval. But it's also okay for us to accept smaller lots like a few dozens, hundreds after sample approval.
Q: Could you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q: Is it possible for you to develop new motors if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not .
