Tobee Effluent Handling
$12,600
stainless steel sanitary removable centrifugal pump with cart and caster
- Category: >>>
- Supplier: Wenzhou Flowtam Co. Ltd.
Share on (60616235518):
Product Overview
Description

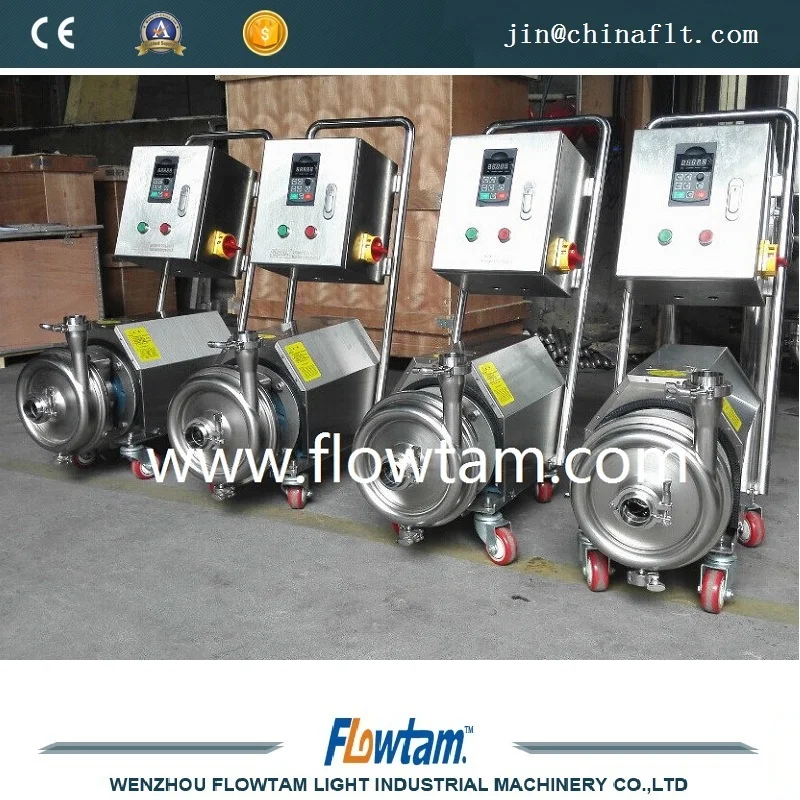

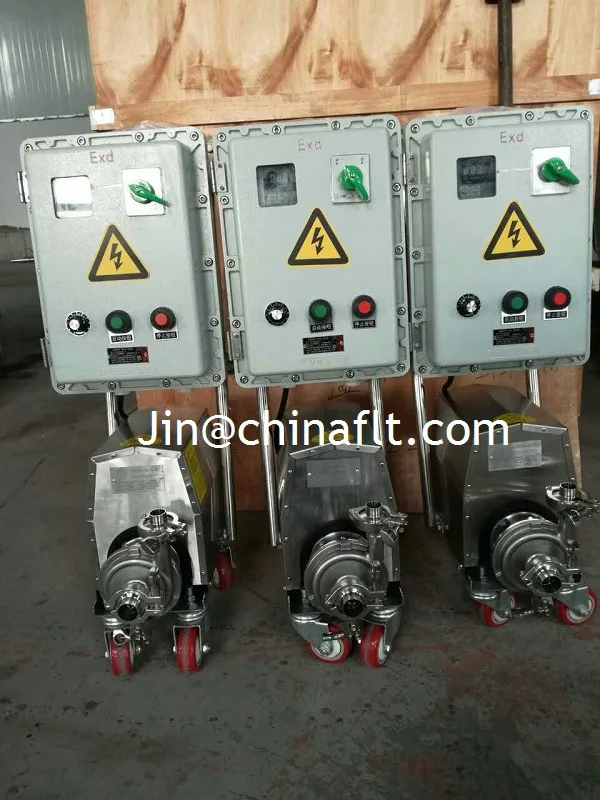

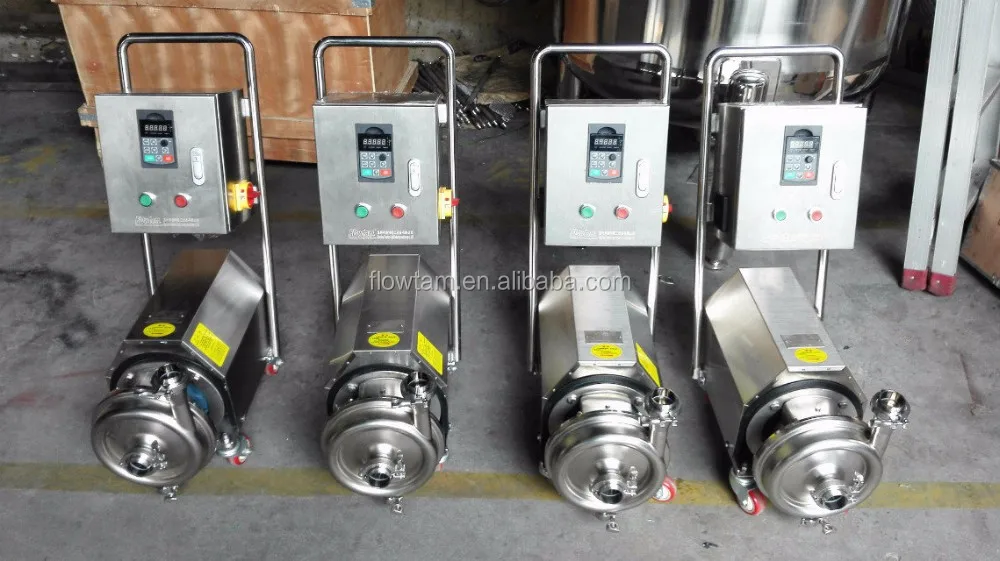

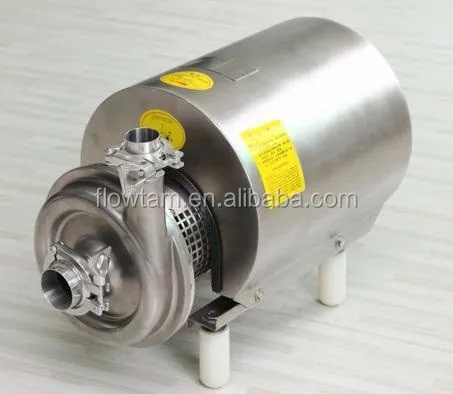

Stainless steel sanitary removable centrifugal pump
Details
| Product Name | Centrifugal pump/water pump/juice pump/milk pump |
| Description | Designed according to 3A standard, widely used for transfer viscous media in food processing,beverage,cosemtics,chemical and industries |

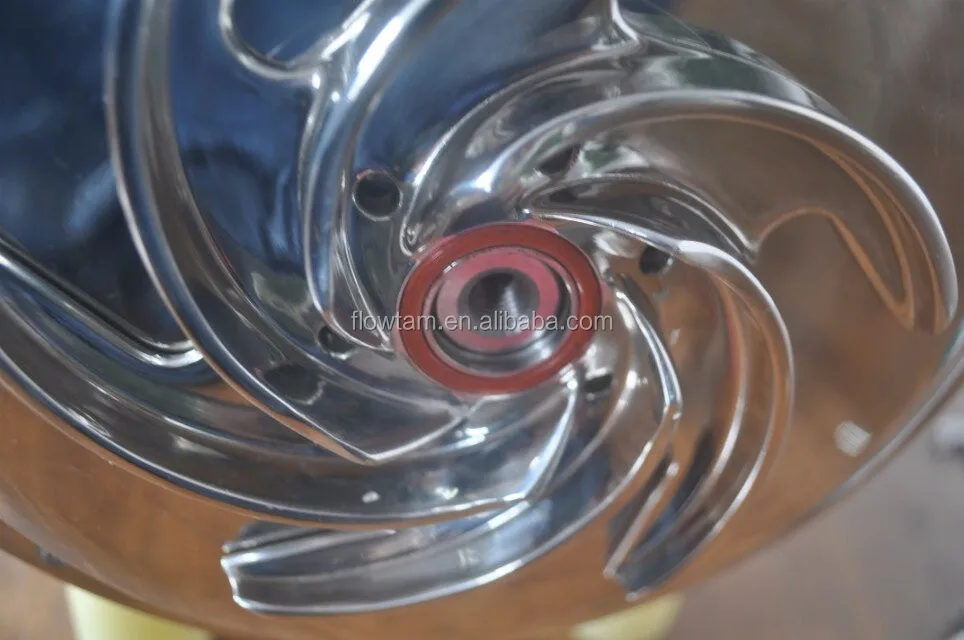

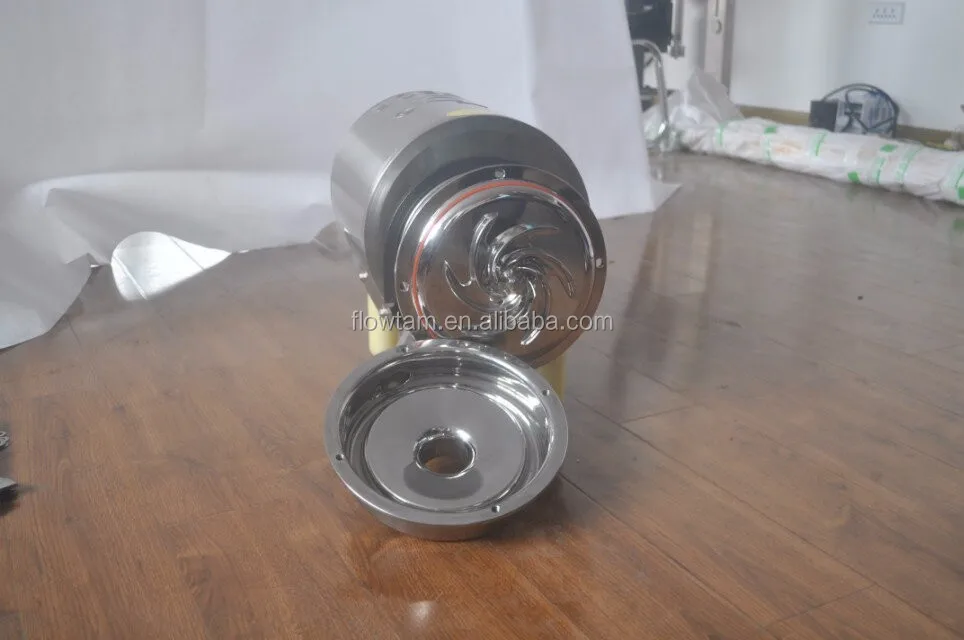

| Construction | Pump head,pump chamber,open-type impeller,motor,seat,trolley,VFD etc. |
| Material | SS304/SS316L/1.4301/1.4404 |
| Seal Ring | Fluorine Rubber,EPDM,PTFE,Silicone(Standard,approval) |
| Mechnical Seal | SIC,Hard alloy,graphite, TgC/SiC |
| Max. Flow | 150m3/h /352 GPM |
| Pressure | 1-6.5bar |
| Working temperature | 120 C / 248 F |
| Process | liquid,low viscous liquid |
| Speed | 2800rpm/0-2800rpm |
| Motor power | 0.37kw-37kw |
| Voltage | 110v/220v/240v/380v/415v/460v (50/60hz) |
| Motor | SIEMENS,ABB,Domestic |
| Surface treatment | Inner polished and Sandblast outside |
| Availably connection | Clamp, Thread, Flange,Union |
| Availably standard | DIN, SMS, 3A, RJT, ISO/IDF |
| Application scope | Dairy, food, beverage,drink, etc |
| Packaging Details | Plywood case or customerized. Or as per the request of customers |
| Delivery details | Usually within 18 days after receiving T/T down payment,special customized need negotiation. |
Centrifugal pump
| Model | Capacity (Ton/Hour) | Lift(m) | Power(kw) | Speed(RPM) |
| FLS01-10-0.37 | 0-1 | 10 | 0.37 | 2800 |
| FLS02-12-0.55 | 0-2 | 12 | 0.55 | 2800 |
| FLS03-15-0.75 | 0-3 | 15 | 0.75 | 2800 |
| FLS03-18-0.75 | 0-3 | 18 | 0.75 | 2800 |
| FLS03-20-1.1 | 0-3 | 20 | 1.1 | 2800 |
| FLS03-30-1.5 | 0-3 | 30 | 1.5 | 2800 |
| FLS03-50-5.5 | 0-3 | 50 | 5.5 | 2800 |
| FLS05-24-1.5 | 0-5 | 24 | 1.5 | 2800 |
| FLS05-32-2.2 | 0-5 | 32 | 2.2 | 2800 |
| FLS05-40-3.0 | 0-5 | 40 | 3.0 | 2800 |
| FLS05-45-5.5 | 0-5 | 45 | 5.5 | 2800 |
| FLS05-50-5.5 | 0-5 | 50 | 5.5 | 2800 |
| FLS08-60-11 | 0-8 | 60 | 11 | 2800 |
| FLS10-24-2.2 | 0-10 | 24 | 2.2 | 2800 |
| FLS10-32-3 | 0-10 | 32 | 3 | 2800 |
| FLS10-40-4.0 | 0-10 | 40 | 4 | 2800 |
| FLS10-45-5.5 | 0-10 | 45 | 5.5 | 2800 |
| FLS12-45-5.5 | 0-12 | 45 | 5.5 | 2800 |
| FLS15-24-3.0 | 0-15 | 24 | 3.0 | 2800 |
| FLS15-50-7.5 | 0-15 | 50 | 7.5 | 2800 |
| FLS20-24-4.0 | 0-20 | 24 | 4.0 | 2800 |
| FLS20-35-5.5 | 0-20 | 35 | 5.5 | 2800 |
| FLS25-30-5.5 | 0-25 | 30 | 5.5 | 2800 |
| FLS30-24-5.5 | 0-30 | 24 | 5.5 | 2800 |
| FLS30-35-7.5 | 0-30 | 35 | 7.5 | 2800 |
| FLS40-24-7.5 | 0-40 | 24 | 7.5 | 2800 |
| FLS50-24-7.5 | 0-50 | 24 | 7.5 | 2800 |
| FLS50-35-11 | 0-50 | 35 | 11 | 2800 |
| FLS80-30-15 | 0-80 | 30 | 15 | 2800 |
| FLS80-40-18.5 | 0-80 | 40 | 18.5 | 2800 |
| FLS100-65-22 | 0-100 | 65 | 22 | 2800 |
| FLS120-65-30 | 0-120 | 65 | 30 | 2800 |
| FLS150-65-37 | 0-150 | 65 | 37 | 2800 |
| For larger capacity please email us | ||||
