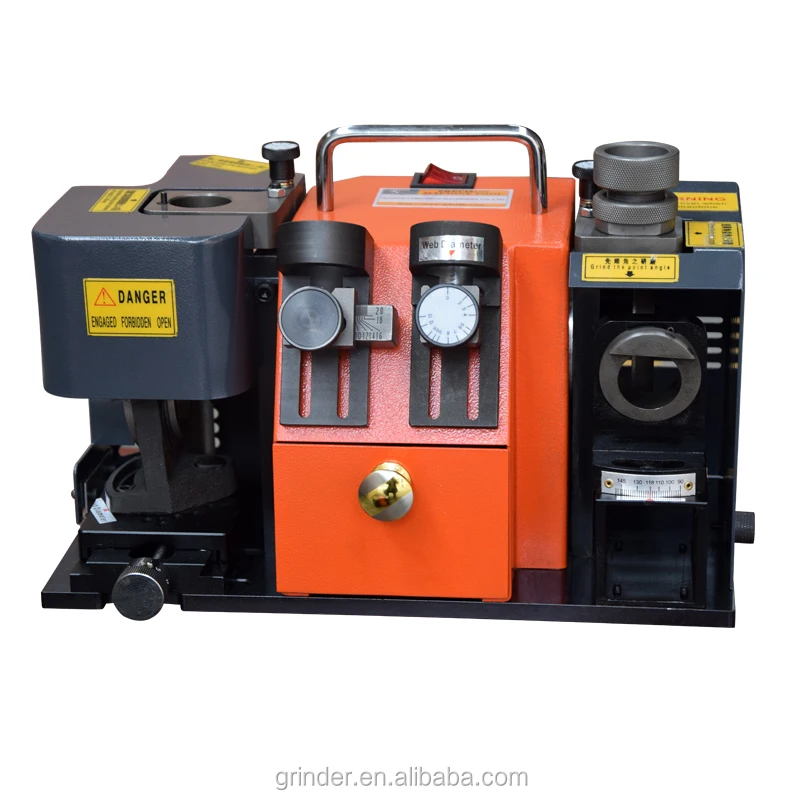

High Precision Drill bit and end mill grinder Composite Grinder Drill bit re sharpener
GD-313A
1. The machine combination can grind 3 ~ 13mm flat knife, and 2 ~ 13mm straight shank twist drill;

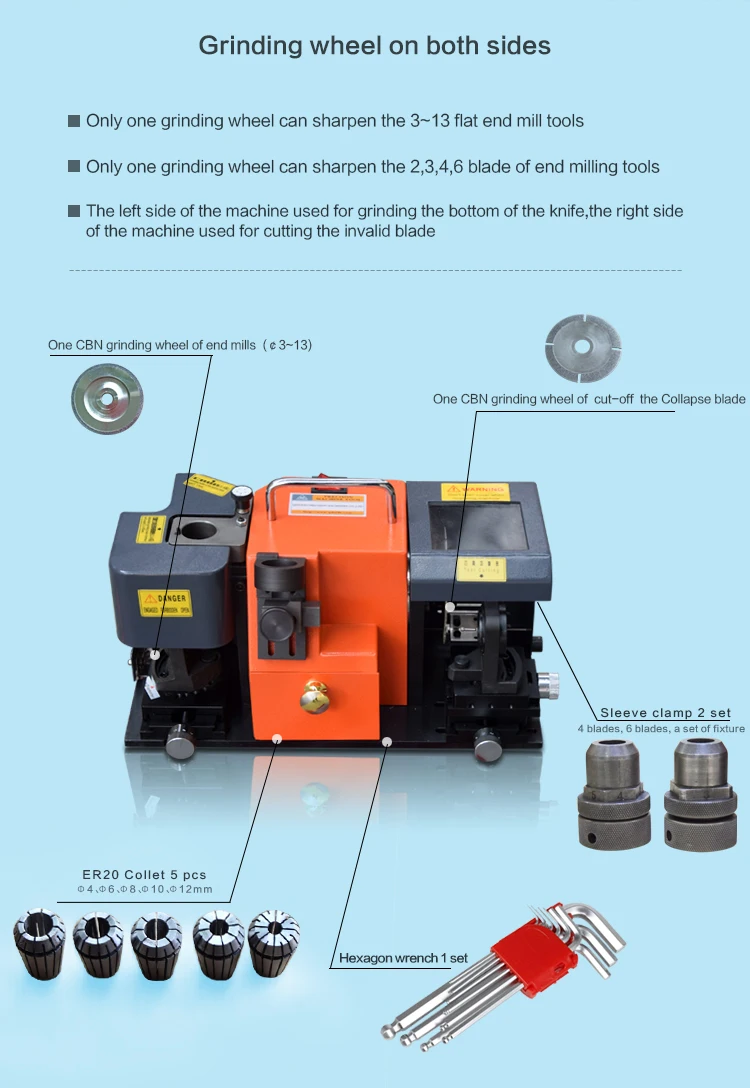

2. The grinding wheel can grind diameter 3 ~ 13.2 blade, 3, 4, 6 blade blade general end milling cutter blade;
3. It can be a grinding wheel grinding diameter 2 ~ 13 auger bit;
4. It can change the tool Angle, solve the problem of processing.
Specification:
Model
GD-313A
Grinding range
Twist drill bit ,end mills
Material
HSS tungsten
End mill
2,3,4,6 flutes
Capacity
Drill bit:2~13,End mill:3~13
Grinding angle
Drill bit:90°~ 145°,end mill:0°~ 5°
Apex angle
0°
First relief angle
8°
Second relief angle
35°
Power
300W
Voltage
220V 50/60HZ
Wheel speed
5000R.P.M
Machine size
34x19x23cm
Weight
20/16kg
FAQ
1.Q: What is your MOQ of this item? A: Our MOQ is 1 set
2.Q: What is the delivery time? A:1-2 days if in stock,15-20days if customize after receiving your T/T or Western Union.
3.Q: Is it all right to make customer's own brand name? A: OEM is ok.
4.Q: Where is your Loading Port? A:Shenzhen / Guangzhou ,China port.
5.Q:Are you a manufactuer or trading company? A:We are a manufactuer specialized in drill bit grinder,end mill re-sharpener,screw tap re-sharpener,lathe tool grinder,saw blade re-sharpener,chamfer,universal cutter grinder,tapping machine and electrical tapping machine more than 10 years.
6. Q:How many exhibitions will you participate in every year? A: As last year we took part in 80 exhibitions, which include the 2 exhibition in the other countries.
7.Can you provide the CE certification?
A: Yes, we can offer CE certification for our products!
