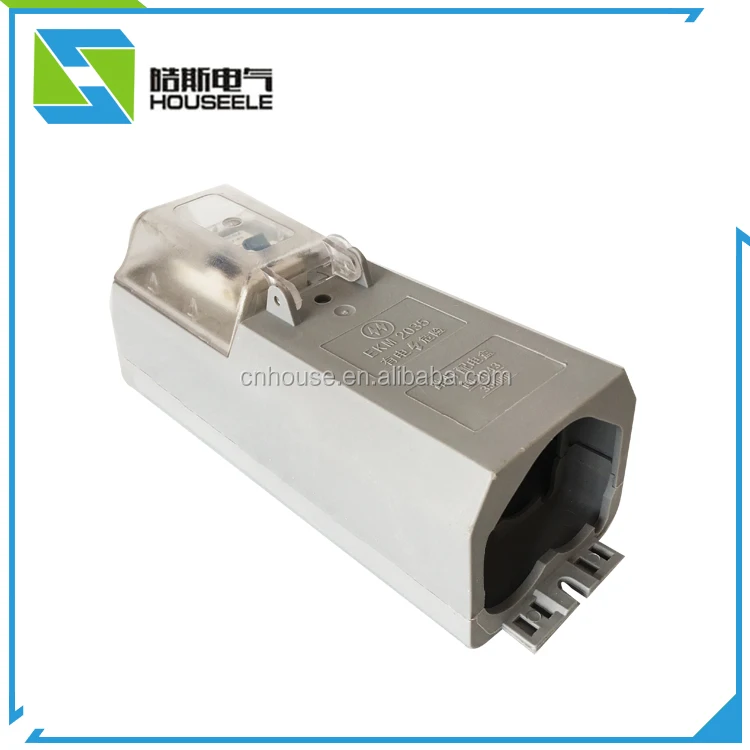

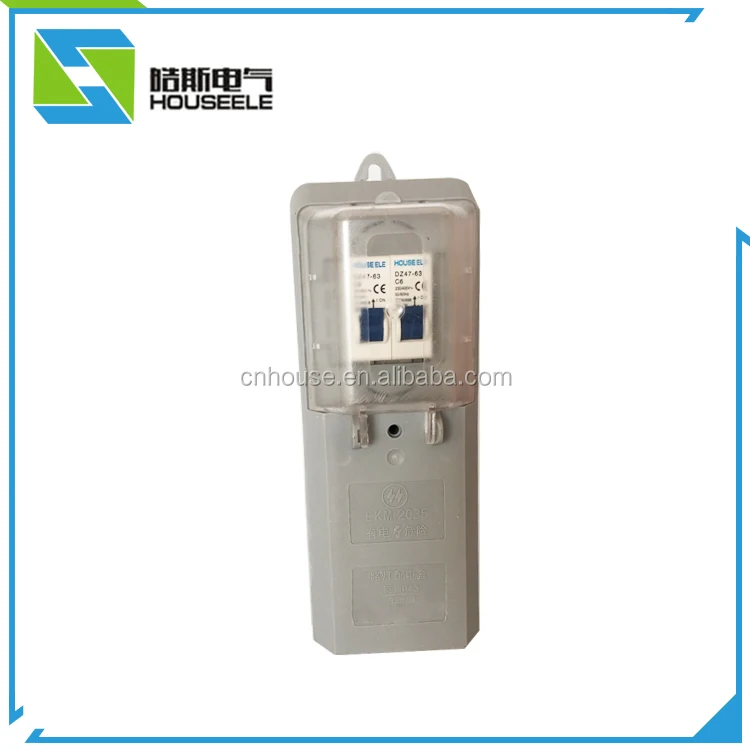

EKM 2035 Connection Box,Junction Box for Lighting Application fro DII E27 fuses size

Application

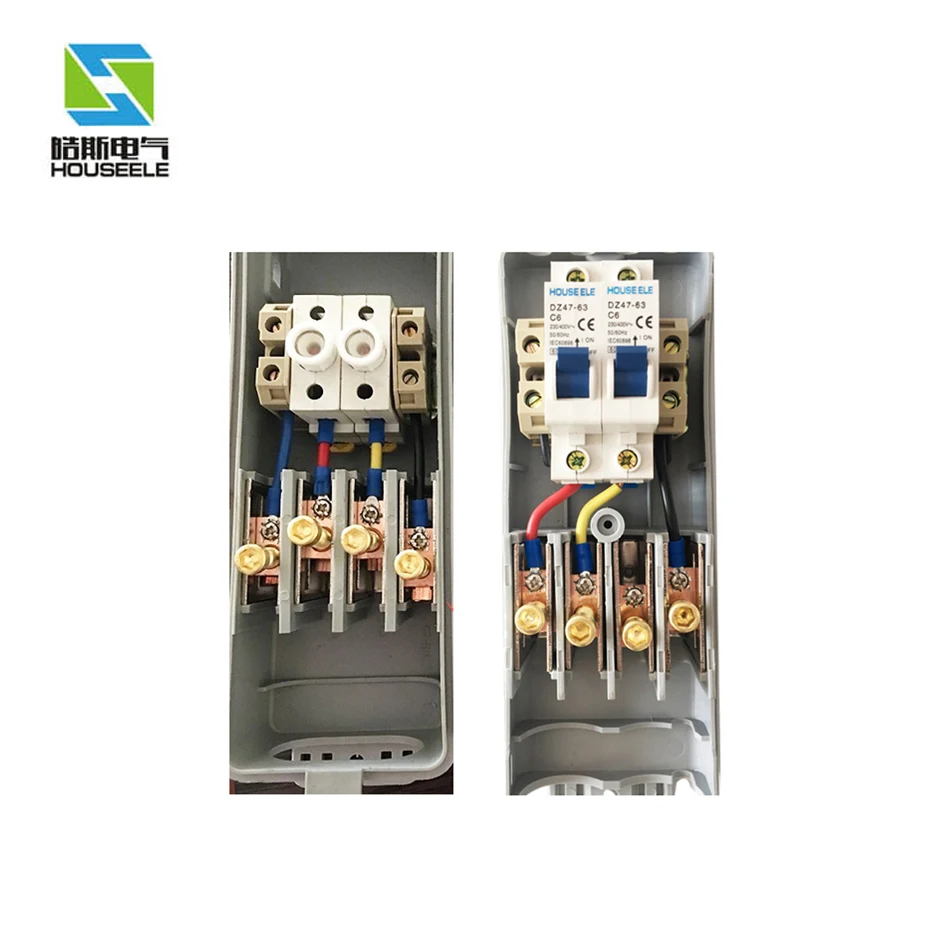

This connection box is intended to be installed in lighting ccolumns at the connection between looped-through feeder cables and the luminaire components protected by fuses.Special equipment as MCBs,timers,residual current devices or the like can be intergrated on DIN rails

Selection Criteria

• For application inside of Lighting columns

          Pole diameter: ≥ 90 x 300 mm

          Door size:         ≥ 110 mm

• 4 sliding terminals for

          2 cables            4 - 50 mm² or

          3 cables            4 - 35 mm2

• Optional Fuses D II (E27) up to 25 A
• Optional for standard installation devices on DIN-rail attachable up to 3 TE width (3 x 18mm),max.height of devices 75 mm.

Technical Data

• Acc. IEC 60439-1
• Impact resistant thermoplastic
• All metal parts corrosion protected
• Transparent fuse cover
• Ingress Protection: IP 43
• Class of Protection II
• Range taking self adapting cable sealing

          Φ 16 - 35 mm feeder cable

          Φ 8 - 14 mm luminaire cable

          (2 sealing for 2 luminaire cables  3 x 1.5 mm2 - 5 x 2.5 mm2)

          or 2 x 4 wires  Φ 1.5 - 3 mm

^* Connection block only and screws for fuse sockets

** Connector block only and DIN-rail for up to 3 MCB

Note: Fuses, adapter screws and screw craps not included.
