Technical parameters for Processless Ctp And Ctcp For Commercial Printing
Ctp And Ctcp
Newspaper printing , Commercial printing, etc
Basys, Luscher, CRON, etc
1:4-1:5 (use after being diluted)
The recommended storage conditions are 10-25°C,with 40%--70%humidity. Away from sunlight radiation &direct sunlight, Anti-humidity, Anti-acid &alkali.
Technical parameters of Processless Ctp And Ctcp For Commercial Printing:
Name : offset plates CTCP,UV-CTP plate:
Application: Newspaper printing, Commercial printing etc...
Alloy and temper : 1060/H18
Gauge : 0.14mm -0.30mm
Spectral Sensitivity : 400-410nm
Sensitivity : 70-90 mj/cm²
Developing Temperature : 25±2℃
Developing Time : 20±5s
Safelights: safe yellow lights
Dot reproduction:2-98%@ 175 lpi
Press suns of 50000 (un-baked), 100000( baked)
Shelf Life : 18 months shelf life from date of production when stored in a cool,dry and lucifugal area in original packing.
Storage conditions: temperature 5-30°C, RH:≤65°C, Stacking height :≤1.2m
Suitable for 405nm CTCP printing;developing system .

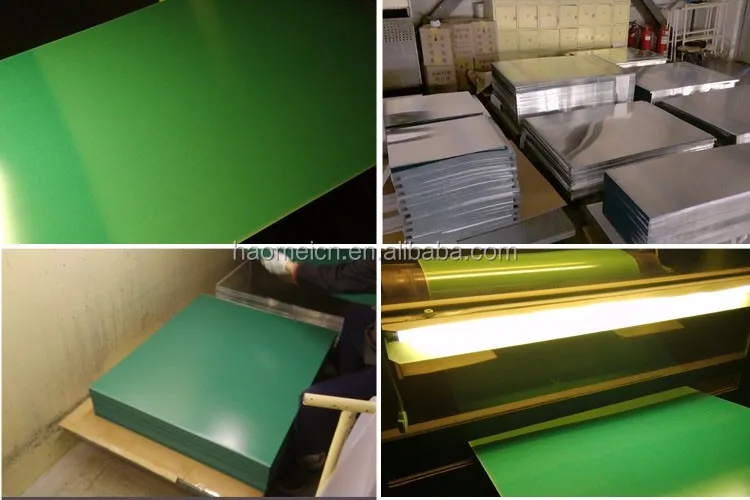

Packing and Delivering Of Processless Ctp And Ctcp For Commercial Printing
We usually use container to deliver our products. And first, we will packaged our products by plastic to prevent being mositured, then we will use frame to fix this plate. no matter what, please do not worry about delivering, because we have been this field for many years, we will try our best to offer you the greatest goods.
Before Service: we will try our best with professional advice to gve you the best reasonable product
During Service:will make sure that these products will be deiliverd to customer's port.
After Service:we like to solve problems with prossional knowledge.
HAOMEI is a professional manufacturer of Conventinal PS Plates, UV-CTP(CTcP) Plates and Thermal CTP Plates in China. HAOMEI brand printing plates are popular in mainland and oversea, widly used in prining market like newspaper, commercial print, etc.
We can also offer these following products :
1.Why did you choose our company?
Because our company has been in this field for almost 15years with customers from all over the world.
2.What did we mainly focus on?
we are manufacturers for aluminum sheet , aluminum circle, aluminum foil roll, aluminum strip and so on aluminum products.
