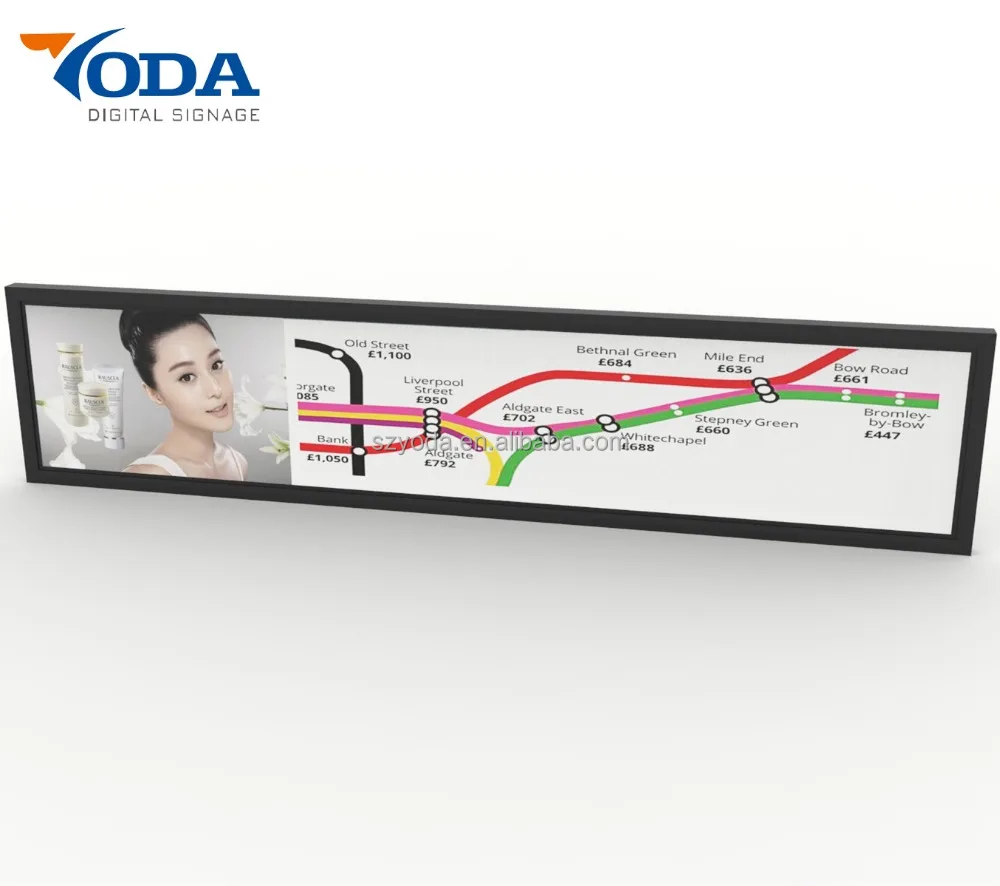

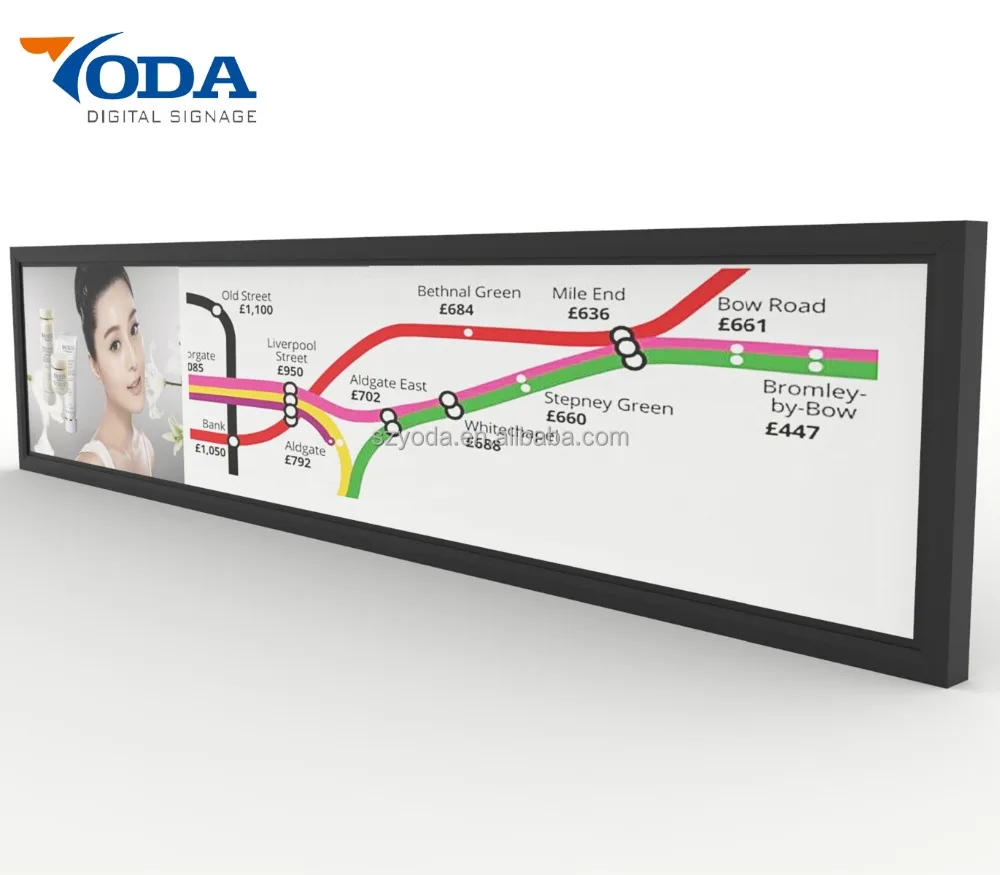

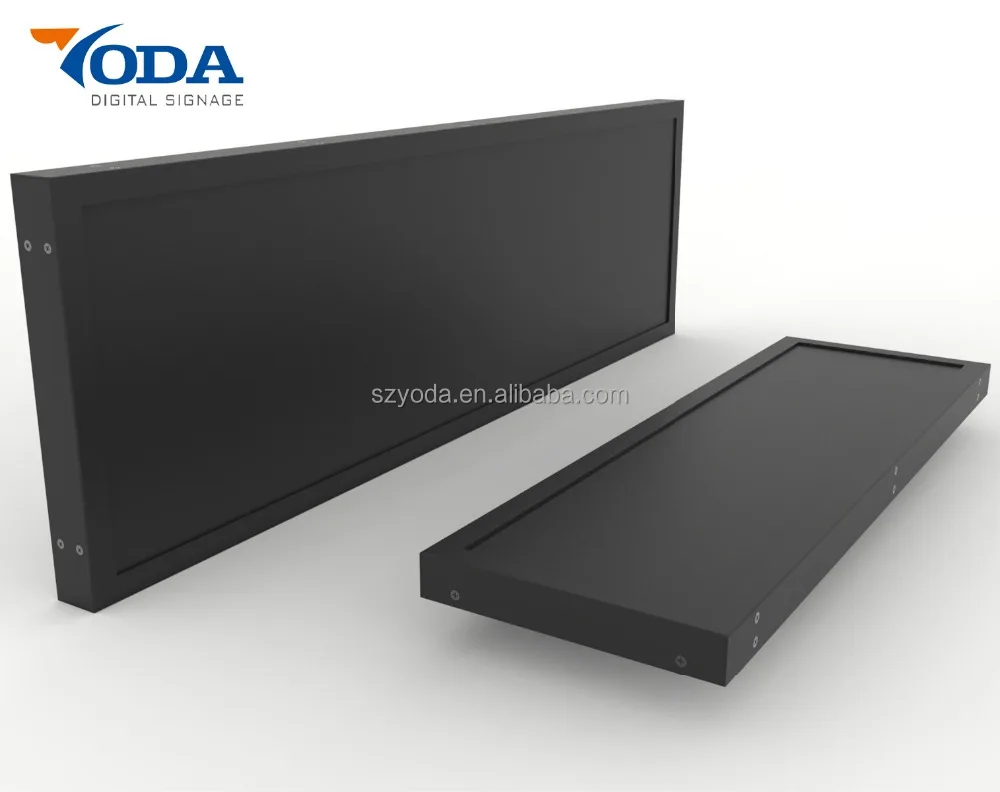

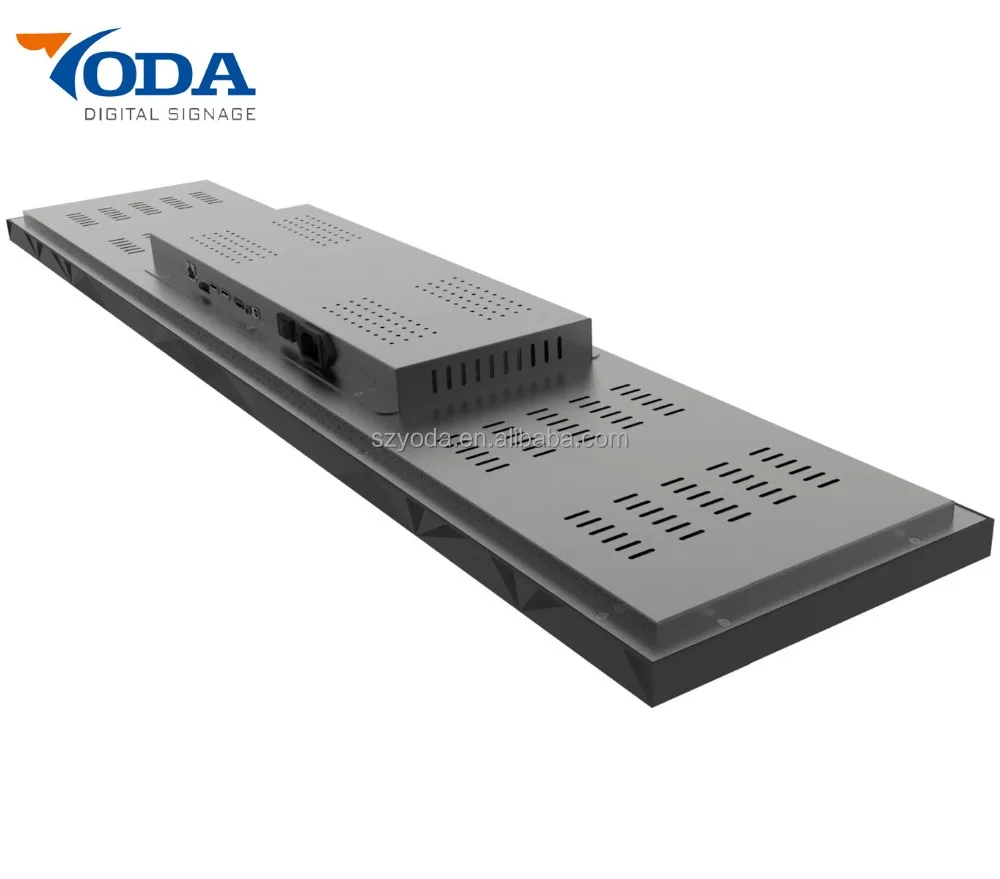

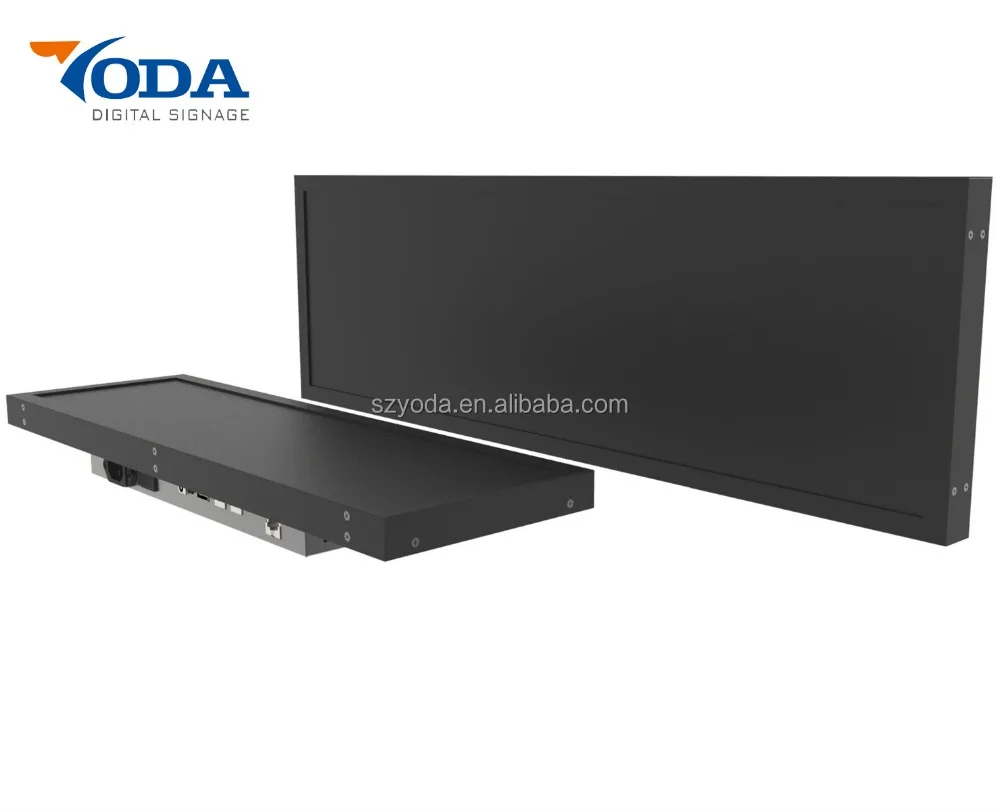

28.6 inch ultra wide lcd advertising display/bar lcd display/stretched lcd display
- Category: >>>
- Supplier: Shenzhen Yoda Views Technology Co. Ltd.
Share on (60616388672):
Product Overview
Description
Details of product:
1. Many specifications and models, size series, variety, convenient and flexible use, maintenance, update,
upgrade easy, long service life.
2. Support landscape/portrait playback, support 180 degree rotation function.
3. Various version, different configurations, different prices.
4. Waterproof screen, extend the service life of the product.
5. The supported image formats are JPG,BMP,PNG, and GIF.
6. LCD panel resolution is 1920 * 360.
7. The appearance design is very thin, the touch use effect is good.
8. Professional and humanized inner structure, wiring neatly.
LCD Panel
| Panel Size | 28inch |
| Active Area | 699.84(H) x 131.22(V)mm | |
| Dimension | 738(H) x171(V) x 42(D)mm | |
| LCD Type | a-Si TFT active matrix | |
| Color Deepth | 8 bit, 16.7M | |
| Resolution | 1,920x360 | |
| Pixel Pitch | 121.5(H) x 364.5(W)um | |
| Pixel Arrangement | RGB vertical stripe | |
| Display Mode | ADS | |
| Viewing Angle | 178(H)/178(V) | |
| Power | ≤50W | |
| Brightness | 700cd/m 2 | |
Motherboard
| CPU | Rockchip RK3288,Quad core Cortex A7 1.8 GHz |
| RAM | DDR3 2G | |
| Storage | EMMC 8GB/16G/32G Optional(Standard 8GB) | |
| LCD Interface | LVDS | |
| Voltage | 3.3V/5V/12V optional | |
Network
| RJ45 | |
| wifi,Wi-Fi 802.11b/g/n | ||
| Blueteeth 4.0 | ||
3G/4G(optional),WCDMA,EVDO,CDMA, GSM850/900/1800/1900MHz/2100MHz | ||
Interface
| 1*HDMI 1.4 output 1080P | |
| 2*USB | ||
| TF up to 64GB | ||
| 10W*2 8Ω Speaker | ||
| Power Supply | DC12V | |
Software
| Operating System | Google Android 5.1 System |
| Language | Multi-Language Supported | |
Video | Support Video playback up to 1080P @60fps Support Multi-Format video playback,including Mpeg1, Mpeg2,Mpeg4 SP/ASP GMC,H.263 including sorenson spark ,H.264 BP/MP/HP,VP8,WMV9/VC1,JPEG/MJPEG,etc HEVC/H.265 1080P @30fps
| |
| Audio | MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV | |
| Image | JPG,BMP,PNG,GIF | |
system management
| File Management | |
| Android System,open root access | ||
| Time switch | ||
OTA remote upgrade(customized) |
