Continuous Compounding Machine
- Category: >>>
- Supplier: Dongguan C Fine Machinery Technology Co. Ltd.
Share on (60616429338):
Product Overview
Description
About Us
Picture of our company
Dongguan Cfine Machinery Technology Co.,Ltd. is a professional feedstock mixing and granulating equipment manufacturer that specializes in making Banbury mixer and pellets granulating extrusion machine .
Our high-quality products have gained international recognition and acceptance not only by worldwide rubber market, even also for Industries like Electrical, Ceramic,Metal Industries etc...and also have been exported to global customers including USA,Korea,Kazakhstan ,India,Malaysia,England and many European Countries.
Over the past decade our products have rapidly built a reputation for Honesty and Reliability.
The Company has strongly believe that producing excellent quality products is the best method of Advertising. Even more by understanding more about our customers and the industry, we are able to improve our products in all aspects, whilst attempting to achieve International Accreditation.
You are welcome to visit our company and test the formula,make sample in our independent laboratory.
Our Team
We aim to provide Total Customer Satisfaction in terms of Quality, On-Time Delivery, Competitive Costing and yet with First Class Services that Meet and Exceed customer requirements.
Workshop
Our Manufacturing experience and Modern Technology has given us the edge in delivering high quality service to all our customers.
Working Principle
Compounding System

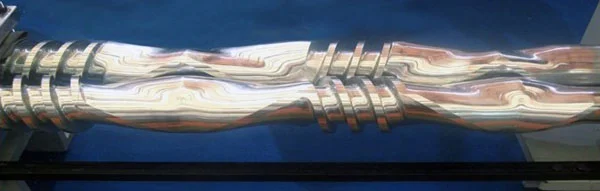

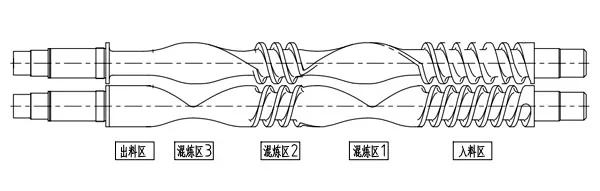

Materials entering the mixing chamber are conveyed by the screw where they are softened and subsequently melted. The two-lobe counter-rotating non-inter meshing rotors with forward and reverse pumping wings facilitate distributive mixing through longitudinal forward and backward flow patterns.The rotating lobes also push materials side to side between the rotors .Effective incorporation and dispersion of the pigments and fillers are achieved by the intensive shear imparted as the materials flow multiple times through the gap between the rotor tips and housing. The combined result is a compounder capable for producing a highly dispersed and homogeneous mixture.

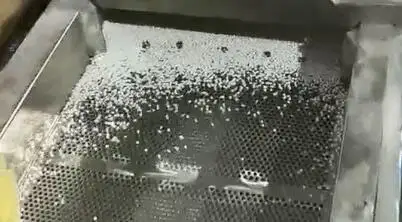

Granulating System
With a residence time much shorter than any other type of processor.This keeps the overall material temperature and energy consumption low and produces compounds with low heat history and minimal material degradation.The residence time can be controlled by an adjustable orifice at the exit of the mixer.
The mixing chamber has provisions for heating and cooling to facilitate heat transfer in order to maintain the melt viscosity for effective mixing. Materials from the mixer is gravity-fed to the CF-LXS' hot feed extruder through an enclosed connecting chute. The extruder feed screw is specially designed for pumping only resulting in minimal temperature rise of the compounded material.
Advantages
With accurate,independent control of an integrated continuous mixer and extruder system, the CF-LXS provides greater edge of produce quality and processing versatility while delivering higher efficiency when compared to other technologies.
It is available in a wide range of processing capacities from 125kg per hour to 1000kg per hour.With over 10 years of combined excellence and reputation in the compounding industry, CFine provides assistance with installation,start up,operator training and maintenance with every machine sold.
The CF-LXS processor is a proven and reliable technology serving the world's leading producers of highly filled,highly pigmented materials.To see how we can met your most demanding processing requirements,please contact a sales representative and schedule a lab trial
Certificates
CE Certificate
ISO 9001:2015
Patent
Trade Shows
CHINA INTERNATIONAL OPTOELECTRONIC
EXPO.
Year 2018 in Shenzhen
CHINAPLAS2018.
Year 2018 in Shanghai.
Rubber-plas Malaysia 2016.
Year 2016 in Kuala Lumpur.
The18th CIOE .
Year 2016 in Shenzhen.
The 29th CHINAPLAS.
Year 2015 in Guangzhou.
Packaging & Shipping
Shipping.
Within 30 days after the deposit.
Packaging.
According to your requirements
Contact
Jack He
Foreign Trade Sales
Dongguan CFine Machinery Technology Co,. Ltd.
Tel:+86-769-81523338
Mob:+86-13829294617
Fax:+86-769-85905235
Wechat #:13829294617
Whatsapp:+8613829294617
Web://www.cfinemachinery.com/
Head Office:Shatang Village Jingmeng District Houjie town Dongguan City Guangdong China
