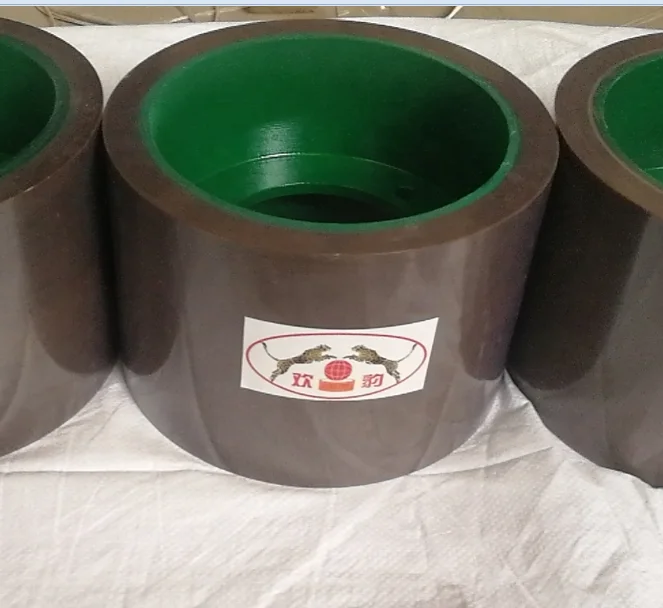

Rubber rice roller in rice husker 6 inch

Product Overview

Description

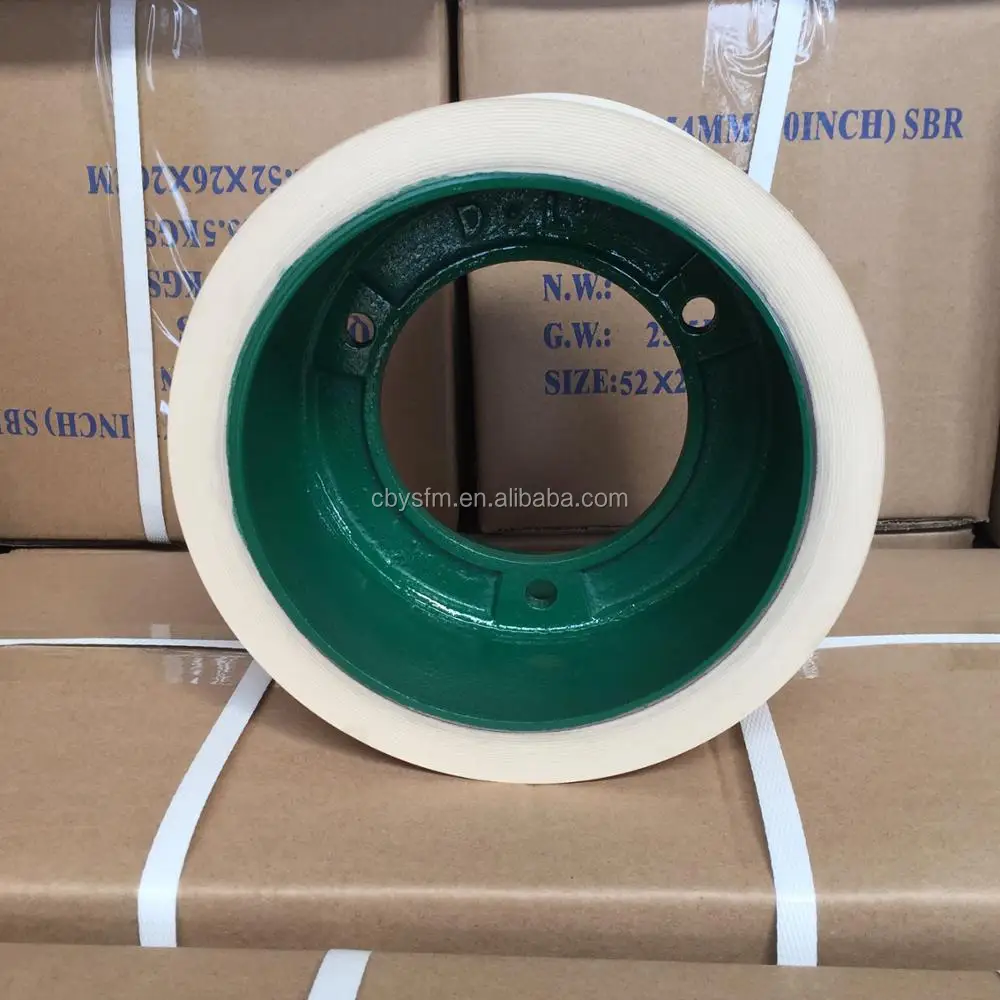

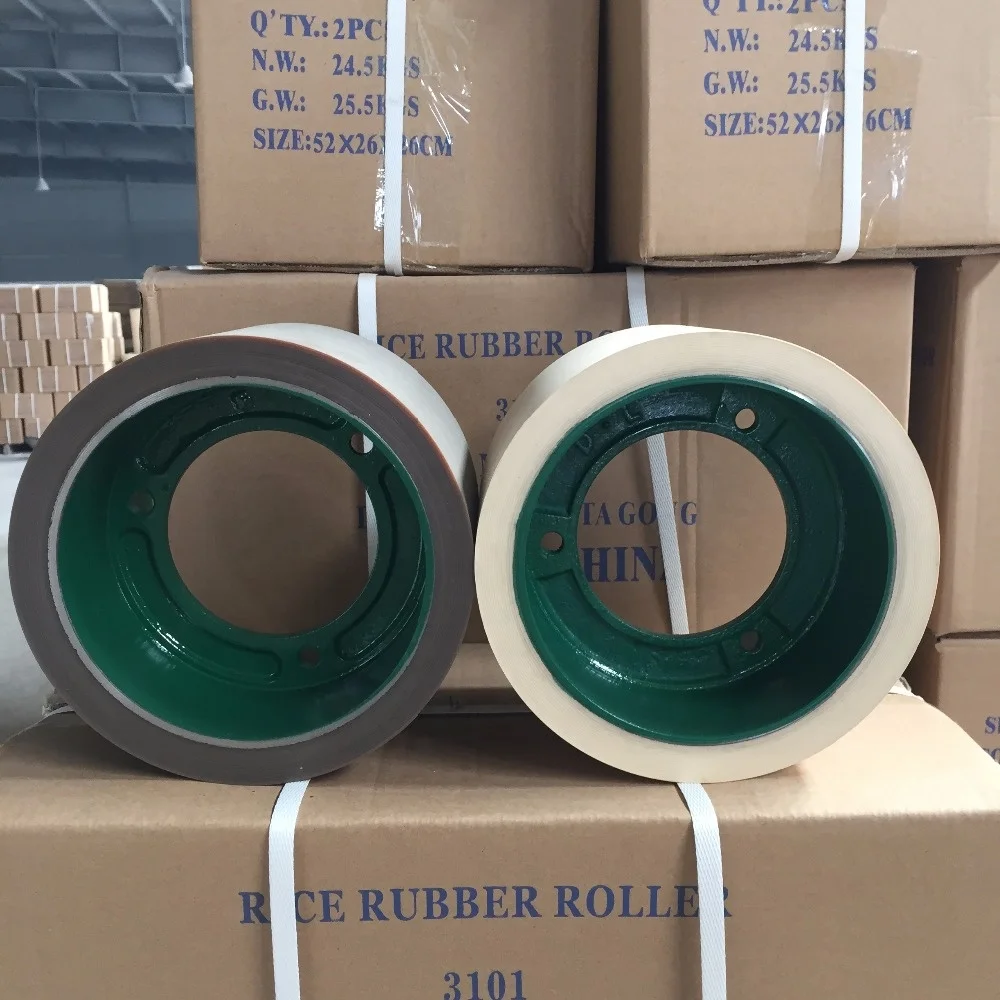

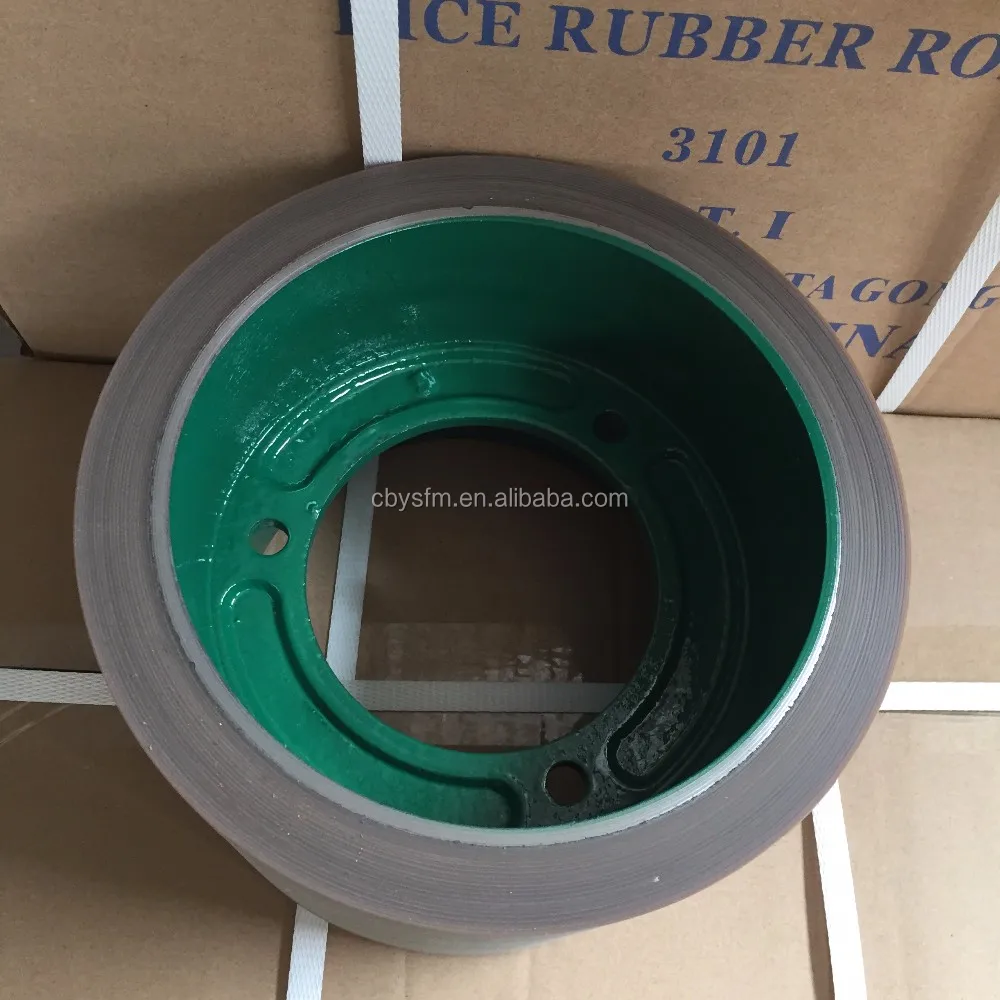

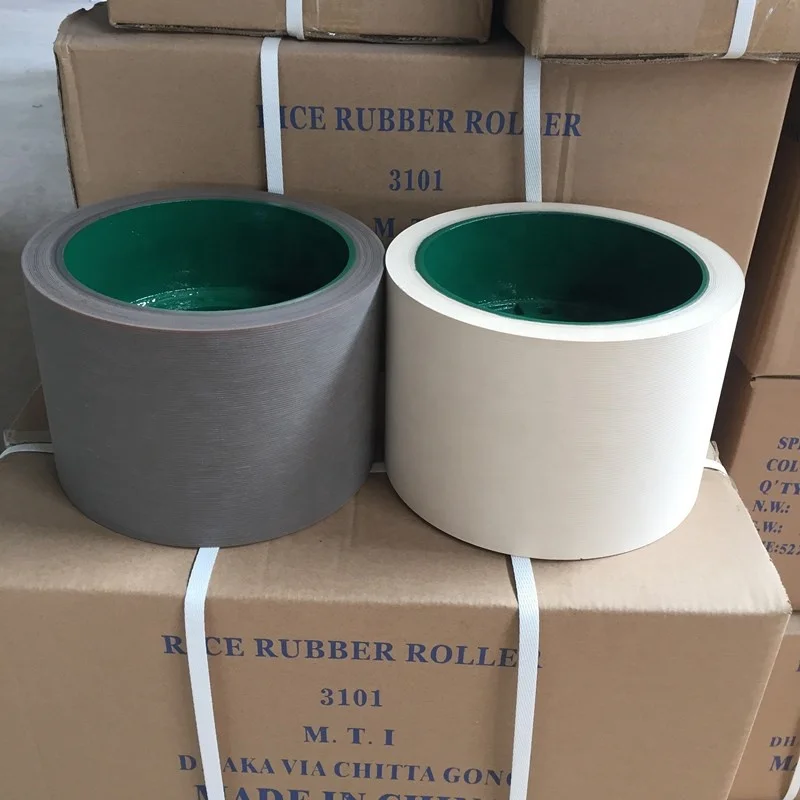

Rubber rice roller in rice husker 6 inch

General Information

1. Name: Rubber Roller For Rice Huller

2. Material: SBR,NBR, POLY

3.Color: brown, white, amber, red

4.Size: sorted

5.Minimum Order: 100pcs

6.Delivery Time:  Within 20 days after receiving the payment

7.Packing: shirnk film of each piece, carton box outside

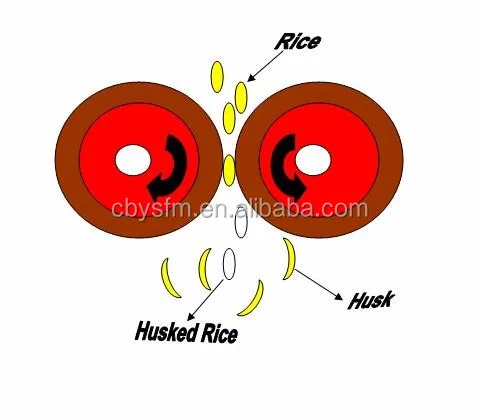

 Operating principle:

 Bedcause of speed difference of veer and reversion between rubber rollers

 paddy are torns up by two rubber rollers, in the end, rice grain comes out.

Rubber Rice Roller Characters:

1.Hardness is 88~96 degrees;

2.Excellent in heat and abrasion resistance;

3.Offering very strong bonding between rubber and drum;

4.High shelling efficiency up to 95%;

5.The SBR and NBR rice huller rubber roller can be options.

6.Good wear resistance,Strong temperature,no climate impact,not deformation,soft, anti-tear at high-speed.

7.Health and non-toxic, no pollution to rice and bran, clean, bright white grain of rice, pure color quality.



Technical Information:

A. Color: Brown

a: Tensile Strength:Mpa 23-25 b: Elongation Rate: % 290-400 c: Wear Reduction: cm3/1.6km 0.19-1.05 d: Hardness (shore A): 95-96^oC



B. Color: White

a: Tensile Strength:Mpa 22-24 b: Elongation Rate: % 280-400 c: Wear Reduction: cm3/1.6km 0.15-0.10 d: Hardness (shore A): 94-95^oC



Pay Attention To:

1. Optional of Rubber Rice Roller: For the choice of  the black, brown and white rubber roller with  hardnes s shore A 90^oC and 95^oC, it should be according to the type of rices, climate conditions, and different seasons.Try to avoid to use the single roller,  the recommended way is higher hardness for fast roller, lower hardness for slow rollers.



2.Temperature and Hardness Control: The proper hardness is shore A 82-86^oC, and the temperature is below 50^oC. When the temperature reaches above 60^oC,  the hardness of roller should be reduced 4-8^oC



3. Alternative use of rubber Rice rollers is recommended:

A: It can increase the usage life of roller and quantity of dehusking rice.

B: Each roller has break time during the working, which is good for recoving the function of rubber, adjusting the speed difference upon different diameters, and controlling the temperature effectively.



4. Two rollers should be at the same level to keep the space equal.



5. The paddy inputting should keep the balance.



6.  Keep the rate of the re-hulling under the limitation



7. Storage:

A: Avoid the direct sun shine and soaked in the rain and snow.

B: Away from the heating device about 1.5m.

C: Store in dry and clean place, away from acid, alkali, salt, oil and organic solvent.

D. Keep the room temperature 10-30 degrees, comparative moisture 50-80 degrees.

E. Keep in vertical position,horizontal is not allowed.

F. No other materials pressure on it, no hitting to avoid deformation and damage.

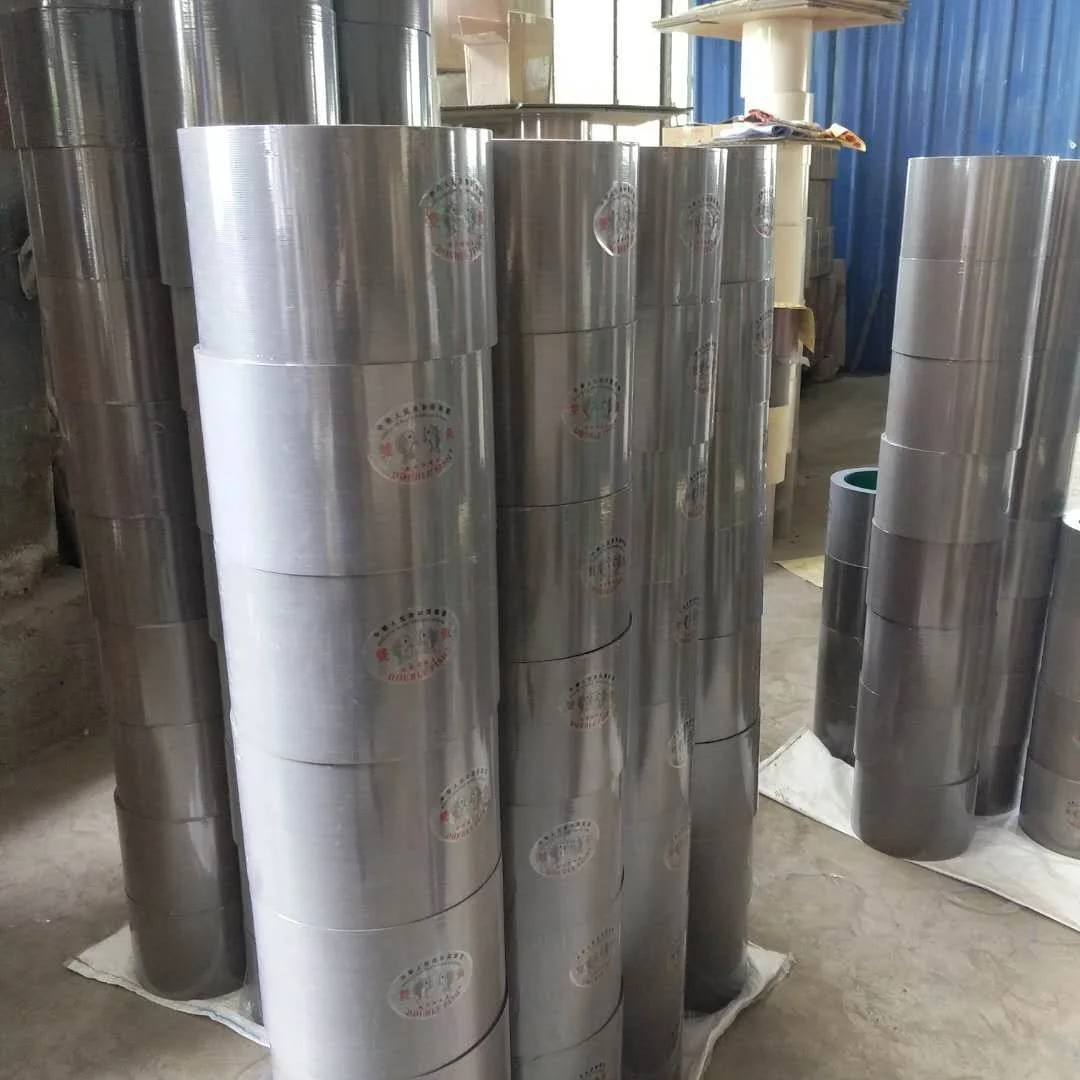

Factory View:



Production Process:

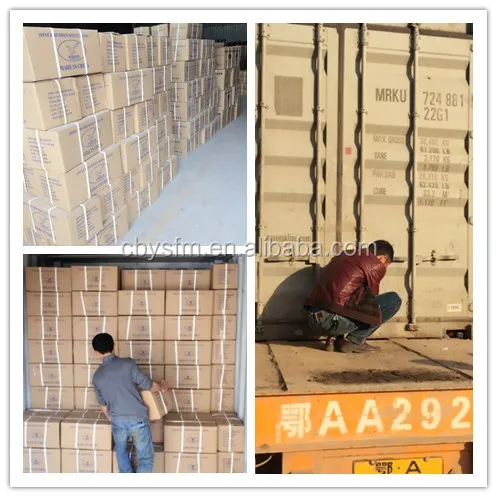

Packaging&Packing:
