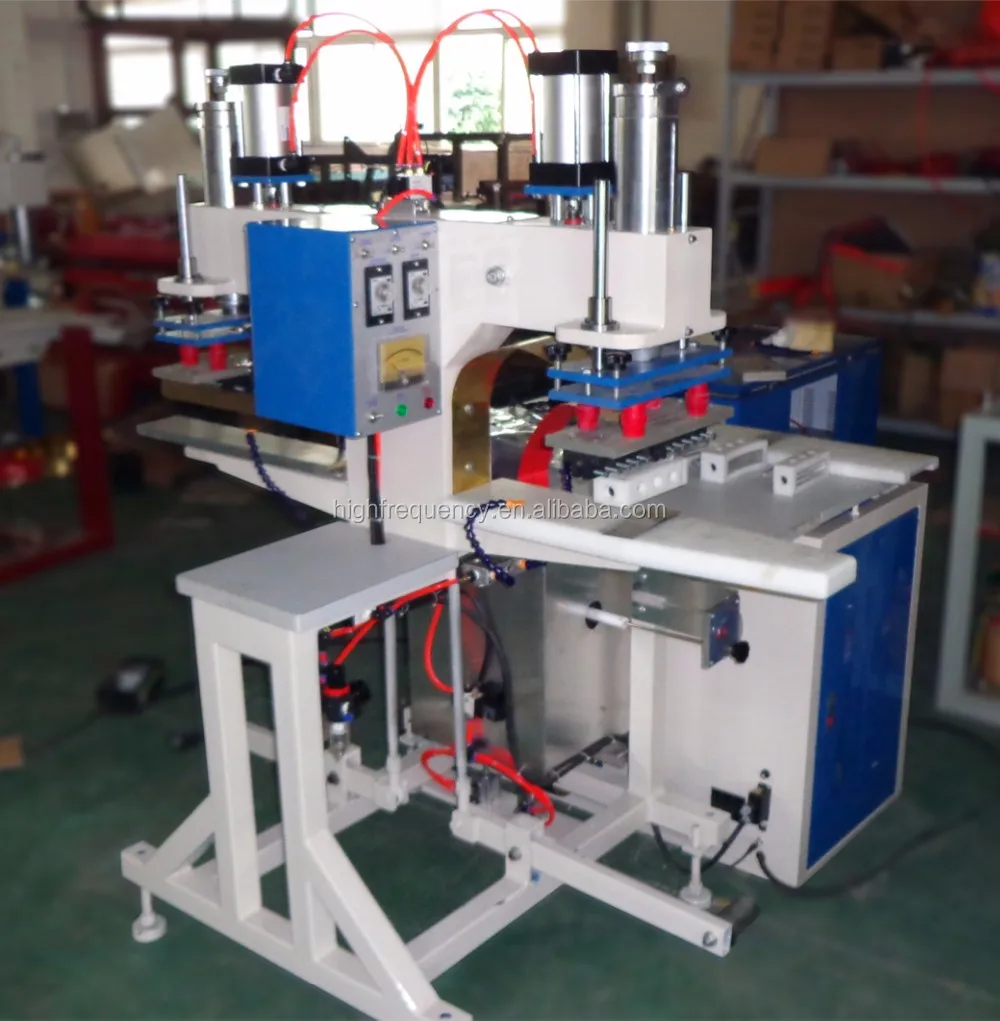

Fabric seam welding machine ,pvc fabric welding machine
Fabric seam welding machine ,pvc fabric welding machine
Fabric seam welding machine ,pvc fabric welding machine
Fabric seam welding machine ,pvc fabric welding machine
Fabric seam welding machine ,pvc fabric welding machine
Fabric seam welding machine ,pvc fabric welding machine
Fabric seam welding machine ,pvc fabric welding machine

Fabric seam welding machine ,pvc fabric welding machine

Share on (60616534335):


Price:$2,500.00

Quantity:


Product Overview

Description


Product Description

Product Application

Fabric seam welding machine ,pvc fabric welding machine .APET, RPET, PETG and other environmental polymer materials products double blister packaging, footwear accessories, trademarks, watches belt, CD bags folding box pressure line, large-size fabric embossed leather trimming, toothbrush packaging, automotive synthetic leather, sun visors and other products of welding and fusing

\t
Specifications for Fabric seam welding machine ,pvc fabric welding machine
\t
Model
\t
YJ-TJ-5000TA
\t
YJ-TJ-8000TA
\t
YJ-TJ-10KWTA
\t
High frequency Power
\t
5000W
\t
8000W
\t
10KW
\t
Supply Power
\t
380V/50/60HZ
\t
380V/50/60HZ
\t
380V/50/60HZ
\t
Frequency
\t
27.12MHZ
\t
27.12MHZ
\t
27.12MHZ
\t
Input power
\t
8KVA
\t
15KVA
\t
18KVA
\t
Rectifier
\t
diode
\t
diode
\t
diode
\t
Oscillating tube
\t
7T85RB
\t
7T69RB
\t
E3069
\t
Max pressure
\t
350kg
\t
500kg
\t
500kg
\t
Electrode spacing
\t
160mm
\t
160mm
\t
160mm
\t
Activities Dimension
\t
60mm
\t
60mm
\t
60mm
\t
Above electrode size
\t
120*290mm
\t
120*290mm
\t
120*290mm
\t
Upper electrode size
\t
350*700mm
\t
350*700mm
\t
350*700mm
\t
Welding time
\t
0-10 seconds
\t
0-10 seconds
\t
0-10 seconds
\t
Capacity
\t
3500 times/8H
\t
3500 times/8H
\t
3500 times/8H
\t
Pressure Ways
\t
Pneumatic drive
\t
Pneumatic drive
\t
Pneumatic drive
\t
Body work dimension
\t
350Х700mm
\t
350Х700mm
\t
350Х700mm
\t
Dimension
\t
1720Х1100Х1500
\t
1720Х1100Х1500
\t
1720Х1100Х1500
\t
Net Weight
\t
330kg
\t
330kg
\t
330kg

Main Features

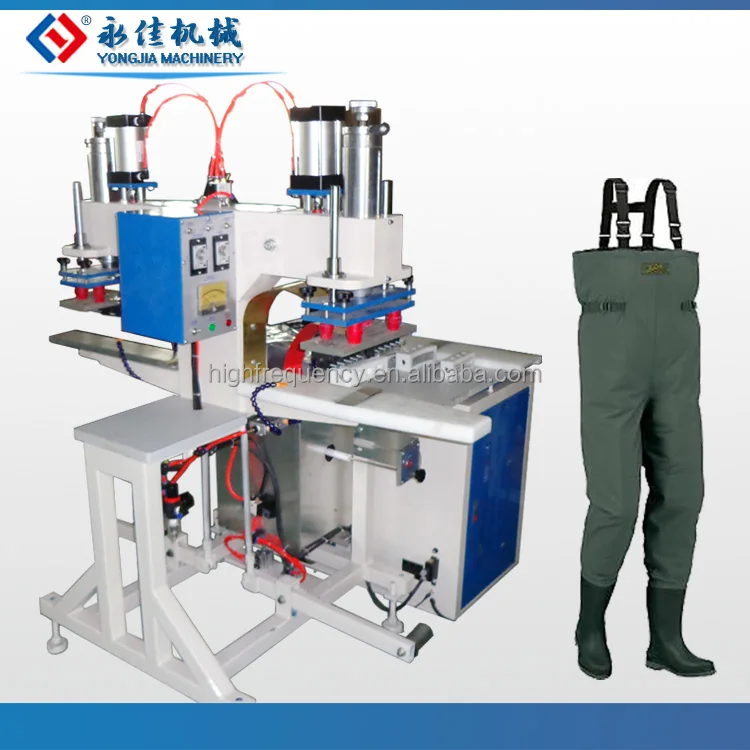

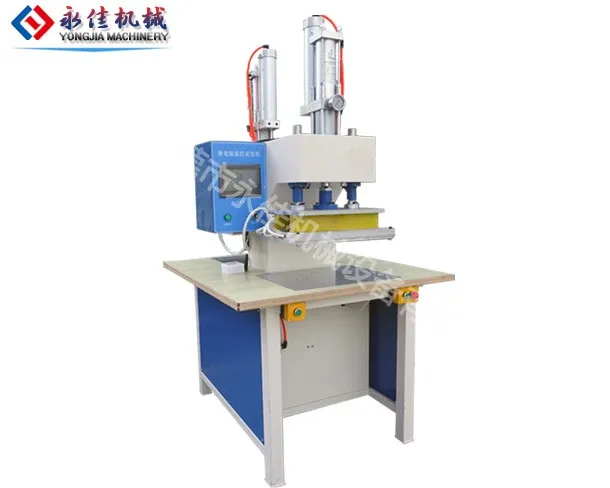

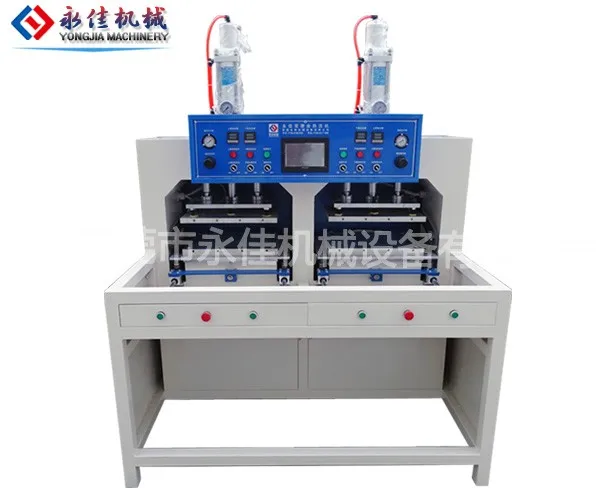

1. Double-head pedal high frequency welding machine is especially suitable for difficult alignment products welding, it can choose pneumatic devices basis on the needs of pressure.

2.high frequency high-Q electronic oscillation tubes, international industry standard high-frequency output stability.

3. equipped with frequency stabilizer and high frequency magnetic field shielding system device, the high-frequency interference to a minimum.

4 using low-loss coaxial oscillator system in Europe, and is equipped with heating means, Promise heating thermostat device.

Sample Display

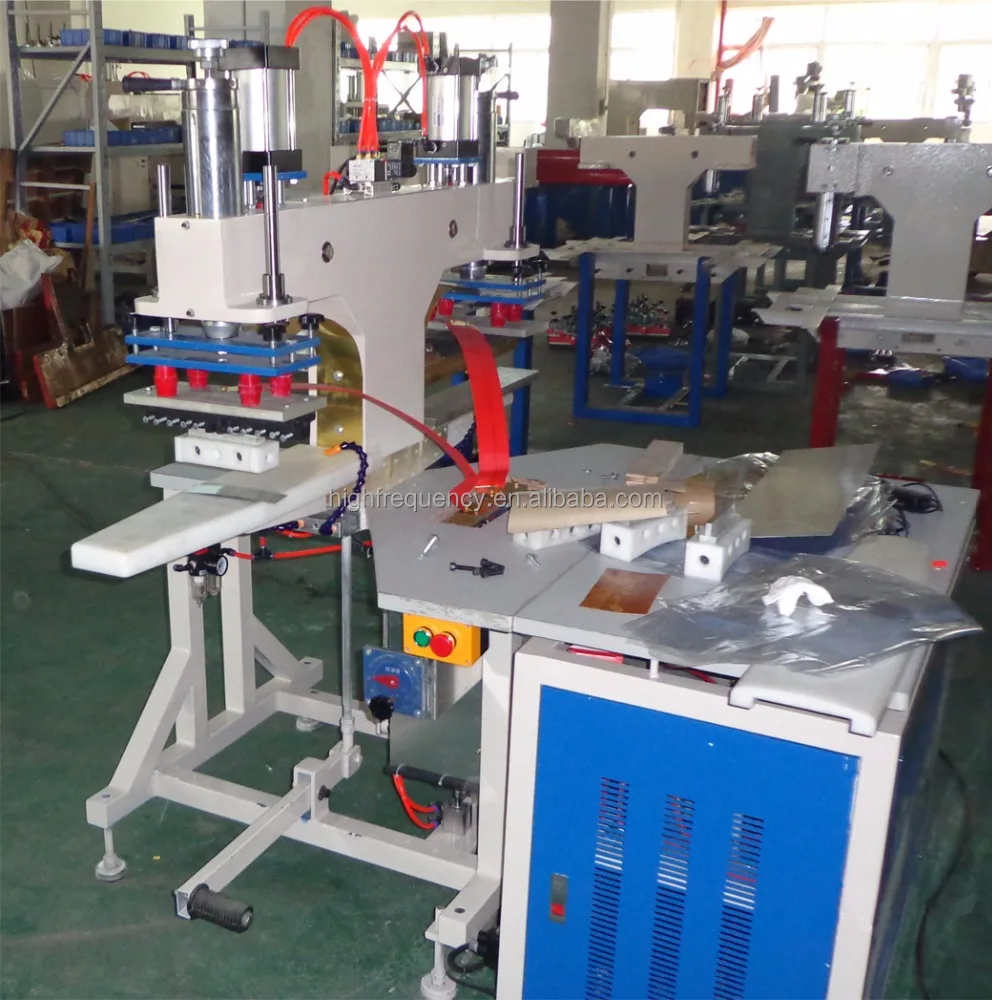

Detailed Images

Anti-spark Device

Sensitive sparking system protected mold well to decreases the condemnation factor of products.

Equipped the automatic over-current protection system ,when the high frequency current load exceeds the limit value,the frequency will automatically cut off the high frequency ,protection the frequency mold and material damage by to a minimum.


One time forming oscillation

This machine is stable oscillation frequency and oscillation frequency using the international industrial band 27.12MHz or 40.68MHz, the output frequency is stable, in line with international standards, suitable for all use.

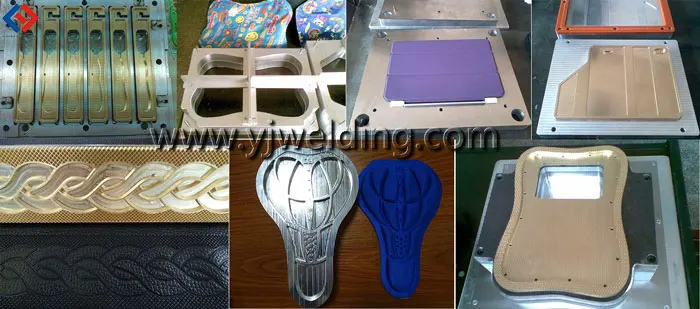

Mould

In the forefront of production engaged in mold design, process design, mold manufacturing, mold maintenance, quality management and so on


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Our Company

Dongguan Yongjia Machinery Equipment Co.,Ltd .,founded in 2003,is a larger professional high frequency equipment factory,with strong technical capability , advance production equipment ,experienced team and excellent service , using scientific management system , strictly follow production standards and testing standards . Our product quality and service have been widely recognized by the industry,with many years production practice and technology development .We are a leading company in the industry with complete high frequency product line . At the same time,we provide customized NON-STANDARDS and special equipment ,according to the needs of different customers , has a strong team of foreign trade business .Yongjia enterprise ,Based on out superb tachnology and complete,high frequency service ,provides customers great service!

Welcome to visit our plant!

Packing & Delivery
\t
Packaging
\t
Size
\t
1720Х1100Х1500
\t
Weight
\t
400KG
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
