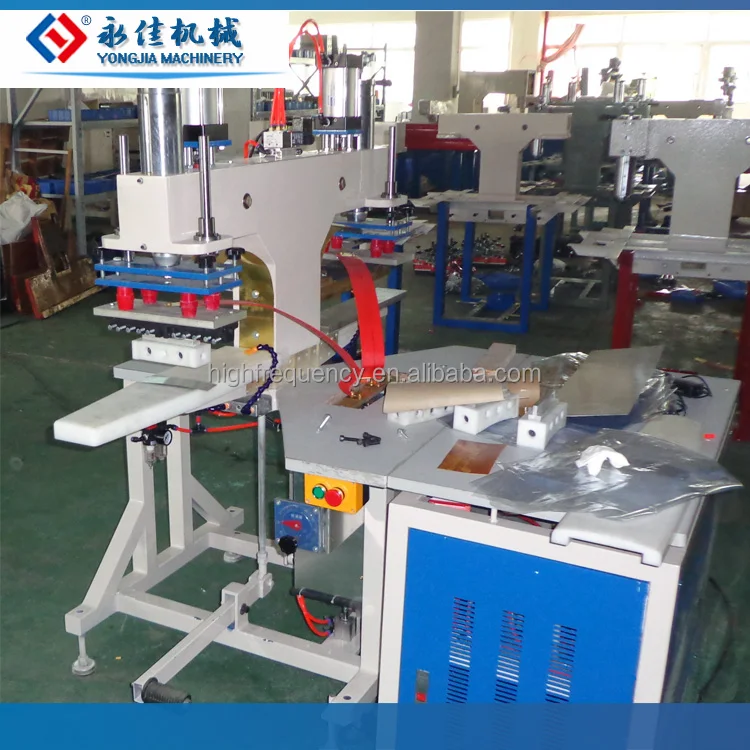

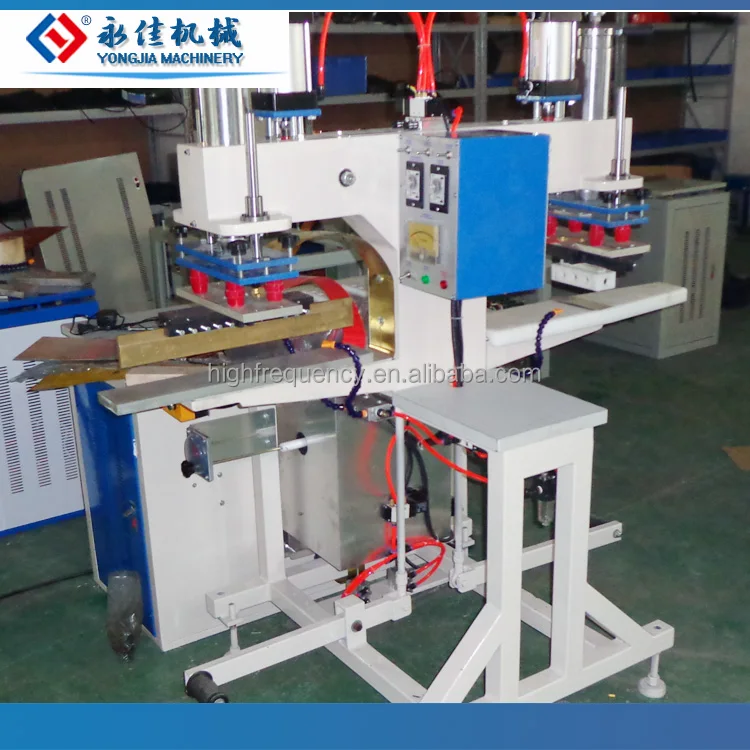

Double head raincoat welding machine ,high frequency raincoat making machine
Double head raincoat welding machine ,high frequency raincoat making machine
Double head raincoat welding machine ,high frequency raincoat making machine
Double head raincoat welding machine ,high frequency raincoat making machine
Double head raincoat welding machine ,high frequency raincoat making machine
Double head raincoat welding machine ,high frequency raincoat making machine

Double head raincoat welding machine ,high frequency raincoat making machine

Share on (60616641118):


Price:$2,500.00

Quantity:


Product Overview

Description


Product Description

Application

Double head raincoat welding machine ,high frequency raincoat making machine,APET, RPET, PETG and other environmental polymer materials products double blister packaging, footwear accessories, trademarks, watches belt, CD bags folding box pressure line, large-size fabric embossed leather trimming, toothbrush packaging, automotive synthetic leather, sun visors and other products of welding and fusing

 Features:

1. Timing continued electrical control, especially for difficult alignment products welding,also can choose pneumatic devices according to the needs of pressure. High frequency welding machine designs the principles of toggle leverage. PVC welding enables uniform pressure, high frequency machine severity of head pressure can be adjusted to match the needs of high-frequency welding depth.
2. High-Q electronic oscillation tubes, international industry standard high-frequency frequency band frequency frequency output stability. With automatic over-current protection system, when the high-frequency current load exceeds the limit value, it will automatically cut off the high-frequency, high-frequency oscillation protection tube is damaged, avoid high frequency by the frequency drift caused by improper operation, so that high-frequency mold and material damage to a minimum.

\t
Model
\t
YJ-TJ-5000TA
\t
YJ-TJ-8000TA
\t
YJ-TJ-10KWTA
\t
High frequency Power
\t
5000W
\t
8000W
\t
10KW
\t
Supply Power
\t
380V/50/60HZ
\t
380V/50/60HZ
\t
380V/50/60HZ
\t
Frequency
\t
27.12MHZ
\t
27.12MHZ
\t
27.12MHZ
\t
Input power
\t
8KVA
\t
15KVA
\t
18KVA
\t
Rectifier
\t
diode
\t
diode
\t
diode
\t
Oscillating tube
\t
7T85RB
\t
7T69RB
\t
E3069
\t
Max pressure
\t
350kg
\t
500kg
\t
500kg
\t
Electrode spacing
\t
160mm
\t
160mm
\t
160mm
\t
Activities Dimension
\t
60mm
\t
60mm
\t
60mm
\t
Above electrode size
\t
120*290mm
\t
120*290mm
\t
120*290mm
\t
Upper electrode size
\t
350*700mm
\t
350*700mm
\t
350*700mm
\t
Welding time
\t
0-10 seconds
\t
0-10 seconds
\t
0-10 seconds
\t
Capacity
\t
3500 times/8H
\t
3500 times/8H
\t
3500 times/8H
\t
Pressure Ways
\t
Pneumatic drive
\t
Pneumatic drive
\t
Pneumatic drive
\t
Body work dimension
\t
350Х700mm
\t
350Х700mm
\t
350Х700mm
\t
Dimension
\t
1720Х1100Х1500
\t
1720Х1100Х1500
\t
1720Х1100Х1500
\t
Net Weight
\t
330kg
\t
330kg
\t
330kg
Detailed Images
Sample Display
Packing & Delivery
\t
Packing
\t
Size
\t
1720Х1100Х1500mm
\t
Weight
\t
400kg
\t
Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Company

Dongguan Yongjia Machinery Equipment Co.,Ltd .,founded in 2003,is a larger professional high frequency equipment factory,with strong technical capability , advance production equipment ,experienced team and excellent service , using scientific management system , strictly follow production standards and testing standards . Our product quality and service have been widely recognized by the industry,with many years production practice and technology development .We are a leading company in the industry with complete high frequency product line .Our product includes automatic high frequency plastic packaging production line ,High frequency welding and cutting machine pvc cover mobile welding machine,digital products hot pressing equipment ,automotive interior components welding equipment ,membrane structure canvas welding machine ,industrial belt skirt baffle welding machine ,automatic medical bag high frequency welding machine and other kinds special high frequency welding machine .Automatic high frequency welding equipment ,automatic cylinder production line ,soft line glue box machine and hundreds of products. At the same time,we provide customized NON-STANDARDS and special equipment ,according to the needs of different customers , has a strong team of foreign trade business .Yongjia enterprise ,Based on out superb tachnology and complete,high frequency service ,provides customers great service!

Welcome friends to visit our plant!

Contact Me

Contact person :Grace zhang
Tel : 0769-81861639-815
Whatsapp :+86 13790126009
Email :grace#yjwelding.com
change # to @
Website :http//www.yjwelding.com
Address :Donghua Industrial Park, Chashan Town, Dongguan City, Guandong Province, China
