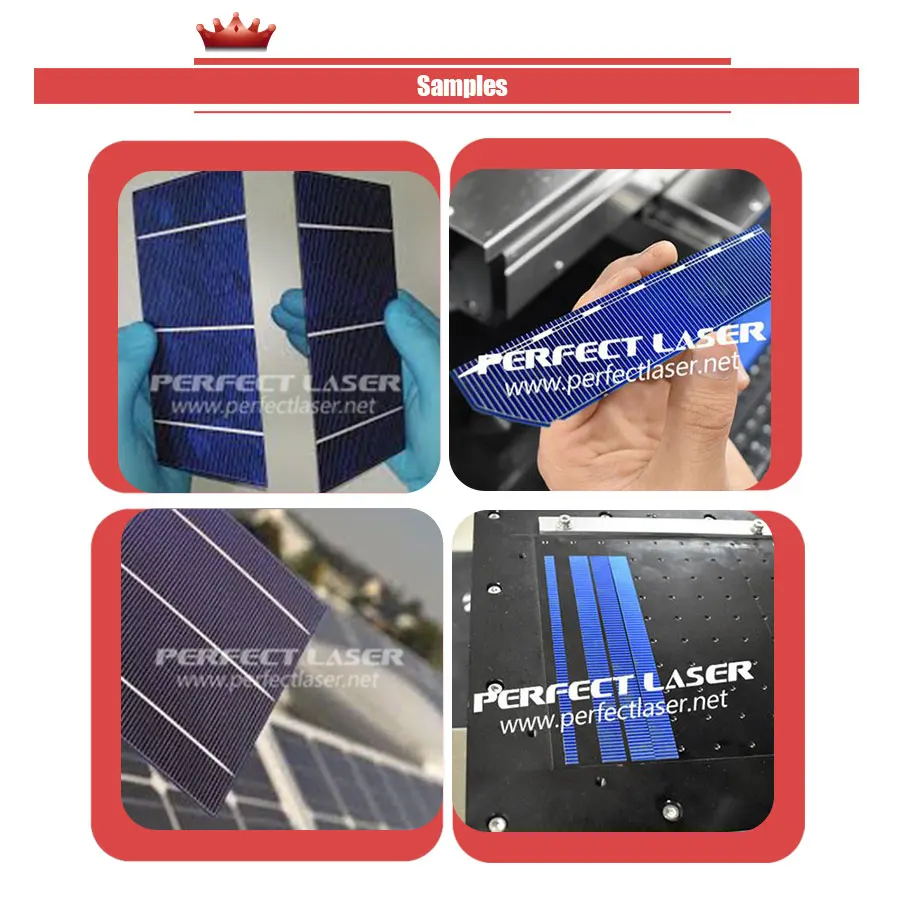

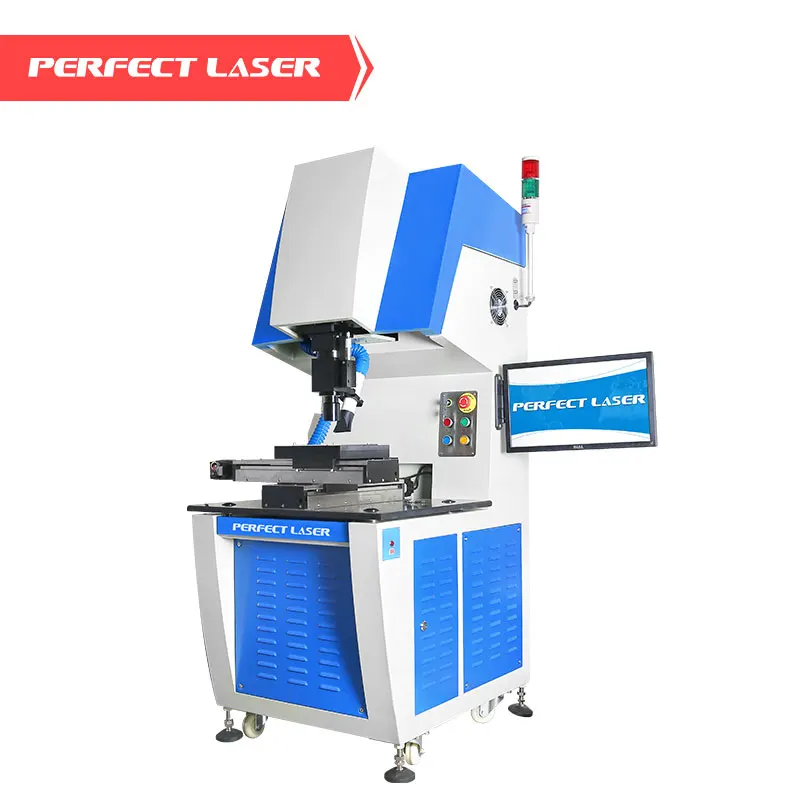

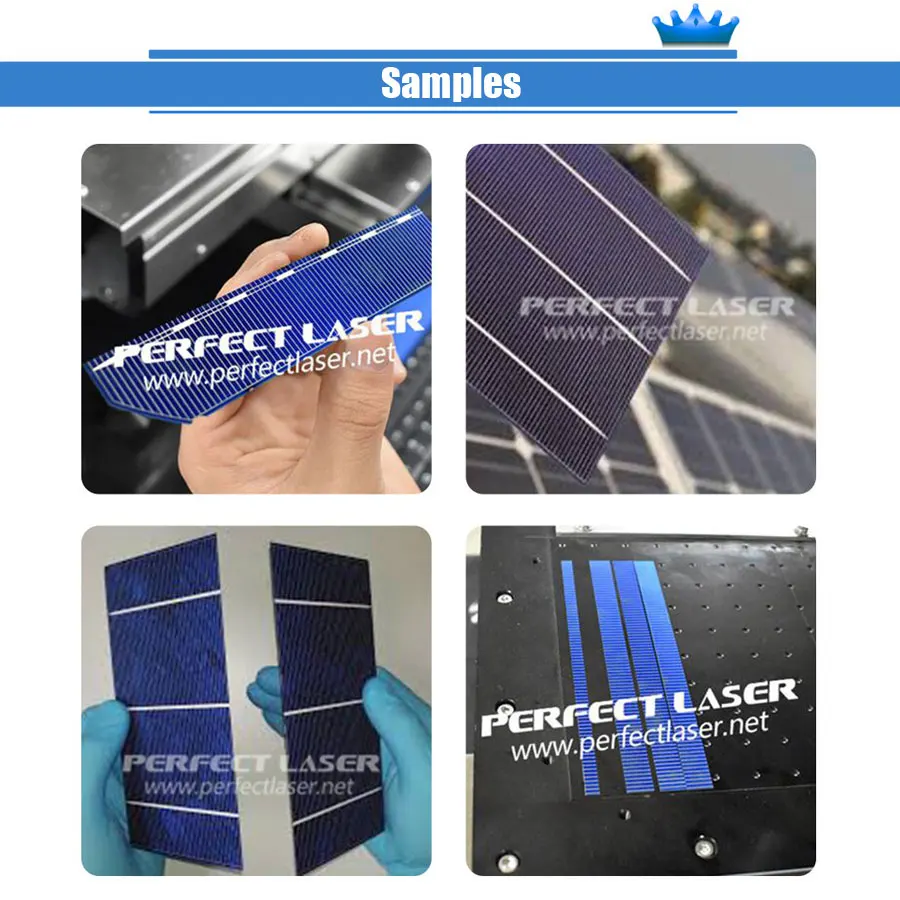

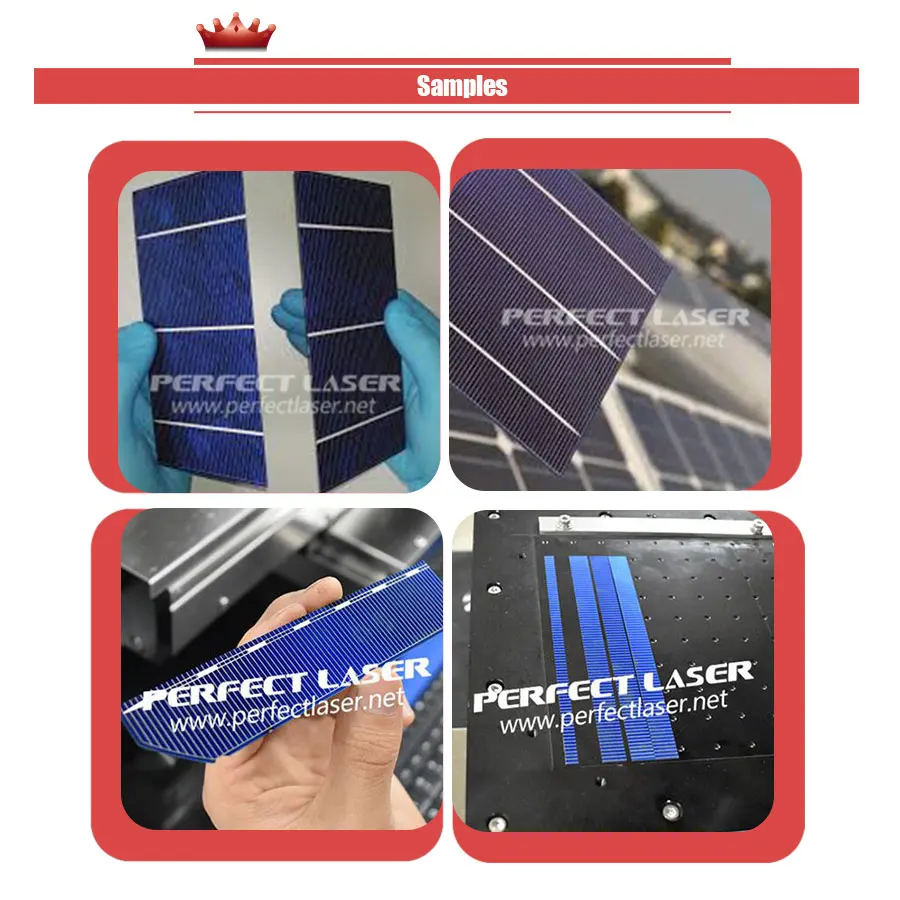

Fiber Laser Scribing Machine is mainly used on Solar photovoltaic industry, monocrystalline silicon and polycrystalline silicon solar battery (cell) and silicon (wafer) of scribing processing (cutting section).
For Fiber Laser Scribing Machine, Adopting fiber laser source as work light source, The two-dimensional work table is controlled by computer,and could do kinds of movement according to what graphics be input in. High output power, high precision scribing, fast speed and could cut curve and straight line graph.
Machine Features
1. Software upgrade: the solar cell scribing machine supports the arc interpolation,circular arc cutting more smoothly. 2. The wafer laser scribing machine upgrade: covers an area of space smaller after modification, operating more accord with human body engineering. 3. Refactoring workbench processing part, open-type workbench processing area, up-down material more convenient. Removed spare parts from the workbench tablet, higher precision and not easy to deformation. 4. Improvement the screw parts of the wafer laser scribing machine: screw lead increased, so as to expedite the processing speed, guarantee machining accuracy. 5. Direct plug-in light path design, higher machining precision, the wafer laser scribing machine can receive better effect . 6. Serve motor modification of laser scribing solar cells machine: run more smoothly, smaller cutting noise,more humanized design; 7. Authoritarian flat dust removal device: the processing effect of the solar cell scribing machine is better. 8.Improved the laser signal control section, software runs more stable and fast.
Technical Data
Model specification
PE-20W/50W Laser Scribing Machine
Laser wavelength
1064nm
Laser power
20W
Scribing line width
50um
Scribing speed
240mm/s
Scribing precision
±10um
Workbench wide
200×200mm
Temperature control precision
0.5℃
Working power supply
220V/50Hhz/1.5KVA
Workbench
Cell automatic adsorption, dust removal
Cooling way
High precision and constant temperature circulating water cooling professional integration
Air cooling
Machine Details
