Трехфазный фильтр переменного тока DAC3 6A 10A 250v

Product Overview

Description

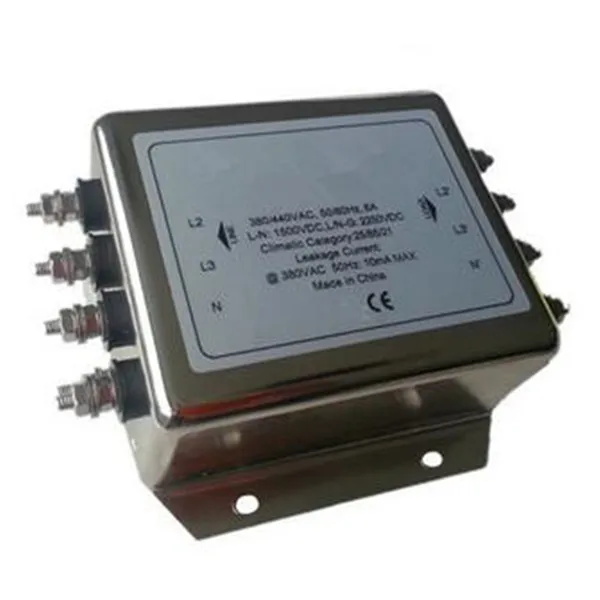

DAC3 Three phase 6A 10A 250v ac line filter



1,QXAC1-10A EMI line filter 10A three phase noise filter





2,Outline drawing





3,Electrical Schematics





4,Rated Current



DAC1-6A

DAC1-10A

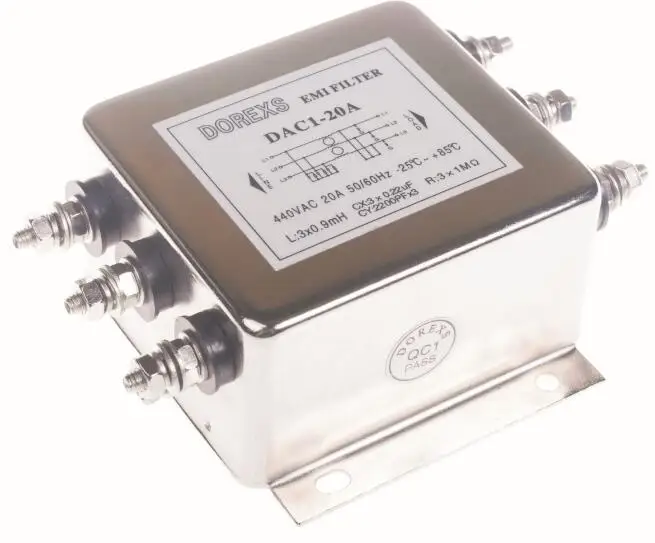

DAC1-20A

DAC1-30A



5,Technical parameters:

Rated voltage ................................................................................. 250/440VAC
Operating frequency ....................................................................................... 50/60Hz
Rated Current  ....................................................................................... 6A ~ 150A
Pressure test ................................................ line - Line: 1500VDC line - ground: 1500VAC
Insulation resistance ........................................................................> 200MΩ @ 500VDC
Temperature rise .......................................................................................... <30 ° C
Climatic category  .................................................................................... 25/085/21



6,Feature:



• Three Phase AC filter
• General Purpose filter
• Feature compact ,Easy to install
• Available for three phase ,three line series power supply equipment
